MaceratorSeries Grinder Pumps

Name: Macerator Series Grinder Pumps
Brand: APP

APP Macerator Series Grinder Pump from Taiwan.

pumpsMaceratorRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 67

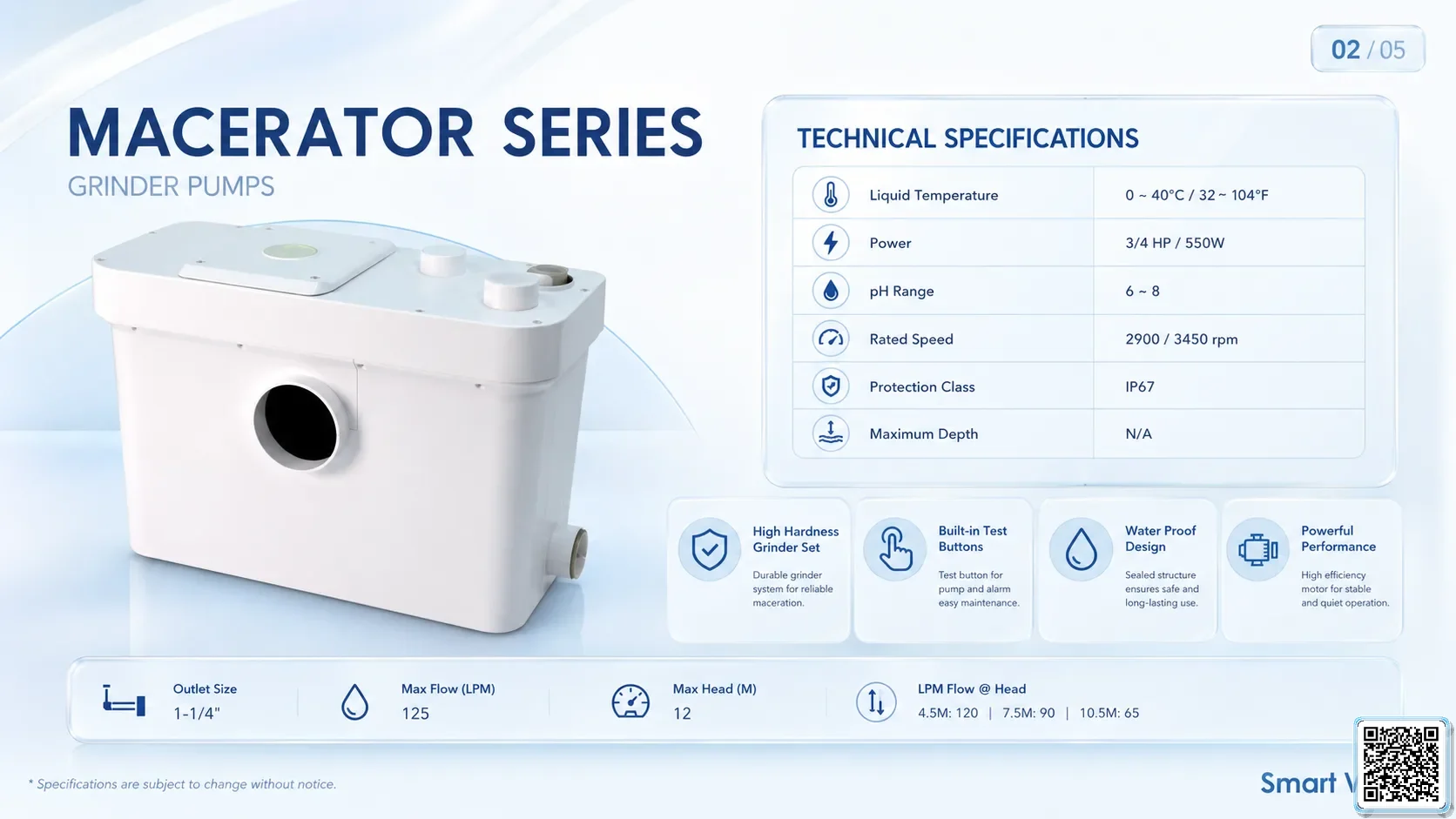

Technical Specifications

source	APP catalogue
section	Domestic
series	Macerator
family	Grinder Pump
catalogue_page	Domestic 35-36
features	High-hardness grinder set; built-in test button; waterproof compact design.
Series	Macerator Series
Pump Series	Macerator
Pump Type	Grinder Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP67
Variant Max Flow	125 LPM
Variant Max Head	35 m / 40 m
Variant Weight	36 kg / 12 kg

Project Integration

Macerator Series Grinder Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

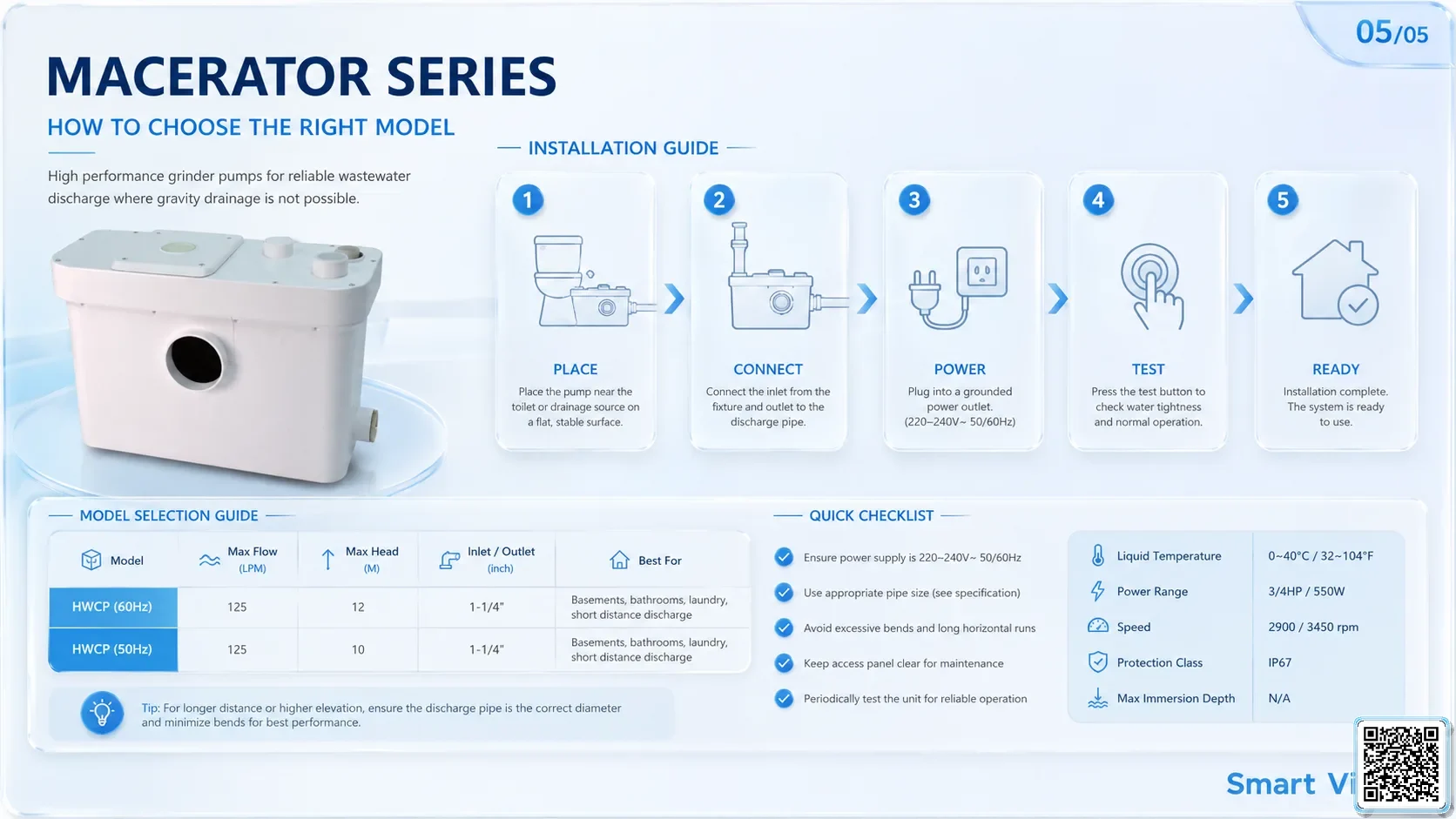

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
HWCP(50Hz) HWCP(50Hz)	3/4 HP / 550 W	—	32 mm / 1-1/4"	125 LPM	35 m	—	Not specified in catalogue	36 kg	—
HWCP(60Hz) HWCP(60Hz)	3/4 HP / 550 W	—	32 mm / 1-1/4"	125 LPM	40 m	—	Not specified in catalogue	12 kg	—
