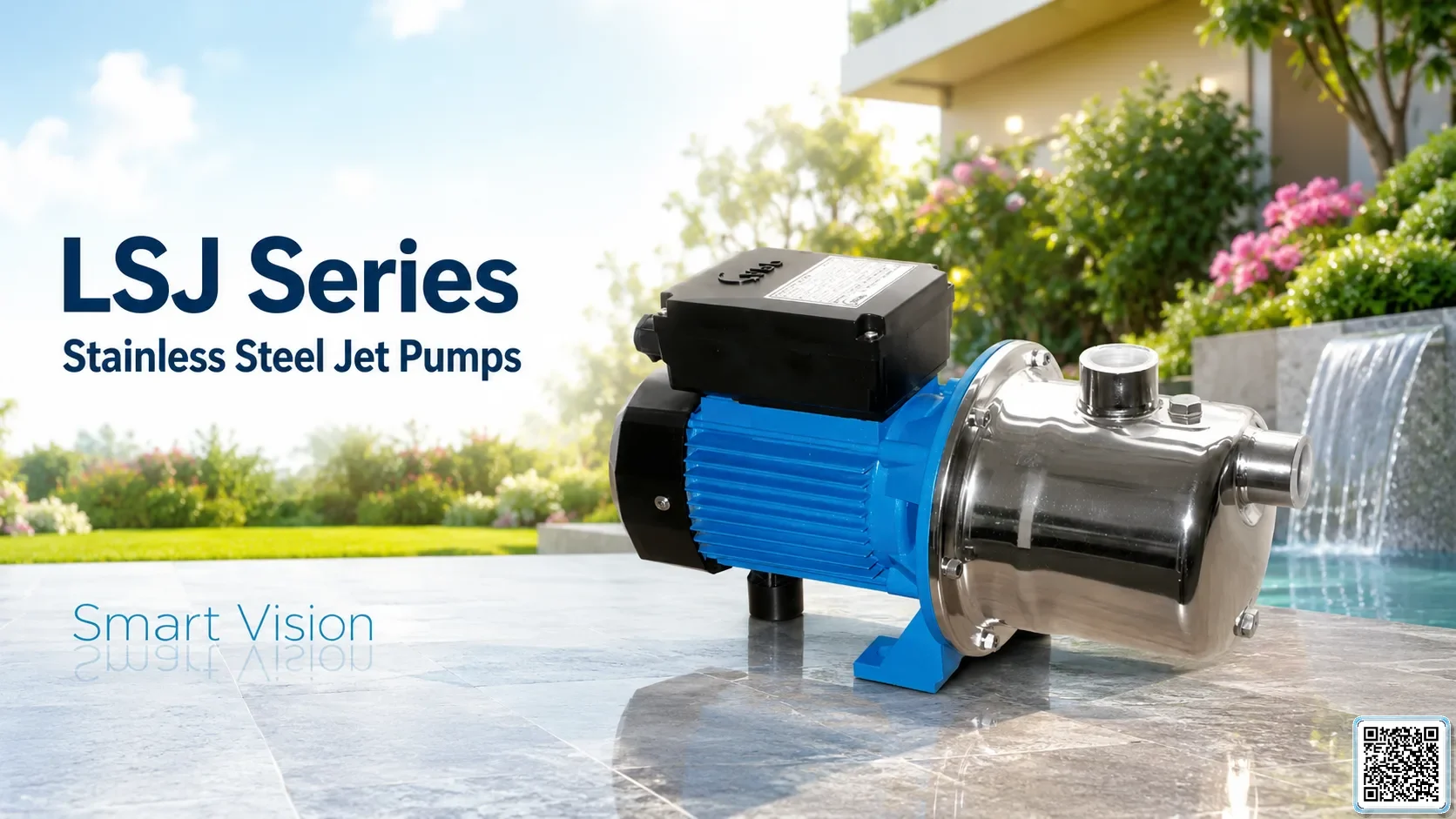

LSJ Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

LSJSeries Stainless Steel Jet Pumps

Name: LSJ Series Stainless Steel Jet Pumps
Brand: APP

APP LSJ Series Jet / Self-priming Pump from Taiwan.

pumpsLSJRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 68

Technical Specifications

source	APP catalogue
section	Domestic
series	LSJ
family	Jet / Self-priming Pump
catalogue_page	Domestic 33-34
features	All stainless steel; jet pump suction depth about 9 m.
Series	LSJ Series
Pump Series	LSJ
Pump Type	Jet / Self-priming Pump
Max Diving Depth	Maximum suction 9 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP55
Material	Stainless steel
Variant Dimensions	345 x 158 x 196 mm / 380 x 158 x 196 mm
Pump length / size	345 x 158 x 196 mm / 380 x 158 x 196 mm
Variant Max Flow	60 LPM / 75 LPM
Variant Max Head	36 m / 42 m
Variant Weight	8 kg / 9.1 kg / 9 kg / 10.1 kg

Project Integration

LSJ Series Stainless Steel Jet Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

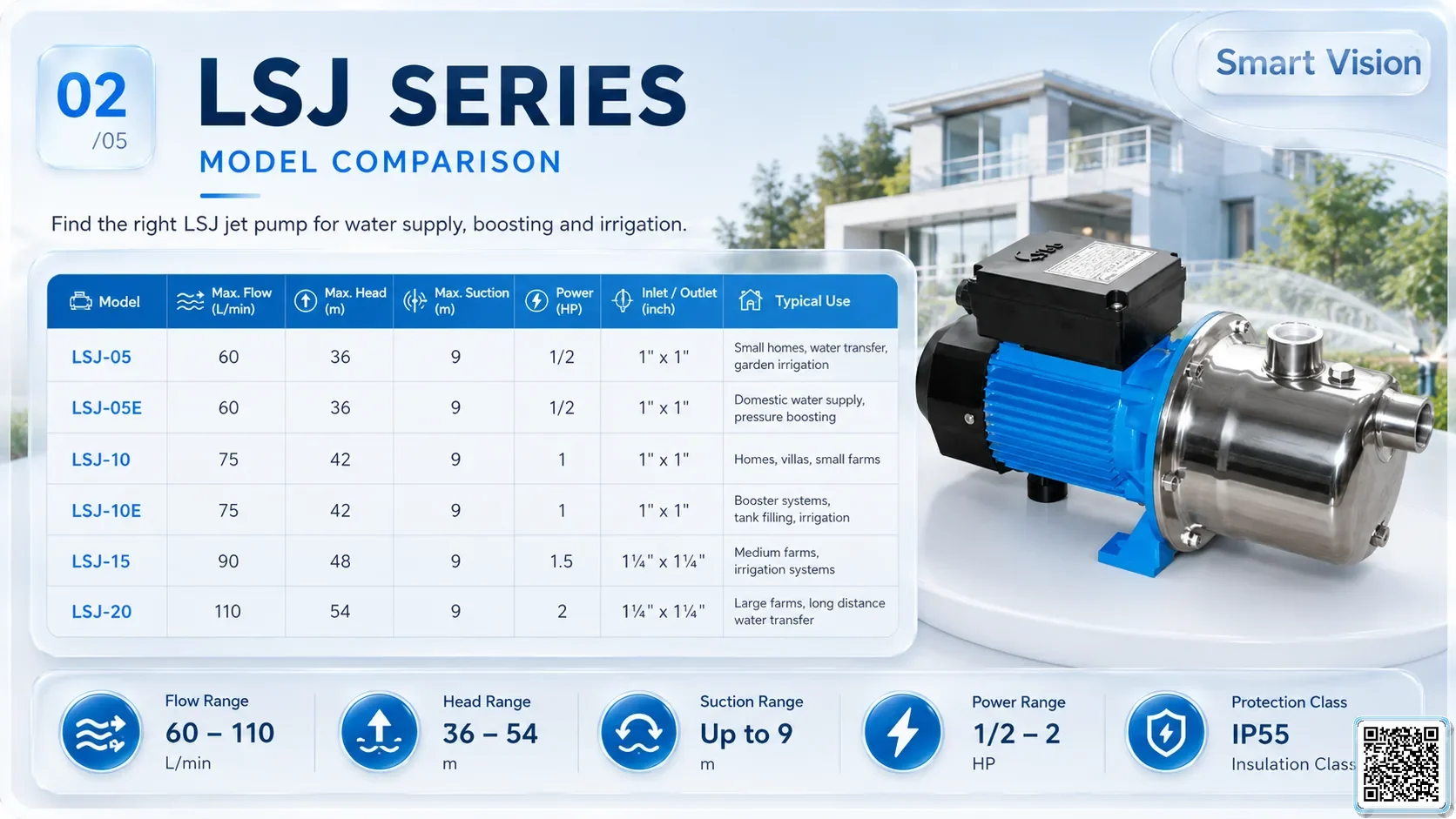

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
LSJ-05 LSJ-05	1/2 HP / 400 W	220V / 1P	25 mm / 1"	60 LPM	36 m	—	345	8 kg	—
LSJ-05E LSJ-05E	1/2 HP / 400 W	220V / 1P	25 mm / 1"	60 LPM	36 m	—	345	9.1 kg	—
LSJ-10 LSJ-10	1 HP / 750 W	220V / 1P	25 mm / 1"	75 LPM	42 m	—	380	9 kg	—
LSJ-10E LSJ-10E	1 HP / 750 W	220V / 1P	25 mm / 1"	75 LPM	42 m	—	380	10.1 kg	—
LSJ-15E LSJ-15E	1/2 HP / 400 W	220V / 1P	25 mm / 1"	60 LPM	36 m	—	345	8 kg	—
LSJ-15 LSJ-15	1/2 HP / 400 W	220V / 1P	25 mm / 1"	60 LPM	36 m	—	345	8 kg	—
