● FOUNTAIN PUMP / VFD

KSVSeries Dirty Water Pumps

Name: KSV Series Dirty Water Pumps
Brand: APP

APP KSV Series Dirty Water Pump from Taiwan.

pumpsKSVRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 75

Technical Specifications

source	APP catalogue
section	Domestic
series	KSV
family	Dirty Water Pump
catalogue_page	Domestic 31-32
features	Non-clog design; double mechanical seal.
Series	KSV Series
Pump Series	KSV
Pump Type	Dirty Water Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	190 x 140 x 360 mm / 215 x 155 x 370 mm / 260 x 160 x 430 mm / 270 x 350 x 610 mm
Pump length / size	190 x 140 x 360 mm / 215 x 155 x 370 mm / 260 x 160 x 430 mm / 270 x 350 x 610 mm
Variant Max Flow	200 LPM / 240 LPM / 300 LPM / 330 LPM / 430 LPM / 800 LPM
Variant Max Head	6 m / 7 m / 9 m / 10 m / 11 m / 17 m
Variant Pass Solid	5 mm / 10 mm / 15 mm / 20 mm
Variant Weight	6 kg / 8 kg / 15 kg / 13 kg / 32 kg
Accessories	Hose connection / Flange, Hose connection
Flow / Head	200~800 LPM; 6~17 m by model
Max Particle Size	5~20 mm by model
Flow / head	200~800 LPM; 6~17 m by model

Project Integration

KSV Series Dirty Water Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

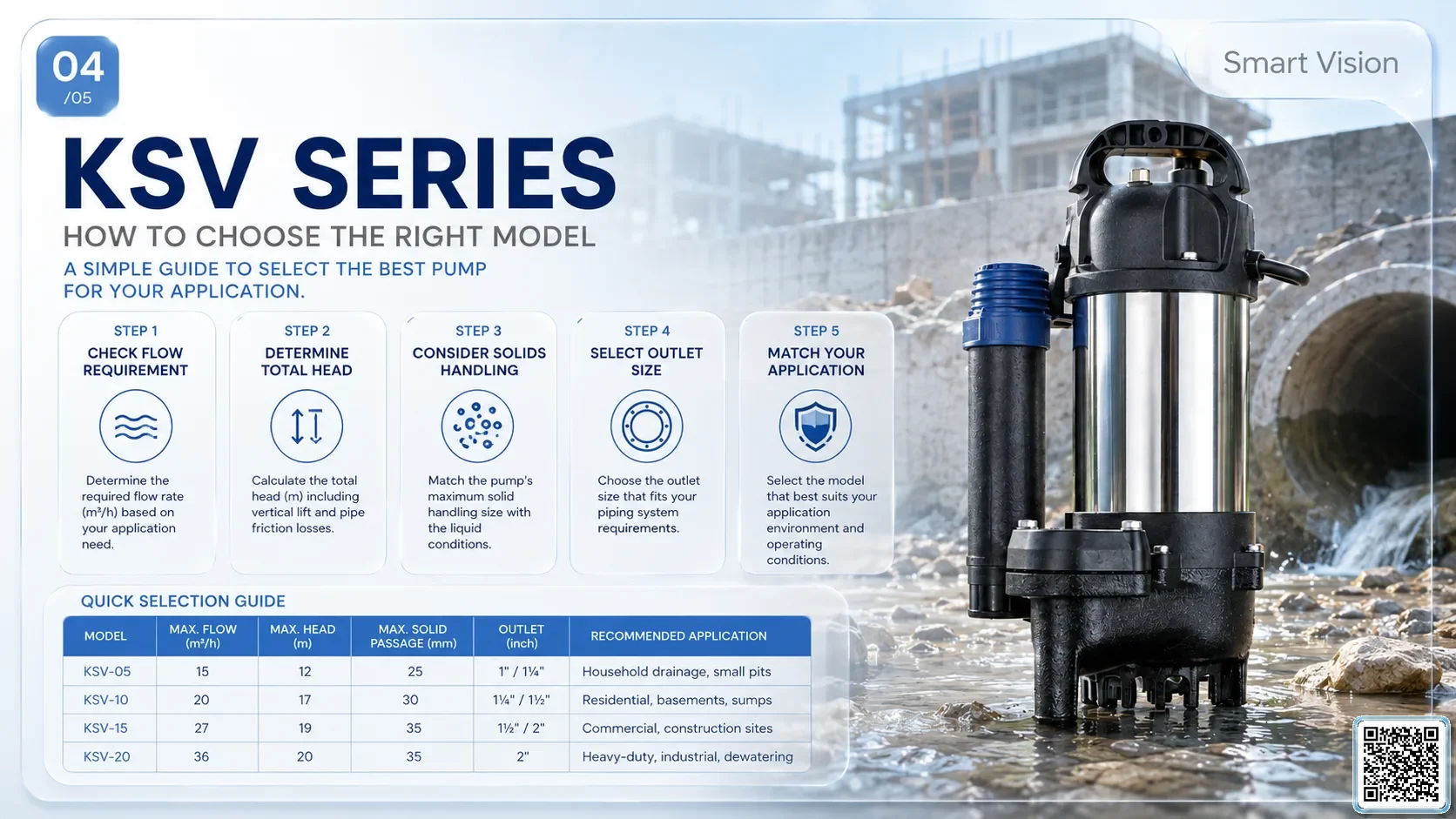

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
KSV-150 KSV-150	1/5 HP / 150 W	—	40 mm / 1-1/2"	200 LPM	6 m	5 mm	190	6 kg	Hose connection
KSV-250 KSV-250	1/3 HP / 250 W	—	40 mm / 1-1/2"	240 LPM	7 m	5 mm	190	8 kg	Hose connection
KSV-400 KSV-400	1/2 HP / 400 W	—	50 mm / 2"	300 LPM	9 m	10 mm	215	15 kg	Flange, Hose connection
KSV-750 KSV-750	1 HP / 750 W	—	80 mm / 3"	430 LPM	11 m	15 mm	260	15 kg	Flange, Hose connection
KSV-1500 KSV-1500	2 HP / 1500 W	—	80 mm / 3"	800 LPM	17 m	20 mm	270	32 kg	Flange, Hose connection
KSV-550 KSV-550	3/4 HP / 550 W	—	50 mm / 2"	330 LPM	10 m	15 mm	260	13 kg	Flange, Hose connection
