KS Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

KSSeries Dirty Water Pumps

Name: KS Series Dirty Water Pumps
Brand: APP

APP KS Series Dirty Water Pump from Taiwan.

pumpsKSRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 82

Technical Specifications

source	APP catalogue
section	Industry
series	KS
family	Dirty Water Pump
catalogue_page	27-28
features	Double mechanical seal; rubber bearing cover for longer lifetime.
Series	KS Series
Pump Series	KS
Pump Type	Dirty Water Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	290 x 180 x 425 mm / 278 x 182 x 475 mm / 390 x 250 x 450 mm / 450 x 240 x 530 mm / 550 x 310 x 590 mm / 550 x 310 x 610 mm
Pump length / size	290 x 180 x 425 mm / 278 x 182 x 475 mm / 390 x 250 x 450 mm / 450 x 240 x 530 mm / 550 x 310 x 590 mm / 550 x 310 x 610 mm
Variant Max Flow	420 LPM / 620 LPM / 900 LPM / 1200 LPM / 1900 LPM / 2400 LPM
Variant Max Head	14 m / 16 m / 18 m / 22 m / 24 m / 28 m
Variant Pass Solid	6 mm / 9 mm / 11 mm
Variant Weight	21 kg / 31 kg / 42 kg / 48 kg / 60 kg / 70 kg

Project Integration

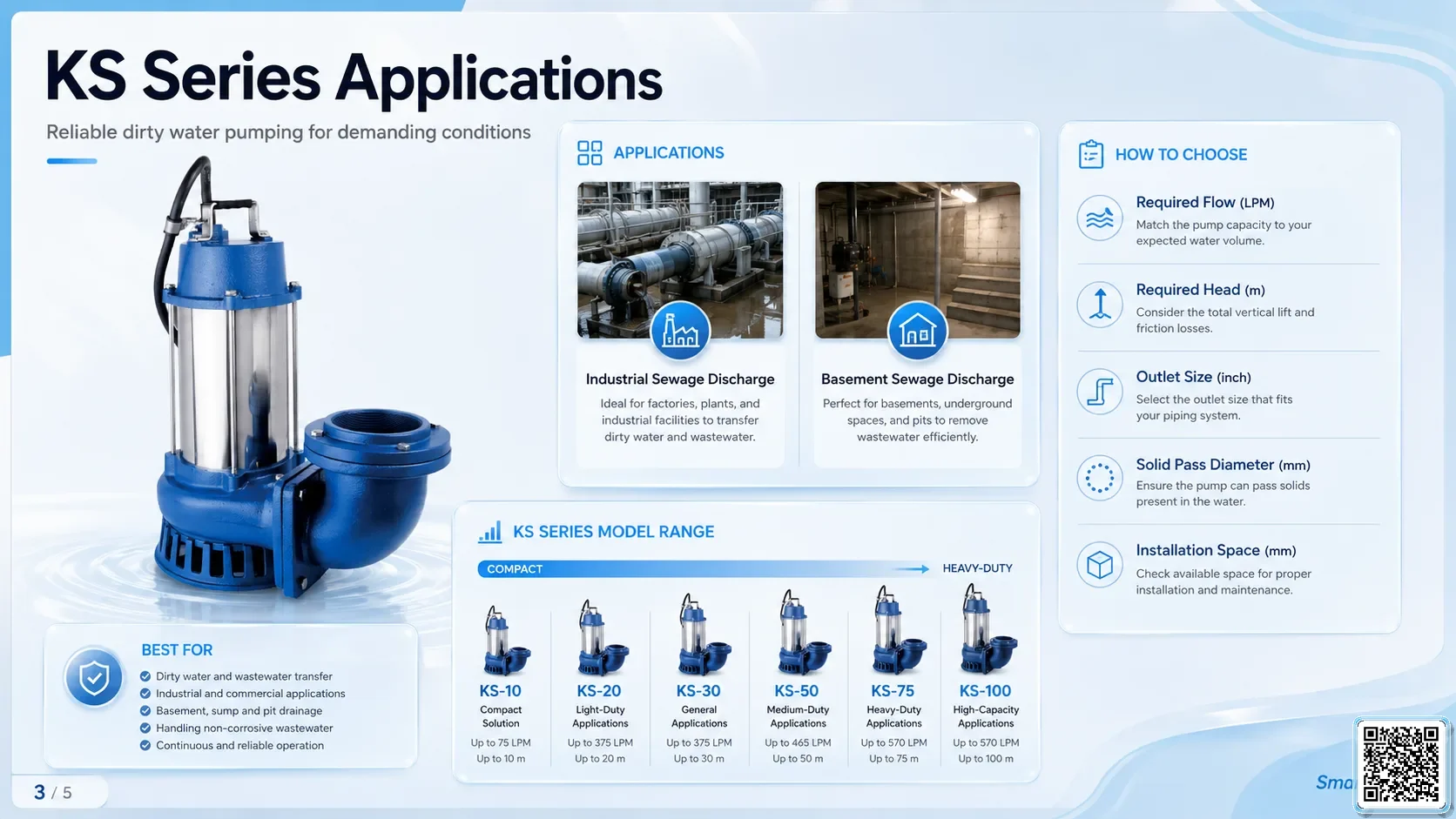

KS Series Dirty Water Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

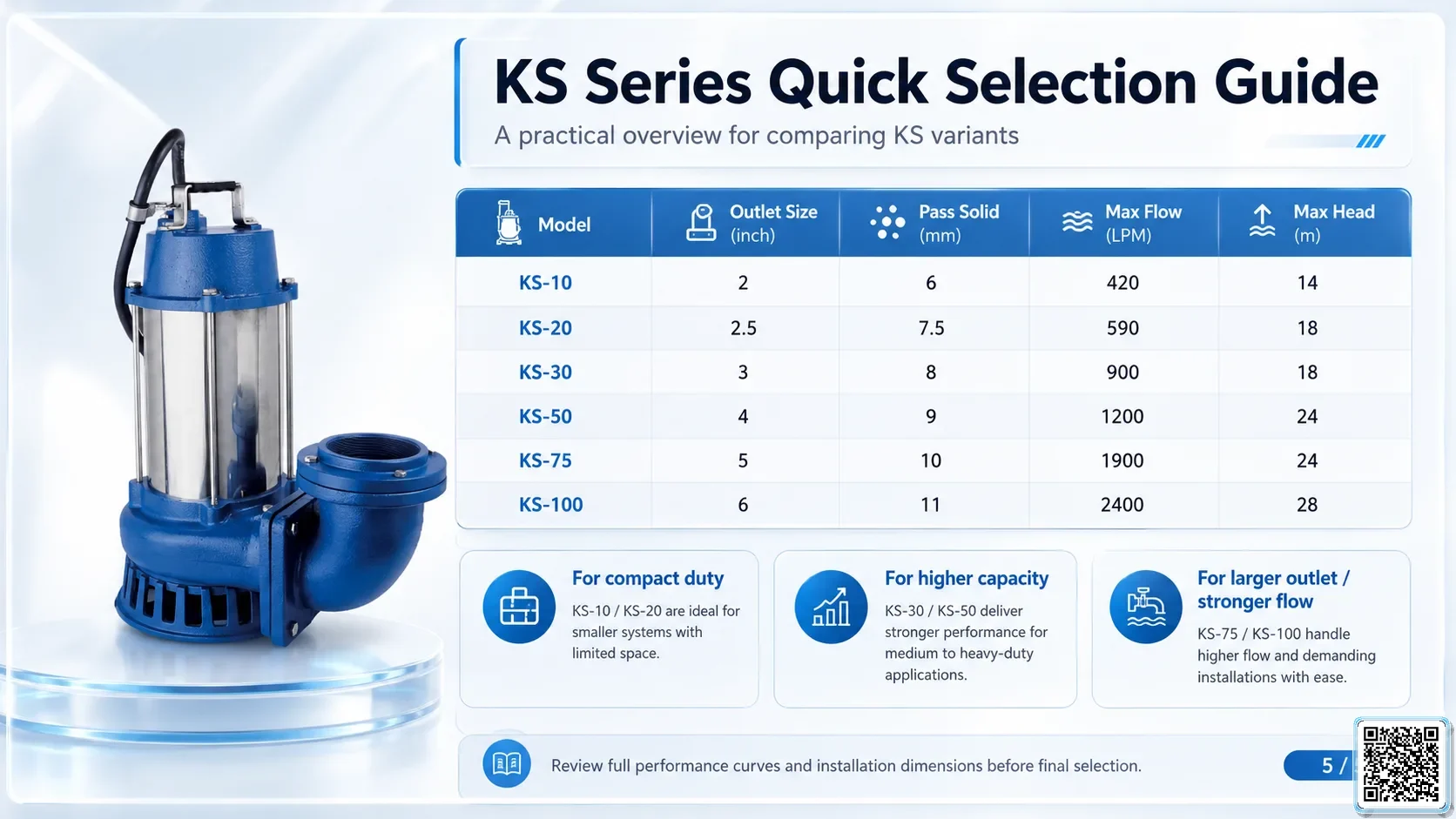

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
KS-10 KS-10	1 HP / 750 W	220V / 1P \| 380V / 3P	50 mm / 2"	420 LPM	14 m	6 mm	290	21 kg	—
KS-20 KS-20	2 HP / 1500 W	220V / 1P \| 380V / 3P	80 mm / 3"	620 LPM	16 m	9 mm	278	31 kg	—
KS-30GT KS-30GT	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	900 LPM	18 m	11 mm	390	42 kg	—
KS-30T KS-30T	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	900 LPM	18 m	11 mm	390	42 kg	—
KS-30 KS-30	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	900 LPM	18 m	11 mm	390	42 kg	—
KS-50GT KS-50GT	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1200 LPM	22 m	11 mm	450	48 kg	—
KS-50 KS-50	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1200 LPM	22 m	11 mm	450	48 kg	—
KS-75 KS-75	7.5 HP / 5.5 kW	—	100 mm / 4"	1900 LPM	24 m	11 mm	550	60 kg	—
KS-100 KS-100	10 HP / 7.5 kW	—	150 mm / 6"	2400 LPM	28 m	11 mm	550	70 kg	—
