KG Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

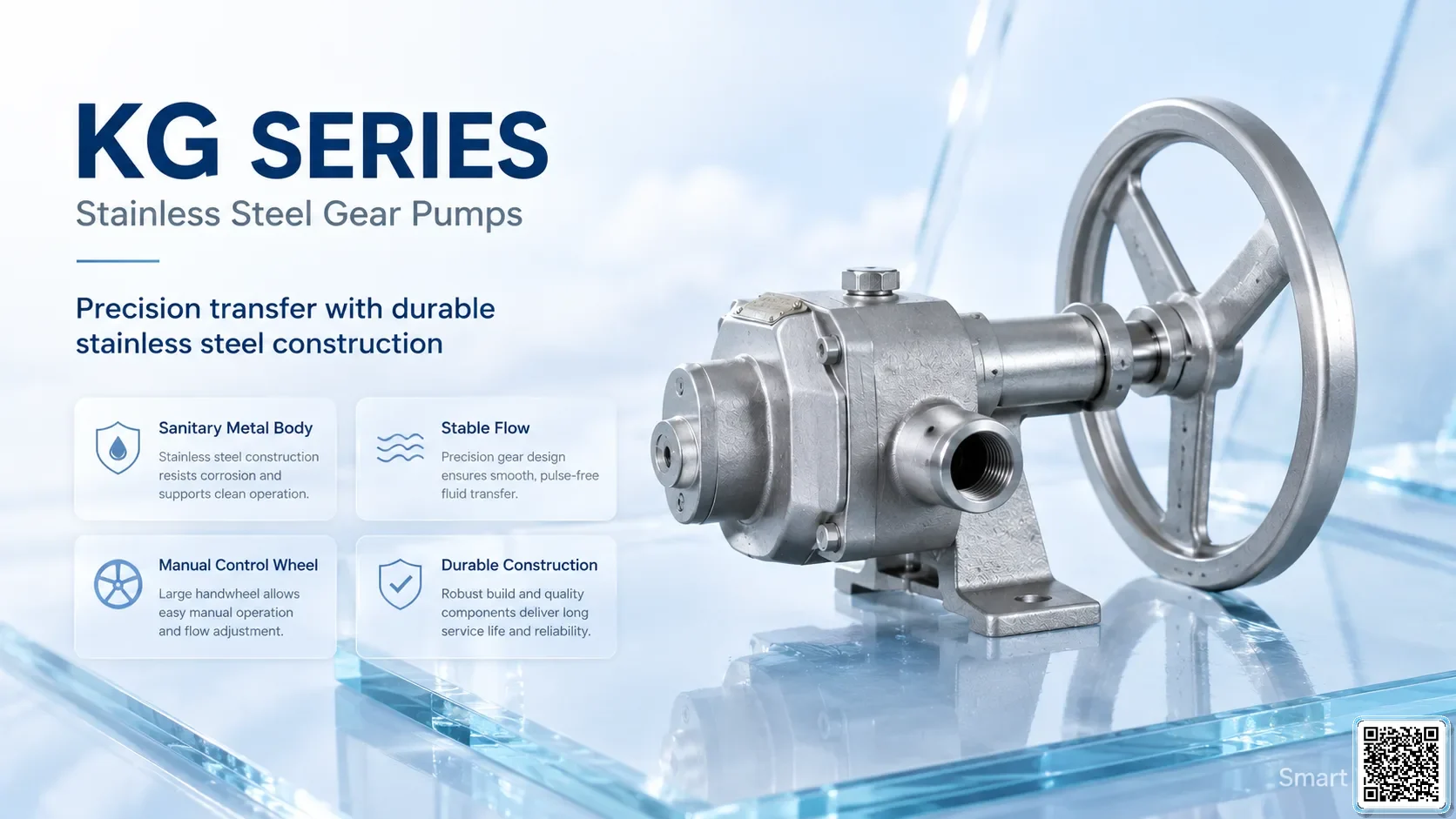

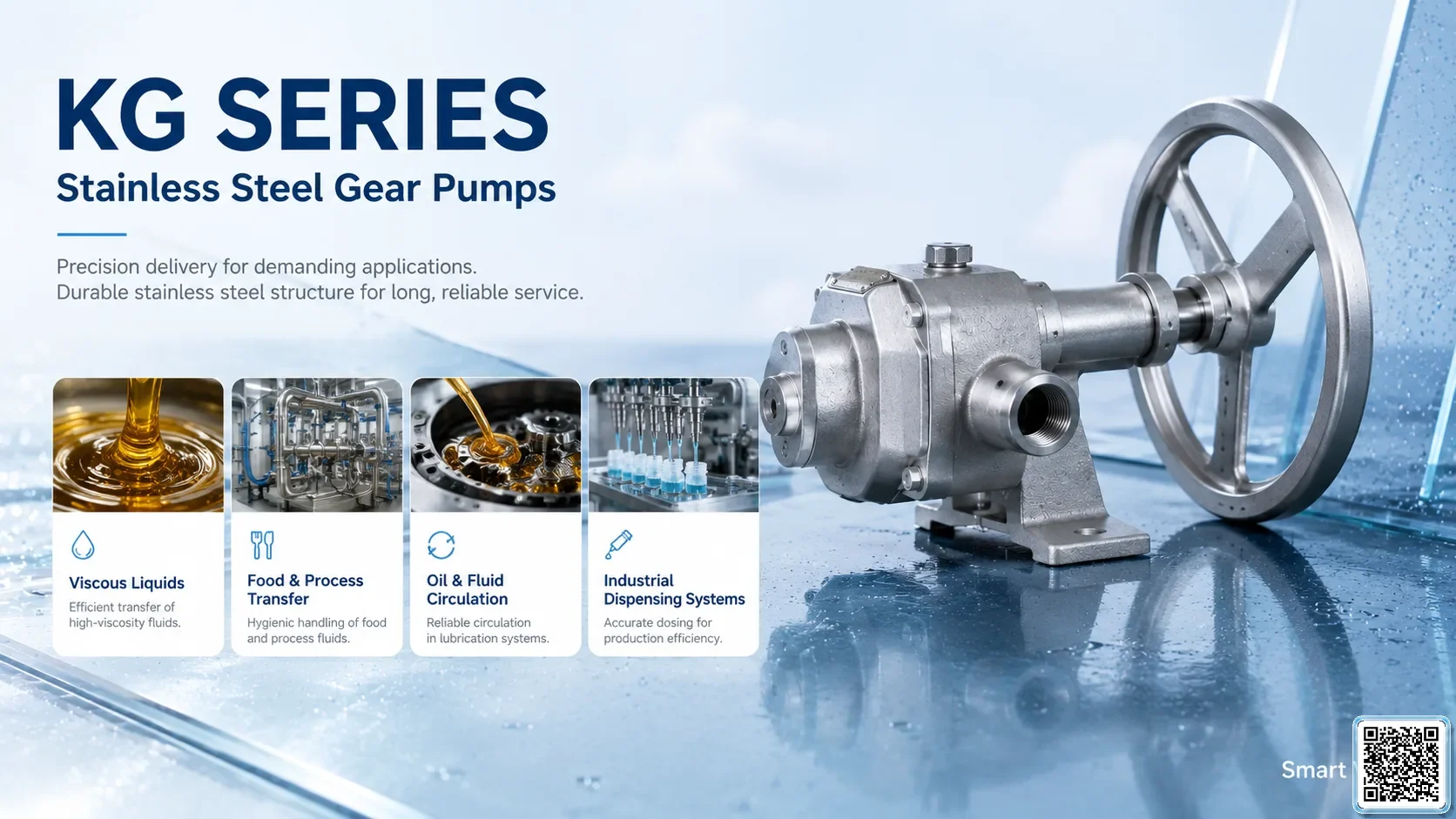

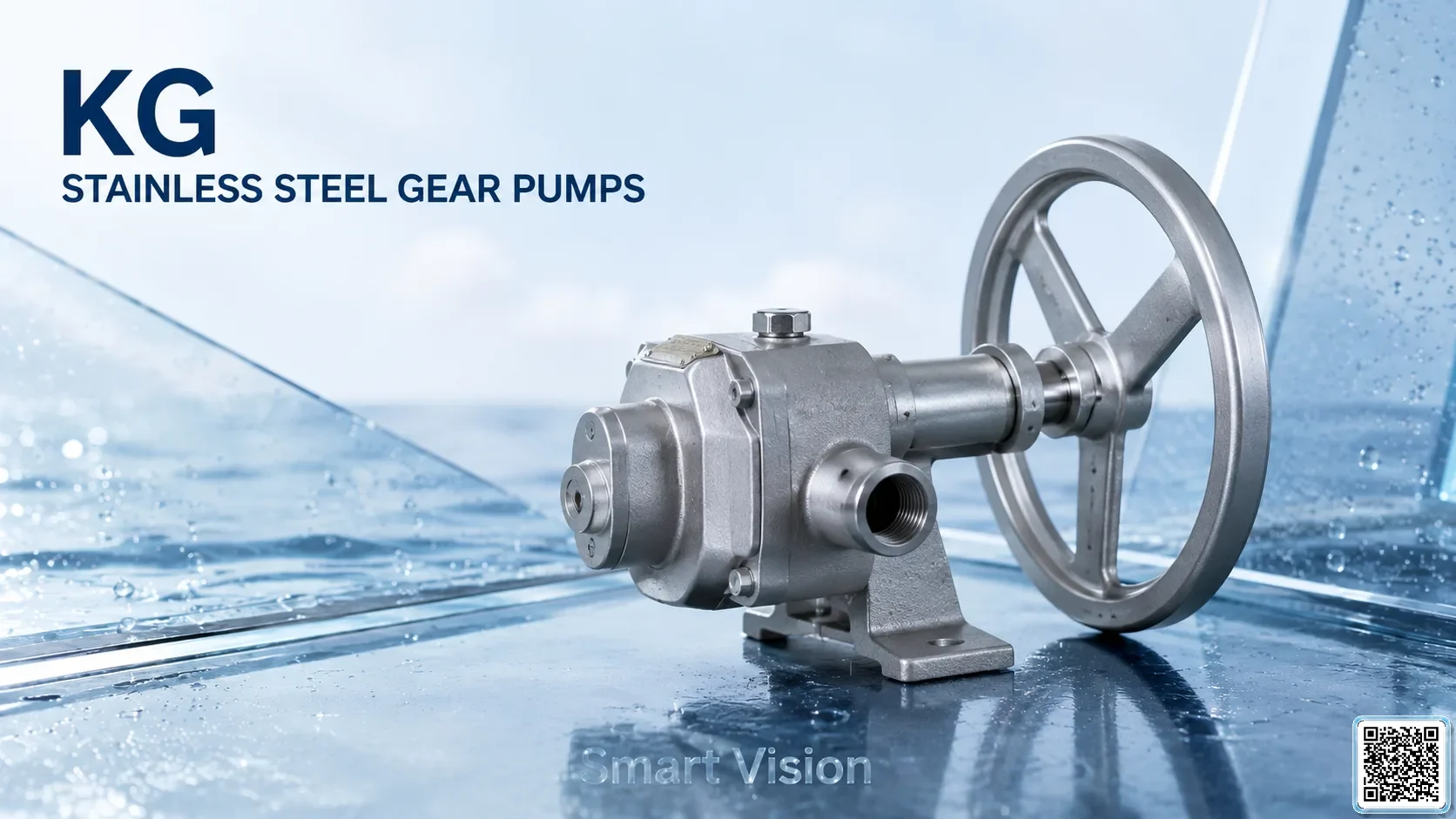

KGSeries Stainless Steel Gear Pumps

Name: KG Series Stainless Steel Gear Pumps
Brand: APP

APP KG Series Gear / Piston Pump from Taiwan.

pumpsKGRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 57

Technical Specifications

source	APP catalogue
section	Auxiliary
series	KG
family	Gear / Piston Pump
catalogue_page	Auxiliary 07-08
features	Stainless steel gear pump with pressure rating.
Series	KG Series
Pump Series	KG
Pump Type	Gear / Piston Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Max Flow	14 LPM / 35 LPM / 48 LPM / 56 LPM / 95 LPM / 150 LPM / 200 LPM / 260 LPM / 500 LPM
Variant Max Head	3 kg/cm² / 4 kg/cm²

Project Integration

KG Series Stainless Steel Gear Pumps is suitable for auxiliary applications such as pump control, condensate drainage, cooling, light chemical handling or other special-purpose systems depending on the model. Selection should check liquid type, temperature, pressure, wetted material and duty conditions.

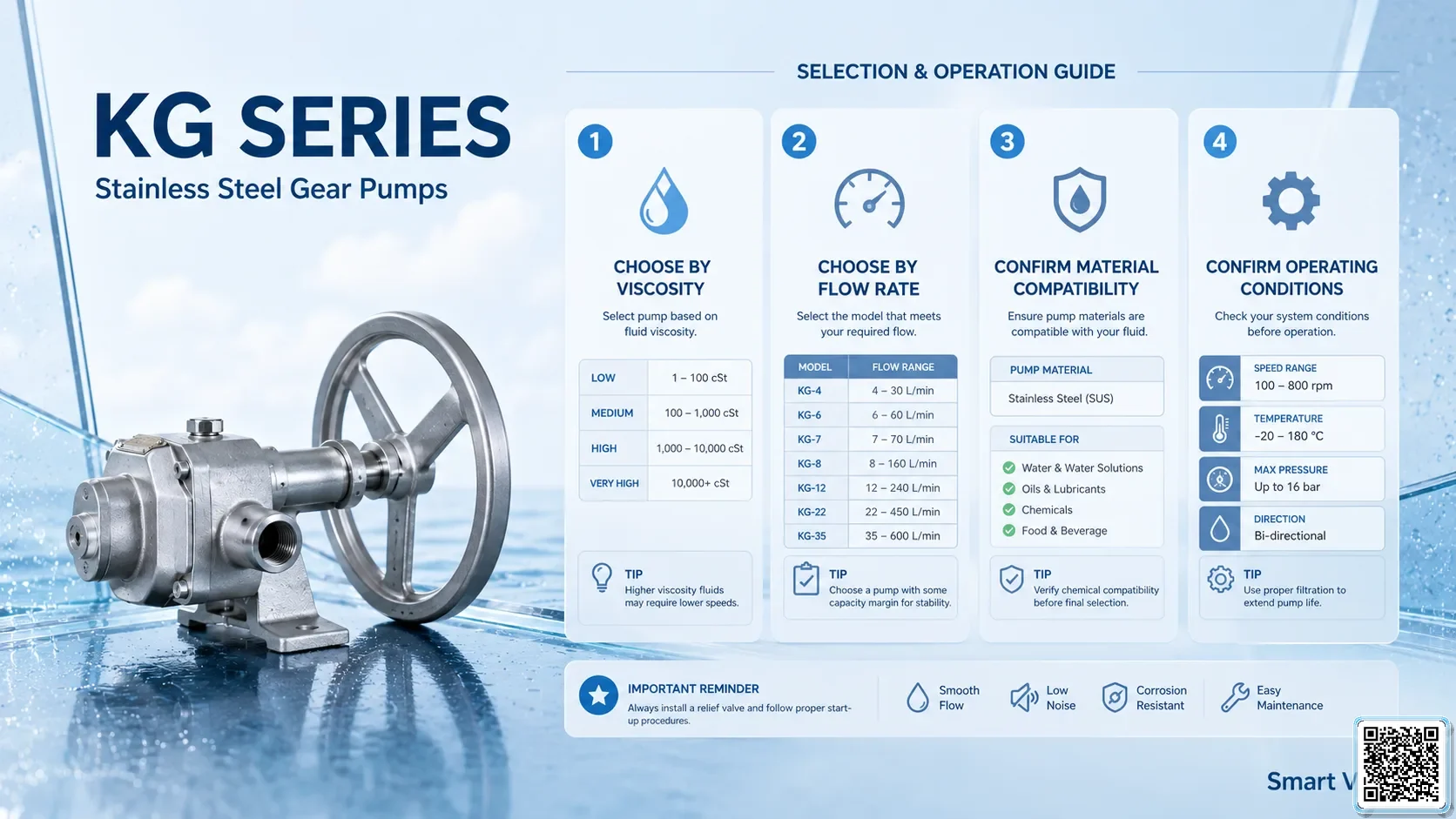

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

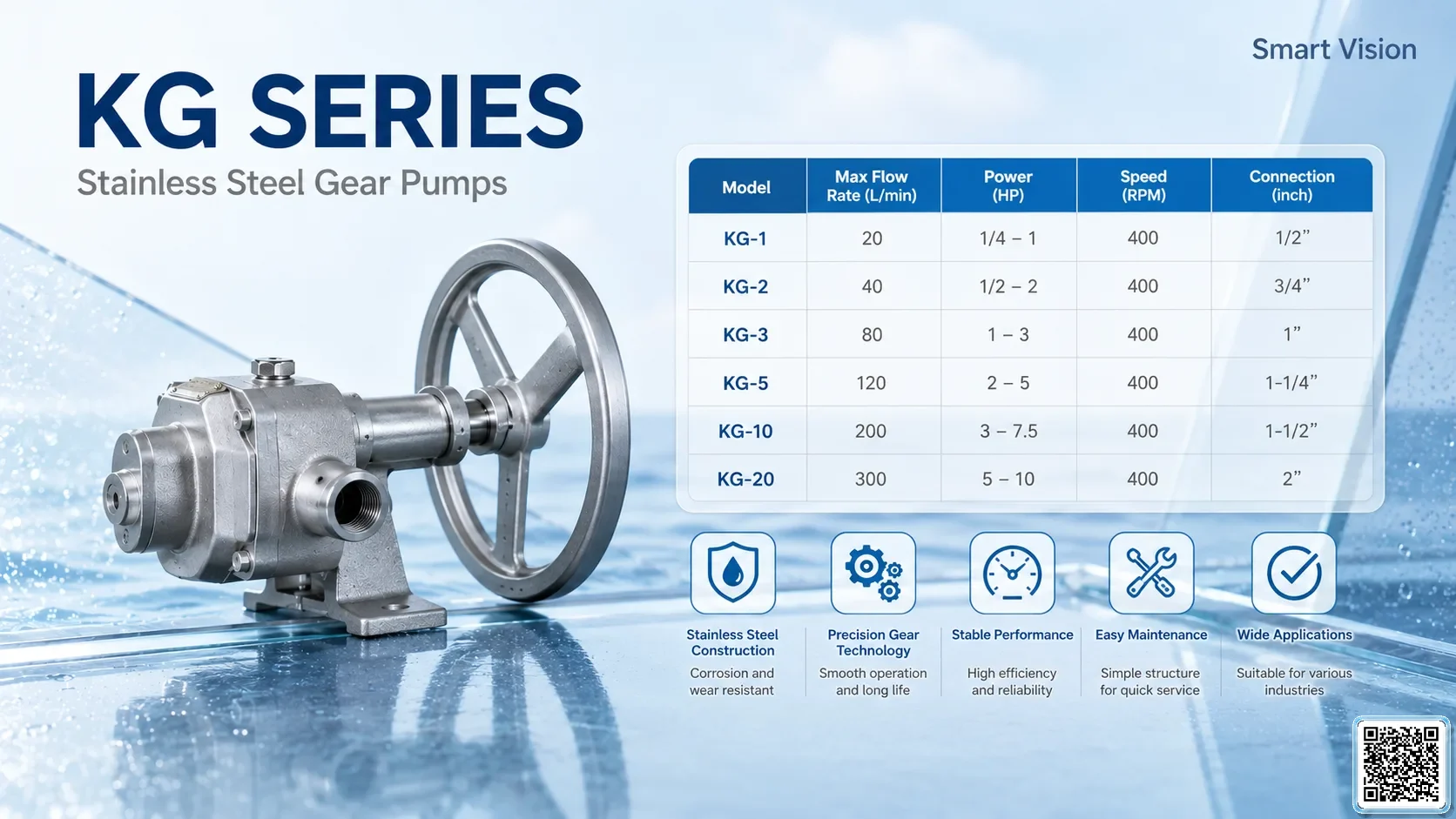

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
KG-1 KG-1	1/2 HP / 0.4 kW	—	13 mm / 1/2"	14 LPM	3 kg/cm²	—	Not specified in catalogue	—	—
KG-2 KG-2	1/2~1 HP / 0.4~0.75 kW	—	29 mm / 3/4"	35 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-3 KG-3	1~2 HP / 0.75~1.5 kW	—	25 mm / 1"	48 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-4 KG-4	1~3 HP / 0.75~2.2 kW	—	32 mm / 1-1/4"	56 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-5 KG-5	2~5 HP / 2.2~3.7 kW	—	40 mm / 1-1/2"	95 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-6 KG-6	3~5 HP / 1.5~3.7 kW	—	50 mm / 2"	150 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-7 KG-7	5~7.5 HP / 3.7~5.5 kW	—	75 mm / 2-1/2"	200 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-8 KG-8	7.5~10 HP / 3.5~7.5 kW	—	80 mm / 3"	260 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
KG-9 KG-9	15~30 HP / 11~22 kW	—	100 mm / 4"	500 LPM	4 kg/cm²	—	Not specified in catalogue	—	—
