JKSeries Sewage Pumps

Name: JK Series Sewage Pumps
Brand: APP

APP JK Series Sewage Pump from Taiwan.

pumpsJKRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 92

Technical Specifications

source	APP catalogue
section	Industry
series	JK
family	Sewage Pump
catalogue_page	23-24

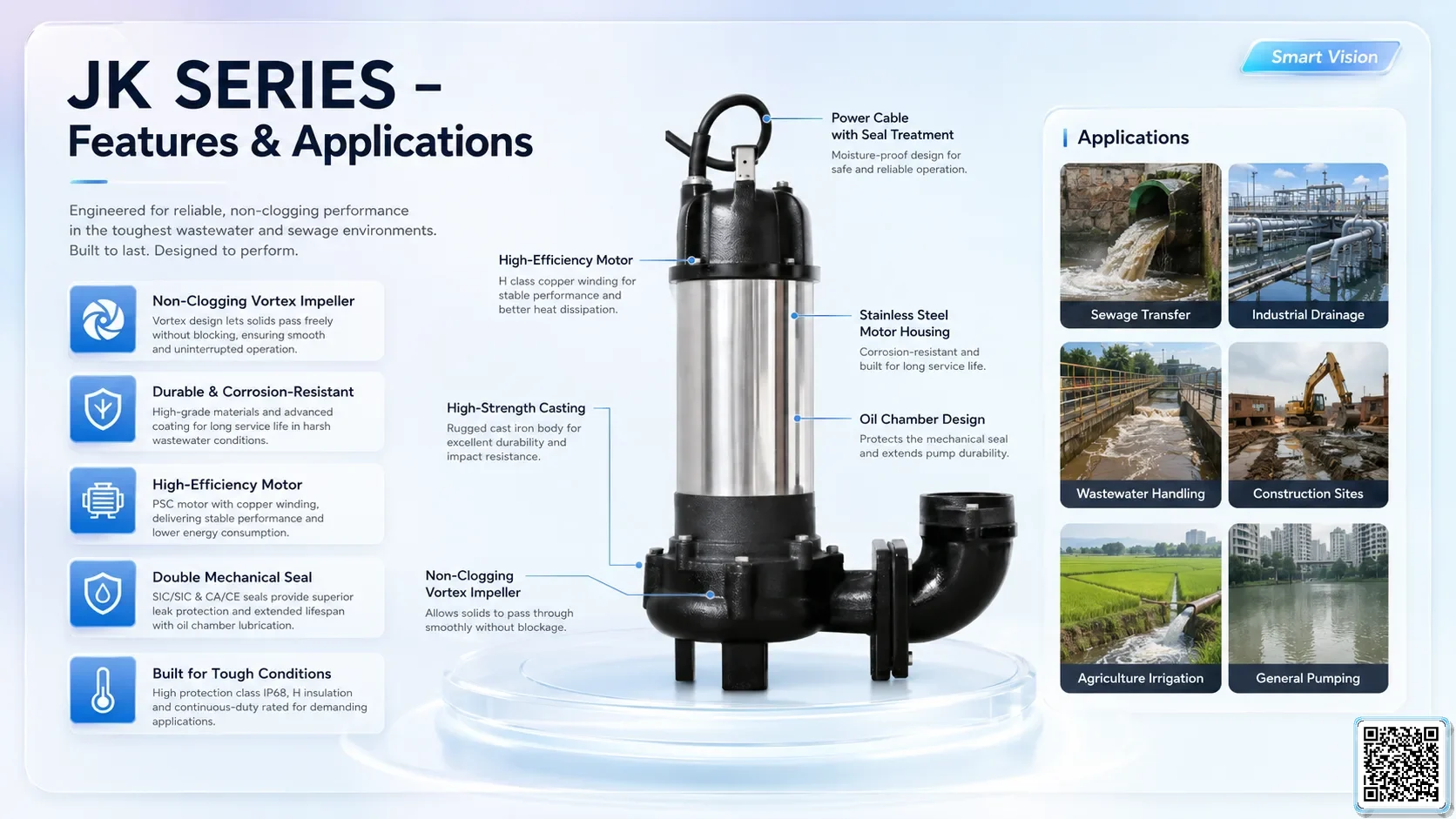

features	Non-clogging vortex impeller; suspended impeller and efficient flow channel.
Series	JK Series
Pump Series	JK
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	223 x 132 x 395 mm / 223 x 132 x 425 mm / 390 x 210 x 530 mm / 390 x 210 x 550 mm / 525 x 250 x 635 mm / 525 x 250 x 675 mm
Pump length / size	223 x 132 x 395 mm / 223 x 132 x 425 mm / 390 x 210 x 530 mm / 390 x 210 x 550 mm / 525 x 250 x 635 mm / 525 x 250 x 675 mm
Variant Max Flow	320 LPM / 400 LPM / 620 LPM / 780 LPM / 1100 LPM / 1200 LPM
Variant Max Head	9 m / 12 m / 18 m / 22 m / 24 m
Variant Pass Solid	30 mm / 35 mm / 45 mm / 50 mm
Variant Weight	14 kg / 21 kg / 32 kg / 34 kg / 45 kg / 54 kg

Project Integration

JK Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

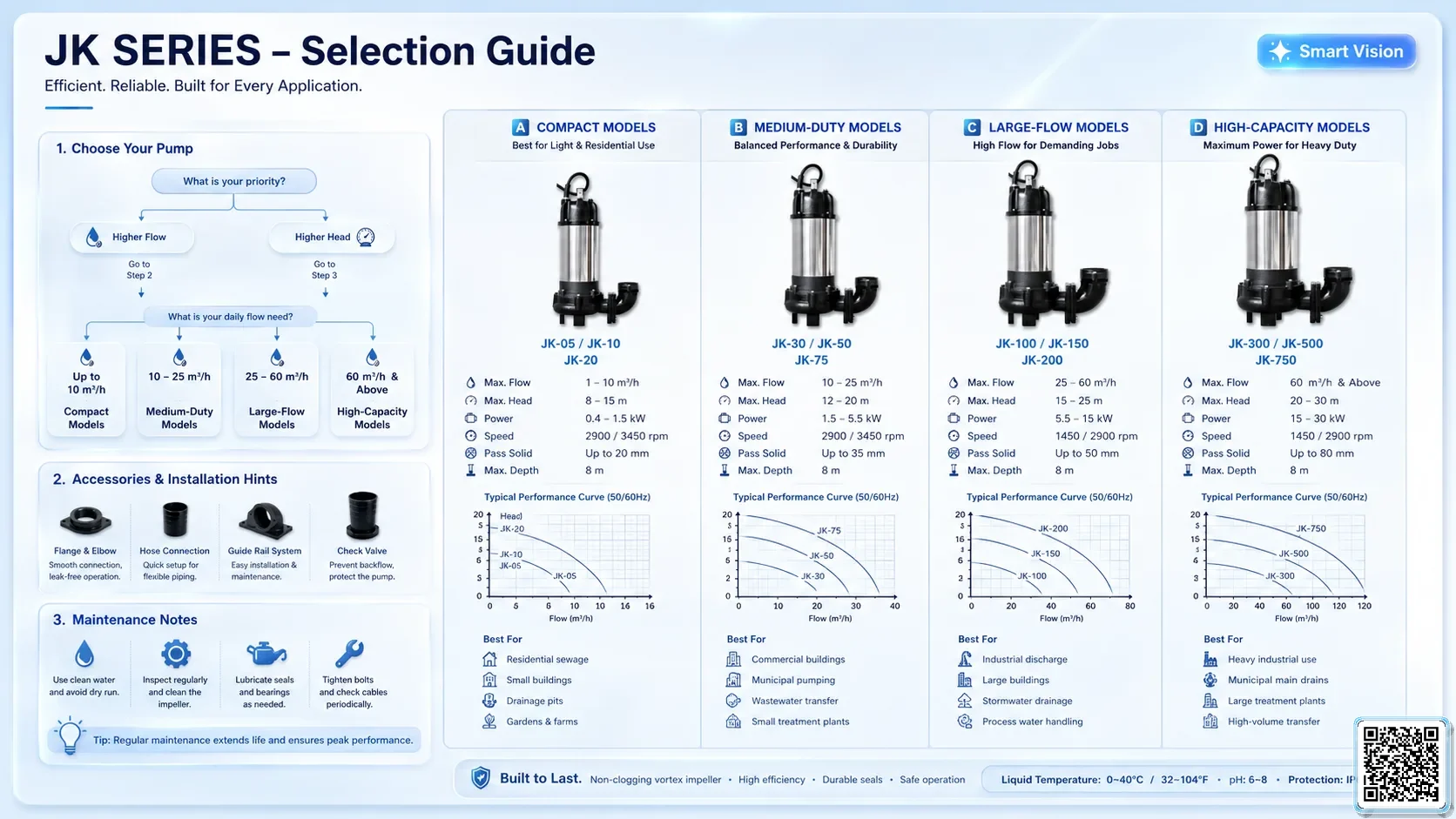

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
JK-10T JK-10T	/ 0.75 kW	220V / 1P \| 380V / 3P	50 mm / 2"	400 LPM	12 m	30 mm	223	21 kg	—
JK-05 JK-05	1/2 HP / 0.4 kW	220V / 1P	50 mm / 2"	320 LPM	9 m	30 mm	223	14 kg	—
JK-10 JK-10	1 HP / 0.75 kW	220V / 1P \| 380V / 3P	50 mm / 2"	400 LPM	12 m	30 mm	223	21 kg	—
JK-20 JK-20	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	80 mm / 3"	620 LPM	18 m	35 mm	390	32 kg	—
JK-30 JK-30	3 HP / 2.2 kW	220V / 1P \| 380V / 3P	80 mm / 3"	780 LPM	18 m	35 mm	390	34 kg	—
JK-50T JK-50T	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1100 LPM	22 m	45 mm	525	45 kg	—
JK-50 JK-50	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1100 LPM	22 m	45 mm	525	45 kg	—
JK-75 JK-75	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	1200 LPM	24 m	50 mm	525	54 kg	—
JK-75T JK-75T	/ 55 kW	380V / 3P	100 mm / 4"	1200 LPM	24 m	50 mm	525	54 kg	—
