JA200Series Home Booster Pumps

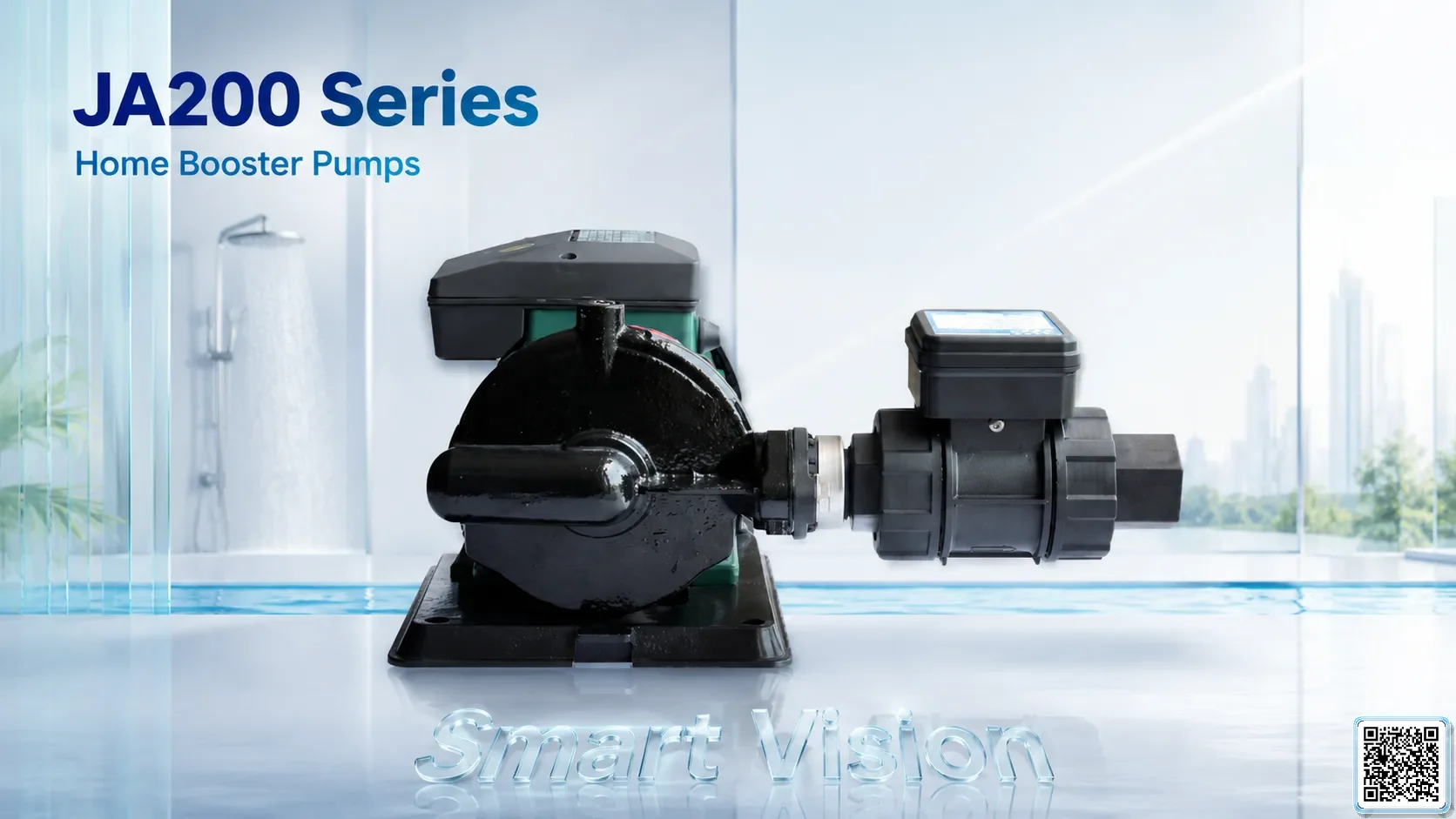

Name: JA200 Series Home Booster Pumps
Brand: APP

APP JA200 Series Home Booster Pump from Taiwan.

pumpsJA200Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 68

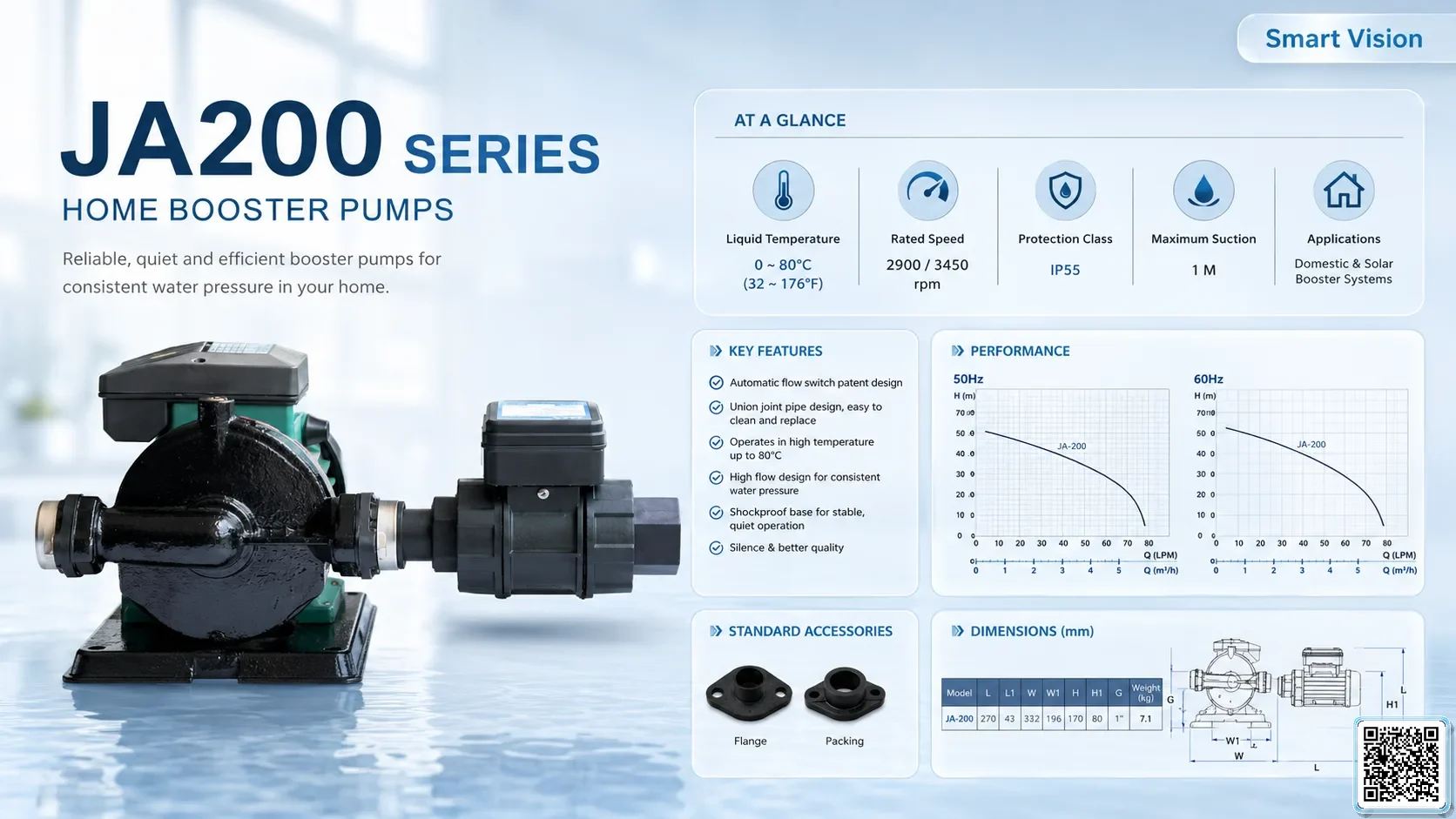

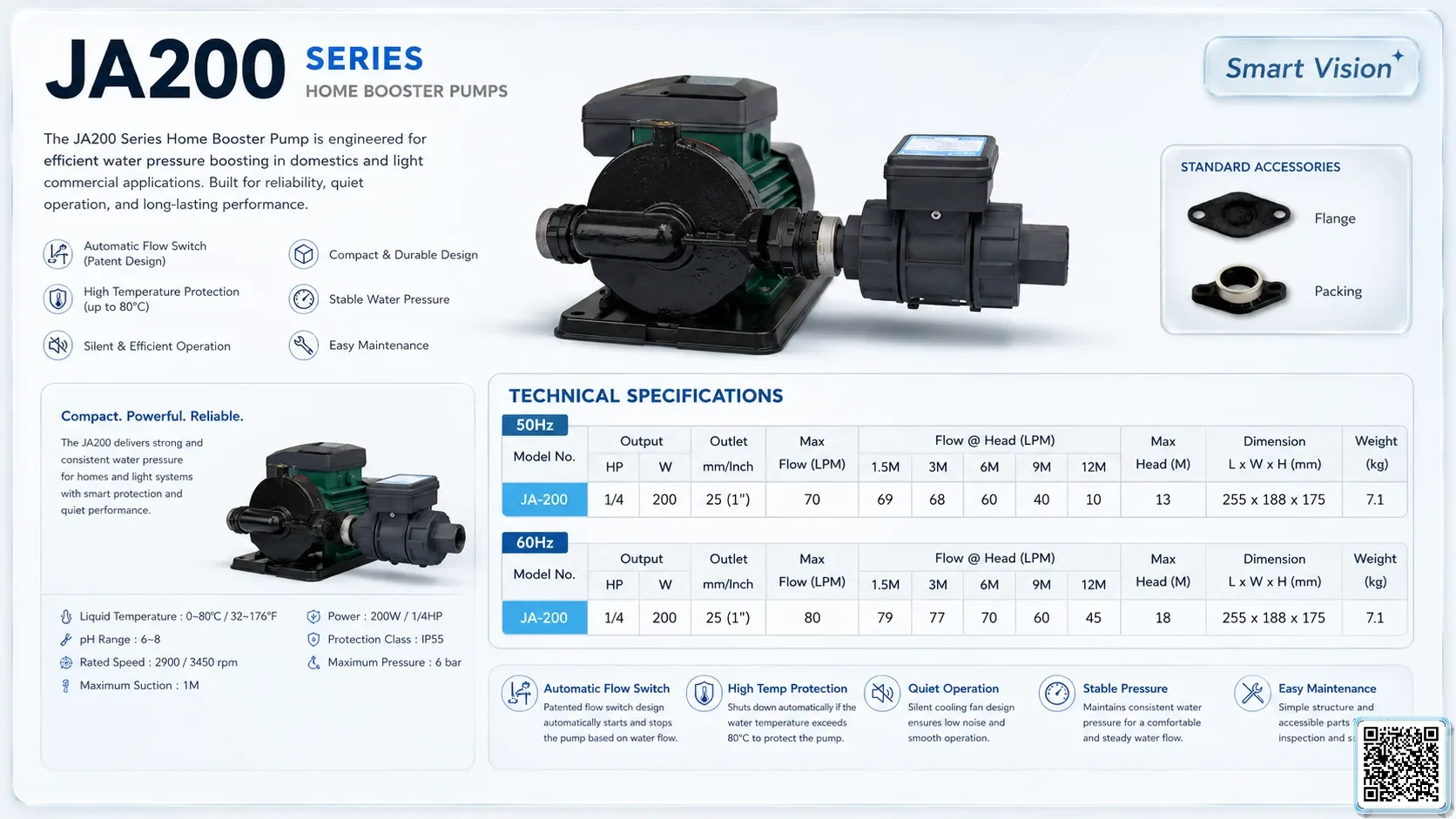

Technical Specifications

source	APP catalogue
section	Domestic
series	JA200
family	Home Booster Pump
catalogue_page	Domestic 29-30
features	Automatic flow switch; union joint; high-temperature support; downward booster.
Series	JA200 Series
Pump Series	JA200
Pump Type	Home Booster Pump
Max Diving Depth	Maximum suction 1 m
Water Temperature	0~80℃ / 32~176℉
pH Range	6~8
Pump construction	IP55
Variant Dimensions	255 x 188 x 175 mm
Pump length / size	255 x 188 x 175 mm
Variant Max Flow	70 LPM
Variant Max Head	13 m
Variant Pass Solid	N/A mm
Variant Weight	7.1 kg

Project Integration

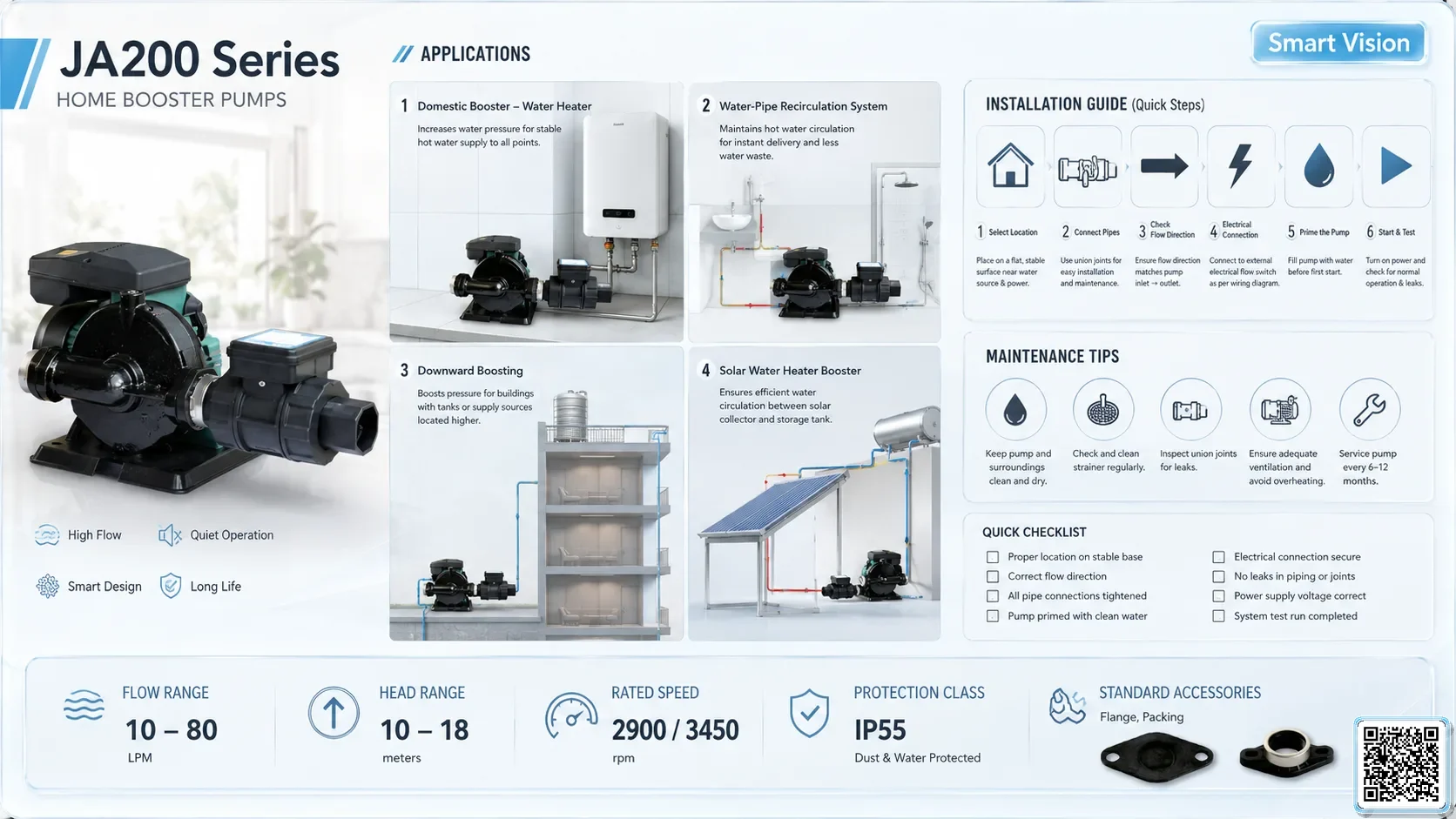

JA200 Series Home Booster Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

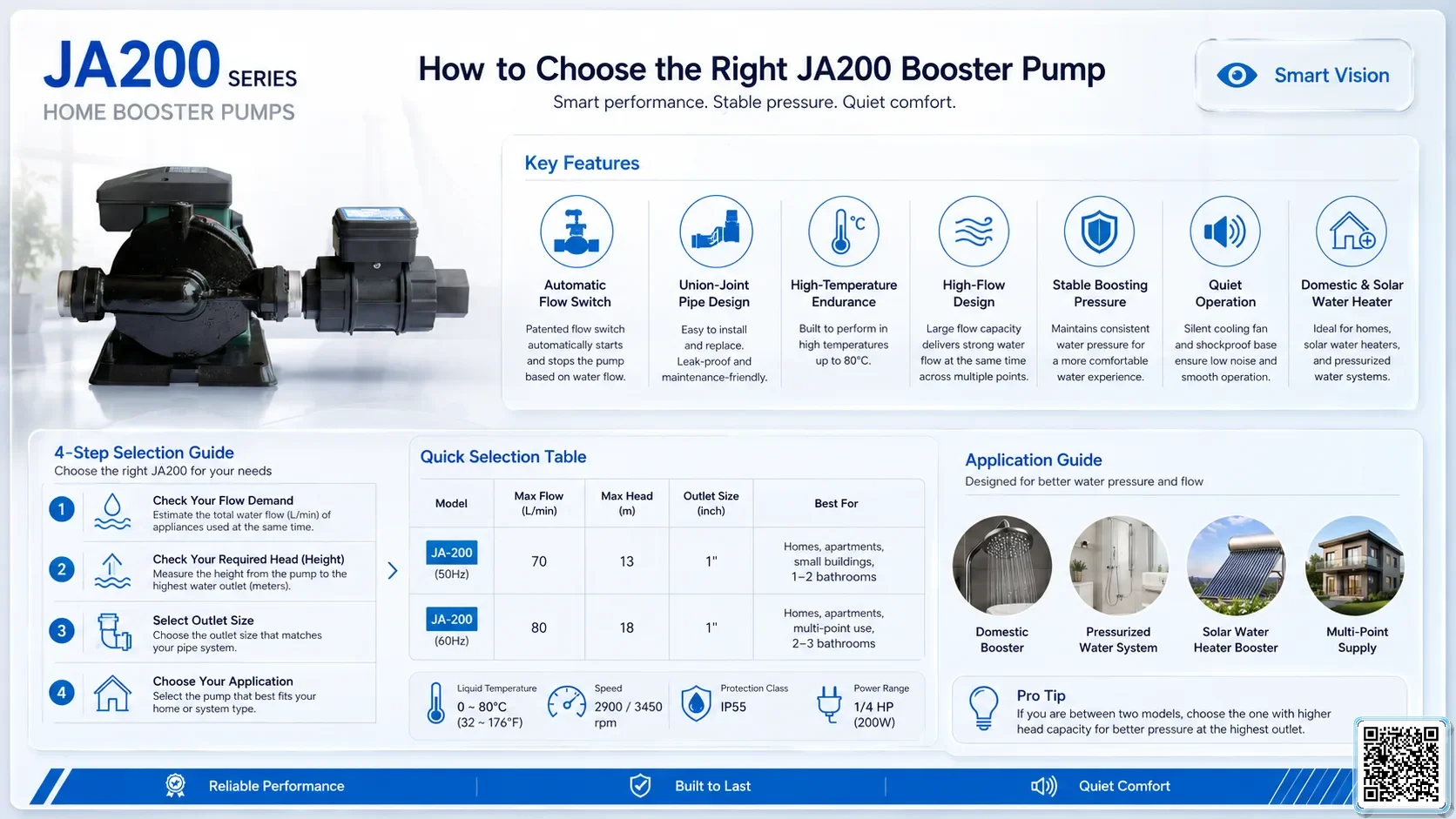

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
JA-200(50Hz) JA-200(50Hz)	1/4 HP / 200 W	—	25 mm / 1"	70 LPM	13 m	N/A mm	255	7.1 kg	—
JA-200(60Hz) JA-200(60Hz)	1/4 HP / 200 W	—	25 mm / 1"	70 LPM	13 m	N/A mm	255	7.1 kg	—
