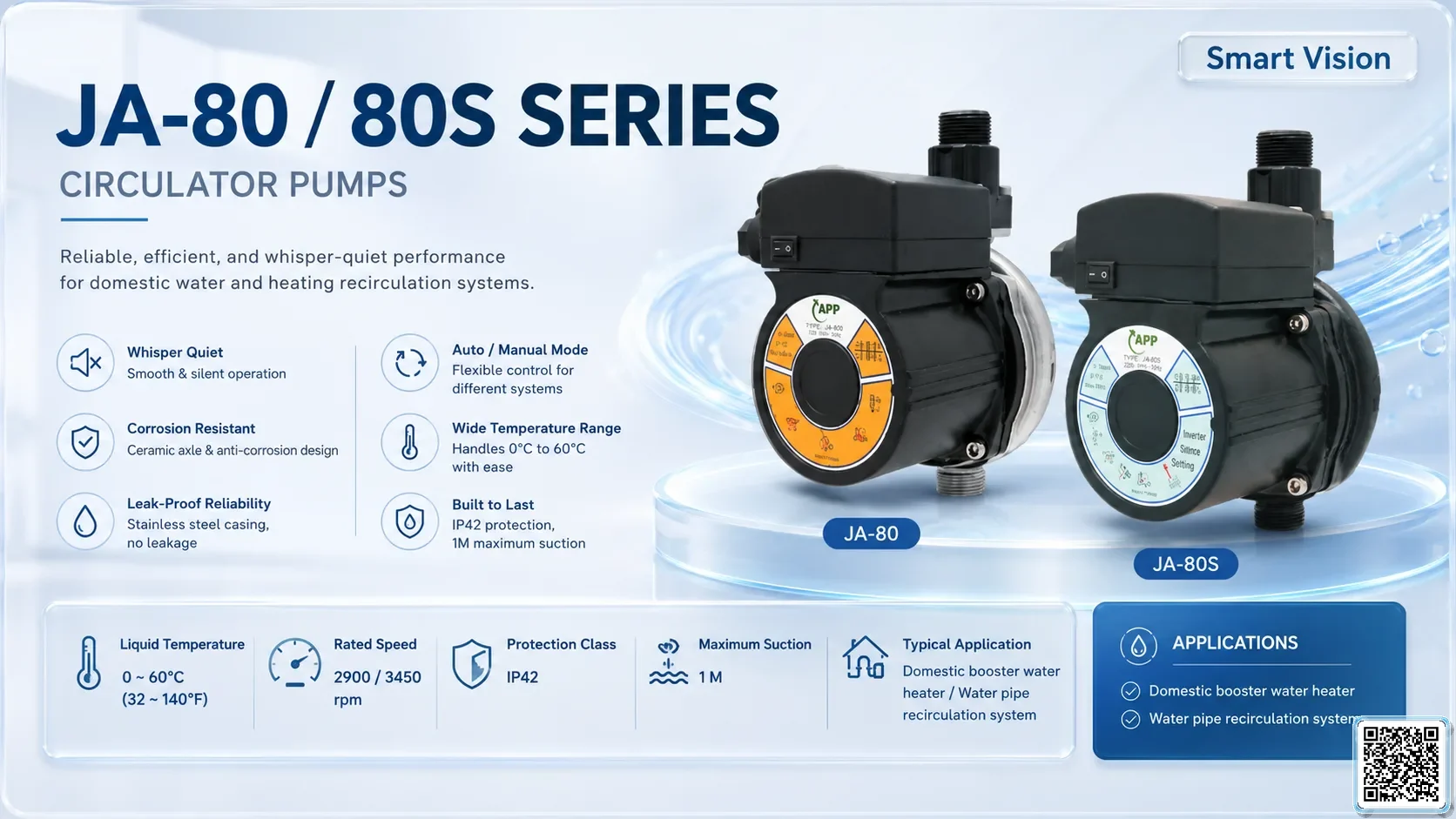

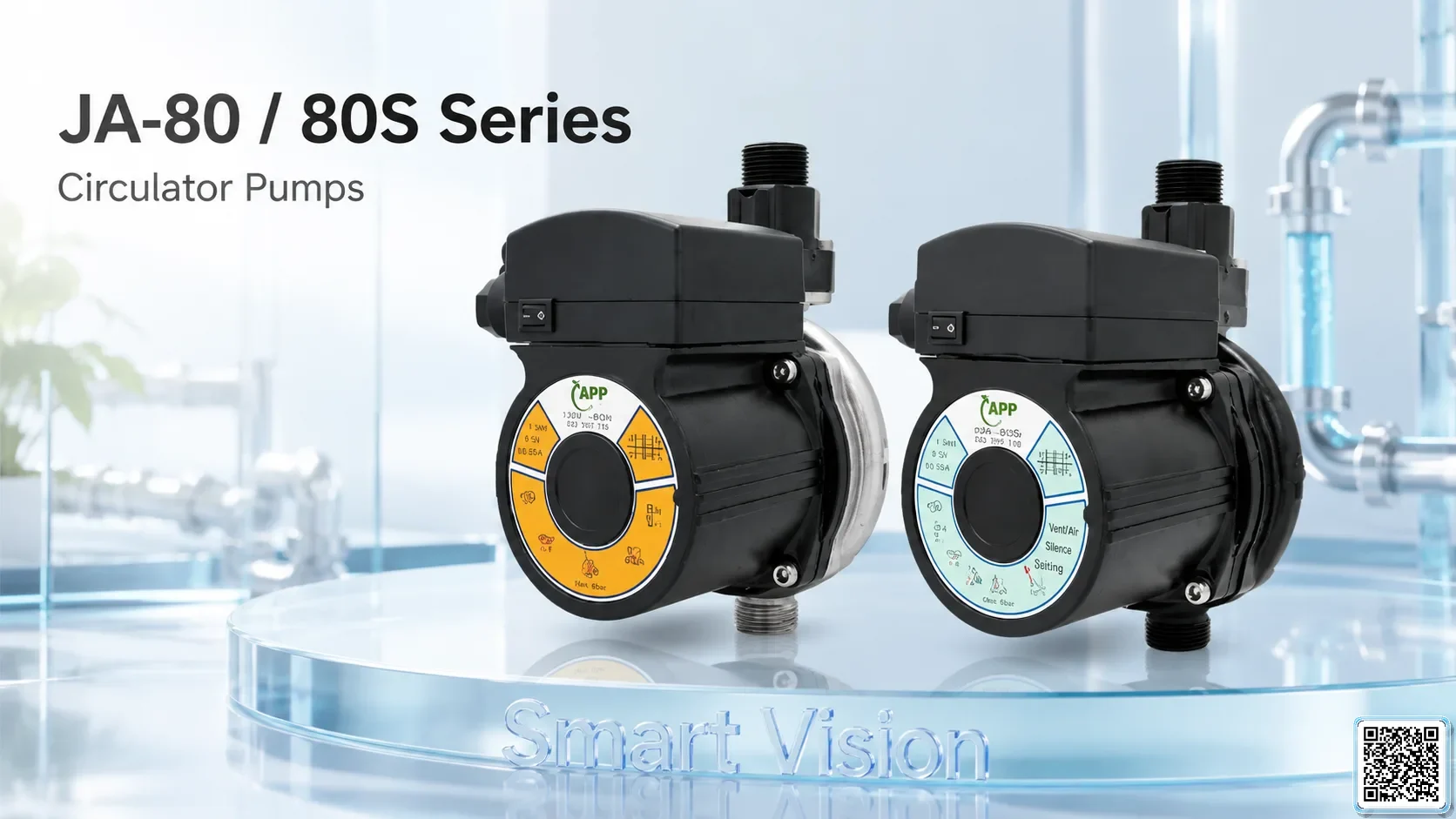

JA-80/80SSeries Circulator Pumps

Name: JA-80/80S Series Circulator Pumps
Brand: APP

APP JA-80/80S Series Home Booster Pump from Taiwan.

pumpsJA-80/80SRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 84

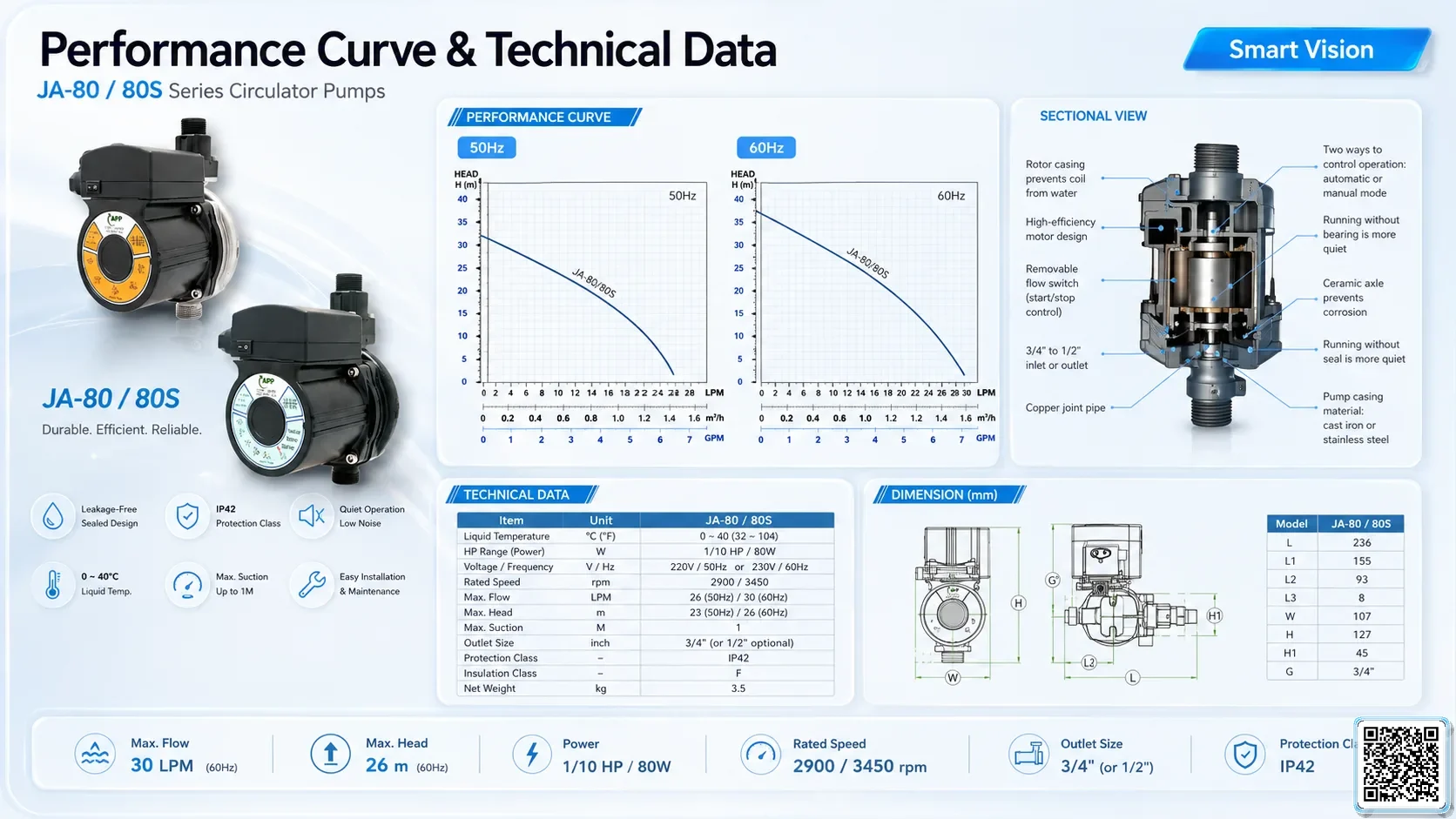

Technical Specifications

source	APP catalogue
section	Domestic
series	JA-80/80S
family	Home Booster Pump
catalogue_page	Domestic 27-28
features	Automatic flow switch; stainless casing option; removable flow switch.
Series	JA-80/80S Series
Pump Series	JA-80/80S
Pump Type	Home Booster Pump
Max Diving Depth	Maximum suction 1 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP42
Variant Dimensions	224 x 155 x 214 mm
Pump length / size	224 x 155 x 214 mm
Variant Max Flow	26 LPM (50Hz) / 23 LPM (60Hz) / 26 LPM
Variant Max Head	10 m (50Hz) / 8.5 m (60Hz) / 10 m
Variant Pass Solid	1 mm
Variant Weight	3.5 kg

Project Integration

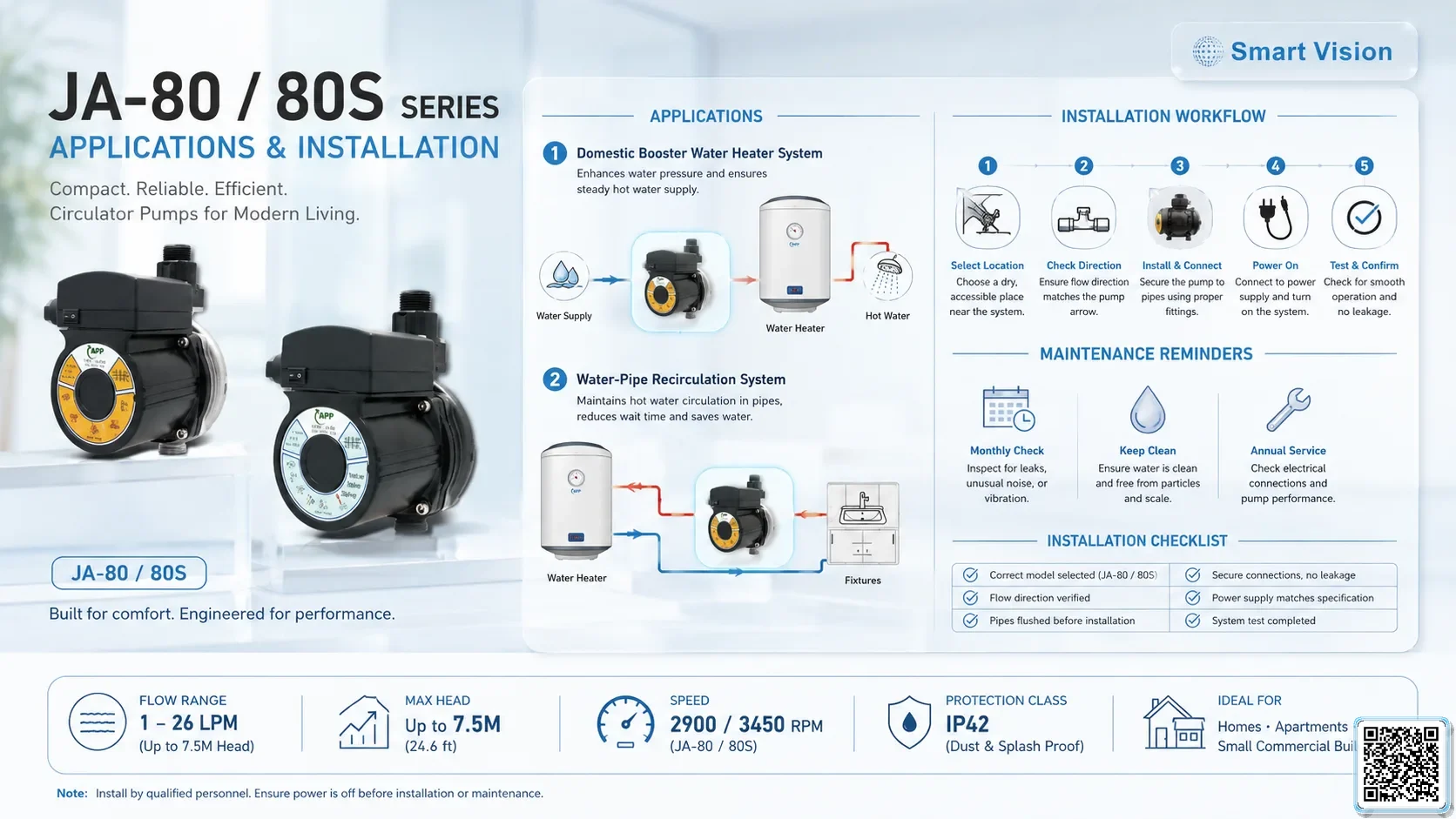

JA-80/80S Series Circulator Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
JA-80 JA-80	1/10 HP / 80 W	—	20 mm / 3/4"	26 LPM (50Hz) / 23 LPM (60Hz)	10 m (50Hz) / 8.5 m (60Hz)	1 mm	224	3.5 kg	—
JA-80S JA-80S	1/10 HP / 80 W	—	20 mm / 3/4"	26 LPM	10 m	1 mm	224	3.5 kg	—
