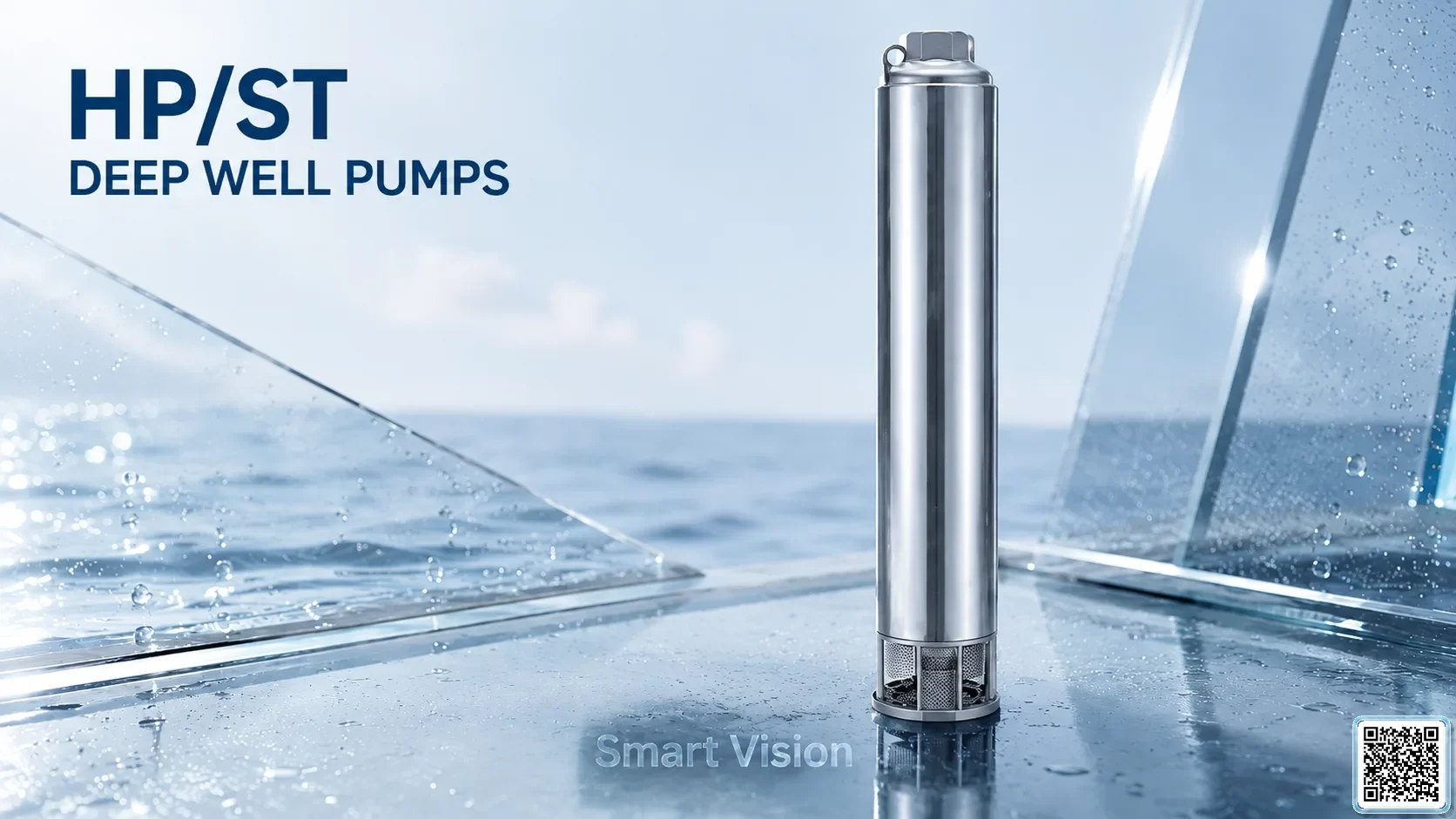

HP/STSeries Deep Well Pumps

Name: HP/ST Series Deep Well Pumps
Brand: APP

APP HP/ST Series Deep Well Pump from Taiwan.

pumpsHP/STRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 65

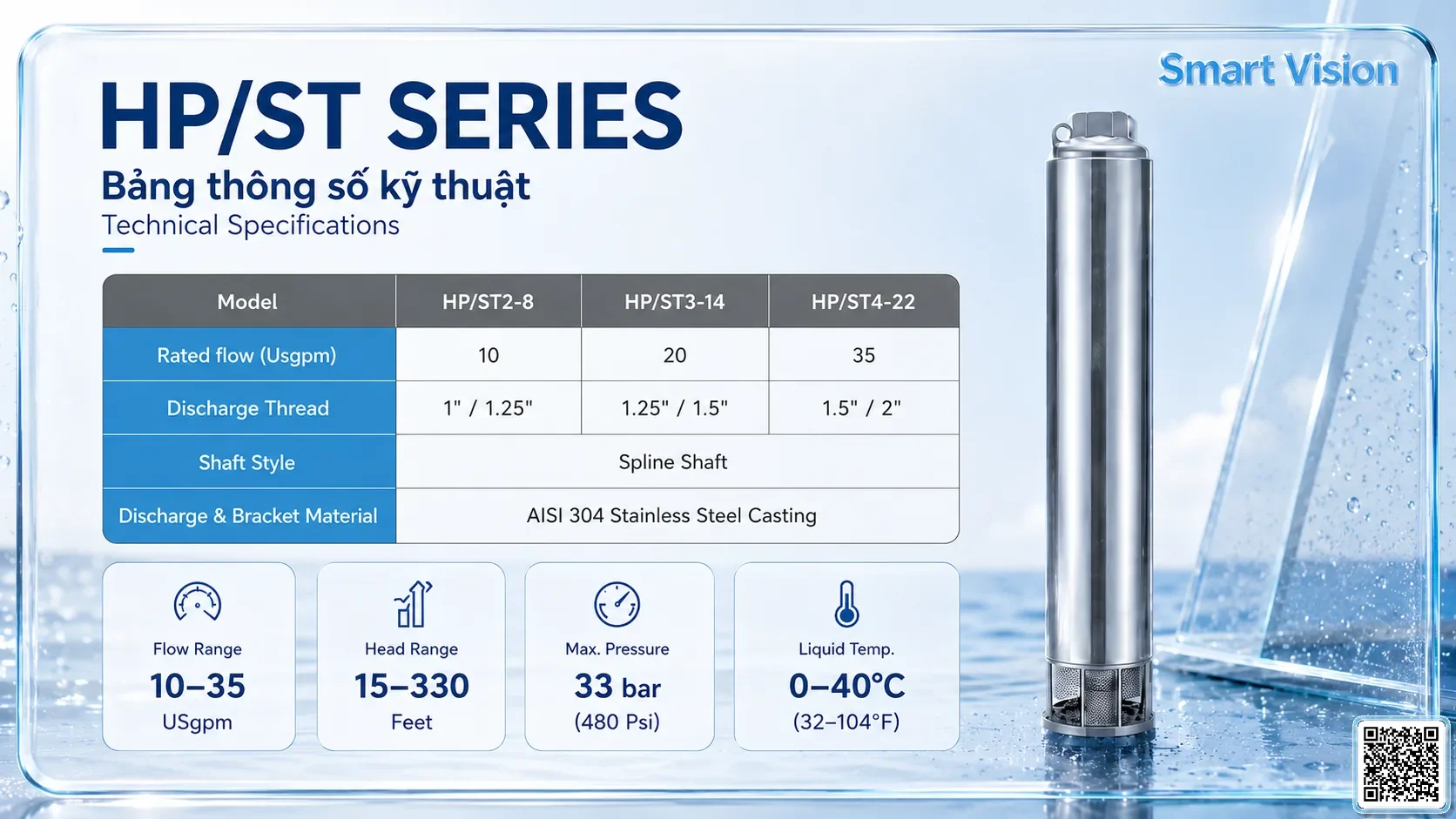

Technical Specifications

source	APP catalogue
section	Auxiliary
series	HP/ST
family	Deep Well Pump
catalogue_page	Auxiliary 03-04
features	Special designed for sand problems in wells; floating impeller; spline shaft.
Series	HP/ST Series
Pump Series	HP/ST
Pump Type	Deep Well Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Material	AISI 304 investment casting
Variant Max Flow	5 USGPM rated / 10 USGPM rated / 13 USGPM rated / 18 USGPM rated / 25 USGPM rated / 40 USGPM rated / 60 USGPM rated / 80 USGPM rated

Project Integration

HP/ST Series Deep Well Pumps is suitable for deep-well water supply, irrigation, pipeline boosting and high-head applications. Selection should verify well diameter, required flow, total head, power supply, installation depth and accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
HP/ST-05 HP/ST-05	—	—	32 mm / PT 1-1/4"	5 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-10 HP/ST-10	—	—	32 mm / PT 1-1/4"	10 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-13 HP/ST-13	—	—	32 mm / PT 1-1/4"	13 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-18 HP/ST-18	—	—	40 mm / PT 1-1/2"	18 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-25 HP/ST-25	—	—	40 mm / PT 1-1/2"	25 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-40 HP/ST-40	—	—	50 mm / PT 2"	40 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-60 HP/ST-60	—	—	50 mm / PT 2"	60 USGPM rated	—	—	Not specified in catalogue	—	—
HP/ST-80 HP/ST-80	—	—	50 mm / PT 2"	80 USGPM rated	—	—	Not specified in catalogue	—	—
