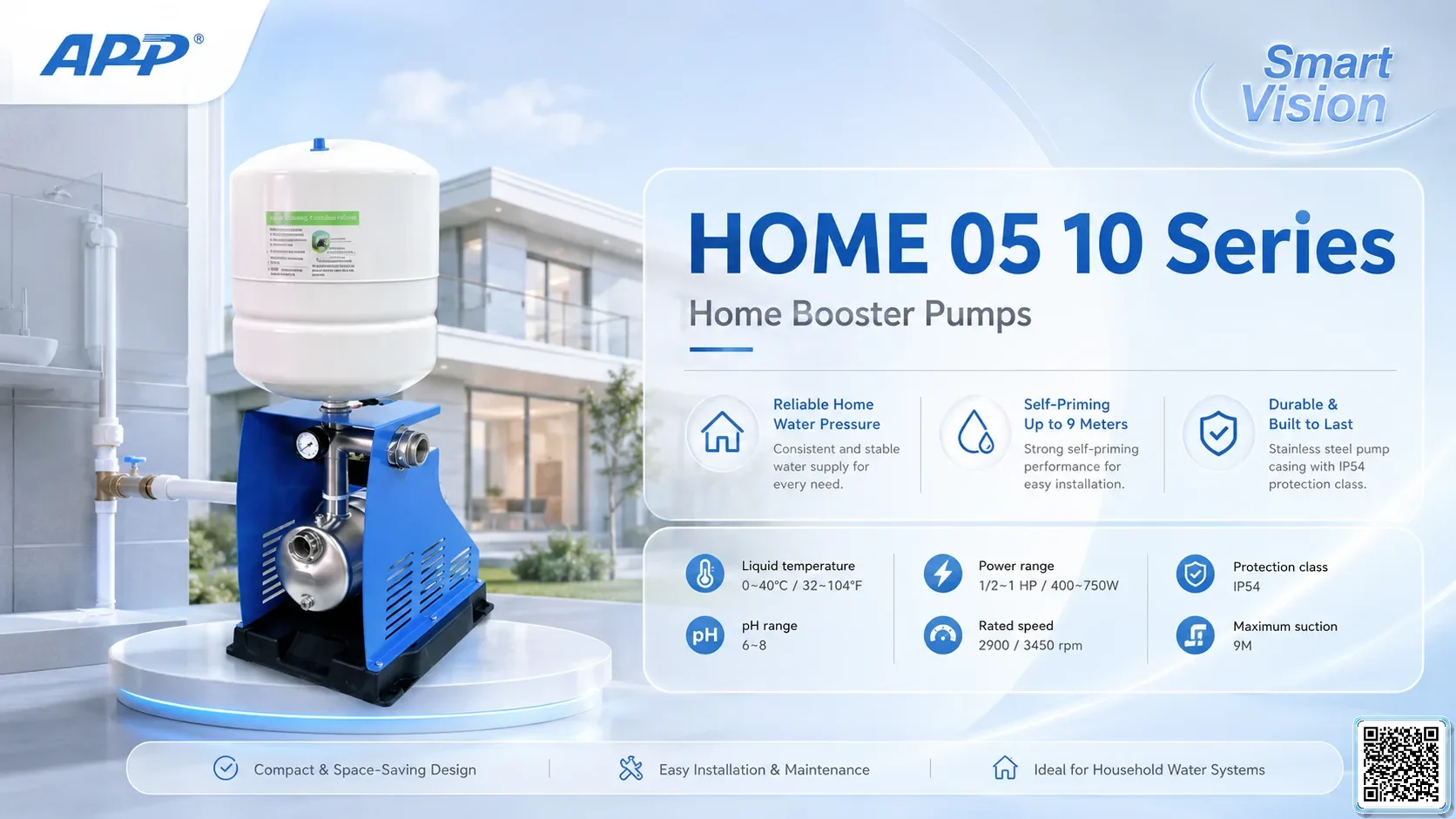

HOME05/10 Series Home Booster Pumps

APP HOME Series Home Booster Pump from Taiwan.

pumpsHOMERequest quotation
Choose pump configuration
Add to Project Builder
👁 74

Technical Specifications

sourceAPP catalogue
sectionDomestic
seriesHOME
familyHome Booster Pump
catalogue_pageDomestic 25-26
featuresStainless steel pump casing and impeller; self-priming up to 9 m.
SeriesHOME Series
Pump SeriesHOME
Pump TypeHome Booster Pump
Max Diving DepthMaximum suction 9 m
Water Temperature0~40℃ / 32~104℉
pH Range6~8
Pump constructionIP54
MaterialStainless steel casing and impeller
Variant Max Flow55 LPM / 75 LPM
Variant Max Head30 m / 34 m

Project Integration

HOME 05/10 Series Home Booster Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

  • Select the model by project flow and working head
  • Check power, voltage/frequency, outlet size, material and installation dimensions
  • Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
  • Support configuration comparison and quotation by actual project quantity
PUMP MODELS

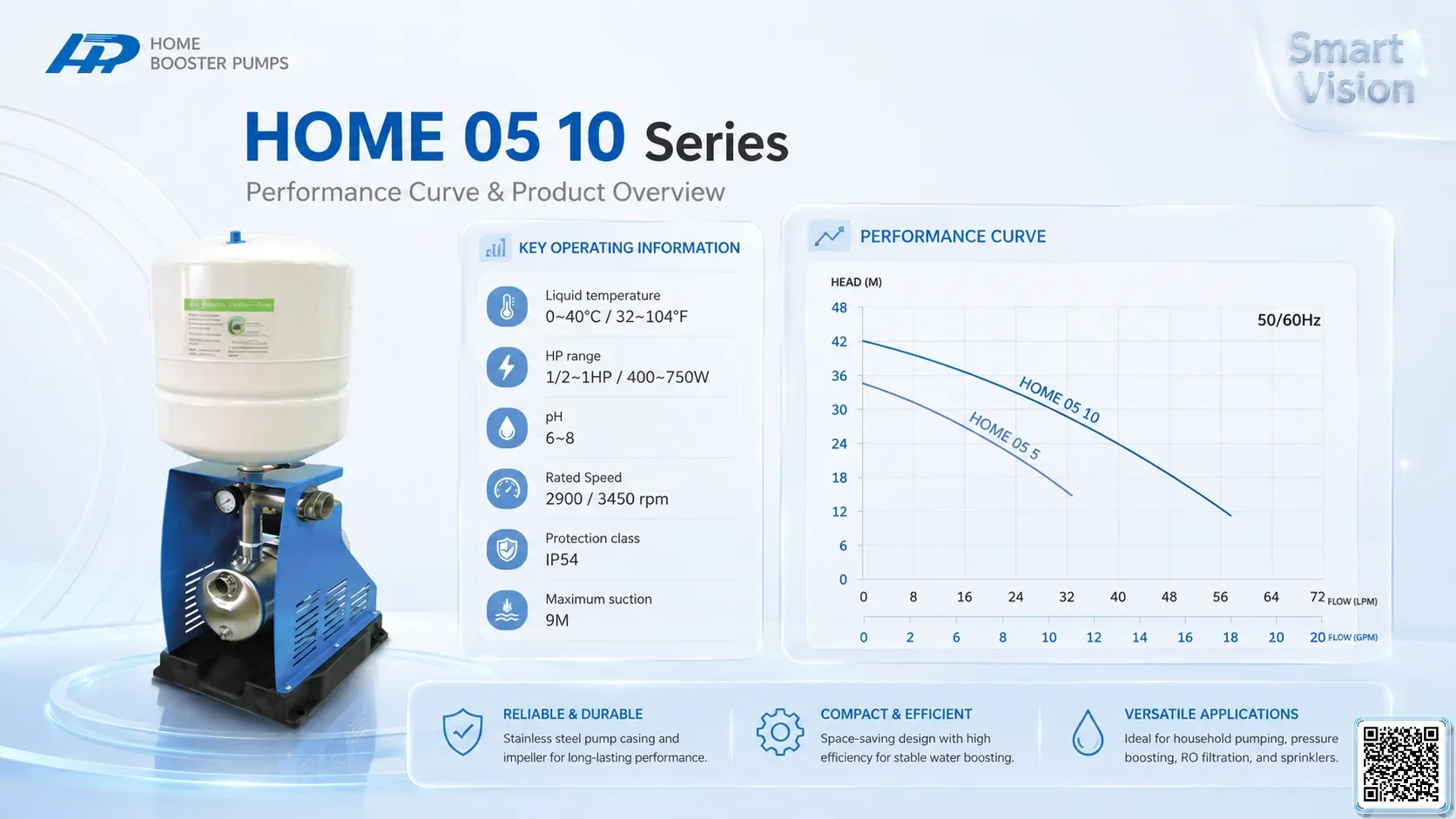

Pump Selection Table by Model

ModelMotor Power (HP/kW/W)Voltage / PhaseOutlet (inch/mm)Max Flow (LPM)Max Head (m)Pass Solid (mm)Dimension (L×W×H mm)Weight (kg)Accessories
HOME-05
HOME-05		0.5 HP220V / 1P25 mm × 25 mm / 1" × 1"55 LPM30 m—Not specified in catalogue——
HOME-400
HOME-400		0.5 HP220V / 1P25 mm × 25 mm / 1" × 1"55 LPM30 m—Not specified in catalogue——
HOME-200
HOME-200		0.5 HP220V / 1P25 mm × 25 mm / 1" × 1"55 LPM30 m—Not specified in catalogue——
HOME-10
HOME-10		1 HP220V / 1P25 mm × 25 mm / 1" × 1"75 LPM34 m—Not specified in catalogue——
APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP HOME Series is a home booster pump for Household pressurization; RO; sprinkler system applications.

Applications

Household pressurization; RO; sprinkler system

Key features

Stainless steel pump casing and impeller; self-priming up to 9 m.
