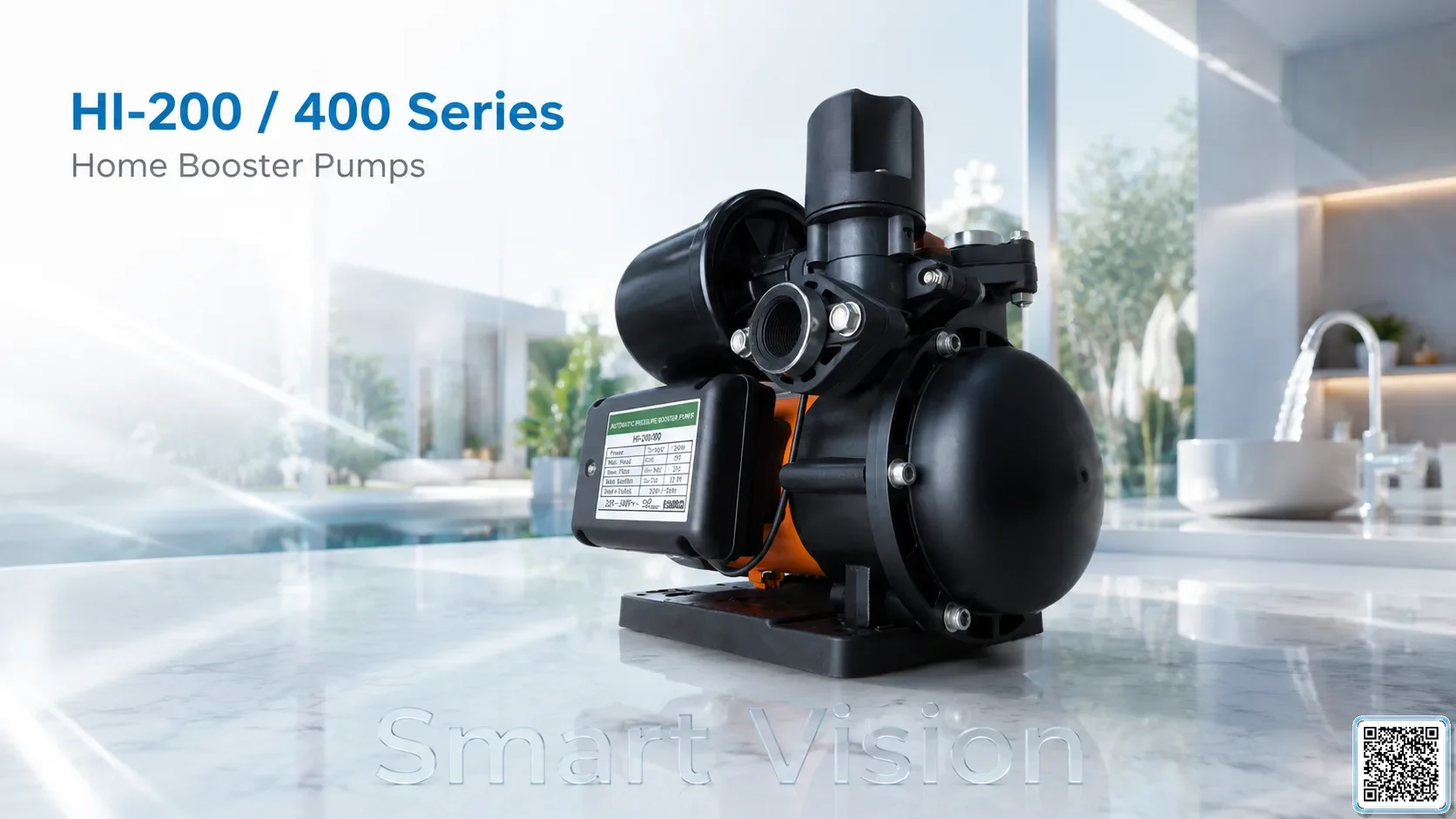

HI-200/400 Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

HI-200/400Series Home Booster Pumps

Name: HI-200/400 Series Home Booster Pumps
Brand: APP

APP HI-200/400 Series Home Booster Pump from Taiwan.

pumpsHI-200/400Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 85

Technical Specifications

source	APP catalogue
section	Domestic
series	HI-200/400
family	Home Booster Pump
catalogue_page	Domestic 23-24
features	Silent and eco-friendly; AIP program; easy installation and cleaning.
Series	HI-200/400 Series
Pump Series	HI-200/400
Pump Type	Home Booster Pump
Max Diving Depth	Maximum suction 8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP55
Variant Dimensions	207 x 194 x 376 mm / 226 x 194 x 376 mm
Pump length / size	207 x 194 x 376 mm / 226 x 194 x 376 mm
Variant Max Flow	55 LPM / 60 LPM / 70 LPM
Variant Max Head	24 m / 25 m / 28 m
Variant Weight	10 kg / 12 kg

Project Integration

HI-200/400 Series Home Booster Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
HI-200(50Hz) HI-200(50Hz)	1/4 HP / 200 W	220V / 1P	20 mm / 3/4"	55 LPM	24 m	—	207	10 kg	—
HI-200(60Hz) HI-200(60Hz)	1/4 HP / 200 W	220V / 1P	20 mm / 3/4"	60 LPM	25 m	—	207	10 kg	—
HI-400 HI-400	1/4 HP / 200 W	220V / 1P	20 mm / 3/4"	55 LPM	24 m	—	207	10 kg	—
HI-400(50Hz) HI-400(50Hz)	1/2 HP / 400 W	220V / 1P	25 mm / 1"	70 LPM	28 m	—	226	12 kg	—
HI-400(60Hz) HI-400(60Hz)	1/2 HP / 400 W	220V / 1P	25 mm / 1"	70 LPM	28 m	—	226	12 kg	—
HI-200V HI-200V	1/4 HP / 200 W	380V / 3P	20 mm / 3/4"	55 LPM	24 m	—	207	10 kg	—
HI-200 HI-200	4 HP	220V / 1P	20 mm / 3/4"	55 LPM	24 m	—	207	10 kg	—
