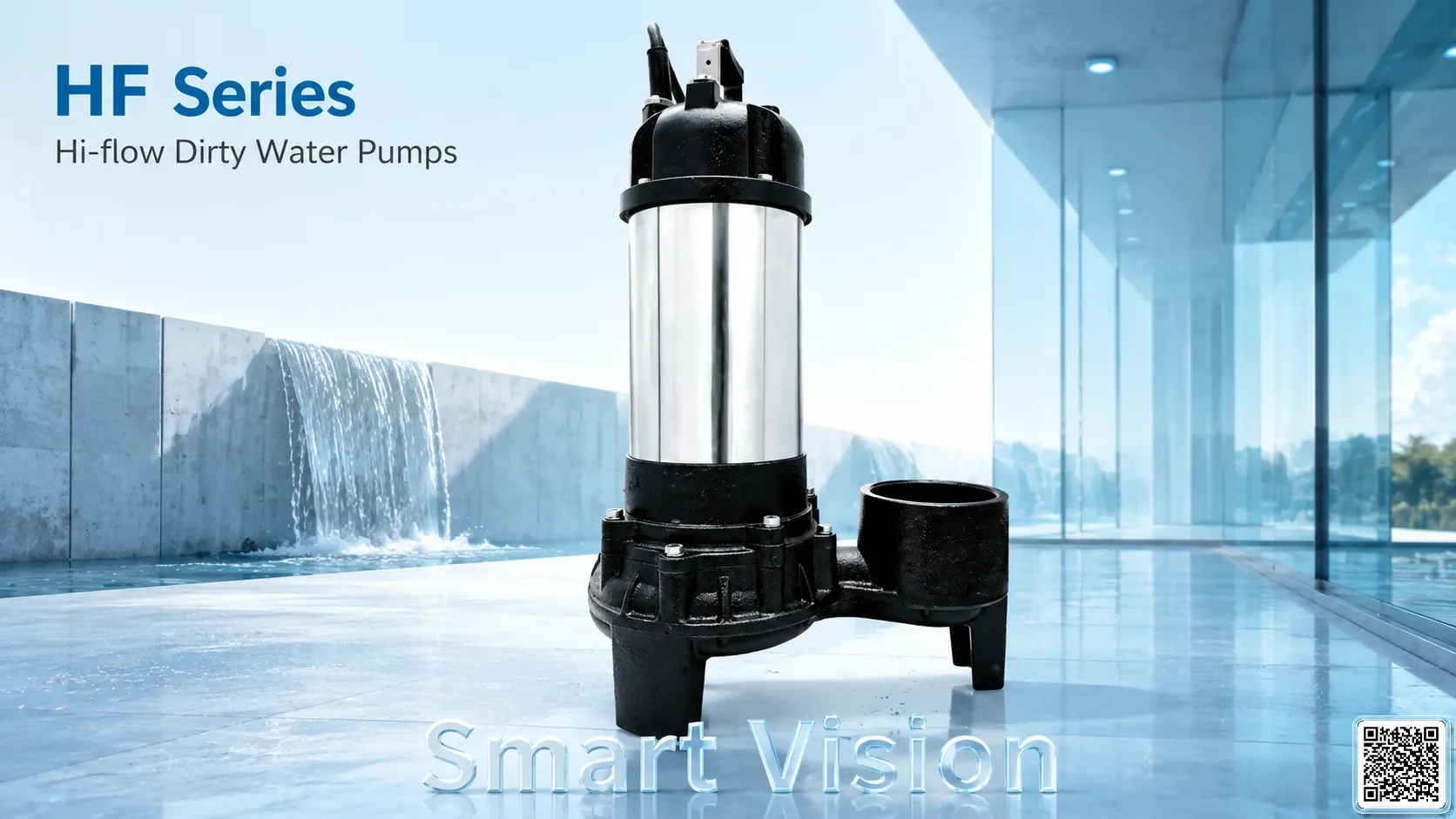

HF Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

HFSeries Hi-flow Dirty Water Pumps

Name: HF Series Hi-flow Dirty Water Pumps
Brand: APP

APP HF Series Dirty Water Pump from Taiwan.

pumpsHFRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 65

Technical Specifications

source	APP catalogue
section	Industry
series	HF
family	Dirty Water Pump
catalogue_page	21-22
features	Large volume, high flow.
Series	HF Series
Pump Series	HF
Pump Type	Dirty Water Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68

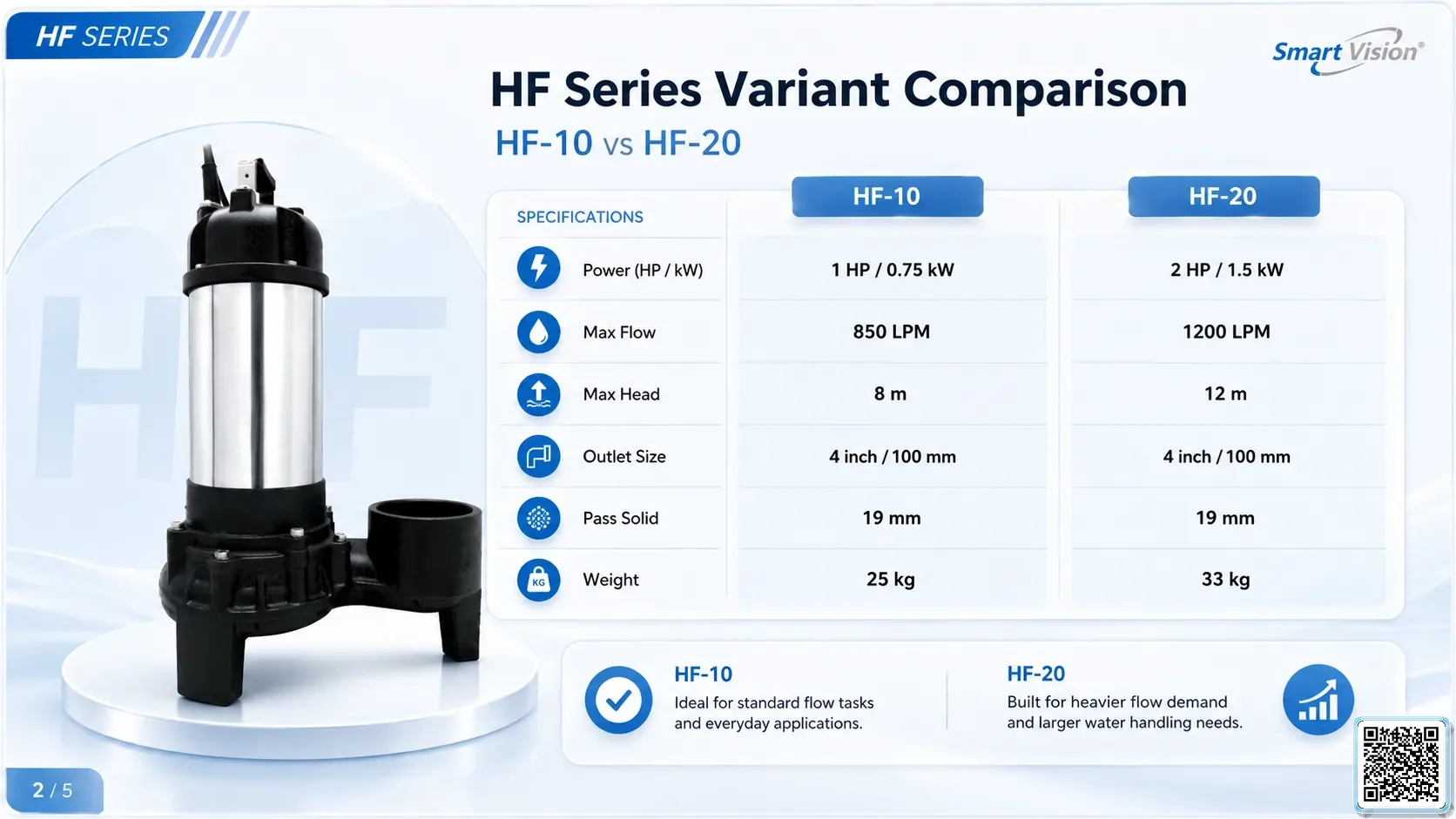

Variant Dimensions	350 x 210 x 550 mm / 350 x 210 x 600 mm
Pump length / size	350 x 210 x 550 mm / 350 x 210 x 600 mm

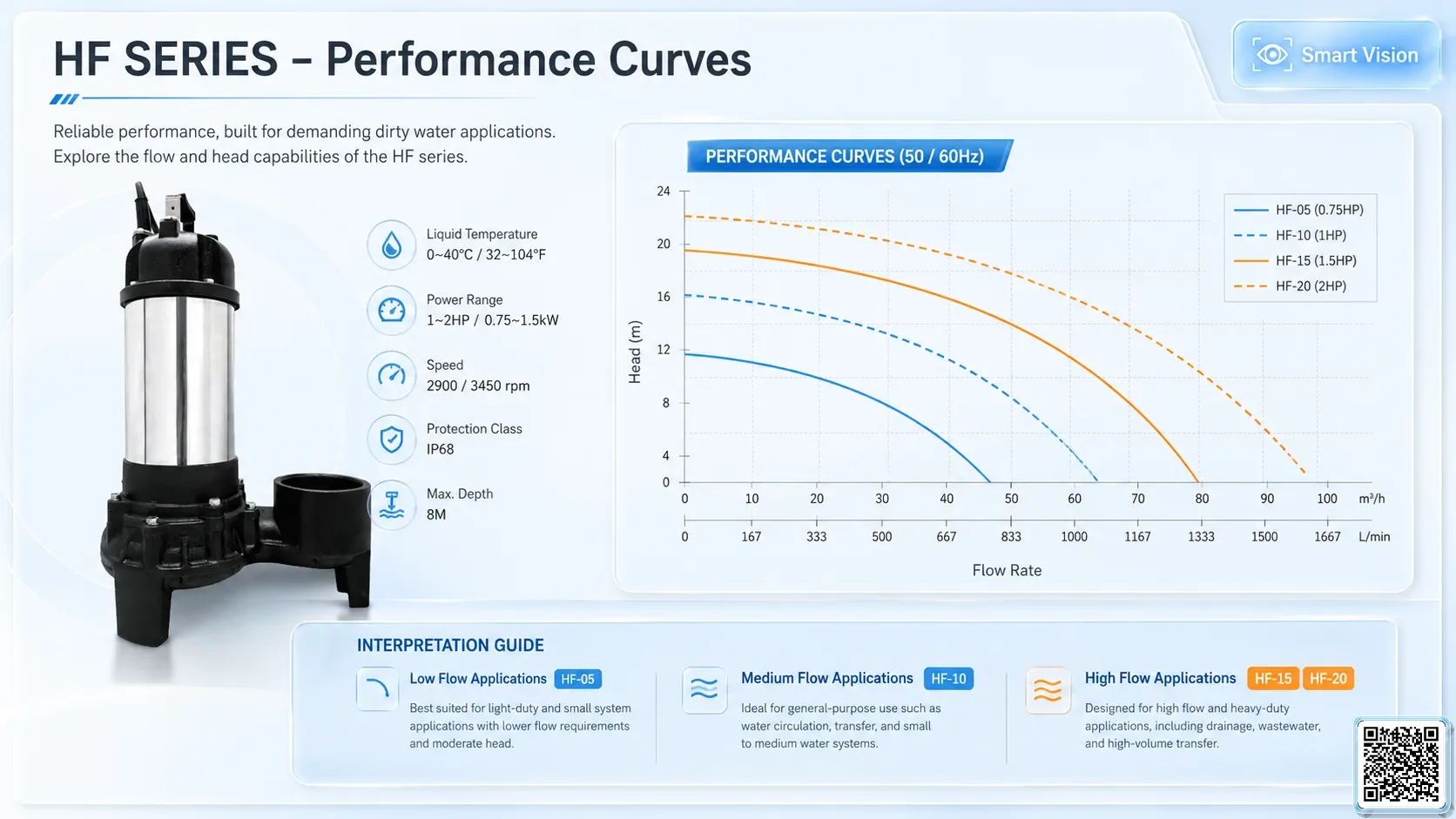

Variant Max Flow	850 LPM / 1200 LPM
Variant Max Head	8 m / 12 m
Variant Pass Solid	19 mm
Variant Weight	25 kg / 33 kg

Project Integration

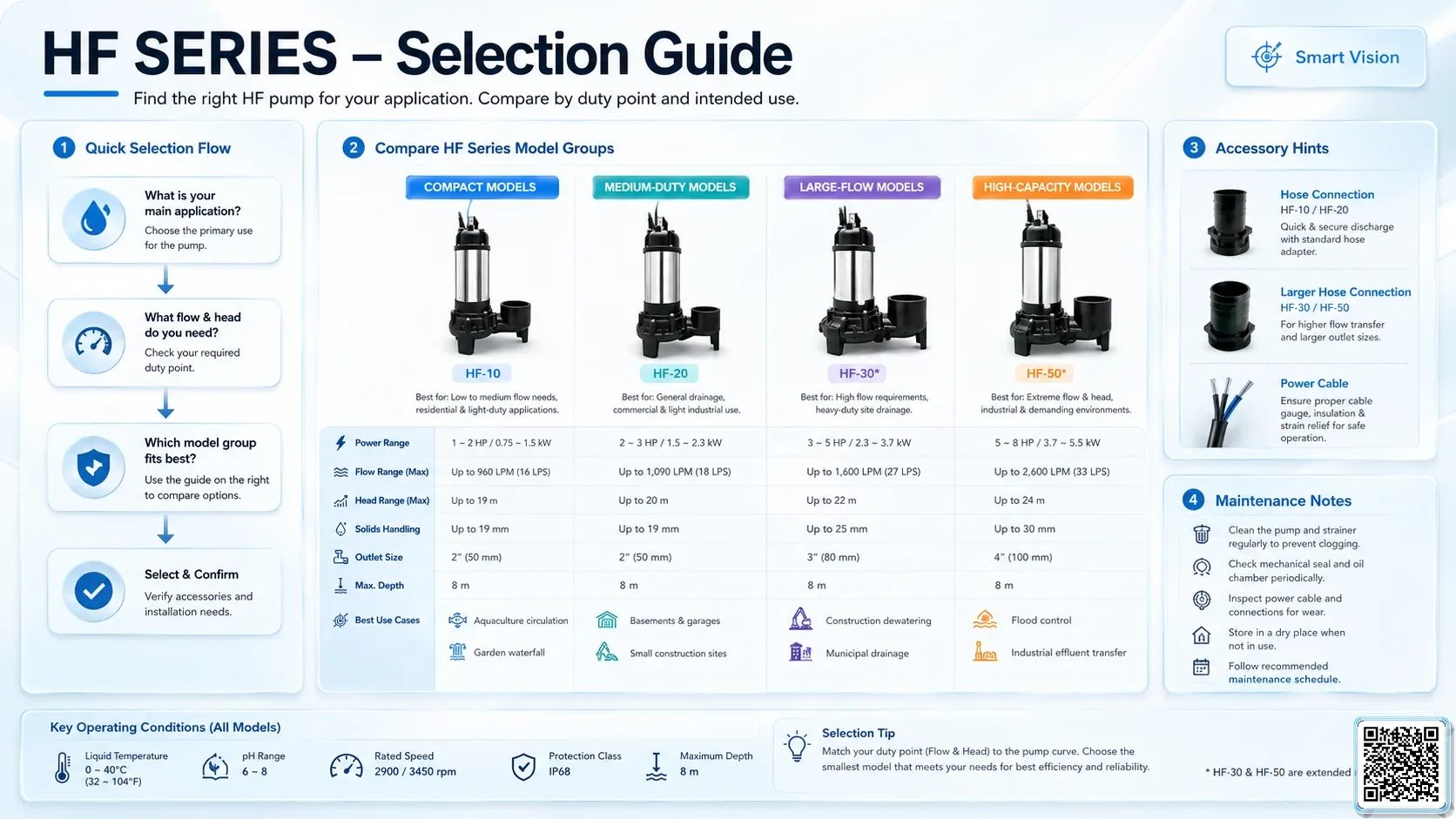

HF Series Hi-flow Dirty Water Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity
