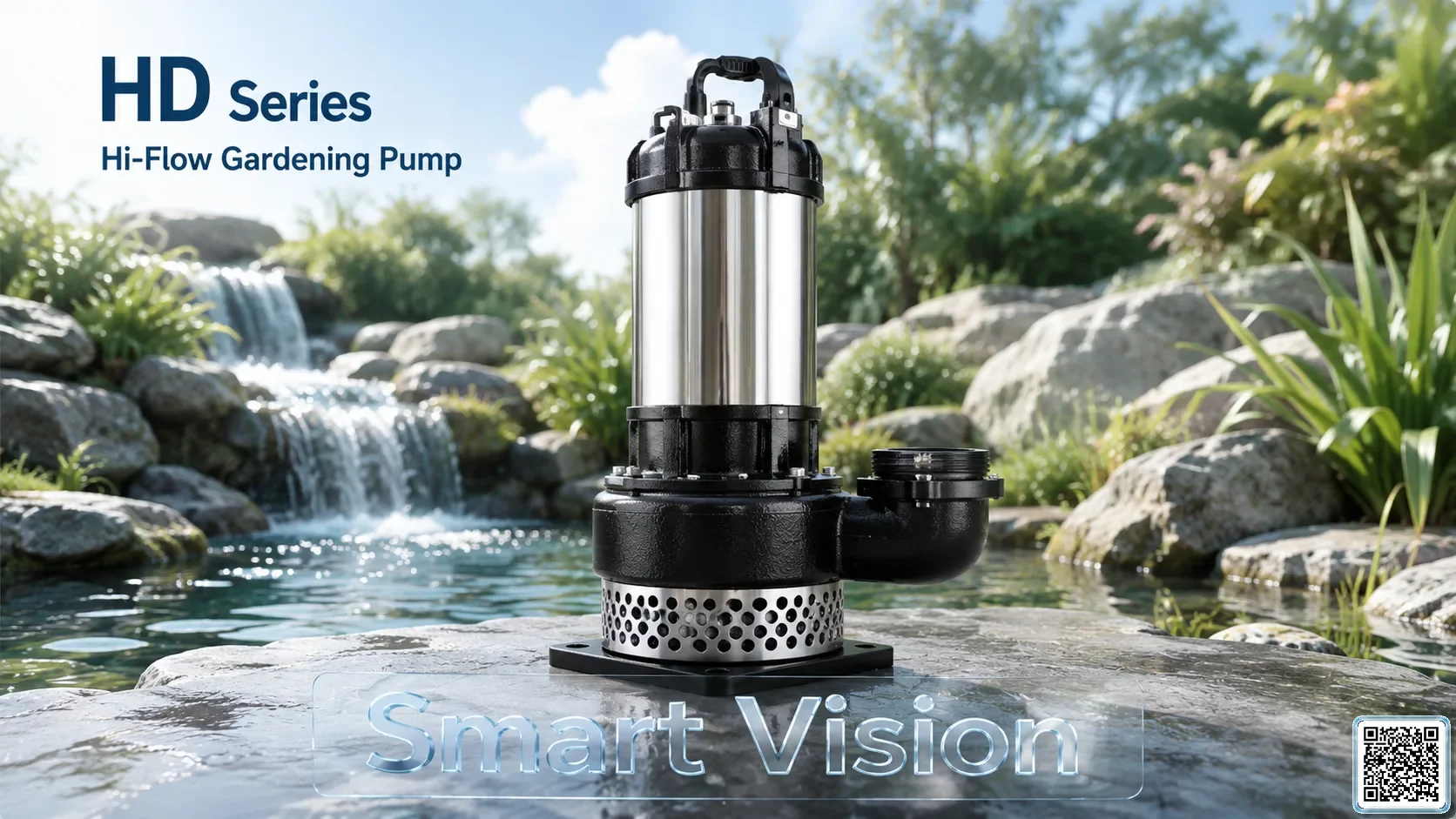

HD Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

HDSeries Hi-flow Gardening Pumps

Name: HD Series Hi-flow Gardening Pumps
Brand: APP

APP HD Series Gardening Pump from Taiwan.

pumpsHDRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 82

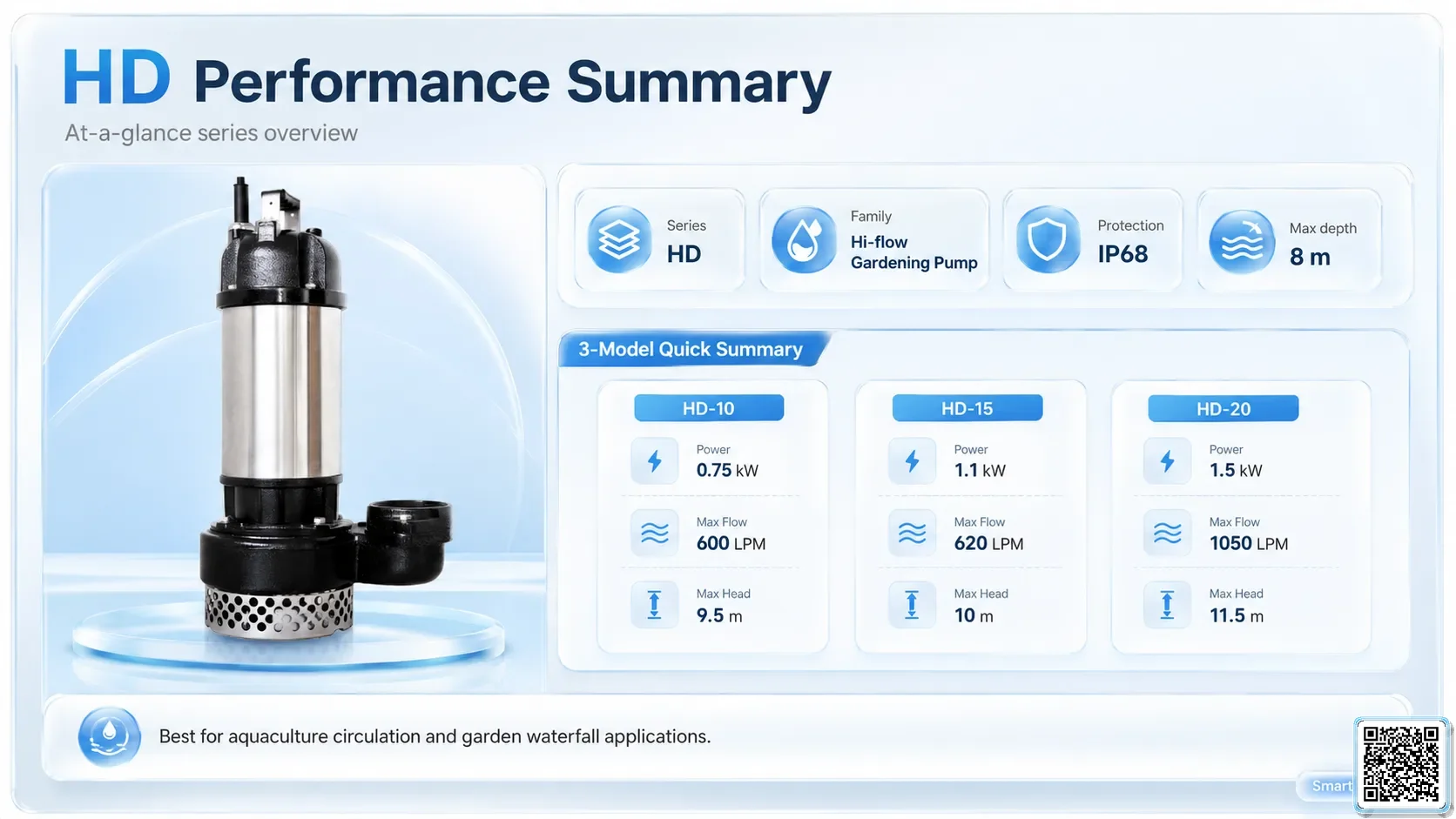

Technical Specifications

source	APP catalogue
section	Industry
series	HD
family	Gardening Pump
catalogue_page	19-20
features	Large volume, high flow; 24-hour operation.
Series	HD Series
Pump Series	HD
Pump Type	Gardening Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	297 x 198 x 503 mm / 308 x 198 x 598 mm
Pump length / size	297 x 198 x 503 mm / 308 x 198 x 598 mm
Variant Max Flow	600 LPM / 620 LPM / 1050 LPM
Variant Max Head	9.5 m / 10 m / 11.5 m
Variant Pass Solid	10 mm
Variant Weight	23 kg / 27 kg / 31 kg

Project Integration

HD Series Hi-flow Gardening Pumps is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

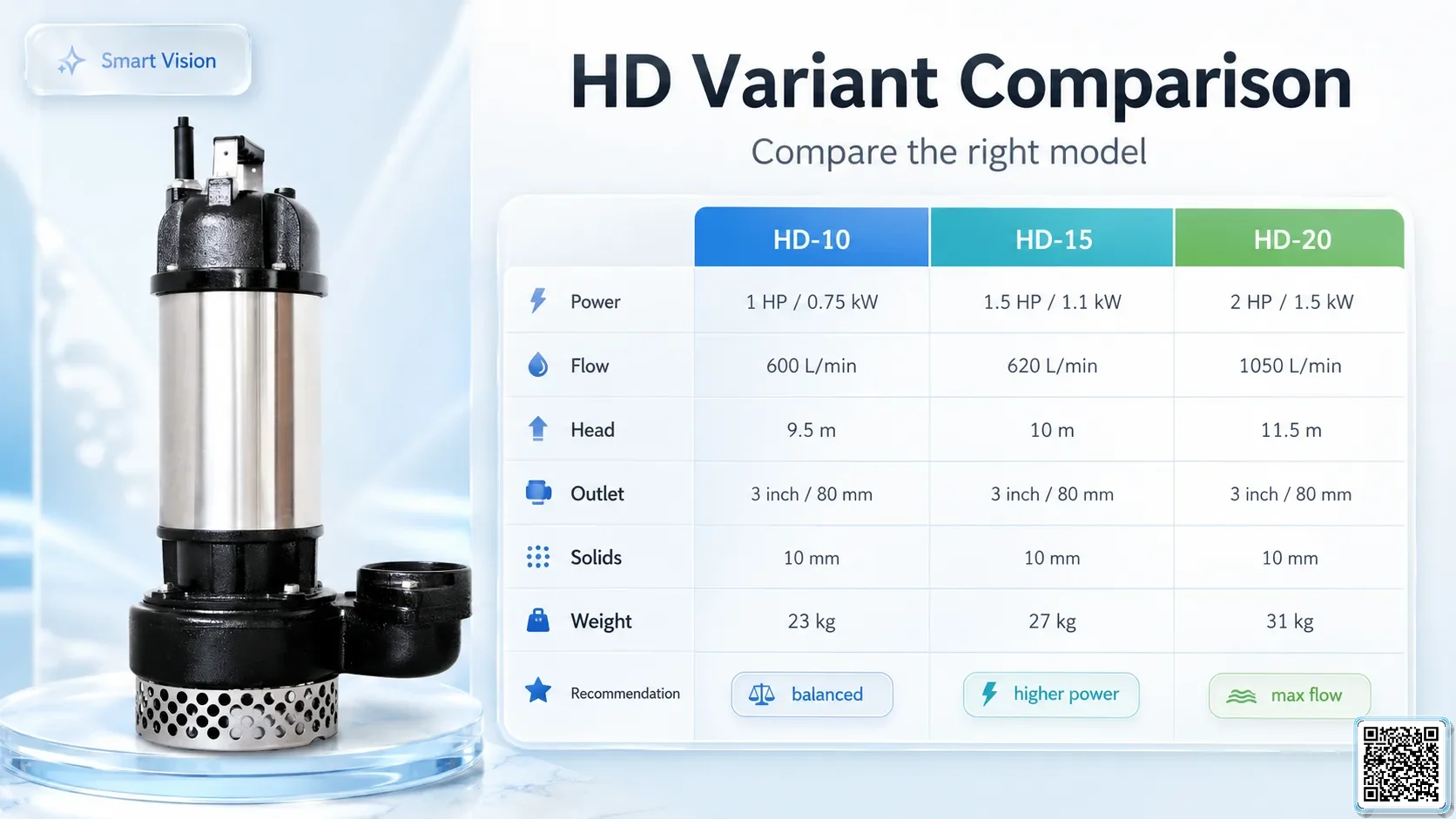

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
HD-10 HD-10	1 HP / 0.75 kW	—	80 mm / 3"	600 LPM	9.5 m	10 mm	297	23 kg	—
HD-15 HD-15	1.5 HP / 1.1 kW	—	80 mm / 3"	620 LPM	10 m	10 mm	297	27 kg	—
HD-20 HD-20	2 HP / 1.5 kW	—	80 mm / 3"	1050 LPM	11.5 m	10 mm	308	31 kg	—
