● FOUNTAIN PUMP / VFD

GRSeries Gardening Pumps

Name: GR Series Gardening Pumps
Brand: APP

APP GR Series Gardening Pump from Taiwan.

pumpsGRRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 61

Technical Specifications

source	APP catalogue
section	Auxiliary
series	GR
family	Gardening Pump
catalogue_page	Auxiliary 05-06
features	Compact gardening pumps; F models include large filter.
Series	GR Series
Pump Series	GR
Pump Type	Gardening Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Max Flow	900 L/hr / 2000 L/hr / 2500 L/hr / 3000 L/hr / 3500 L/hr / 4000 L/hr
Variant Max Head	0.5 m / 2 m / 2.4 m / 3 m / 3.3 m / 4 m

Project Integration

GR Series Gardening Pumps is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

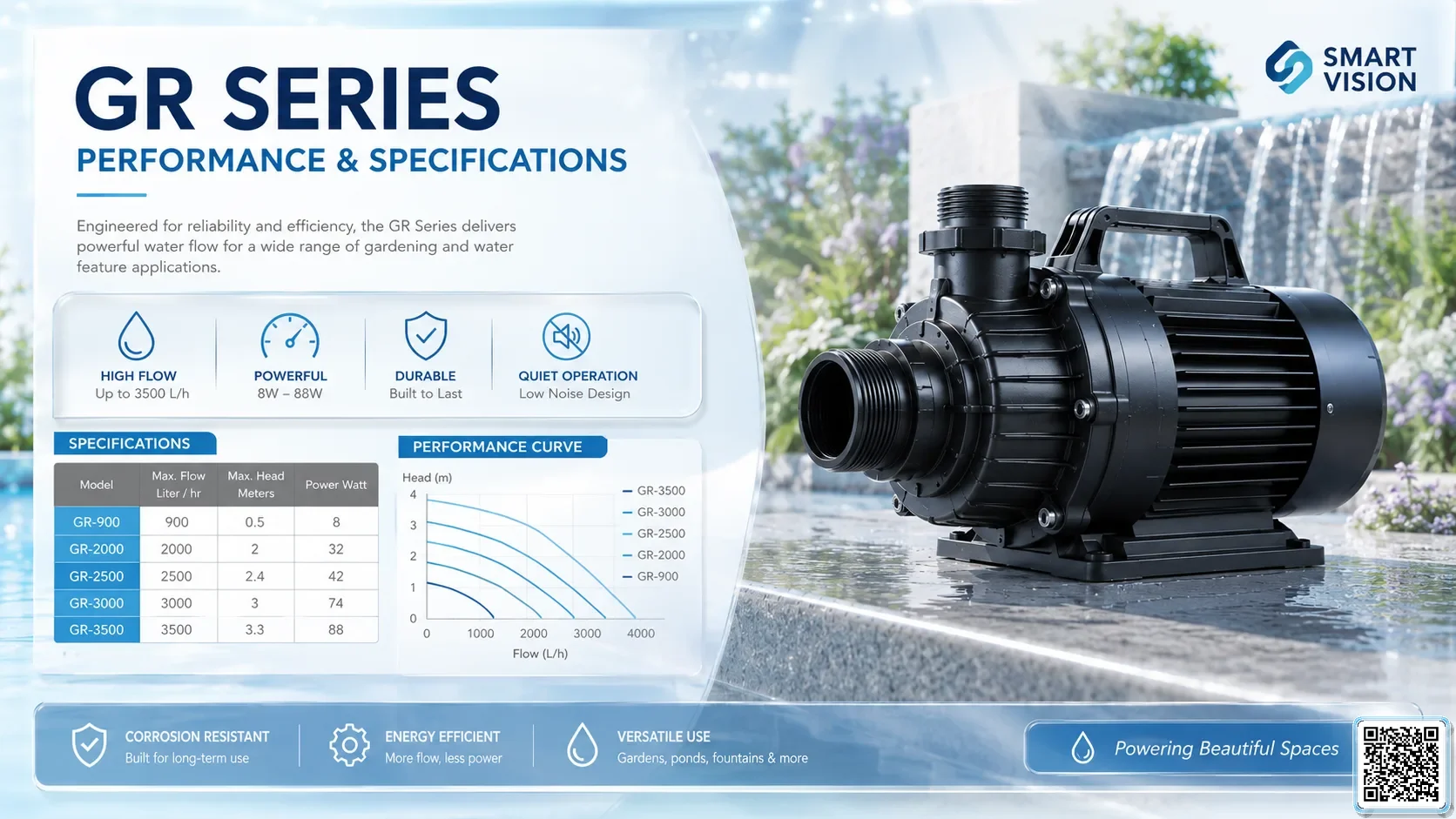

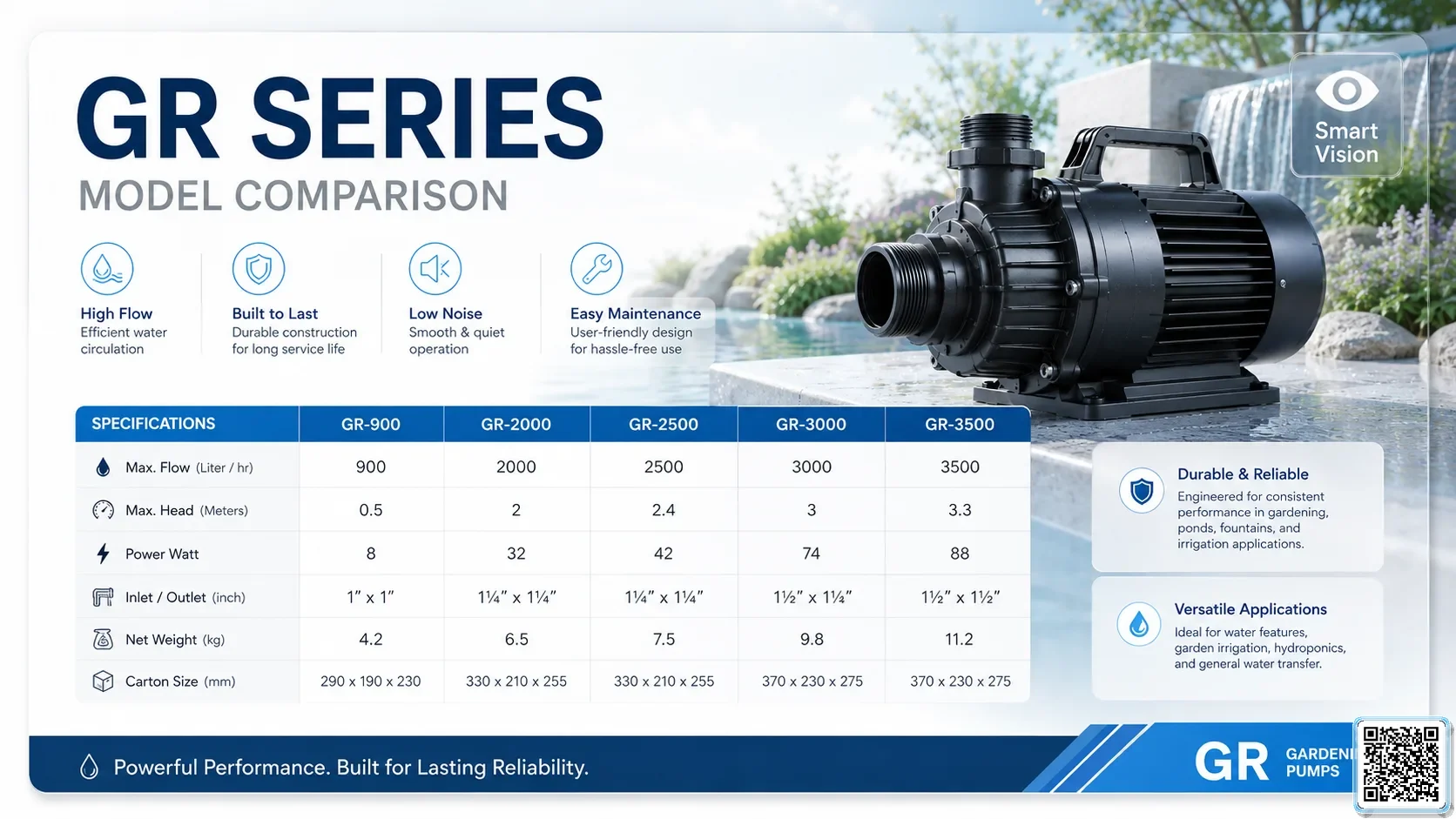

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
GR-900 GR-900	8 W	50Hz / 60Hz	—	900 L/hr	0.5 m	—	Not specified in catalogue	—	—
GR-900F GR-900F	8 W	50Hz / 60Hz	—	900 L/hr	0.5 m	—	Not specified in catalogue	—	—
GR-2000 GR-2000	32 W	50Hz / 60Hz	—	2000 L/hr	2 m	—	Not specified in catalogue	—	—
GR-2000F GR-2000F	32 W	50Hz / 60Hz	—	2000 L/hr	2 m	—	Not specified in catalogue	—	—
GR-2500 GR-2500	42 W	50Hz / 60Hz	—	2500 L/hr	2.4 m	—	Not specified in catalogue	—	—
GR-2500F GR-2500F	42 W	50Hz / 60Hz	Model mm / ends	2500 L/hr	2.4 m	—	Not specified in catalogue	—	—
GR-3000 GR-3000	74 W	50Hz / 60Hz	—	3000 L/hr	3 m	—	Not specified in catalogue	—	—
GR-3500 GR-3500	88 W	50Hz / 60Hz	—	3500 L/hr	3.3 m	—	Not specified in catalogue	—	—
GR-4000 GR-4000	100 W	50Hz / 60Hz	—	4000 L/hr	4 m	—	Not specified in catalogue	—	—
