FASSeries Gardening Pumps

Name: FAS Series Gardening Pumps
Brand: APP

APP FAS Series Gardening Pump from Taiwan.

pumpsFASRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 68

Technical Specifications

source	APP catalogue
section	Domestic
series	FAS
family	Gardening Pump
catalogue_page	Domestic 19-20
features	24-hour operation; high-flow design; anti-rust engineering plastic.
Series	FAS Series
Pump Series	FAS
Pump Type	Gardening Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	240 x 165 x 375 mm / 240 x 165 x 395 mm / 240 x 165 x 410 mm
Pump length / size	240 x 165 x 375 mm / 240 x 165 x 395 mm / 240 x 165 x 410 mm
Variant Max Flow	230 LPM / 270 LPM / 320 LPM / 380 LPM
Variant Max Head	6 m / 7 m / 9 m / 11.5 m
Variant Pass Solid	19 mm
Variant Weight	6 kg / 7 kg / 8 kg / 9 kg

Project Integration

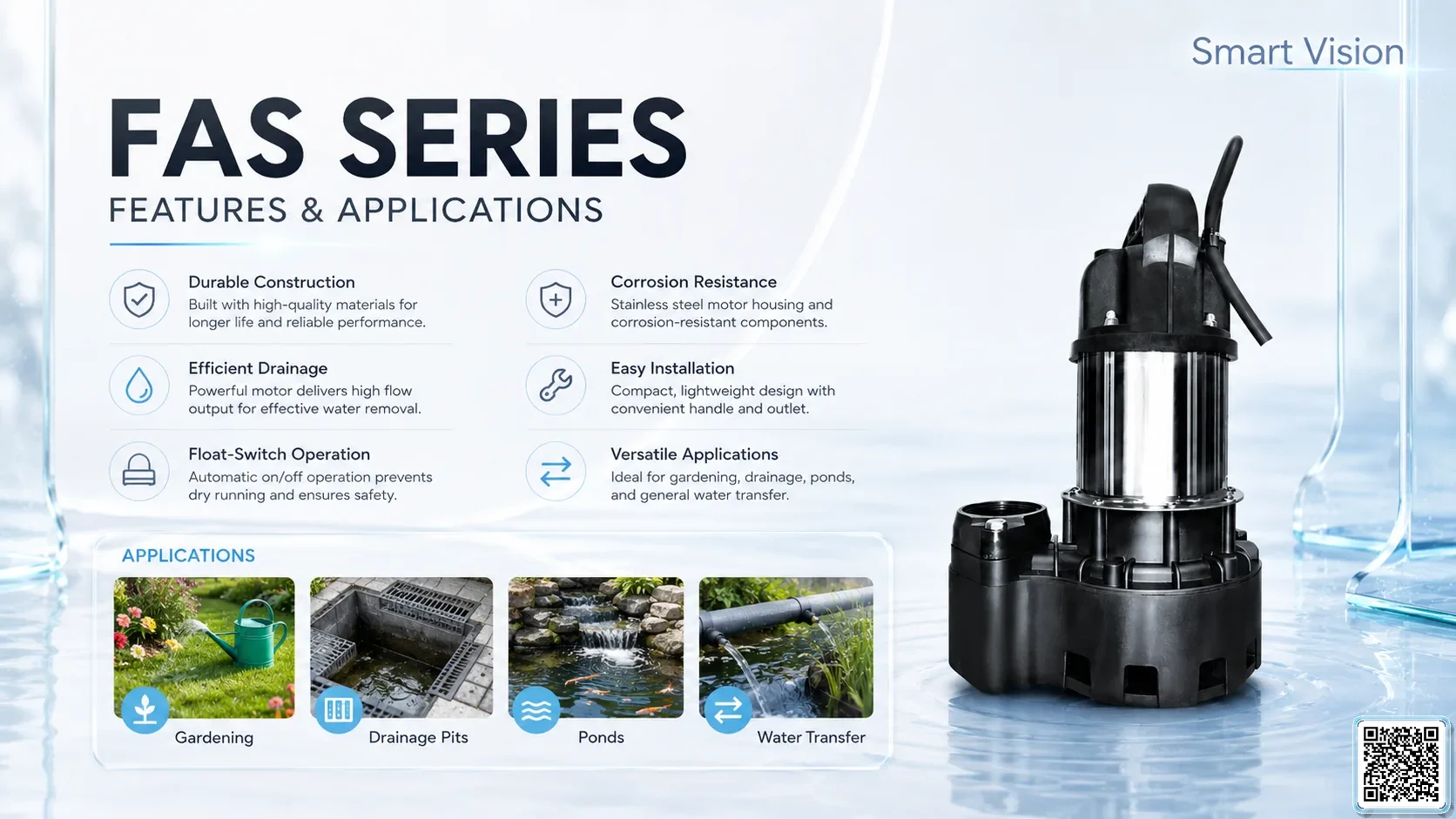

FAS Series Gardening Pumps is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

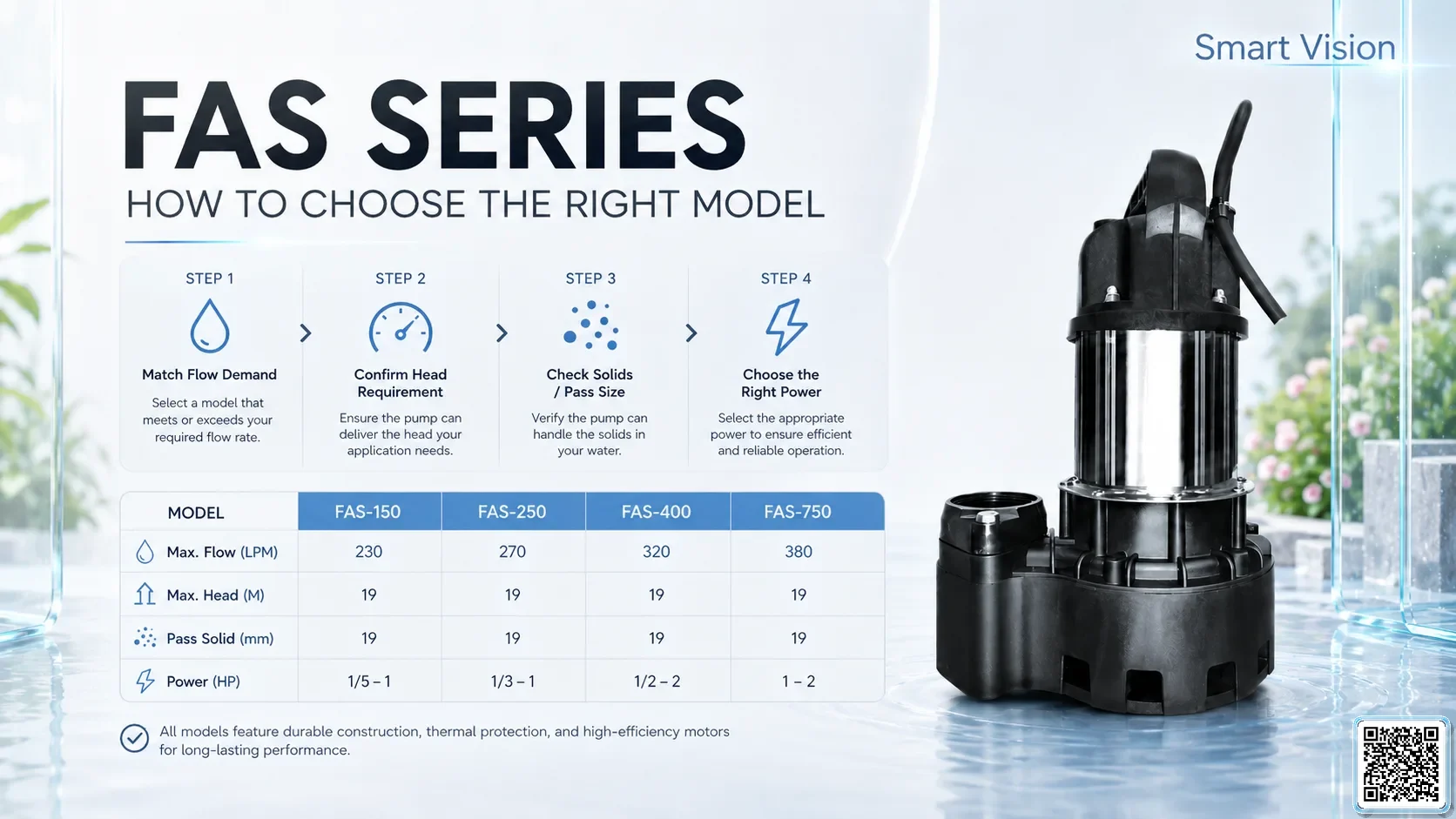

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

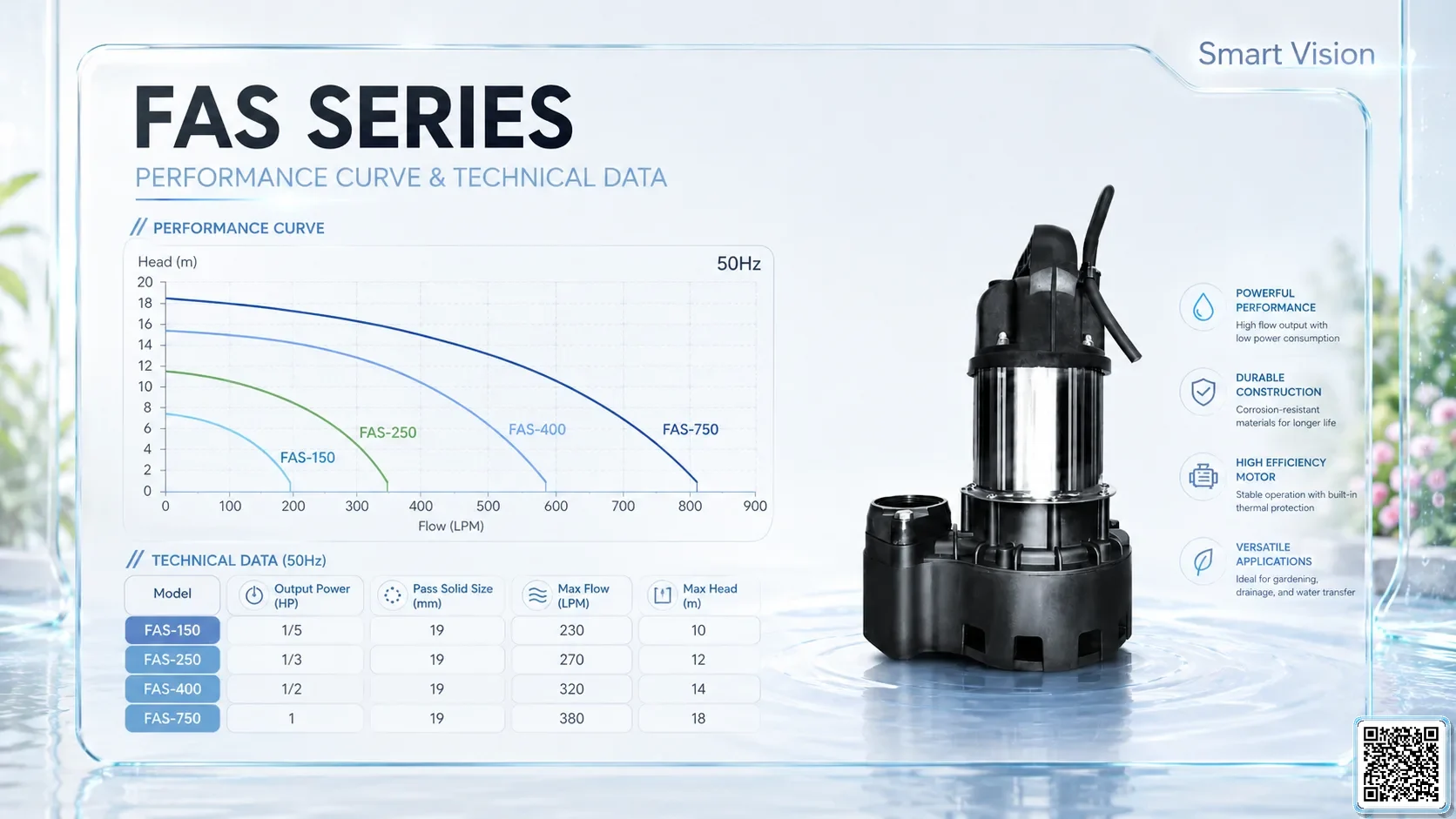

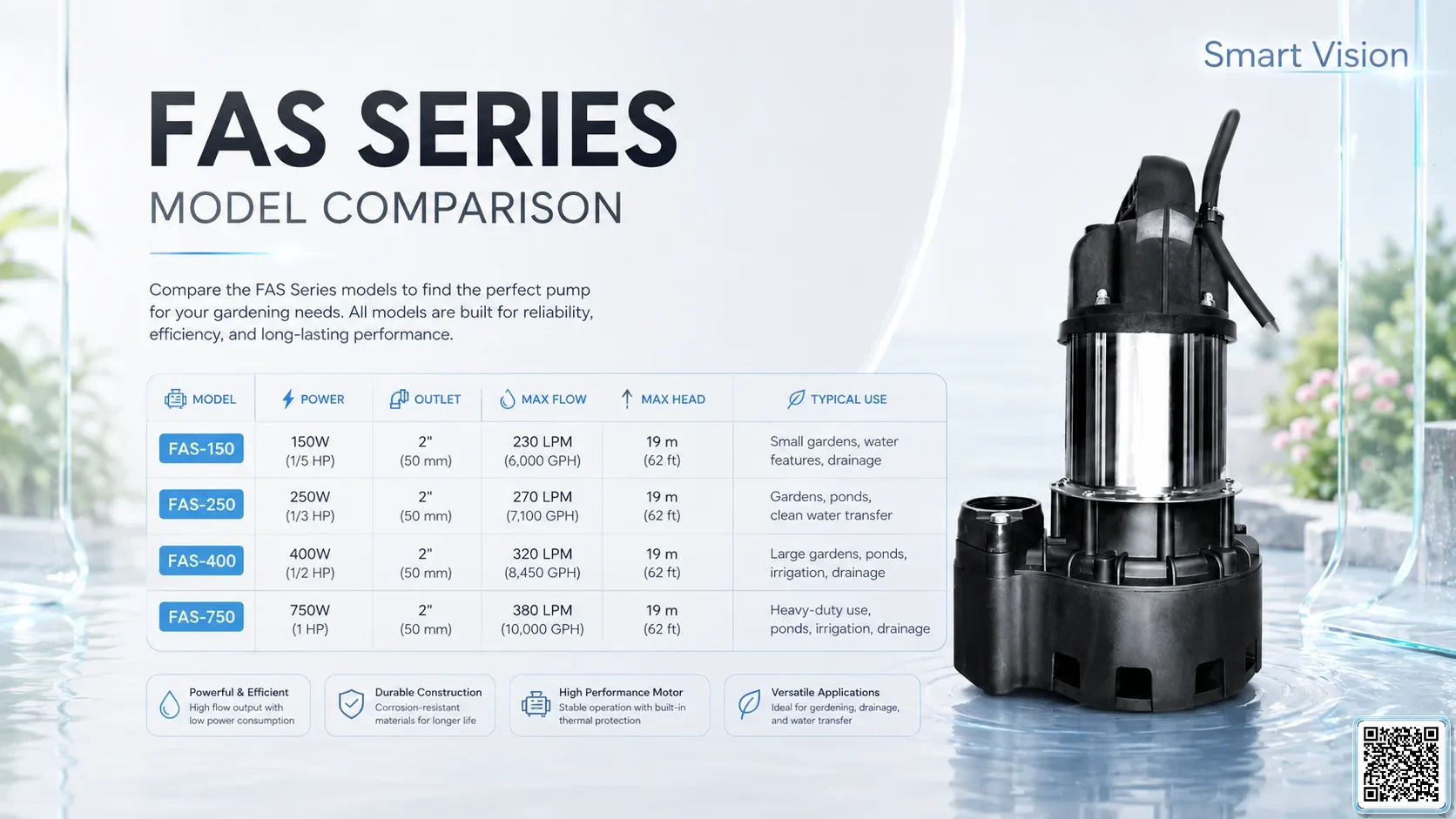

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
FAS-150 FAS-150	1/5 HP / 150 W	—	50 mm / 2"	230 LPM	6 m	19 mm	240	6 kg	—
FAS-250 FAS-250	1/3 HP / 250 W	—	50 mm / 2"	270 LPM	7 m	19 mm	240	7 kg	—
FAS-400 FAS-400	1/2 HP / 400 W	—	50 mm / 2"	320 LPM	9 m	19 mm	240	8 kg	—
FAS-750 FAS-750	1 HP / 750 W	—	50 mm / 2"	380 LPM	11.5 m	19 mm	240	9 kg	—
