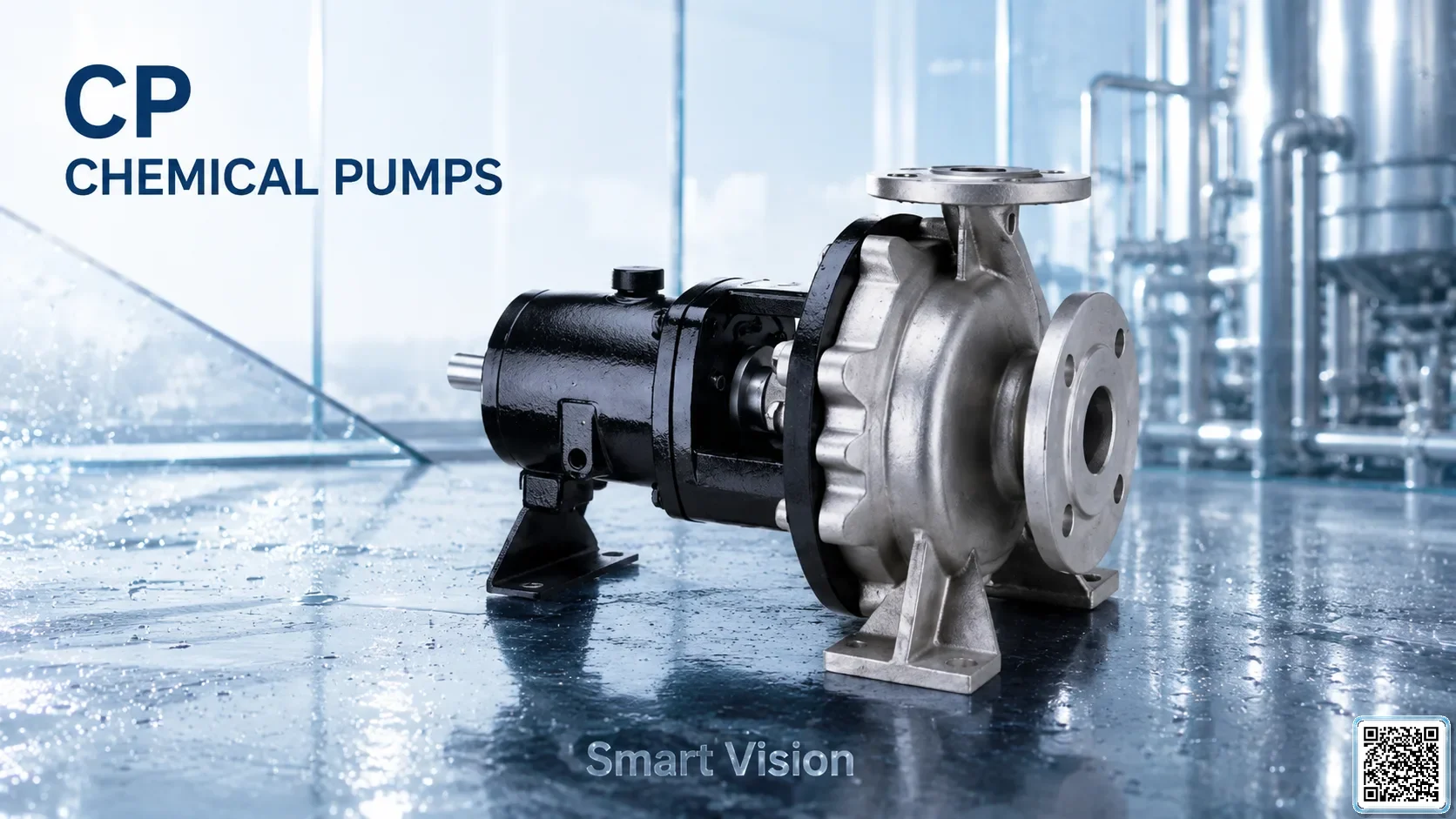

CP Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

CPSeries Chemical Pumps

Name: CP Series Chemical Pumps
Brand: APP

APP CP Series Industrial / Chemical Pump from Taiwan.

pumpsCPRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 97

Technical Specifications

source	APP catalogue
section	Auxiliary
series	CP
family	Industrial / Chemical Pump
catalogue_page	Auxiliary 05-06
features	Chemical pump model ranges by inlet/outlet/impeller size.
Series	CP Series
Pump Series	CP
Pump Type	Industrial / Chemical Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Max Flow	18 m³/h max / 12.5 m³/h rated / 17 m³/h max / 12.5 m³/h rated / 34 m³/h max / 25 m³/h rated / 32 m³/h max / 25 m³/h rated / 64 m³/h max / 50 m³/h rated / 63 m³/h max / 50 m³/h rated / 62 m³/h max / 50 m³/h rated / 140 m³/h max / 100 m³/h rated / 130 m³/h max / 100 m³/h rated / 136 m³/h max / 100 m³/h rated / 250 m³/h max / 200 m³/h rated
Variant Max Head	35 m max / 32 m rated / 53 m max / 50 m rated / 55 m max / 50 m rated / 82 m max / 80 m rated / 38 m max / 32 m rated / 58 m max / 50 m rated / 85 m max / 80 m rated / 40 m max / 32 m rated / 57 m max / 50 m rated / 90 m max / 80 m rated / 64 m max / 50 m rated

Project Integration

CP Series Chemical Pumps is suitable for auxiliary applications such as pump control, condensate drainage, cooling, light chemical handling or other special-purpose systems depending on the model. Selection should check liquid type, temperature, pressure, wetted material and duty conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
CP 50 x 32 x 200 CP 50 x 32 x 200	—	—	32 mm / 1-1/4"	17 m³/h max / 12.5 m³/h rated	53 m max / 50 m rated	—	Not specified in catalogue	—	—
CP 50 x 32 x 160 CP 50 x 32 x 160	—	—	32 mm / 1-1/4"	18 m³/h max / 12.5 m³/h rated	35 m max / 32 m rated	—	Not specified in catalogue	—	—
CP 65 x 40 x 200 CP 65 x 40 x 200	—	—	40 mm / 1-1/2"	32 m³/h max / 25 m³/h rated	55 m max / 50 m rated	—	Not specified in catalogue	—	—
CP 65 x 50 x 160 CP 65 x 50 x 160	—	—	50 mm / 2"	34 m³/h max / 25 m³/h rated	35 m max / 32 m rated	—	Not specified in catalogue	—	—
CP 65 x 40 x 250 CP 65 x 40 x 250	—	—	40 mm / 1-1/2"	34 m³/h max / 25 m³/h rated	82 m max / 80 m rated	—	Not specified in catalogue	—	—
CP 80 x 50 x 250 CP 80 x 50 x 250	—	—	50 mm / 2"	62 m³/h max / 50 m³/h rated	85 m max / 80 m rated	—	Not specified in catalogue	—	—
CP 80 x 50 x 200 CP 80 x 50 x 200	—	—	50 mm / 2"	63 m³/h max / 50 m³/h rated	58 m max / 50 m rated	—	Not specified in catalogue	—	—
CP 80 x 65 x 160 CP 80 x 65 x 160	—	—	65 mm / 2-1/2"	64 m³/h max / 50 m³/h rated	38 m max / 32 m rated	—	Not specified in catalogue	—	—
CP 100 x 65 x 200 CP 100 x 65 x 200	—	—	65 mm / 2-1/2"	130 m³/h max / 100 m³/h rated	57 m max / 50 m rated	—	Not specified in catalogue	—	—
CP 100 x 65 x 250 CP 100 x 65 x 250	—	—	65 mm / 2-1/2"	136 m³/h max / 100 m³/h rated	90 m max / 80 m rated	—	Not specified in catalogue	—	—
CP 100 x 80 x 160 CP 100 x 80 x 160	—	—	80 mm / 3"	140 m³/h max / 100 m³/h rated	40 m max / 32 m rated	—	Not specified in catalogue	—	—
CP 125 x 100 x 200 CP 125 x 100 x 200	—	—	100 mm / 4"	250 m³/h max / 200 m³/h rated	64 m max / 50 m rated	—	Not specified in catalogue	—	—
