CBP Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

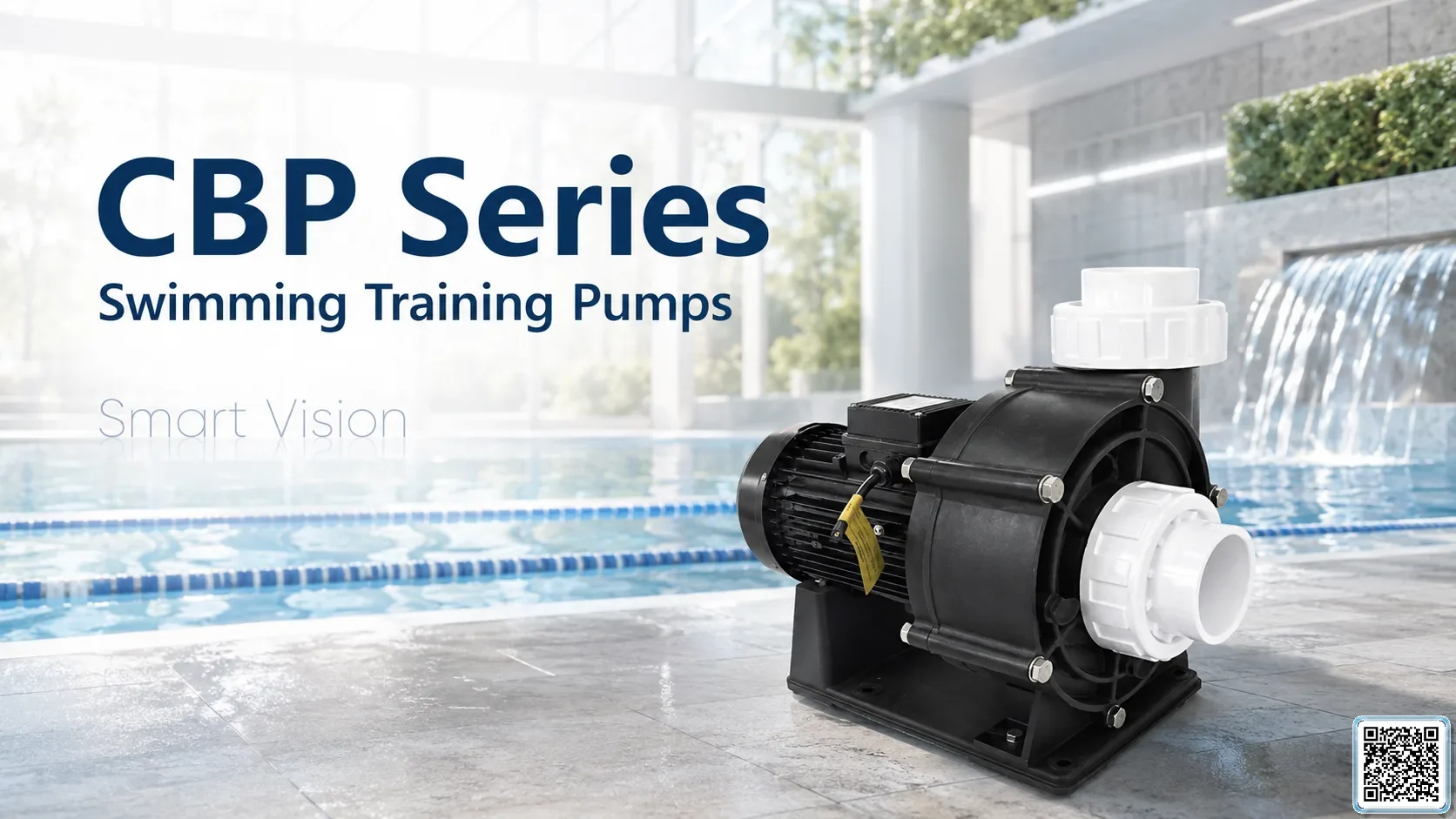

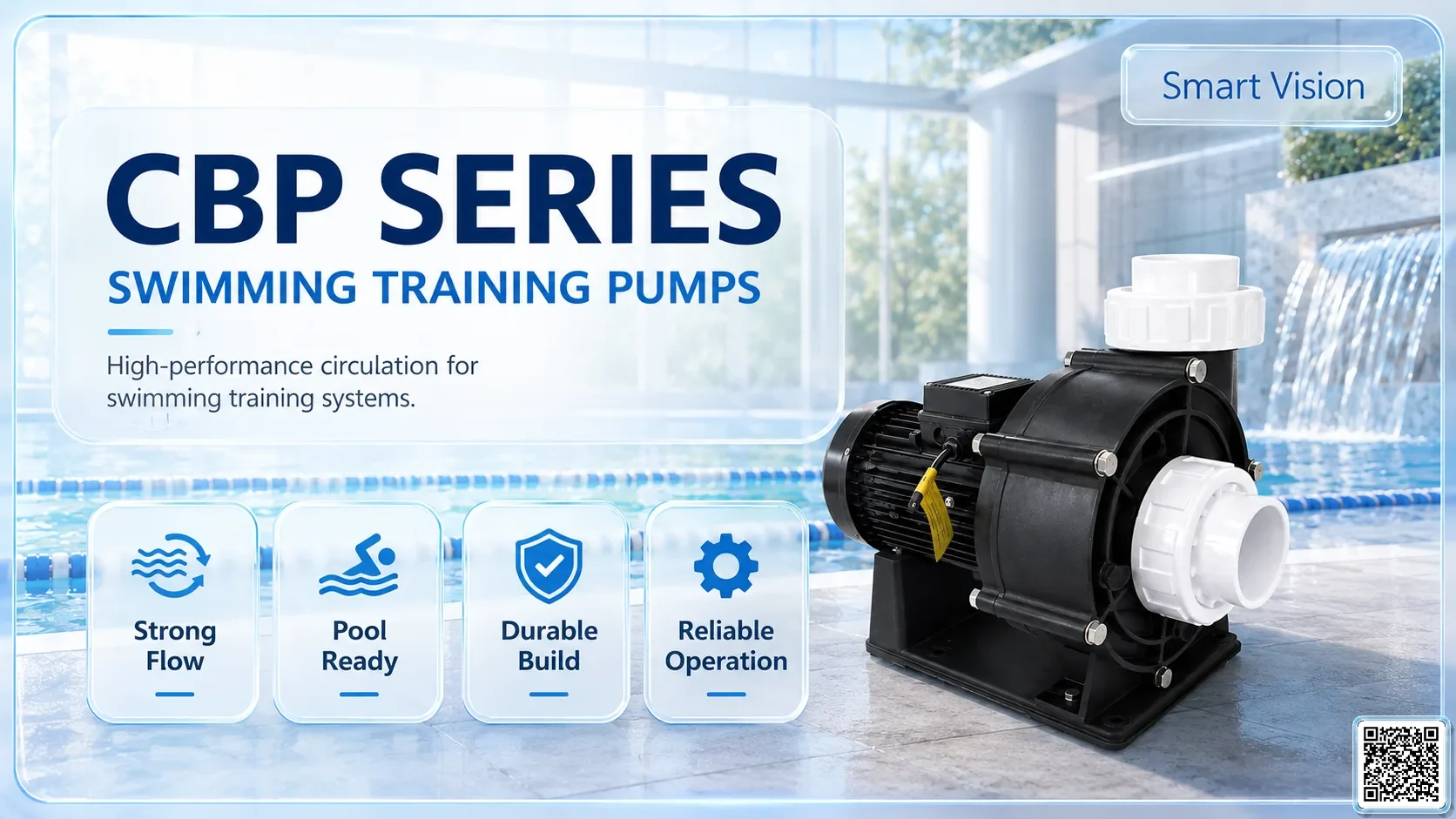

CBPSeries Swimming Training Pumps

Name: CBP Series Swimming Training Pumps
Brand: APP

APP CBP Series – Swimming Training Pump.

pumpsCBPRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 80

Technical Specifications

Series	CBP Series
Pump Series	CBP
Pump Type	Swimming Training Pump
Flow / head	11.5~23 m
Outlet	80 mm / 3"; 100 mm / 4"
Water Temperature	5~50℃ / 41~122℉
pH Range	6~8
Pump construction	IP55
Connection Size	80 mm / 3"; 100 mm / 4"

Project Integration

CBP Series Swimming Training Pumps is suitable for swimming pool, SPA, landscape pond and filtration circulation systems that require stable operation. Pump selection should verify circulation flow, pipeline head loss, outlet size and continuous-duty requirements.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

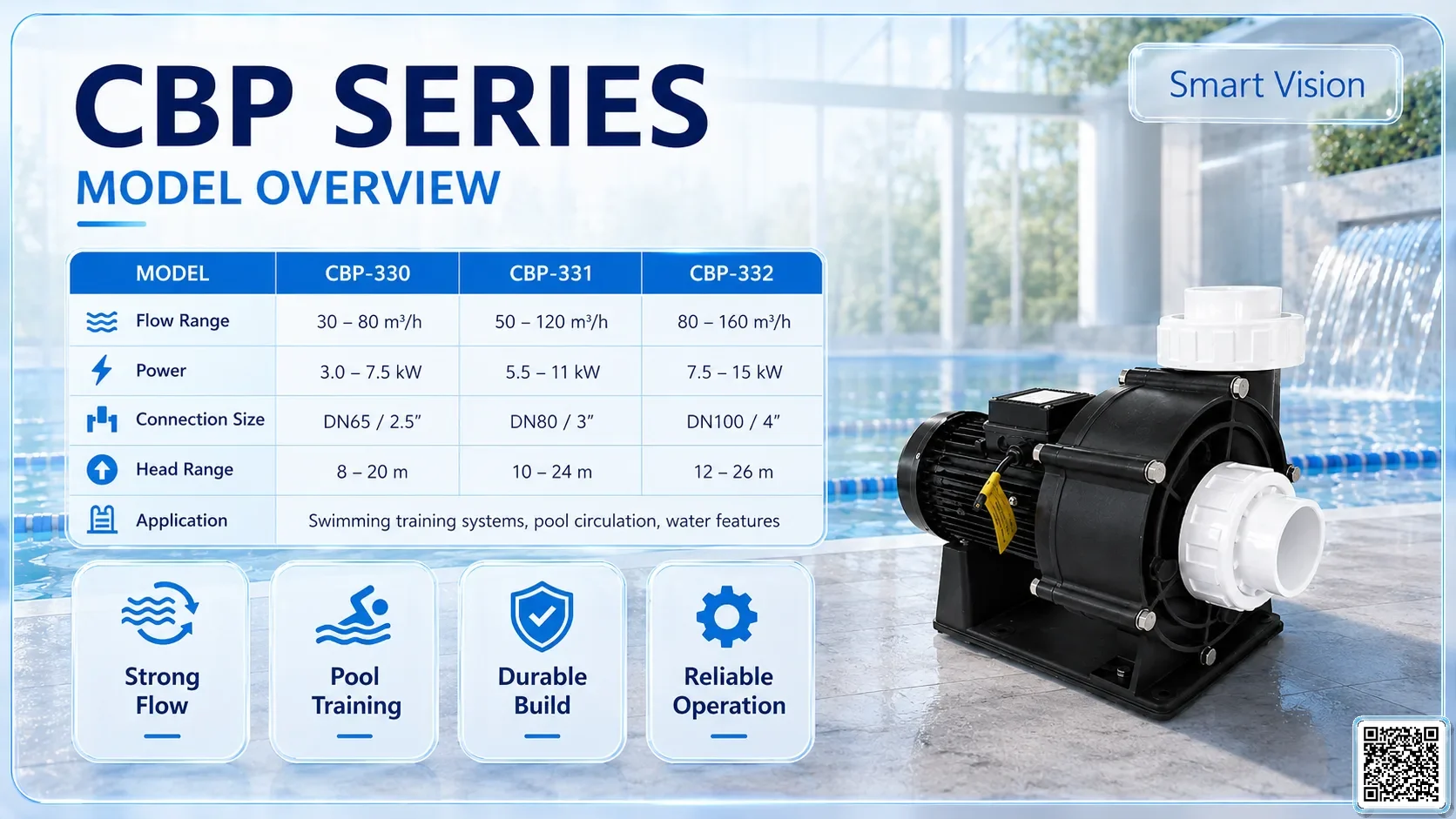

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
CBP-330 CBP-330	3 HP / 2.2 kW	220V / 1P \| 380V / 3P	80 mm / 3"	1200 LPM	11.5 m	—	Not specified in catalogue	24 kg	—
CBP-330(T) CBP-330(T)	3 HP / 2.2 kW	220V / 1P \| 380V / 3P	100 mm / 4"	1200 LPM	11.5 m	—	412	24 kg	—
CBP-440T CBP-440T	4 HP / 3 kW	380V / 3P	100 mm / 4"	1300 LPM	13 m	—	Not specified in catalogue	—	—
CBP-540T CBP-540T	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1550 LPM	17.5 m	—	Not specified in catalogue	—	—
CBP-740T CBP-740T	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	1700 LPM	23 m	—	Not specified in catalogue	—	—
