BPHSeries Hi-head Clean Water Pump

Name: BPH Series Hi-head Clean Water Pump
Brand: APP

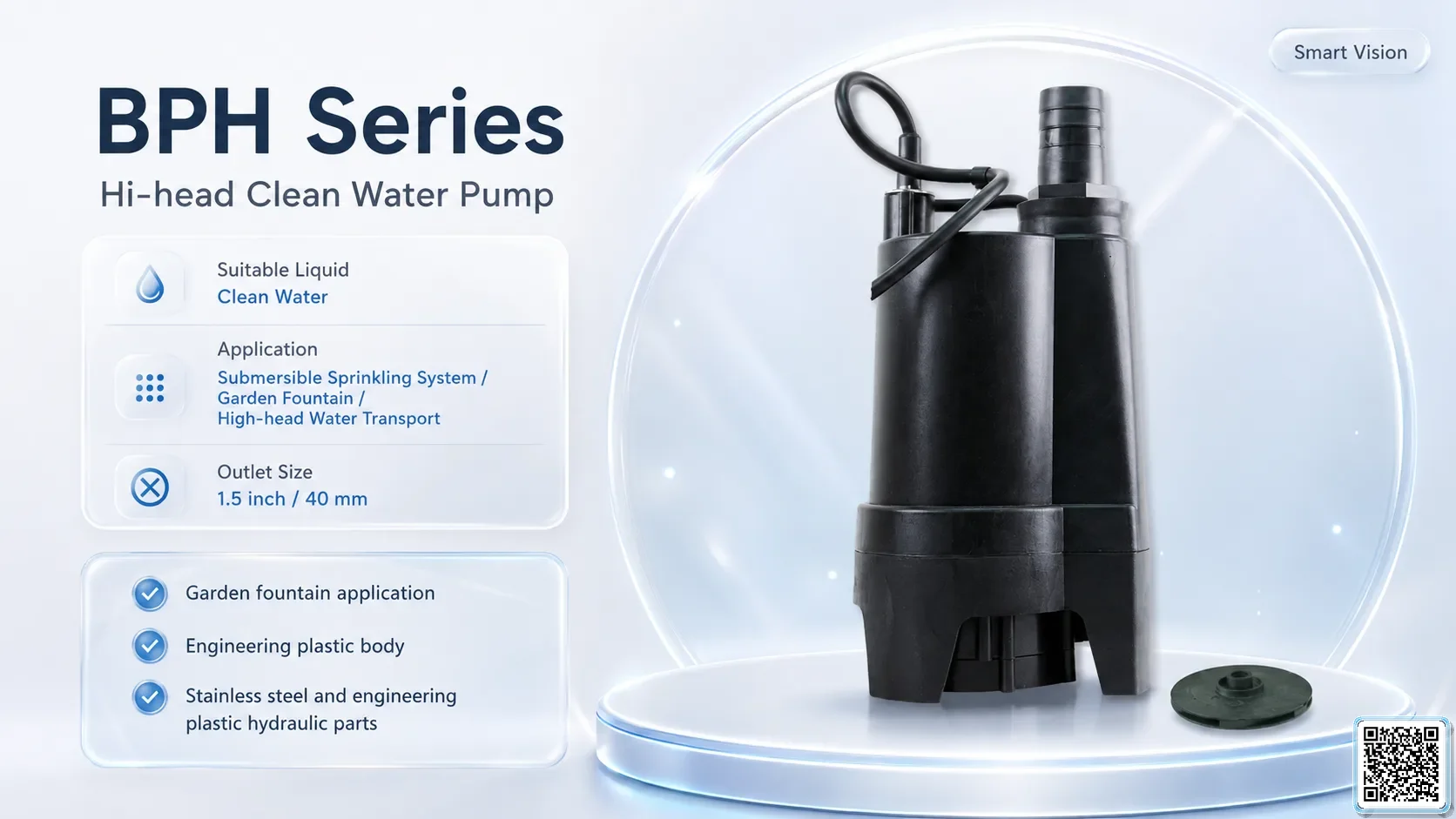

APP BPH Series pump for submersible sprinkling system; garden fountain; high-head water transport.

pumpsBPHRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 85

Technical Specifications

Series	BPH Series
Pump Series	BPH
Pump Type	Hi-head Clean Water Pump
Motor Type	Submersible motor
Cooling Type	Water cooled
Flow / head	18~21 m by frequency
Outlet	40 mm / 1-1/2"
Max Diving Depth	8 m
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Max Particle Size	3 mm
Pump construction	IP68
Connection Size	40 mm / 1-1/2"

Project Integration

BPH Series Hi-head Clean Water Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

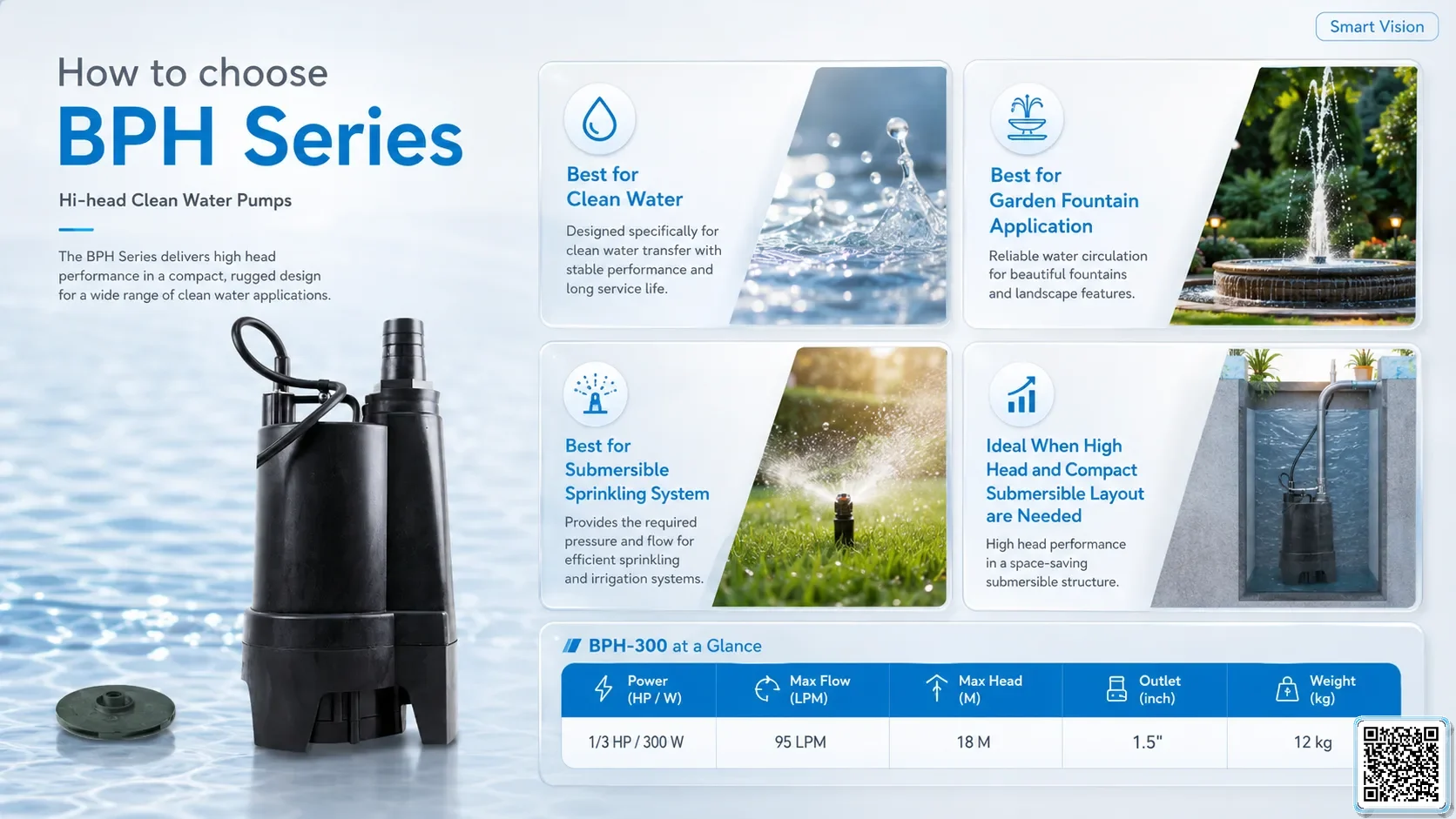

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

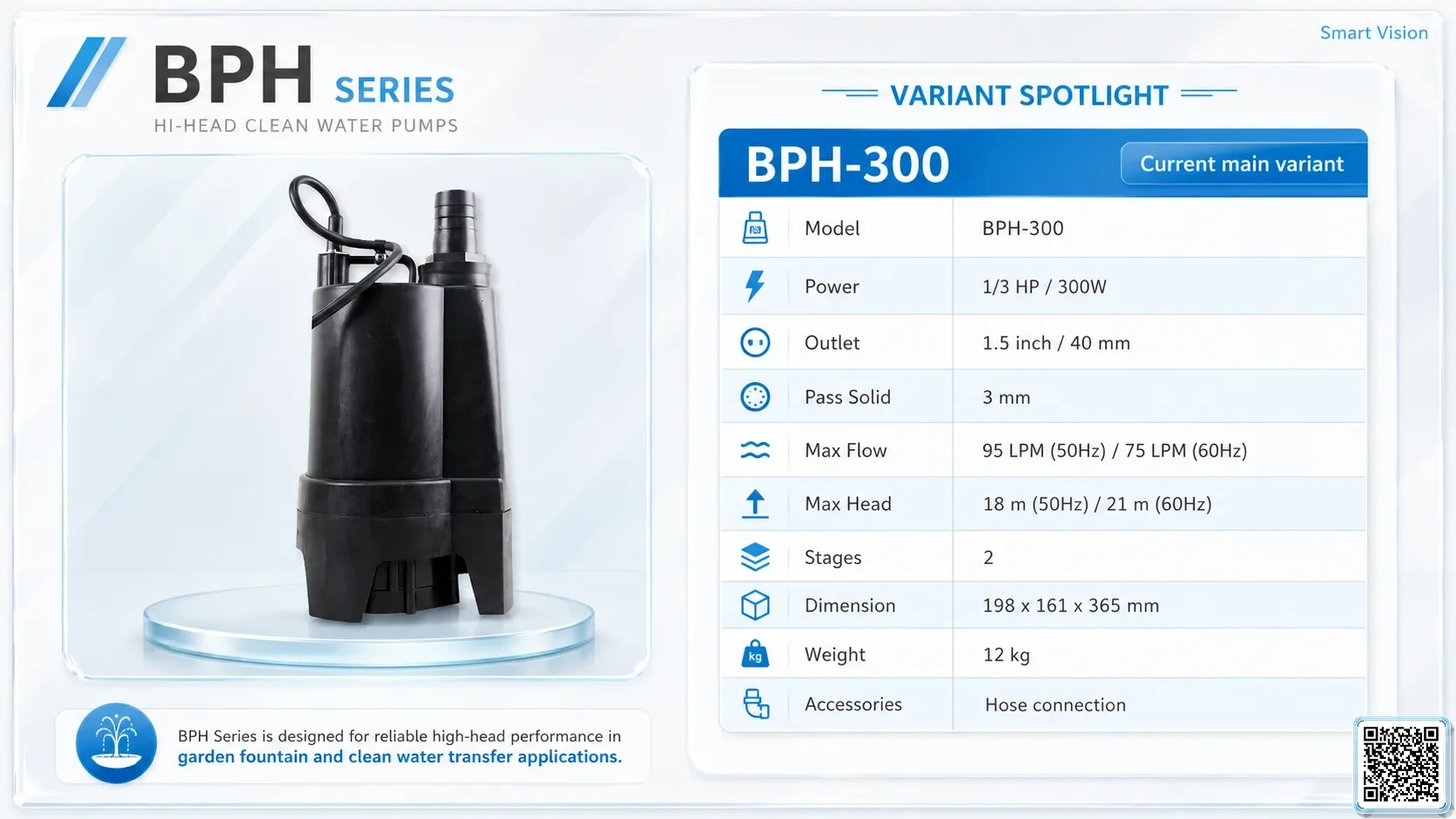

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
BPH-300 BPH-300	1/3 HP / 300 W	—	40 mm / 1-1/2"	95 LPM (50Hz) / 75 LPM (60Hz)	18 m (50Hz) / 21 m (60Hz)	3 mm	198	12 kg	Hose connection

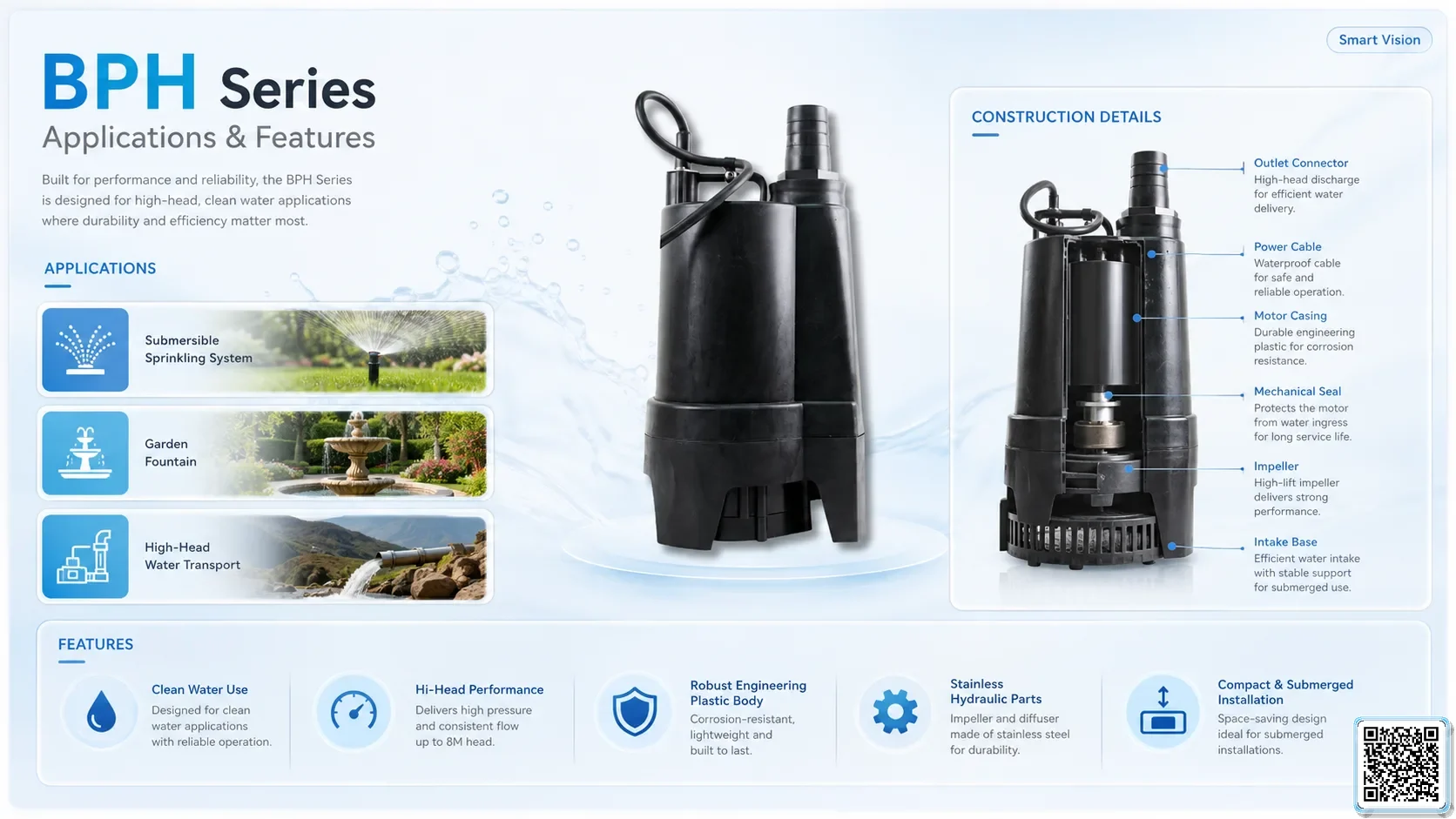

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan BPH Series Hi-head Clean Water Pump designed for submersible sprinkling system; garden fountain; high-head water transport. Suitable for SmartVision projects that require reliable auxiliary pump options.
