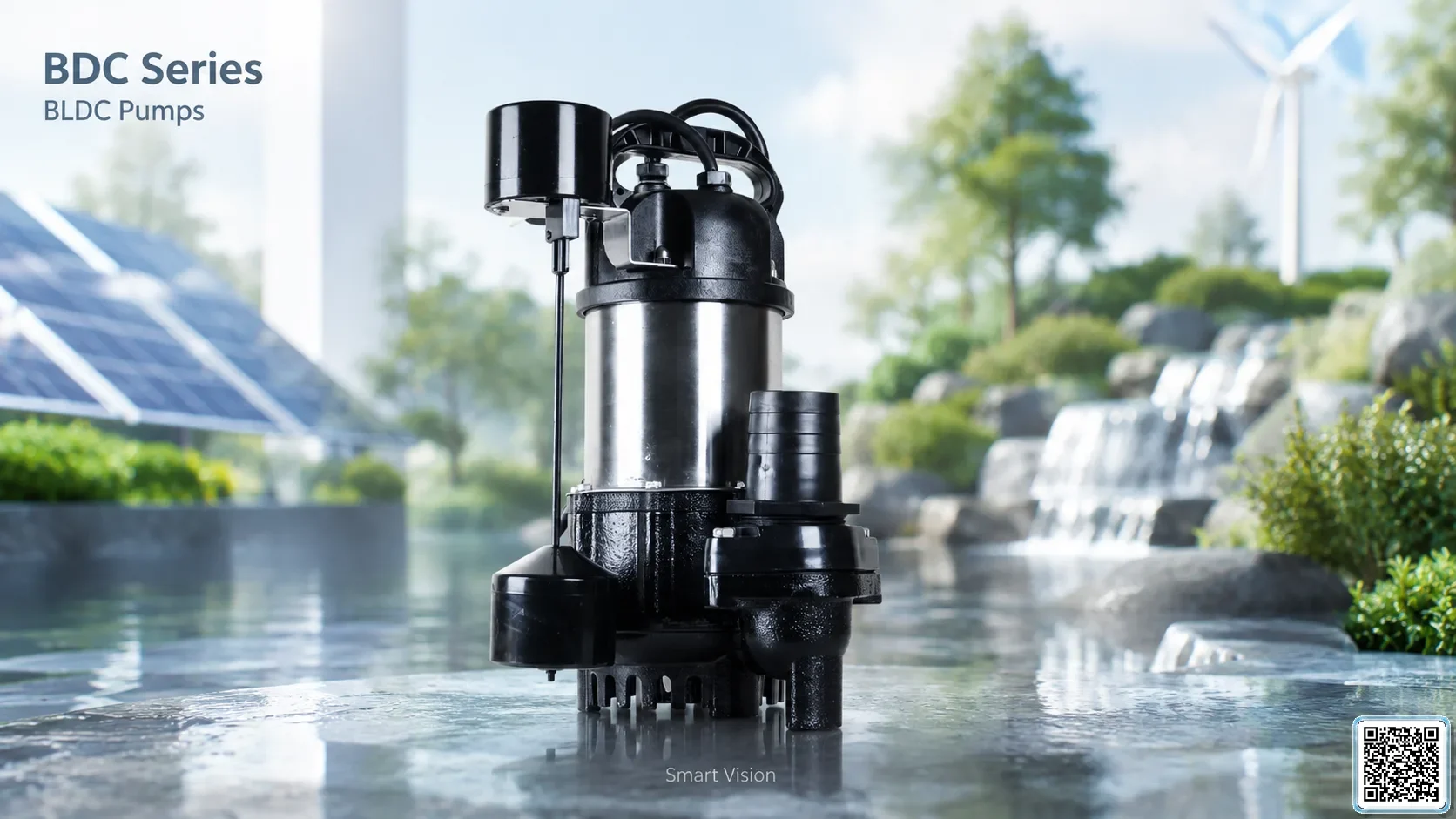

BDCSeries BLDC Pumps
APP BDC Series BLDC / Inverter Pump from Taiwan.
Technical Specifications
| source | APP catalogue |
|---|---|
| section | Industry |
| series | BDC |
| family | BLDC / Inverter Pump |
| catalogue_page | 07-08 |
| features | EC BLDC motor; modular controller/motor/pump system. |
| Series | BDC Series |
| Pump Series | BDC |
| Pump Type | BLDC / Inverter Pump |
| Motor Type | EC / BLDC motor |
| Max Diving Depth | 4 m |
| Water Temperature | 0~40℃ / 32~104℉ |
| pH Range | 6~8 |
| Pump construction | IP68 |
| Variant Dimensions | 224 x 146 x 338 mm |
| Pump length / size | 224 x 146 x 338 mm |
| Variant Max Flow | 185 LPM |
| Variant Max Head | 07 m |
| Variant Weight | 08 kg |
Project Integration
BDC Series BLDC Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.
- Select the model by project flow and working head
- Check power, voltage/frequency, outlet size, material and installation dimensions
- Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
- Support configuration comparison and quotation by actual project quantity
Pump Selection Table by Model
Applications & Key Features
Overview
APP BDC Series is a bldc / inverter pump for Green energy; solar/wind power; backup pumping system applications.
Applications
Green energy; solar/wind power; backup pumping system
Key features
EC BLDC motor; modular controller/motor/pump system.
