BCVSeries Sewage Pumps

Name: BCV Series Sewage Pumps
Brand: APP

APP BCV Series Sewage Pump from Taiwan.

pumpsBCVRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 72

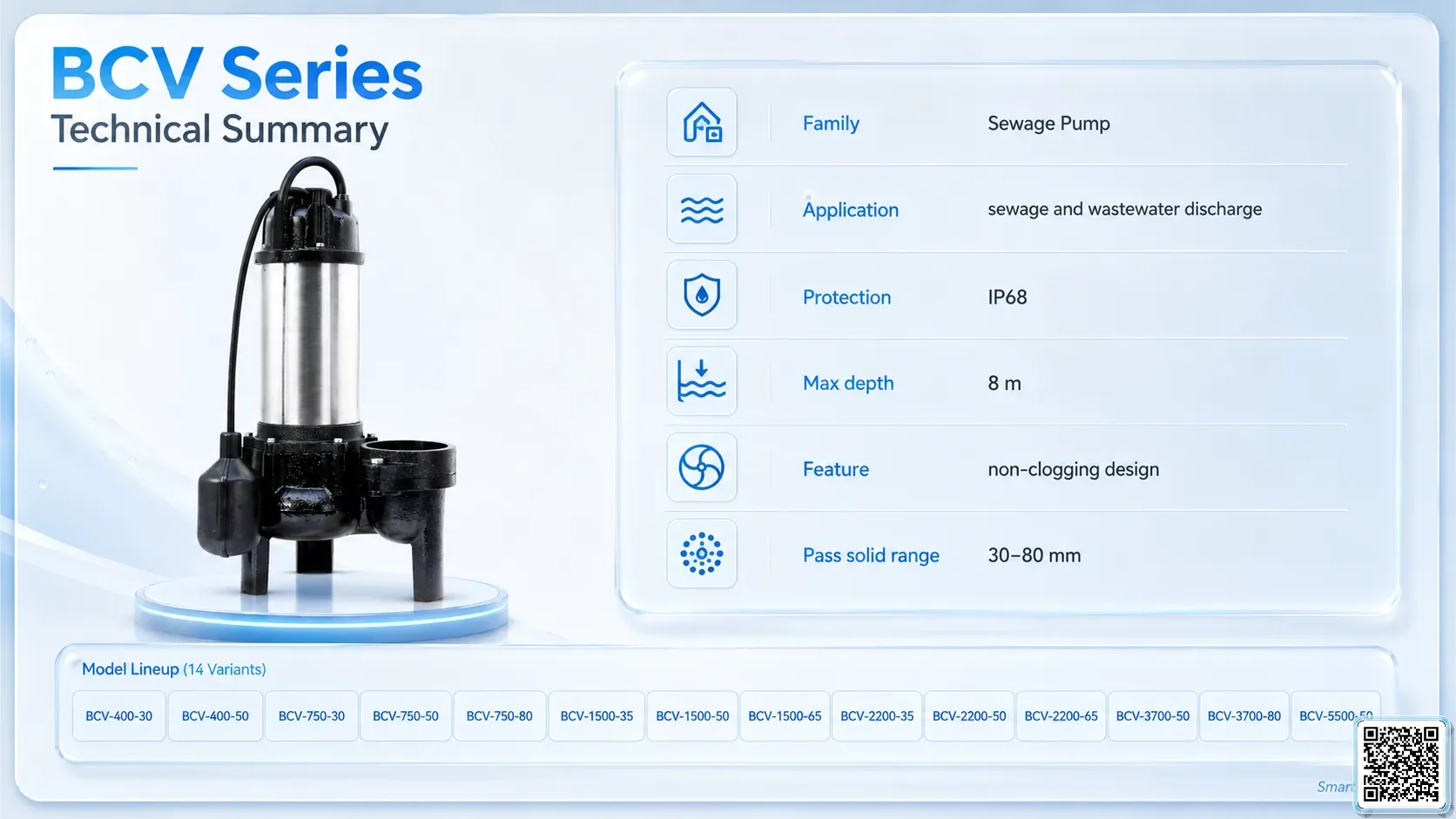

Technical Specifications

source	APP catalogue
section	Industry
series	BCV
family	Sewage Pump
catalogue_page	05-06

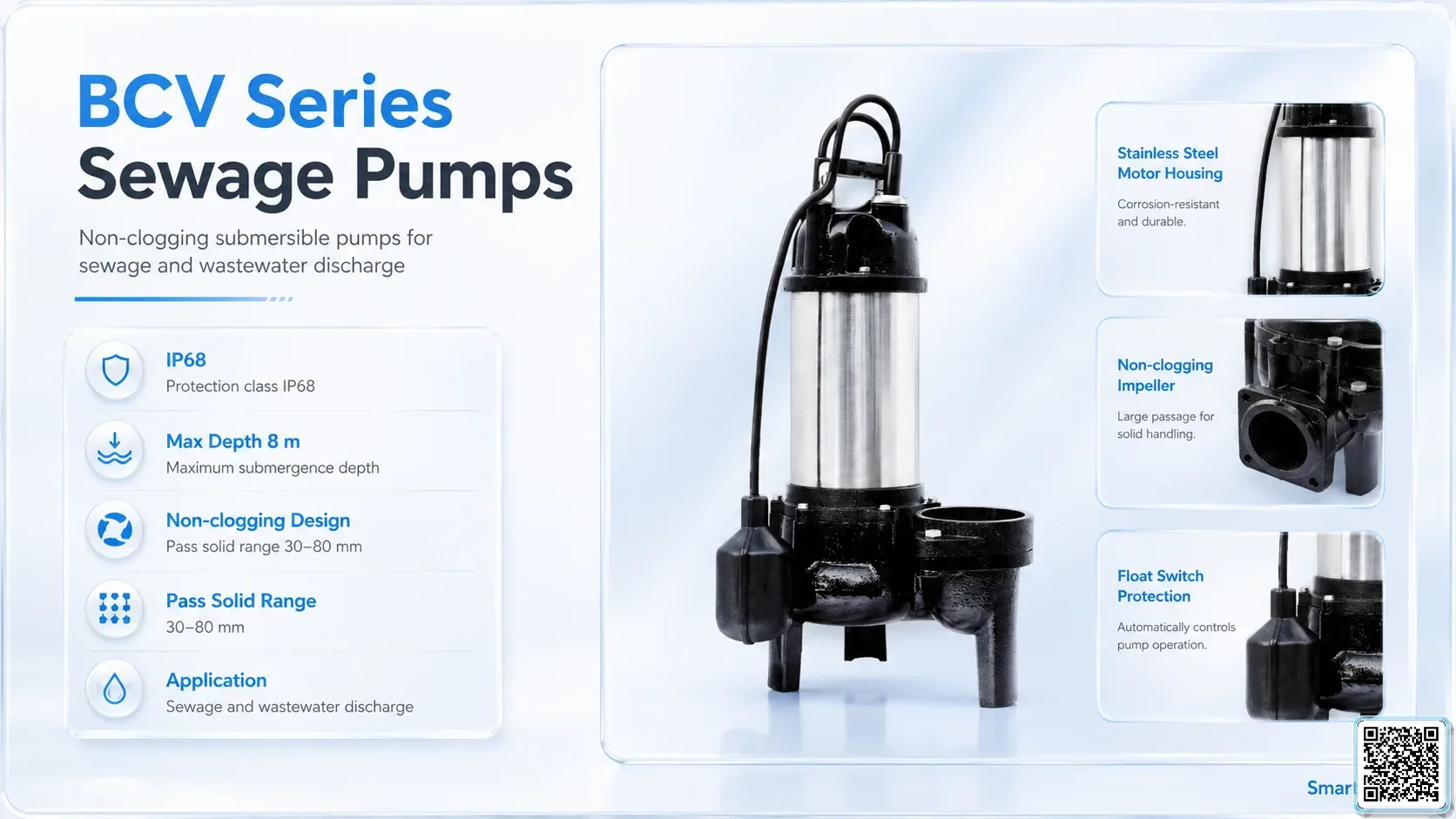

features	Non-clogging design; pass solid range 30~80 mm.
Series	BCV Series
Pump Series	BCV
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	222 x 146 x 430 mm / 270 x 170 x 510 mm / 387 x 210 x 560 mm / 387 x 210 x 580 mm / 475 x 216 x 630 mm
Pump length / size	222 x 146 x 430 mm / 270 x 170 x 510 mm / 387 x 210 x 560 mm / 387 x 210 x 580 mm / 475 x 216 x 630 mm
Variant Max Flow	320 LPM / 380 LPM / 370 LPM / 500 LPM / 680 LPM / 720 LPM / 900 LPM / 800 LPM / 1200 LPM / 1300 LPM / 1100 LPM / 1400 LPM
Variant Max Head	9 m / 7 m / 12 m / 10 m / 18 m / 15 m / 20 m / 11 m / 8.5 m / 21 m / 24 m
Variant Pass Solid	30 mm / 50 mm / 35 mm / 65 mm / 80 mm
Variant Weight	12 kg / 37 kg / 38 kg / 53 kg / 63 kg / 73 kg

Project Integration

BCV Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

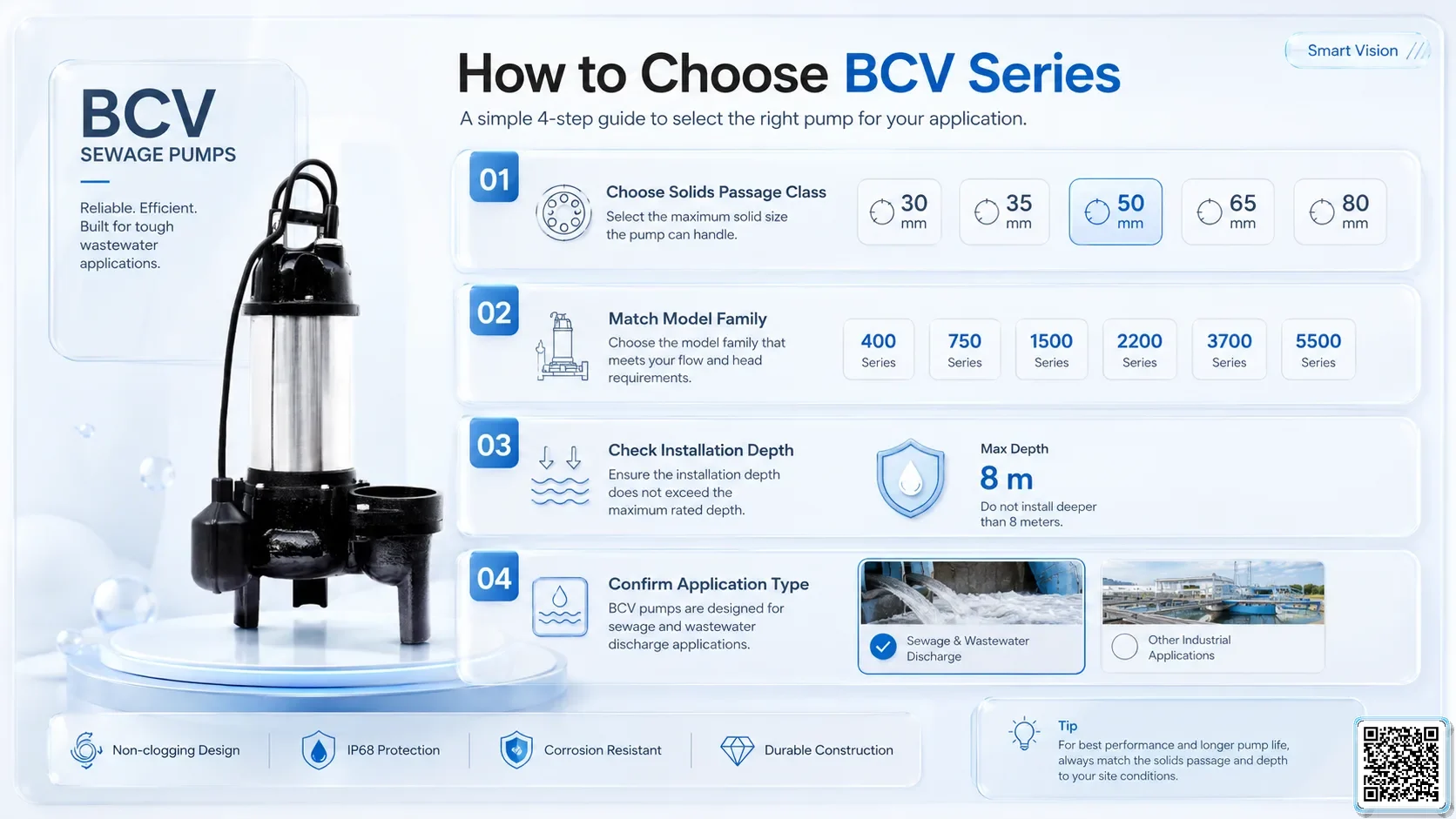

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

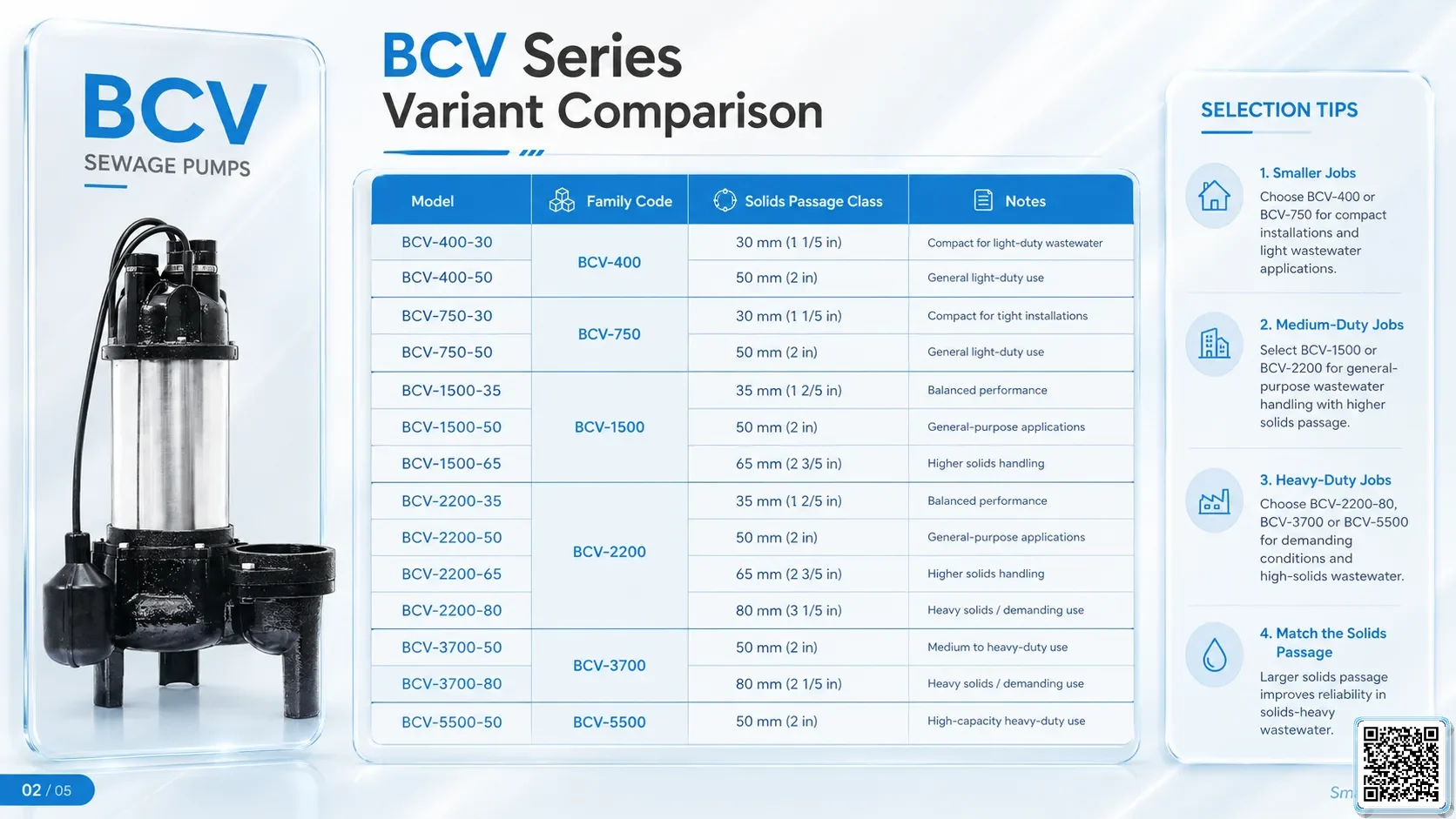

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
BCV-400-30 BCV-400-30	0.5 HP / 0.4 kW	—	50 mm / 2"	320 LPM	9 m	30 mm	222	12 kg	—
BCV-400-50 BCV-400-50	0.5 HP / 0.4 kW	—	50 mm / 2"	380 LPM	7 m	50 mm	222	12 kg	—
BCV-750-30 BCV-750-30	1 HP / 0.75 kW	—	50 mm / 2"	370 LPM	12 m	30 mm	270	37 kg	—
BCV-750-50 BCV-750-50	1 HP / 0.75 kW	—	50 mm / 2"	500 LPM	10 m	50 mm	270	37 kg	—
BCV-1500-35 BCV-1500-35	2 HP / 1.5 kW	—	80 mm / 3"	680 LPM	18 m	35 mm	387	38 kg	—
BCV-1500-50 BCV-1500-50	2 HP / 1.5 kW	—	80 mm / 3"	720 LPM	15 m	50 mm	387	38 kg	—
BCV-1500-65 BCV-1500-65	2 HP / 1.5 kW	—	80 mm / 3"	900 LPM	9 m	65 mm	387	38 kg	—
BCV-2200-35 BCV-2200-35	3 HP / 2.2 kW	—	80 mm / 3"	800 LPM	20 m	35 mm	387	53 kg	—
BCV-2200-50 BCV-2200-50	3 HP / 2.2 kW	—	80 mm / 3"	900 LPM	18 m	50 mm	387	53 kg	—
BCV-2200-65 BCV-2200-65	3 HP / 2.2 kW	—	80 mm / 3"	1200 LPM	11 m	65 mm	387	53 kg	—
BCV-2200-80 BCV-2200-80	3 HP / 2.2 kW	—	80 mm / 3"	1300 LPM	8.5 m	80 mm	387	53 kg	—
BCV-3700-50 BCV-3700-50	5 HP / 3.7 kW	—	100 mm / 4"	1100 LPM	21 m	50 mm	475	63 kg	—
BCV-3700-80 BCV-3700-80	5 HP / 3.7 kW	—	100 mm / 4"	1400 LPM	10 m	80 mm	475	63 kg	—
BCV-5500-50 BCV-5500-50	7.5 HP / 5.5 kW	—	100 mm / 4"	1200 LPM	24 m	50 mm	475	73 kg	—
