BAVSeries Sewage Pumps

Name: BAV Series Sewage Pumps
Brand: APP

APP BAV Series Sewage Pump from Taiwan.

pumpsBAVRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 110

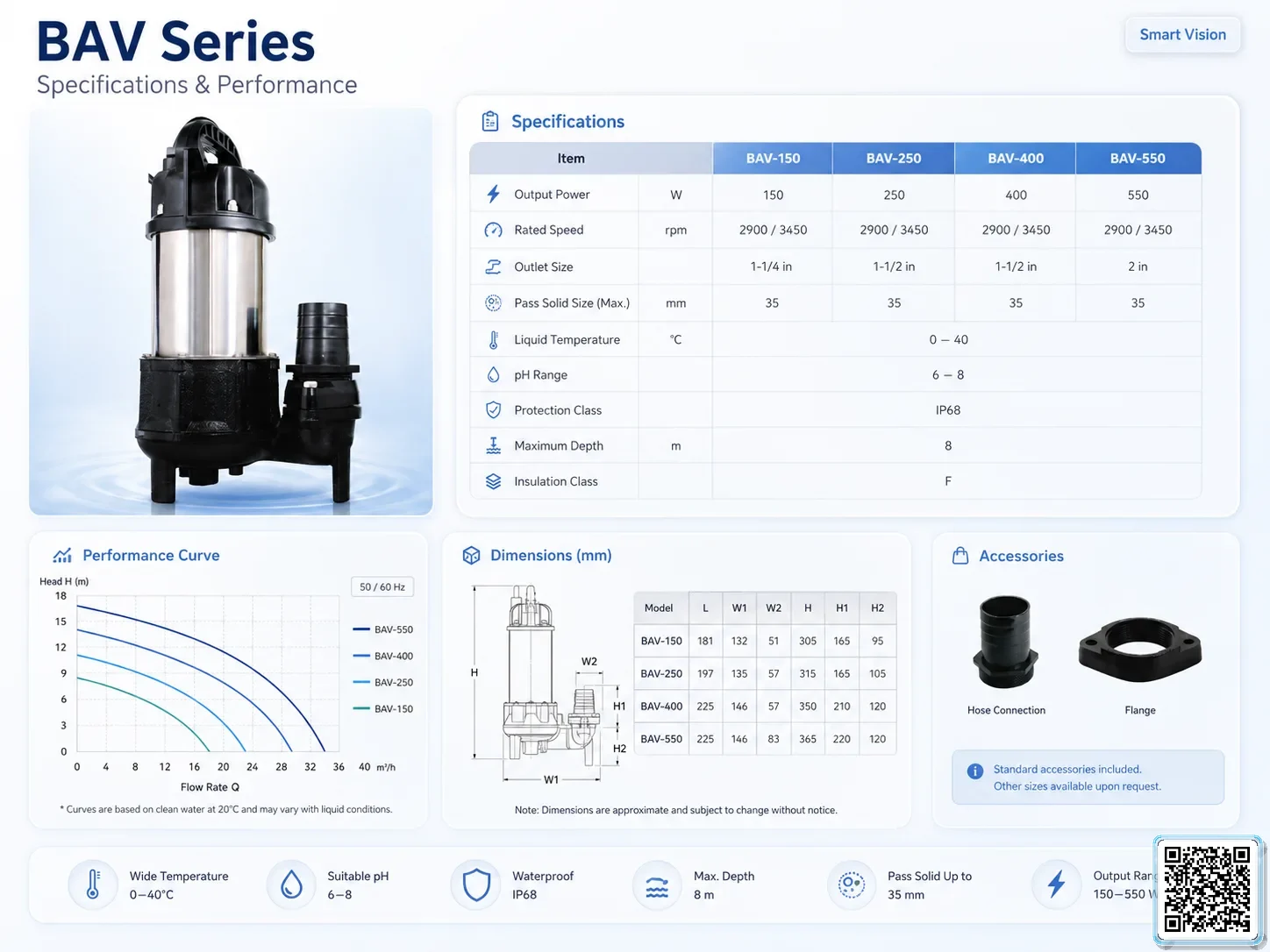

Technical Specifications

source	APP catalogue
section	Domestic
series	BAV
family	Sewage Pump
catalogue_page	Domestic 07-08
features	Power cable insulation; optional removable strainer; non-clogging vortex impeller.
Series	BAV Series
Pump Series	BAV
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	190 x 130 x 280 mm / 200 x 135 x 285 mm / 236 x 145 x 352 mm
Pump length / size	190 x 130 x 280 mm / 200 x 135 x 285 mm / 236 x 145 x 352 mm
Variant Max Flow	160 LPM / 200 LPM / 300 LPM / 340 LPM
Variant Max Head	6 m / 8 m / 10 m / 12 m
Variant Pass Solid	10 mm / 25 mm / 30 mm / 35 mm
Variant Weight	6 kg / 9 kg / 11 kg / 12 kg

Project Integration

BAV Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
BAV-250T BAV-250T	1/3 HP / 250 W	220V / 1P \| 380V / 3P	40 mm / 1-1/2"	200 LPM	8 m	25 mm	190	9 kg	—
BAV-150 BAV-150	1/5 HP / 150 W	220V / 1P	32 mm / 1-1/4"	160 LPM	6 m	10 mm	190	6 kg	—
BAV-400S(T) BAV-400S(T)	1/2 HP / 400 W	220V / 1P \| 380V / 3P	50 mm / 2"	300 LPM	10 m	30 mm	200	11 kg	—
BAV-400A BAV-400A	1/2 HP / 400 W	220V / 1P	50 mm / 2"	300 LPM	10 m	30 mm	200	11 kg	—
BAV-250 BAV-250	1/3 HP / 250 W	220V / 1P \| 380V / 3P	40 mm / 1-1/2"	200 LPM	8 m	25 mm	190	9 kg	—
BAV-400 BAV-400	1/2 HP / 400 W	220V / 1P \| 380V / 3P	50 mm / 2"	300 LPM	10 m	30 mm	200	11 kg	—
BAV-150A BAV-150A	1/5 HP / 150 W	220V / 1P	32 mm / 1-1/4"	160 LPM	6 m	10 mm	190	6 kg	—
BAV-250A BAV-250A	3 HP	220V / 1P	40 mm / 1-1/2"	200 LPM	8 m	25 mm	190	9 kg	—
BAV-550(T) BAV-550(T)	3/4 HP / 550 W	220V / 1P \| 380V / 3P	50 mm / 2"	340 LPM	12 m	35 mm	236	12 kg	—
BAV-550A BAV-550A	3/4 HP / 550 W	220V / 1P	50 mm / 2"	340 LPM	12 m	35 mm	236	12 kg	—
BAV-550 BAV-550	3/4 HP / 550 W	220V / 1P \| 380V / 3P	50 mm / 2"	340 LPM	12 m	35 mm	236	12 kg	—
