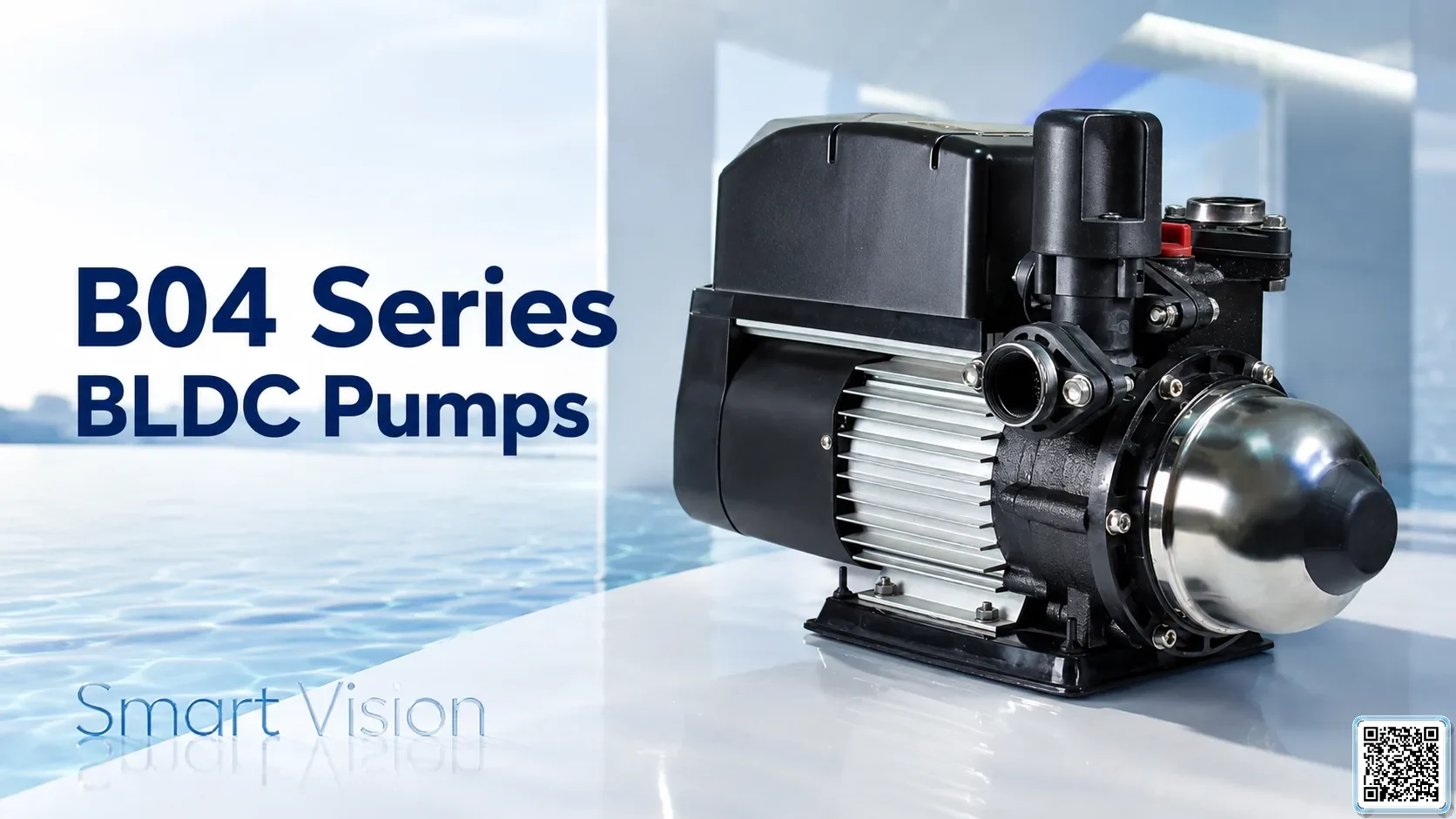

B04Series BLDC Pumps
APP B04 Series BLDC / Inverter Pump from Taiwan.

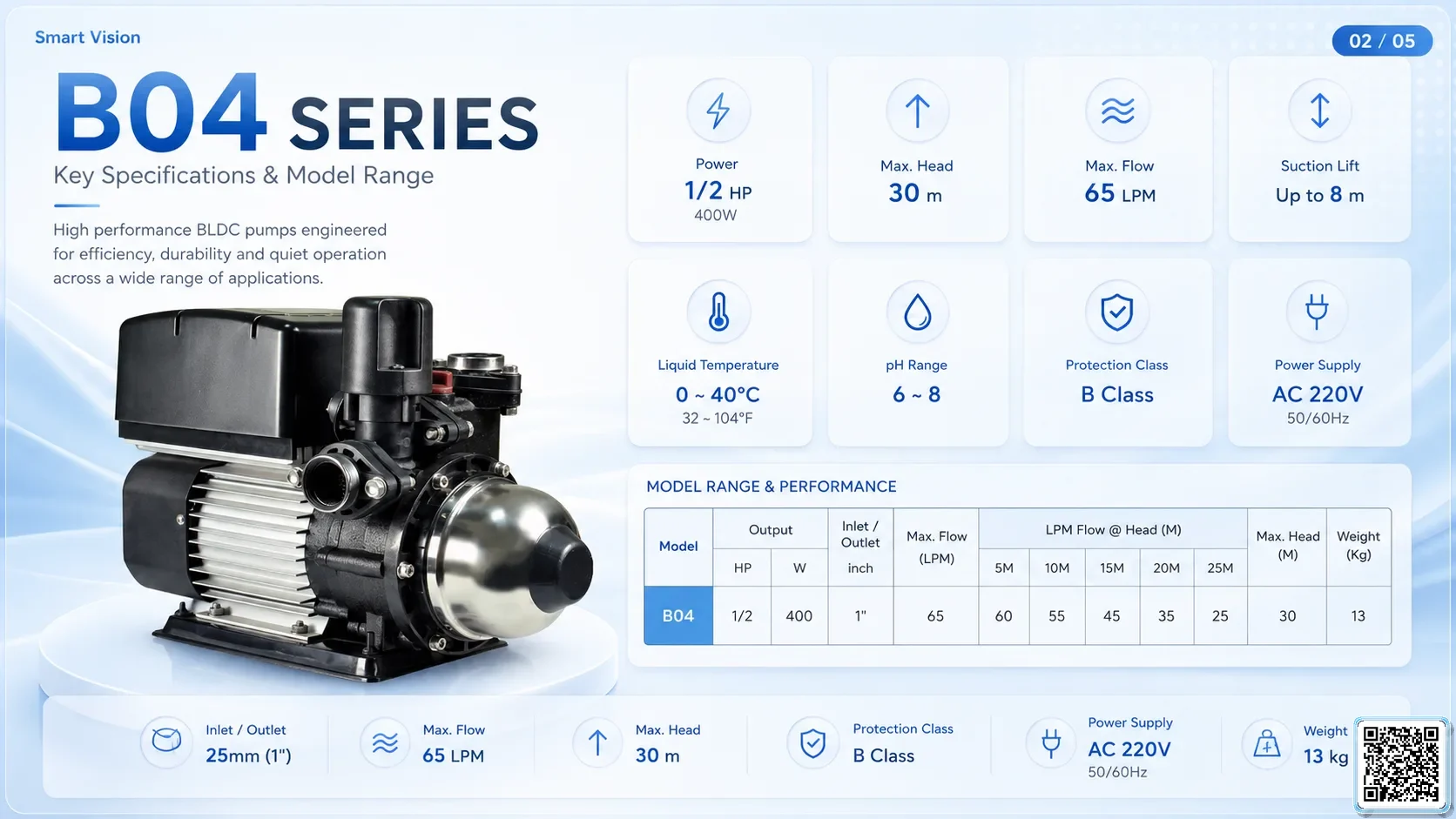

Technical Specifications
| source | APP catalogue |
|---|---|
| section | Domestic |
| series | B04 |
| family | BLDC / Inverter Pump |
| catalogue_page | Domestic 01-02 |

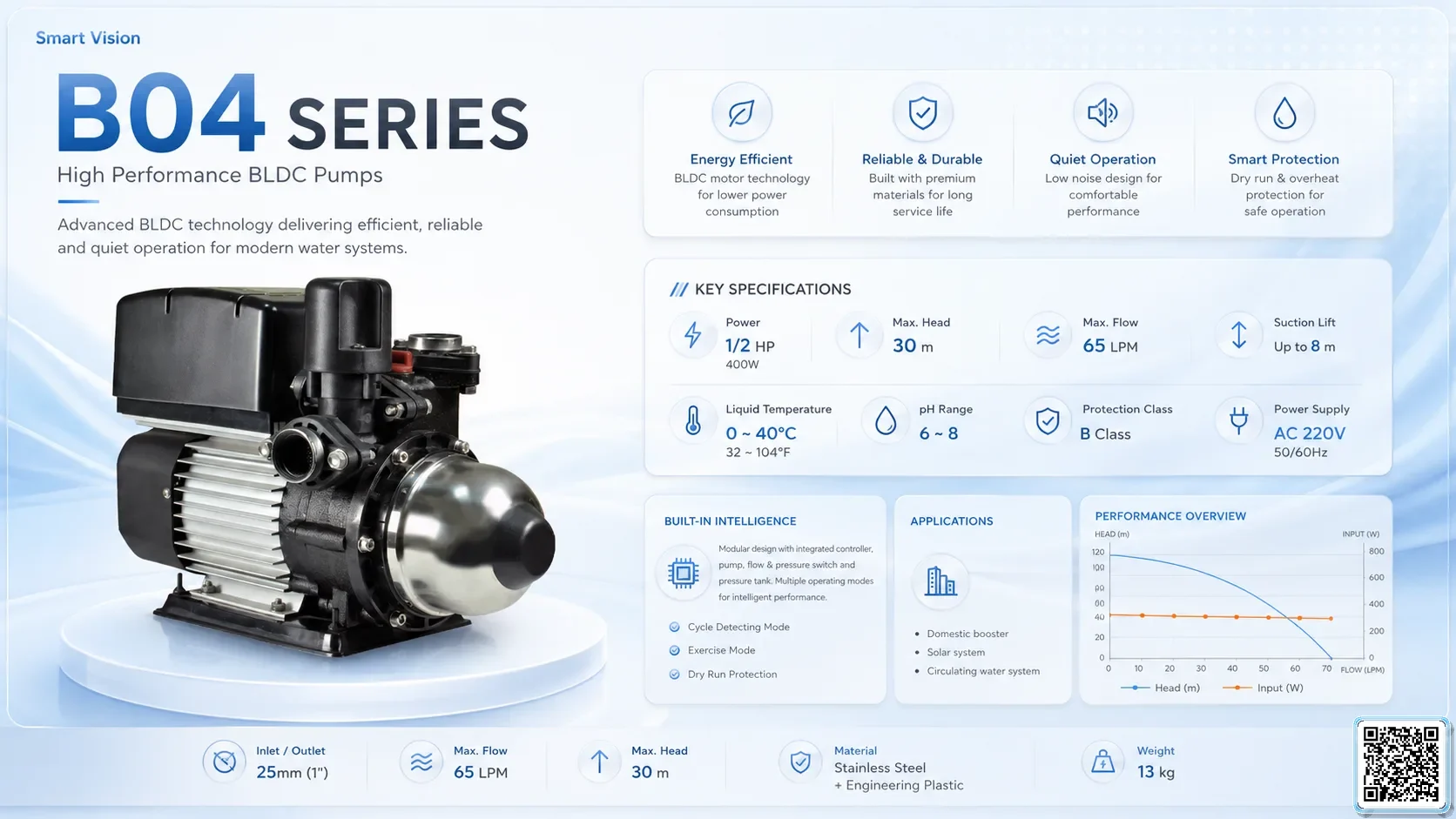

| features | EC BLDC motor; IE4 class; AIP cycle detecting, exercise mode and dry-run protection. |
| Series | B04 Series |
| Pump Series | B04 |
| Pump Type | BLDC / Inverter Pump |
| Motor Type | EC / BLDC motor |
| Water Temperature | 0~40℃ / 32~104℉ |
| pH Range | 6~8 |
| Pump construction | B Class |
| Variant Dimensions | 387 x 191 x 284 mm |
| Pump length / size | 387 x 191 x 284 mm |
| Variant Max Flow | 65 LPM |
| Variant Max Head | 01 m |
| Variant Weight | 02 kg |
Project Integration
B04 Series BLDC Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

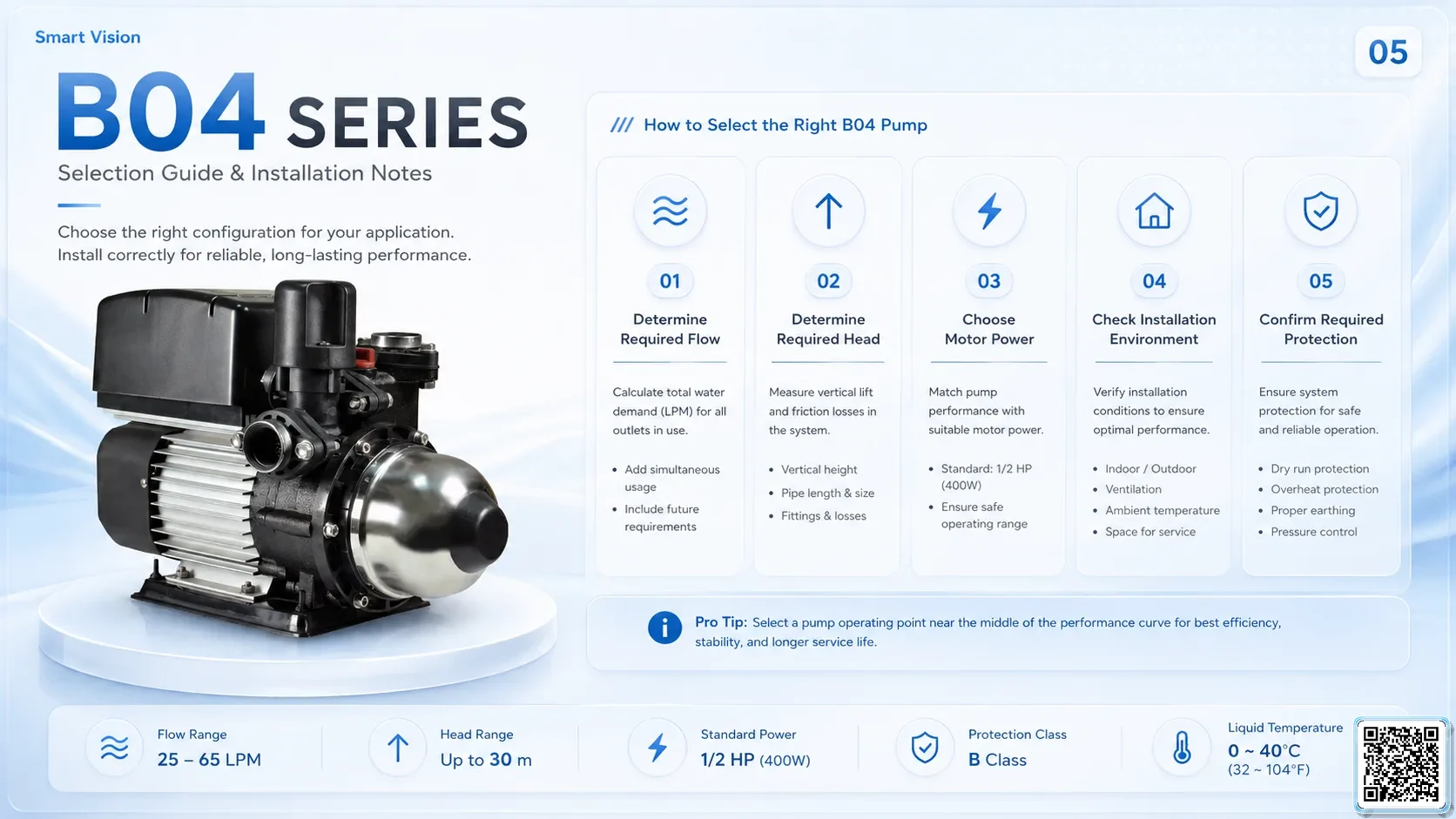

- Select the model by project flow and working head
- Check power, voltage/frequency, outlet size, material and installation dimensions
- Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
- Support configuration comparison and quotation by actual project quantity
Pump Selection Table by Model
Applications & Key Features
Overview
APP B04 Series is a bldc / inverter pump for Domestic booster; solar system; circulating water system applications.

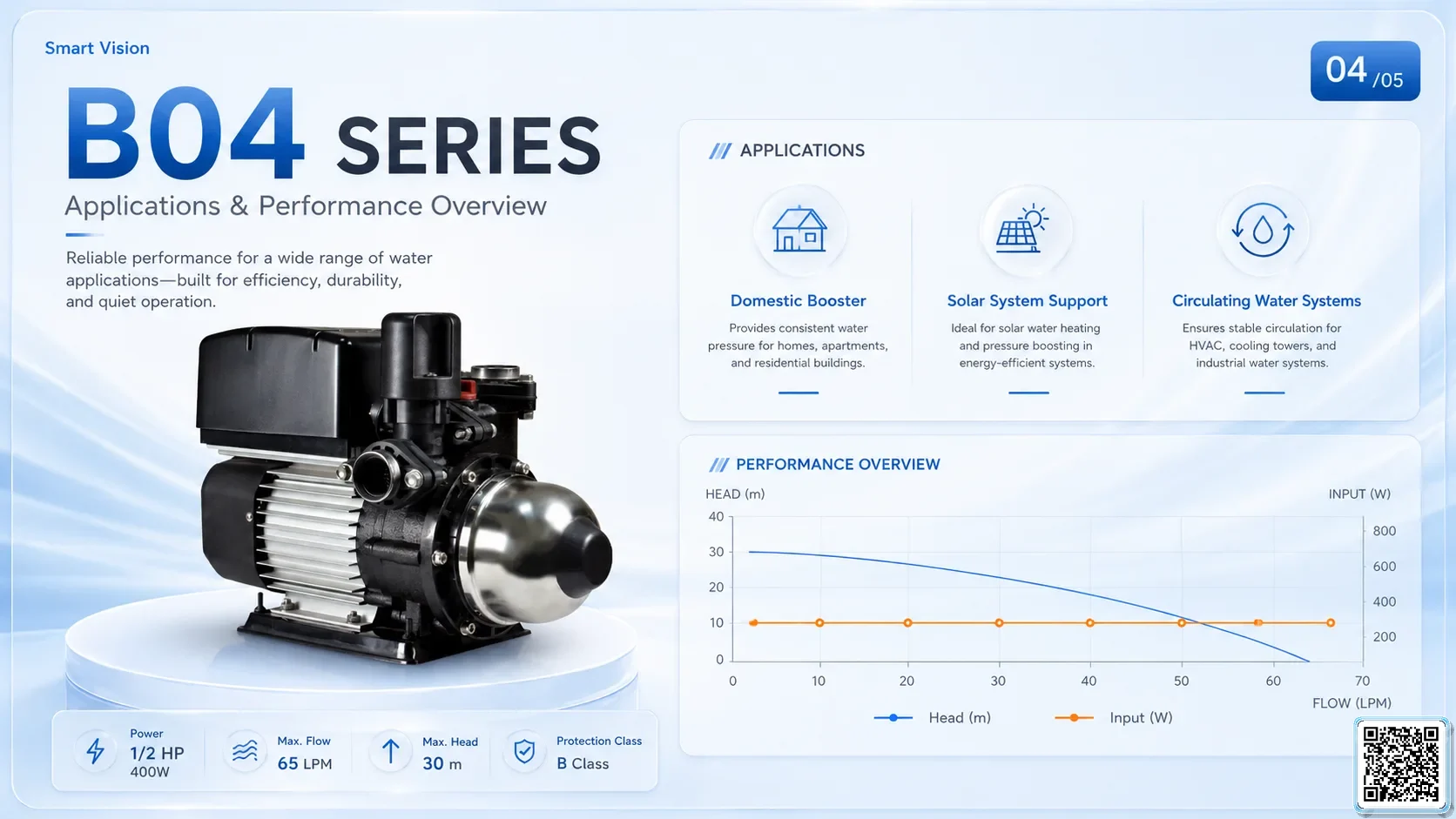

Applications
Domestic booster; solar system; circulating water system
Key features

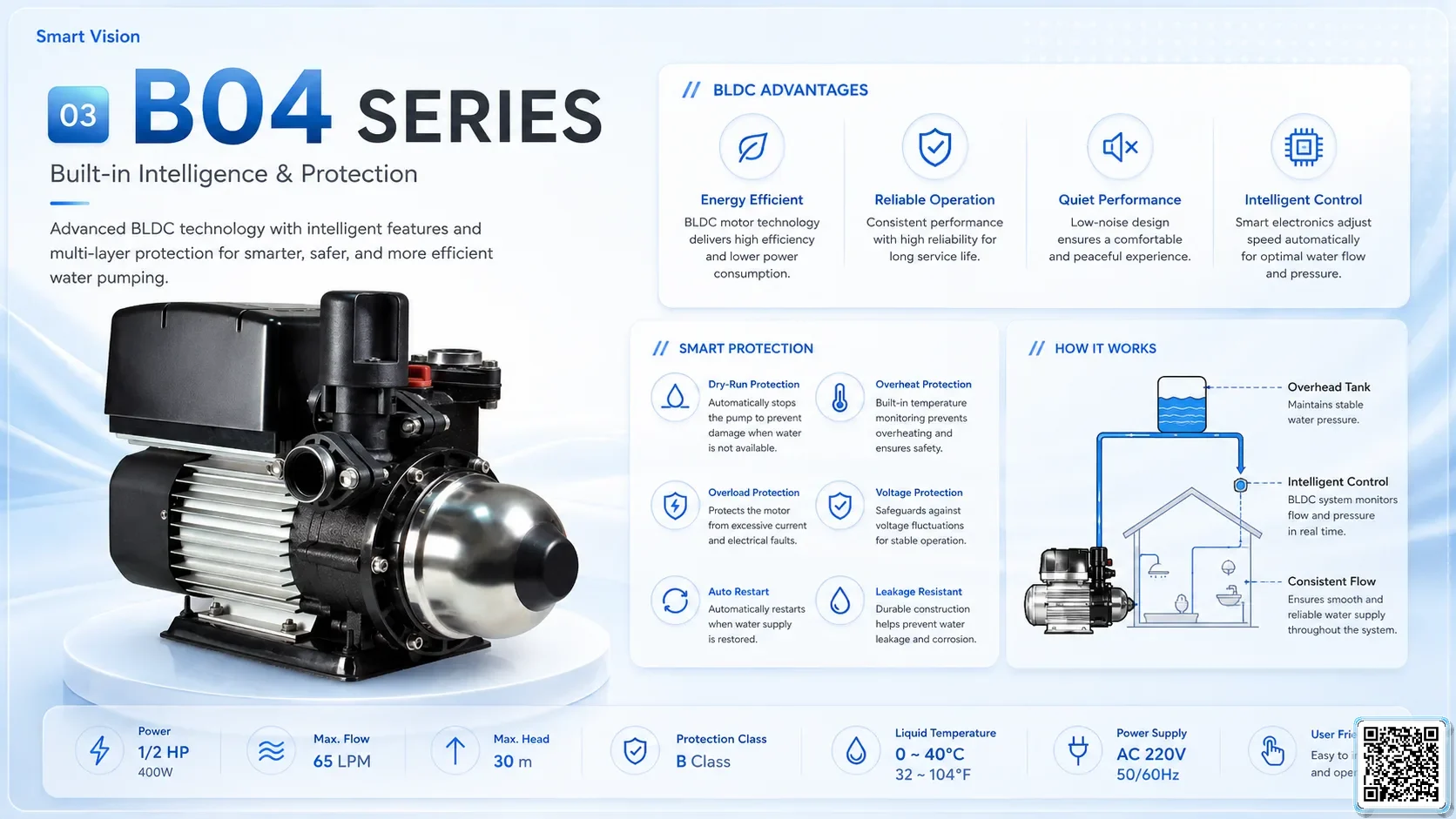

EC BLDC motor; IE4 class; AIP cycle detecting, exercise mode and dry-run protection.
