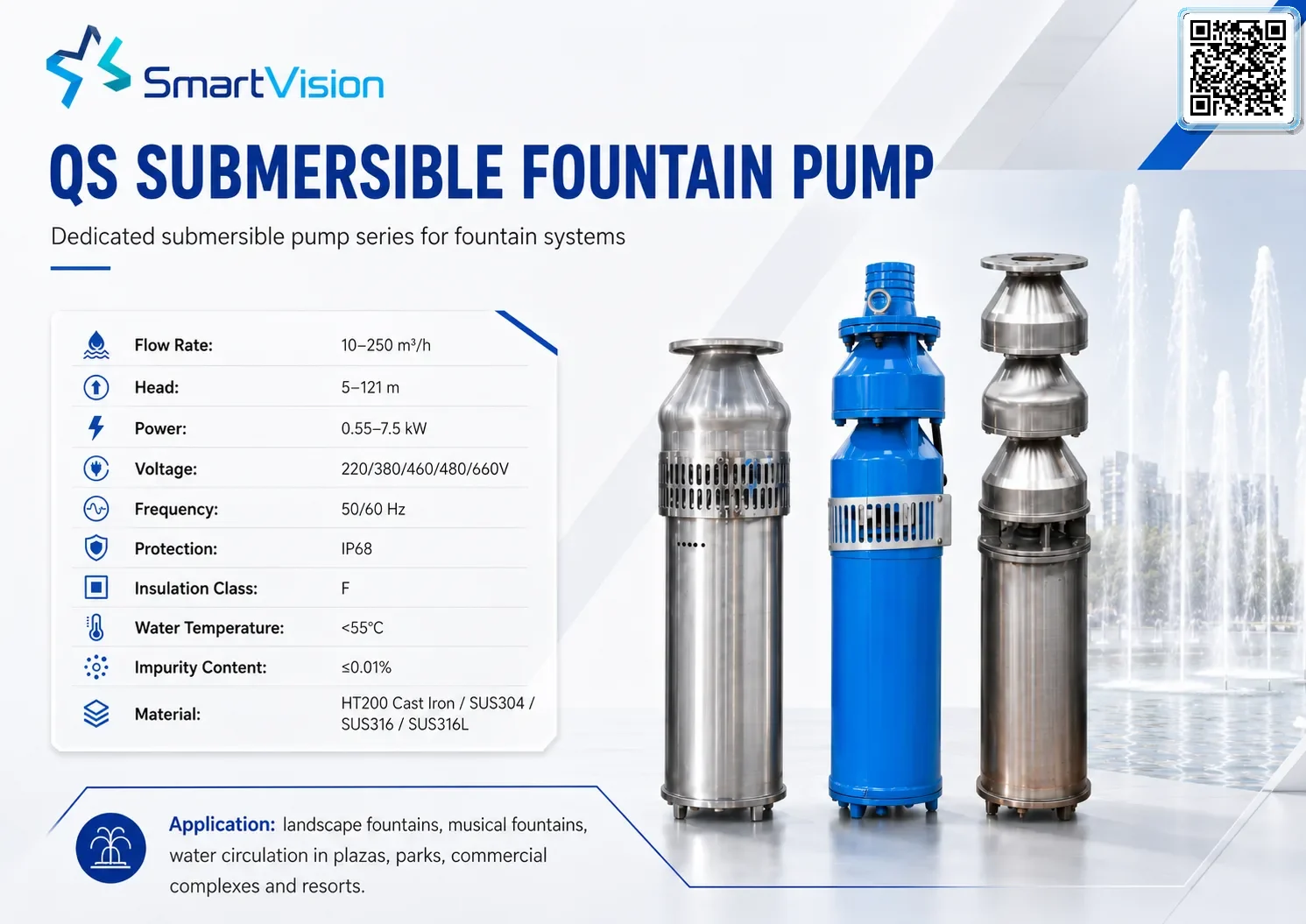

QSSubmersible Fountain Pump
QS series includes QS small submersible pumps, QSP fountain pumps, QSZ axial-flow pumps and QSH mixed-flow pumps, with motor power up to 110 kW.
Catalogue, Technical Images & Drawings

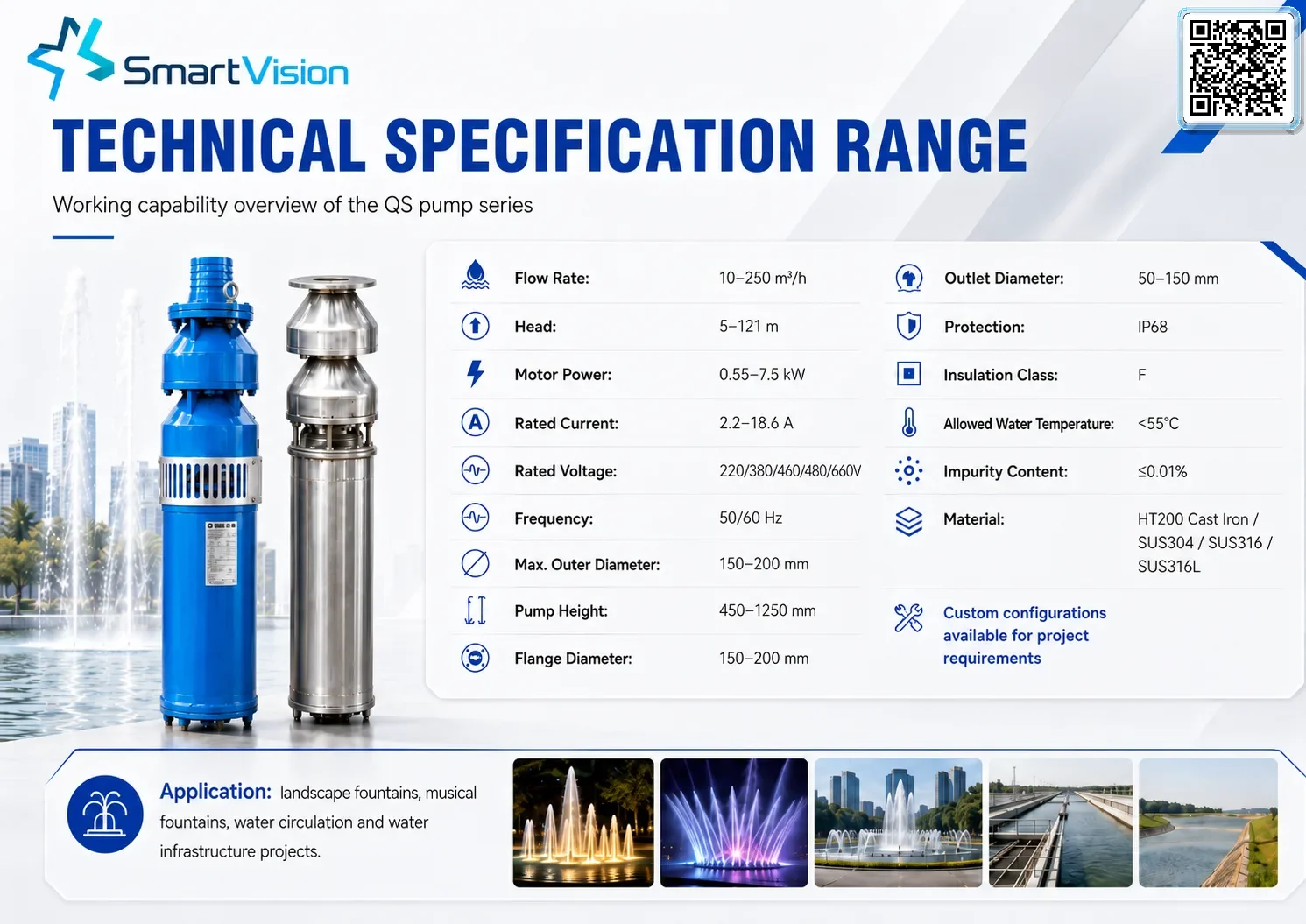

Technical Specifications
| Series | QS Submersible Fountain Pump |
|---|---|
| Installation Type | Refer to SmartVision technical datasheet / project configuration |
| Pump length / size | 450-1250 mm |
| Pump construction | IP68 |
| Housing Material | Cast iron HT200 / SUS304 / SUS316 / SUS316L |
| Operating Temperature | Water temperature <55°C |
Project Integration
Use the QS series as an integrated submersible pump family for fountains, musical fountains, water circulation, water lifting, and water supply/drainage projects. Select each model against the required Q–H duty point and verify discharge size, voltage, frequency, material, and water conditions. QSP/QS(P) models are intended for fountain and water-feature systems
QSZ models suit very high-flow, low-head duties
QSH models suit high-flow, medium-head duties. System integration should include correctly sized discharge piping, isolation and check valves, flexible connectors where required, an electrical panel with MCCB/contactor/overload protection or VFD/soft starter according to motor rating, waterproof power cable, earthing, water-level sensing, and dry-run interlock. For pool or tank installation, the catalogue requires a cooling flow sleeve around the motor
The motor cavity must be filled with clean water during operation, except self-suction fountain pump versions. Three-phase supply voltage deviation should not exceed ±5% and frequency deviation should not exceed ±1%. Commissioning should verify rotation direction, operating current, vibration, cable sealing, flow, head, and motor cooling.

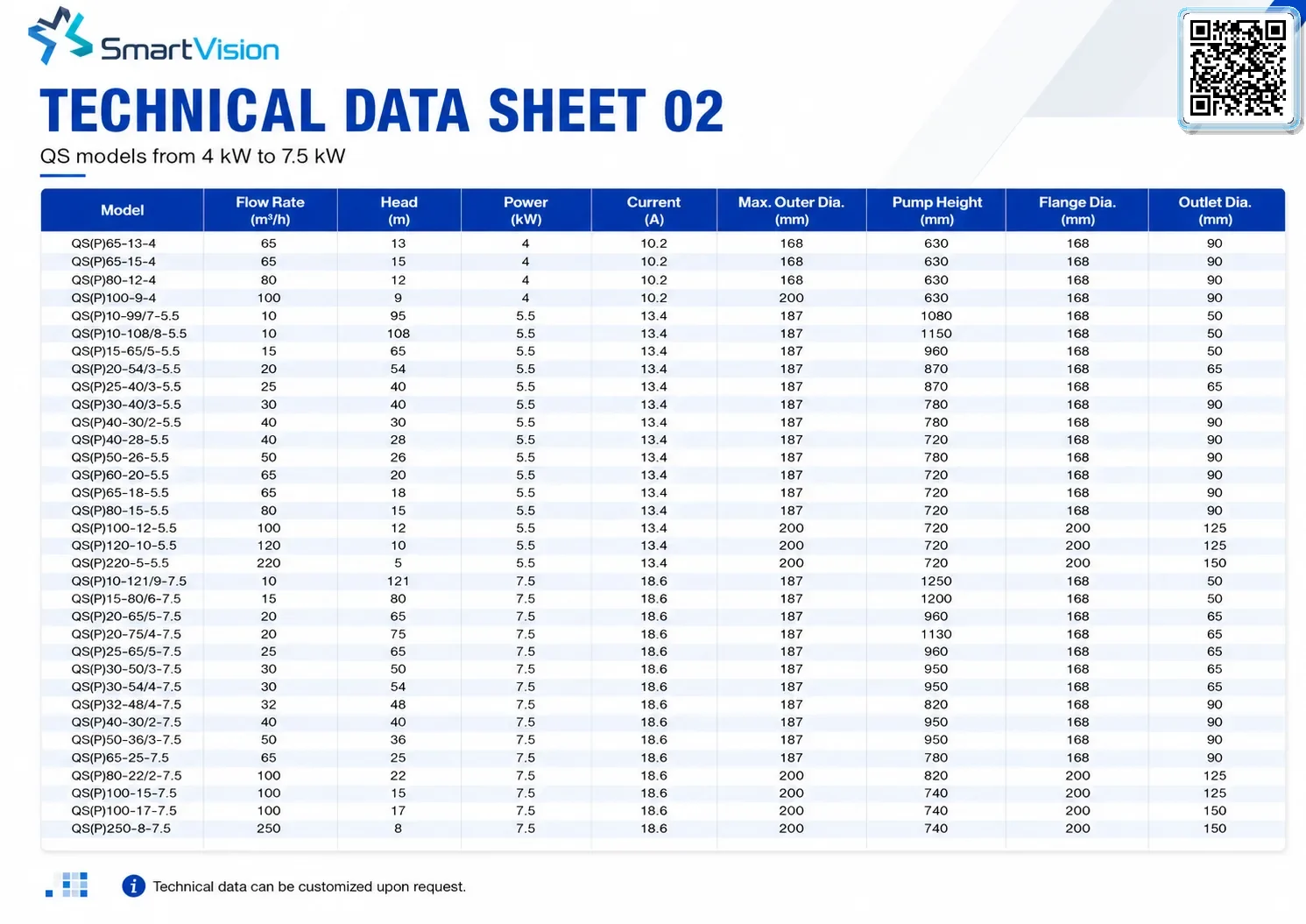

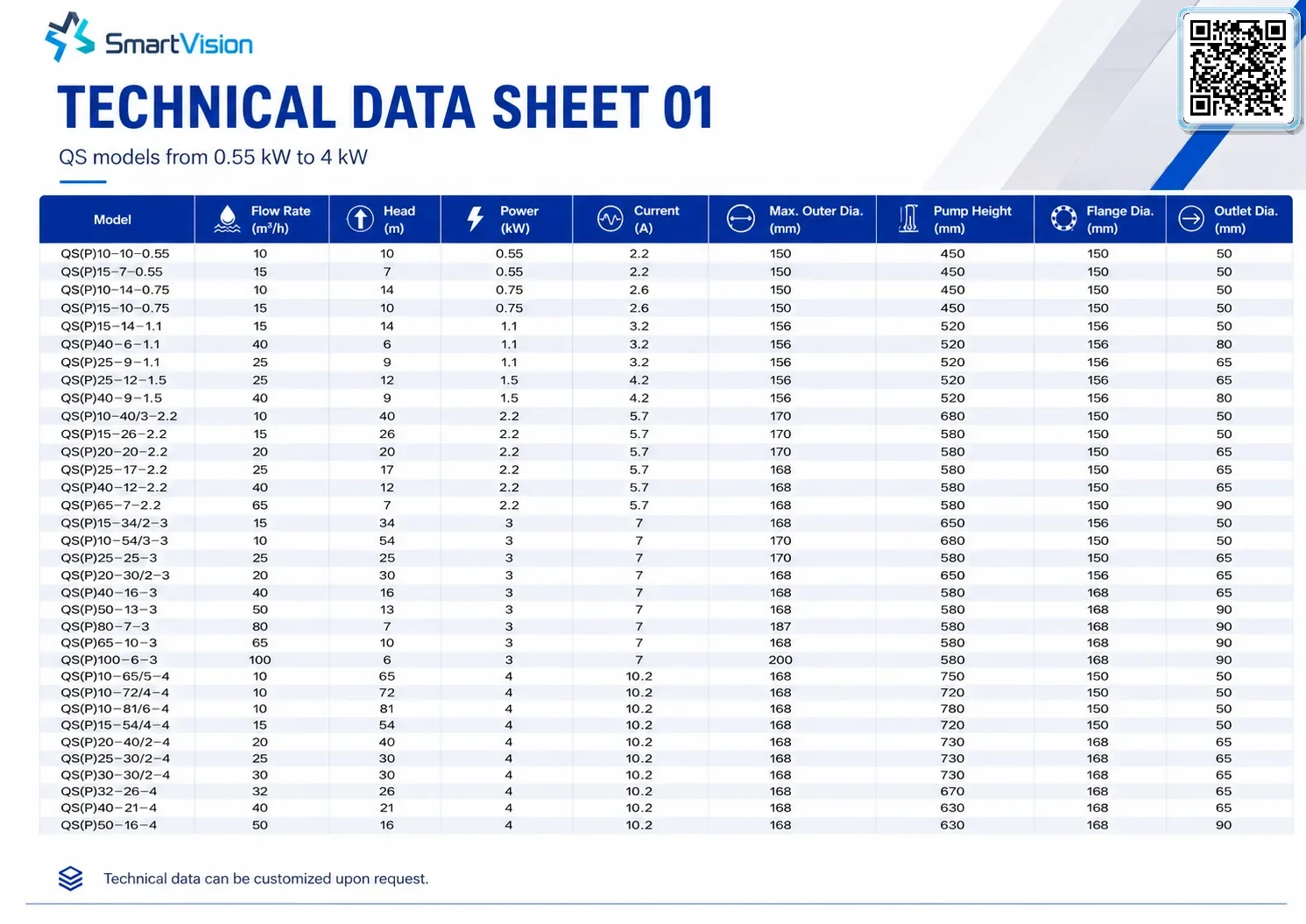

Pump Selection Table by Model
| Model | Flow / head | Motor Power | Voltage | Outlet | Length | Weight | Control cabinet |
|---|---|---|---|---|---|---|---|
| QS(P)10-10-0.55 QS(P)10-10-0.55 | 10 m³/h | 0.55 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 450 mm | ||
| QS(P)15-7-0.55 QS(P)15-7-0.55 | 15 m³/h / 7 m | 0.55 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 450 mm | ||
| QS(P)10-14-0.75 QS(P)10-14-0.75 | 10 m³/h / 14 m | 0.75 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 450 mm | ||
| QS(P)15-10-0.75 QS(P)15-10-0.75 | 15 m³/h / 10 m | 0.75 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 450 mm | ||
| QS(P)15-14-1.1 QS(P)15-14-1.1 | 15 m³/h / 14 m | 1.1 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø156 mm | 520 mm | ||
| QS(P)25-9-1.1 QS(P)25-9-1.1 | 25 m³/h / 9 m | 1.1 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø156 mm | 520 mm | ||
| QS(P)40-6-1.1 QS(P)40-6-1.1 | 40 m³/h / 6 m | 1.1 kW | 220/380/460/480/660V | Discharge Ø80 mm / Flange Ø156 mm | 520 mm | ||
| QS(P)25-12-1.5 QS(P)25-12-1.5 | 25 m³/h / 12 m | 1.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø156 mm | 520 mm | ||
| QS(P)40-9-1.5 QS(P)40-9-1.5 | 40 m³/h / 9 m | 1.5 kW | 220/380/460/480/660V | Discharge Ø80 mm / Flange Ø156 mm | 520 mm | ||
| QS(P)10-40/3-2.2 QS(P)10-40/3-2.2 | 10 m³/h / 40 m | 2.2 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 680 mm | ||
| QS(P)15-26-2.2 QS(P)15-26-2.2 | 15 m³/h / 26 m | 2.2 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)20-20-2.2 QS(P)20-20-2.2 | 20 m³/h | 2.2 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)25-17-2.2 QS(P)25-17-2.2 | 25 m³/h / 17 m | 2.2 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)40-12-2.2 QS(P)40-12-2.2 | 40 m³/h / 12 m | 2.2 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)65-7-2.2 QS(P)65-7-2.2 | 65 m³/h / 7 m | 2.2 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)10-54/3-3 QS(P)10-54/3-3 | 10 m³/h / 54 m | 3 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 680 mm | ||
| QS(P)15-34/2-3 QS(P)15-34/2-3 | 15 m³/h / 34 m | 3 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø156 mm | 650 mm | ||
| QS(P)20-30/2-3 QS(P)20-30/2-3 | 20 m³/h / 30 m | 3 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø156 mm | 650 mm | ||
| QS(P)25-25-3 QS(P)25-25-3 | 25 m³/h | 3 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø150 mm | 580 mm | ||
| QS(P)40-16-3 QS(P)40-16-3 | 40 m³/h / 16 m | 3 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 580 mm | ||
| QS(P)50-13-3 QS(P)50-13-3 | 50 m³/h / 13 m | 3 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 580 mm | ||
| QS(P)65-10-3 QS(P)65-10-3 | 65 m³/h / 10 m | 3 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 580 mm | ||
| QS(P)80-7-3 QS(P)80-7-3 | 80 m³/h / 7 m | 3 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 580 mm | ||
| QS(P)100-6-3 QS(P)100-6-3 | 100 m³/h / 6 m | 3 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 580 mm | ||
| QS(P)10-65/5-4 QS(P)10-65/5-4 | 10 m³/h / 65 m | 4 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 750 mm | ||
| QS(P)10-72/4-4 QS(P)10-72/4-4 | 10 m³/h / 72 m | 4 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 720 mm | ||
| QS(P)10-81/6-4 QS(P)10-81/6-4 | 10 m³/h / 81 m | 4 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 780 mm | ||
| QS(P)15-54/4-4 QS(P)15-54/4-4 | 15 m³/h / 54 m | 4 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø150 mm | 720 mm | ||
| QS(P)20-40/2-4 QS(P)20-40/2-4 | 20 m³/h / 40 m | 4 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 730 mm | ||
| QS(P)25-30/2-4 QS(P)25-30/2-4 | 25 m³/h / 30 m | 4 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 730 mm | ||
| QS(P)30-30/2-4 QS(P)30-30/2-4 | 30 m³/h | 4 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 730 mm | ||
| QS(P)32-26-4 QS(P)32-26-4 | 32 m³/h / 26 m | 4 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 670 mm | ||
| QS(P)40-21-4 QS(P)40-21-4 | 40 m³/h / 21 m | 4 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)50-16-4 QS(P)50-16-4 | 50 m³/h / 16 m | 4 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)65-13-4 QS(P)65-13-4 | 65 m³/h / 13 m | 4 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)65-15-4 QS(P)65-15-4 | 65 m³/h / 15 m | 4 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)80-12-4 QS(P)80-12-4 | 80 m³/h / 12 m | 4 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)100-9-4 QS(P)100-9-4 | 100 m³/h / 9 m | 4 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 630 mm | ||
| QS(P)10-95/7-5.5 QS(P)10-95/7-5.5 | 10 m³/h / 95 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø168 mm | 1080 mm | ||
| QS(P)10-108/8-5.5 QS(P)10-108/8-5.5 | 10 m³/h / 108 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø168 mm | 1150 mm | ||
| QS(P)15-65/5-5.5 QS(P)15-65/5-5.5 | 15 m³/h / 65 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø168 mm | 960 mm | ||
| QS(P)20-54/3-5.5 QS(P)20-54/3-5.5 | 20 m³/h / 54 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 870 mm | ||
| QS(P)25-40/3-5.5 QS(P)25-40/3-5.5 | 25 m³/h / 40 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 870 mm | ||
| QS(P)30-40/3-5.5 QS(P)30-40/3-5.5 | 30 m³/h / 40 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 780 mm | ||
| QS(P)40-28-5.5 QS(P)40-28-5.5 | 40 m³/h / 28 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 720 mm | ||
| QS(P)40-30/2-5.5 QS(P)40-30/2-5.5 | 40 m³/h / 30 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 780 mm | ||
| QS(P)50-26-5.5 QS(P)50-26-5.5 | 50 m³/h / 26 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 720 mm | ||
| QS(P)65-18-5.5 QS(P)65-18-5.5 | 65 m³/h / 18 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 720 mm | ||
| QS(P)65-20-5.5 QS(P)65-20-5.5 | 65 m³/h / 20 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 720 mm | ||
| QS(P)80-15-5.5 QS(P)80-15-5.5 | 80 m³/h / 15 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 720 mm | ||
| QS(P)100-12-5.5 QS(P)100-12-5.5 | 100 m³/h / 12 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø125 mm / Flange Ø200 mm | 720 mm | ||
| QS(P)120-10-5.5 QS(P)120-10-5.5 | 120 m³/h / 10 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø125 mm / Flange Ø200 mm | 720 mm | ||
| QS(P)220-5-5.5 QS(P)220-5-5.5 | 220 m³/h / 5 m | 5.5 kW | 220/380/460/480/660V | Discharge Ø150 mm / Flange Ø200 mm | 720 mm | ||
| QS(P)10-121/9-7.5 QS(P)10-121/9-7.5 | 10 m³/h / 121 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø168 mm | 1250 mm | ||
| QS(P)15-80/6-7.5 QS(P)15-80/6-7.5 | 15 m³/h / 80 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø50 mm / Flange Ø168 mm | 1200 mm | ||
| QS(P)20-65/5-7.5 QS(P)20-65/5-7.5 | 20 m³/h / 65 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 960 mm | ||
| QS(P)20-75/4-7.5 QS(P)20-75/4-7.5 | 20 m³/h / 75 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 1130 mm | ||
| QS(P)25-65/5-7.5 QS(P)25-65/5-7.5 | 25 m³/h / 65 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 960 mm | ||
| QS(P)30-50/3-7.5 QS(P)30-50/3-7.5 | 30 m³/h / 50 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 950 mm | ||
| QS(P)30-54/3-7.5 QS(P)30-54/3-7.5 | 30 m³/h / 54 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 950 mm | ||
| QS(P)32-48/4-7.5 QS(P)32-48/4-7.5 | 32 m³/h / 48 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø65 mm / Flange Ø168 mm | 950 mm | ||
| QS(P)40-40/2-7.5 QS(P)40-40/2-7.5 | 40 m³/h | 7.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 820 mm | ||
| QS(P)50-30/2-7.5 QS(P)50-30/2-7.5 | 50 m³/h / 30 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 950 mm | ||
| QS(P)50-36/3-7.5 QS(P)50-36/3-7.5 | 50 m³/h / 36 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 950 mm | ||
| QS(P)65-25-7.5 QS(P)65-25-7.5 | 65 m³/h / 25 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 740 mm | ||
| QS(P)80-22/2-7.5 QS(P)80-22/2-7.5 | 80 m³/h / 22 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø90 mm / Flange Ø168 mm | 820 mm | ||
| QS(P)100-15-7.5 QS(P)100-15-7.5 | 100 m³/h / 15 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø125 mm / Flange Ø200 mm | 740 mm | ||
| QS(P)100-17-7.5 QS(P)100-17-7.5 | 100 m³/h / 17 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø125 mm / Flange Ø200 mm | 740 mm | ||
| QS(P)250-8-7.5 QS(P)250-8-7.5 | 250 m³/h / 8 m | 7.5 kW | 220/380/460/480/660V | Discharge Ø150 mm / Flange Ø200 mm | 740 mm | ||
| 150QSH-15-11KW 150QSH-15-11KW | 160 m³/h / 15 m | 11 kW | 220/380/460/480/660V | Discharge Ø150 mm / Cửa xả Ø150 mm | Liên hệ / Contact us | ||
| 200QSH-10-11KW 200QSH-10-11KW | 260 m³/h / 10 m | 11 kW | 220/380/460/480/660V | Discharge Ø200 mm / Cửa xả Ø200 mm | Liên hệ / Contact us | ||
| 250QSH-5.5-11KW 250QSH-5.5-11KW | 450 m³/h / 5.5 m | 11 kW | 220/380/460/480/660V | Discharge Ø250 mm / Cửa xả Ø250 mm | Liên hệ / Contact us | ||
| 150QSH-16-18.5KW 150QSH-16-18.5KW | 260 m³/h / 16 m | 18.5 kW | 220/380/460/480/660V | Discharge Ø150 mm / Cửa xả Ø150 mm | Liên hệ / Contact us | ||
| 200QSH-12-18.5KW 200QSH-12-18.5KW | 350 m³/h / 12 m | 18.5 kW | 220/380/460/480/660V | Discharge Ø200 mm / Cửa xả Ø200 mm | Liên hệ / Contact us | ||
| 250QSH-8-18.5KW 250QSH-8-18.5KW | 450 m³/h / 8 m | 18.5 kW | 220/380/460/480/660V | Discharge Ø250 mm / Cửa xả Ø250 mm | Liên hệ / Contact us | ||
| 300QSZ-5.4-18.5KW 300QSZ-5.4-18.5KW | 800 m³/h / 5.4 m | 18.5 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 350QSZ-2.7-18.5KW 350QSZ-2.7-18.5KW | 1500 m³/h / 2.7 m | 18.5 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 300QSH-12-25KW 300QSH-12-25KW | 450 m³/h / 12 m | 25 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 300QSH-8-25KW 300QSH-8-25KW | 750 m³/h / 8 m | 25 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 250QSH-14-30KW 250QSH-14-30KW | 450 m³/h / 14 m | 30 kW | 220/380/460/480/660V | Discharge Ø250 mm / Cửa xả Ø250 mm | Liên hệ / Contact us | ||
| 300QSH-10-30KW 300QSH-10-30KW | 700 m³/h / 10 m | 30 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 350QSZ-5.4-30KW 350QSZ-5.4-30KW | 1250 m³/h / 5.4 m | 30 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 400QSZ-4-30KW 400QSZ-4-30KW | 1600 m³/h / 4 m | 30 kW | 220/380/460/480/660V | Discharge Ø400 mm / Cửa xả Ø400 mm | Liên hệ / Contact us | ||
| 250QSH-16-37KW 250QSH-16-37KW | 500 m³/h / 16 m | 37 kW | 220/380/460/480/660V | Discharge Ø250 mm / Cửa xả Ø250 mm | Liên hệ / Contact us | ||
| 300QSH-12-37KW 300QSH-12-37KW | 750 m³/h / 12 m | 37 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 350QSZ-9-37KW 350QSZ-9-37KW | 1000 m³/h / 9 m | 37 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 350QSZ-7.8-37KW 350QSZ-7.8-37KW | 1180 m³/h / 7.8 m | 37 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 400QSZ-5.4-37KW 400QSZ-5.4-37KW | 1600 m³/h / 5.4 m | 37 kW | 220/380/460/480/660V | Discharge Ø400 mm / Cửa xả Ø400 mm | Liên hệ / Contact us | ||
| 500QSZ-4-40KW 500QSZ-4-40KW | 2000 m³/h / 4 m | 40 kW | 220/380/460/480/660V | Discharge Ø500 mm / Cửa xả Ø500 mm | Liên hệ / Contact us | ||
| 300QSH-16-45KW 300QSH-16-45KW | 600 m³/h / 16 m | 45 kW | 220/380/460/480/660V | Discharge Ø300 mm / Cửa xả Ø300 mm | Liên hệ / Contact us | ||
| 350QSZ-10-45KW 350QSZ-10-45KW | 1100 m³/h / 10 m | 45 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 400QSH-8-45KW 400QSH-8-45KW | 1300 m³/h / 8 m | 45 kW | 220/380/460/480/660V | Discharge Ø400 mm / Cửa xả Ø400 mm | Liên hệ / Contact us | ||
| 500QSZ-3.8-55KW 500QSZ-3.8-55KW | 2880 m³/h / 3.8 m | 55 kW | 220/380/460/480/660V | Discharge Ø500 mm / Cửa xả Ø500 mm | Liên hệ / Contact us | ||
| 350QSZ-15-65KW 350QSZ-15-65KW | 900 m³/h / 15 m | 65 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 500QSZ-8.2-65KW 500QSZ-8.2-65KW | 2160 m³/h / 8.2 m | 65 kW | 220/380/460/480/660V | Discharge Ø500 mm / Cửa xả Ø500 mm | Liên hệ / Contact us | ||
| 600QSZ-4-65KW 600QSZ-4-65KW | 3000 m³/h / 4 m | 65 kW | 220/380/460/480/660V | Discharge Ø600 mm / Cửa xả Ø600 mm | Liên hệ / Contact us | ||
| 350QSZ-15-75KW 350QSZ-15-75KW | 1000 m³/h / 15 m | 75 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 350QSZ-13-75KW 350QSZ-13-75KW | 1200 m³/h / 13 m | 75 kW | 220/380/460/480/660V | Discharge Ø350 mm / Cửa xả Ø350 mm | Liên hệ / Contact us | ||
| 600QSZ-3.5-75KW 600QSZ-3.5-75KW | 3200 m³/h / 3.5 m | 75 kW | 220/380/460/480/660V | Discharge Ø600 mm / Cửa xả Ø600 mm | Liên hệ / Contact us |
Applications & Key Features

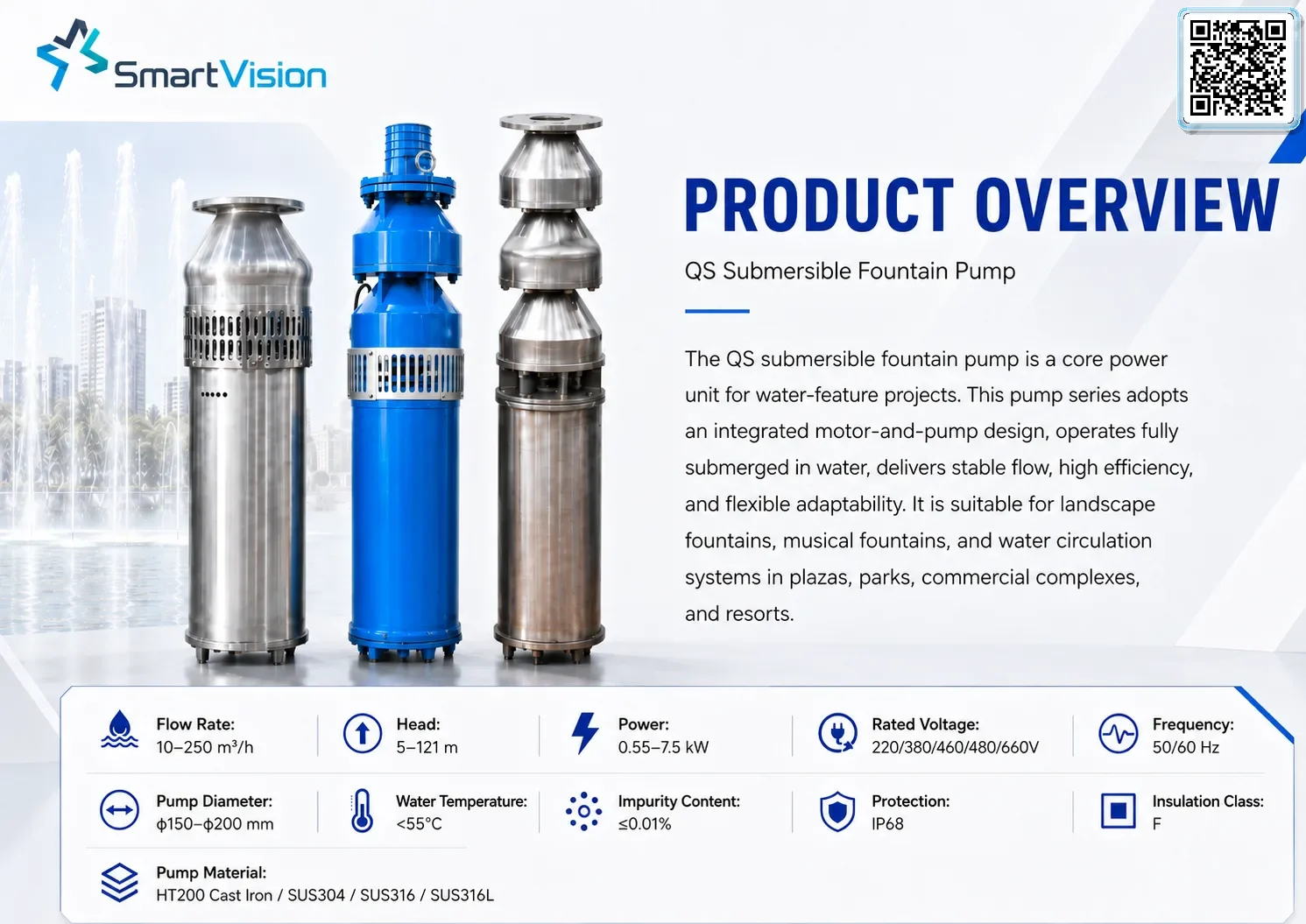

Overview
QS/QSP/QSZ/QSH submersible pump solutions for fountains, circulation, and water supply/drainage, with model selection by flow, head, power, and discharge size.

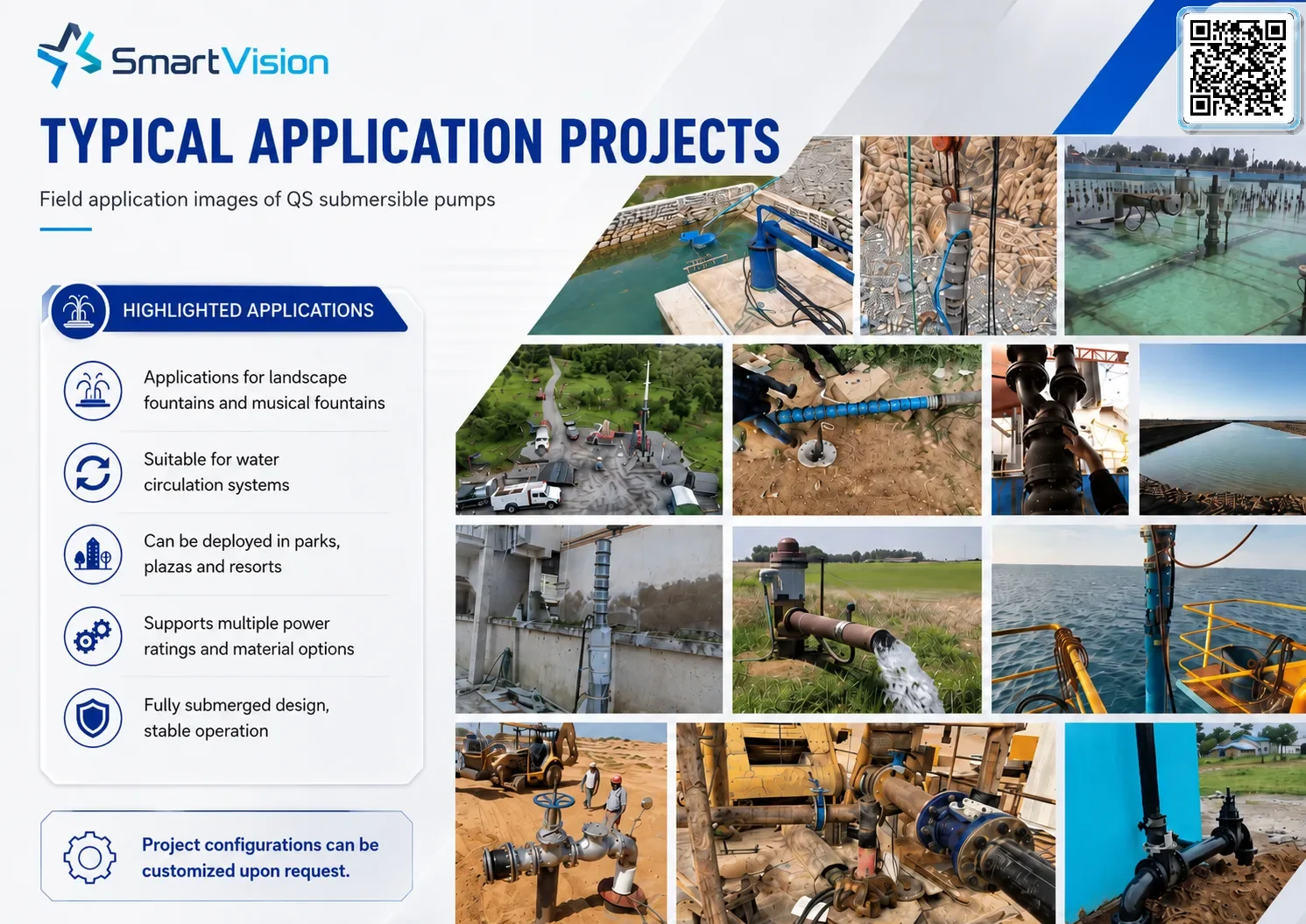

Applications
Urban squares; parks; commercial complexes; resorts; landscape and musical fountains
Key features
Integrated motor-pump design; fully submerged operation; IP68; class F insulation; selectable materials; 50/60 Hz and multiple voltage options.
