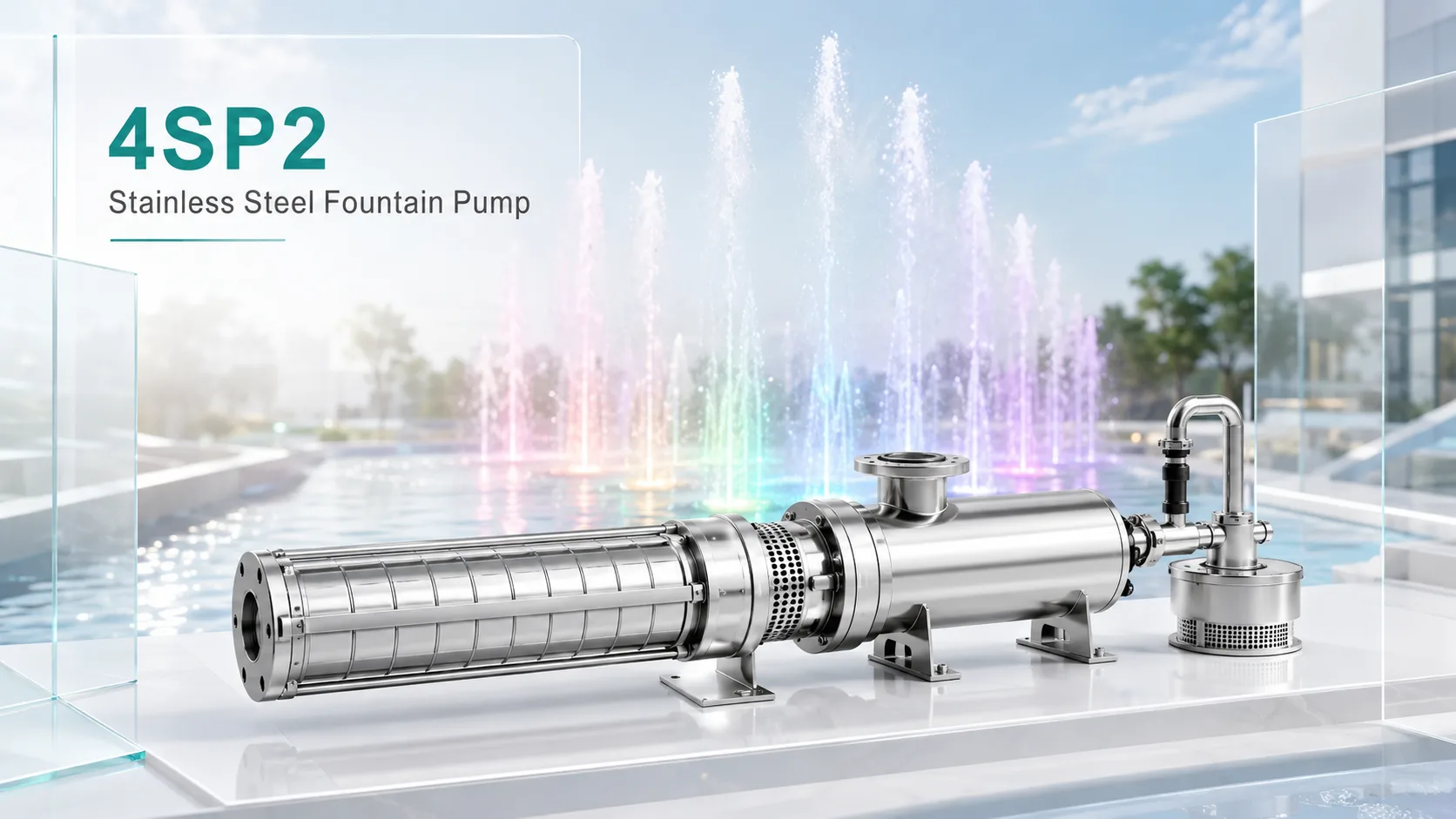

4SP2Stainless Steel Fountain Pump

4SP2 Stainless Steel Fountain Pump for fountains, landscape water features, musical fountain pump groups and municipal water-show systems.

fountain-pumps4SP2Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 114

Technical Specifications

Series	4SP Stainless Steel Fountain Pump
Installation Type	Refer to SmartVision technical datasheet / project configuration
Pump length / size	277-1338 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Waterproof Construction	Sealed submersible motor and cable assembly for underwater fountain operation
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Weight	2.5-13.2 kg

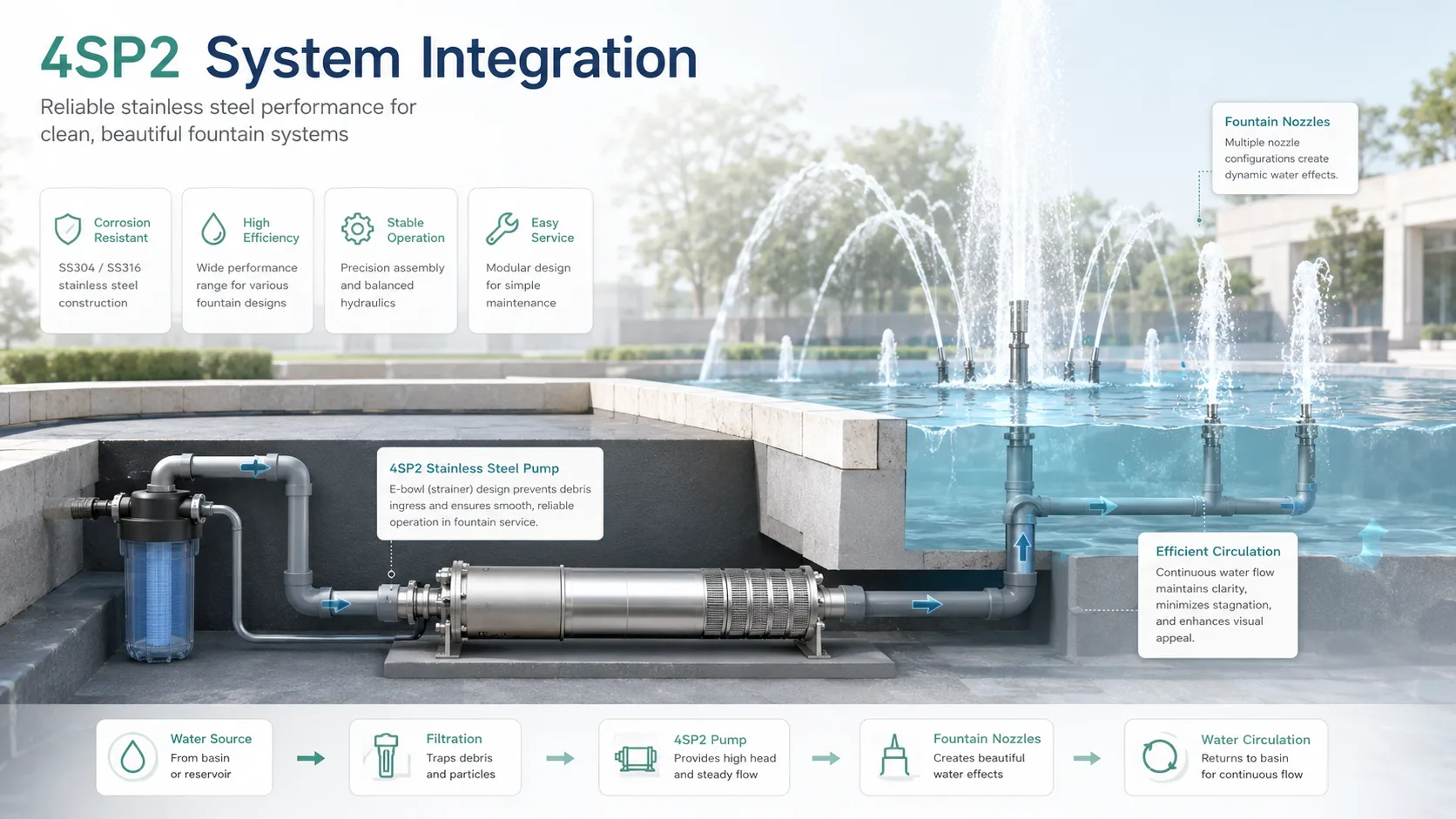

Project Integration

4SP2 is part of the 4SP Stainless Steel Fountain Pump range and is project-ready as a main water-supply pump for fountain systems, high-jet features, landscape ponds, recirculation basins and water shows. Best for:

Max head 336 m / Flow rate / head: 0-3 m³/h

Max head 336 m

Dải công suất motor: 0.37-3 kW / Motor power range: 0.37-3 kW

Outlet Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2". For integration, SmartVision calculates required flow, total dynamic head, pipe losses, spray height, nozzle quantity, pipe diameter, check valve, debris filter, flexible coupling, cable distance and cable cross-section

Then recommends MCCB/contactor, overload, phase-loss/reverse-phase protection, water-level sensing and VFD control where flow adjustment or music-show synchronization is required.

Pump-curve operating point selection
Flow/head supply for nozzle groups
MCC/VFD cabinet and motor protection
BOQ/BOM, hydraulic drawings and electrical diagrams. Reference dataLưu lượng / cột áp: 0-3 m³/h

PUMP MODELS

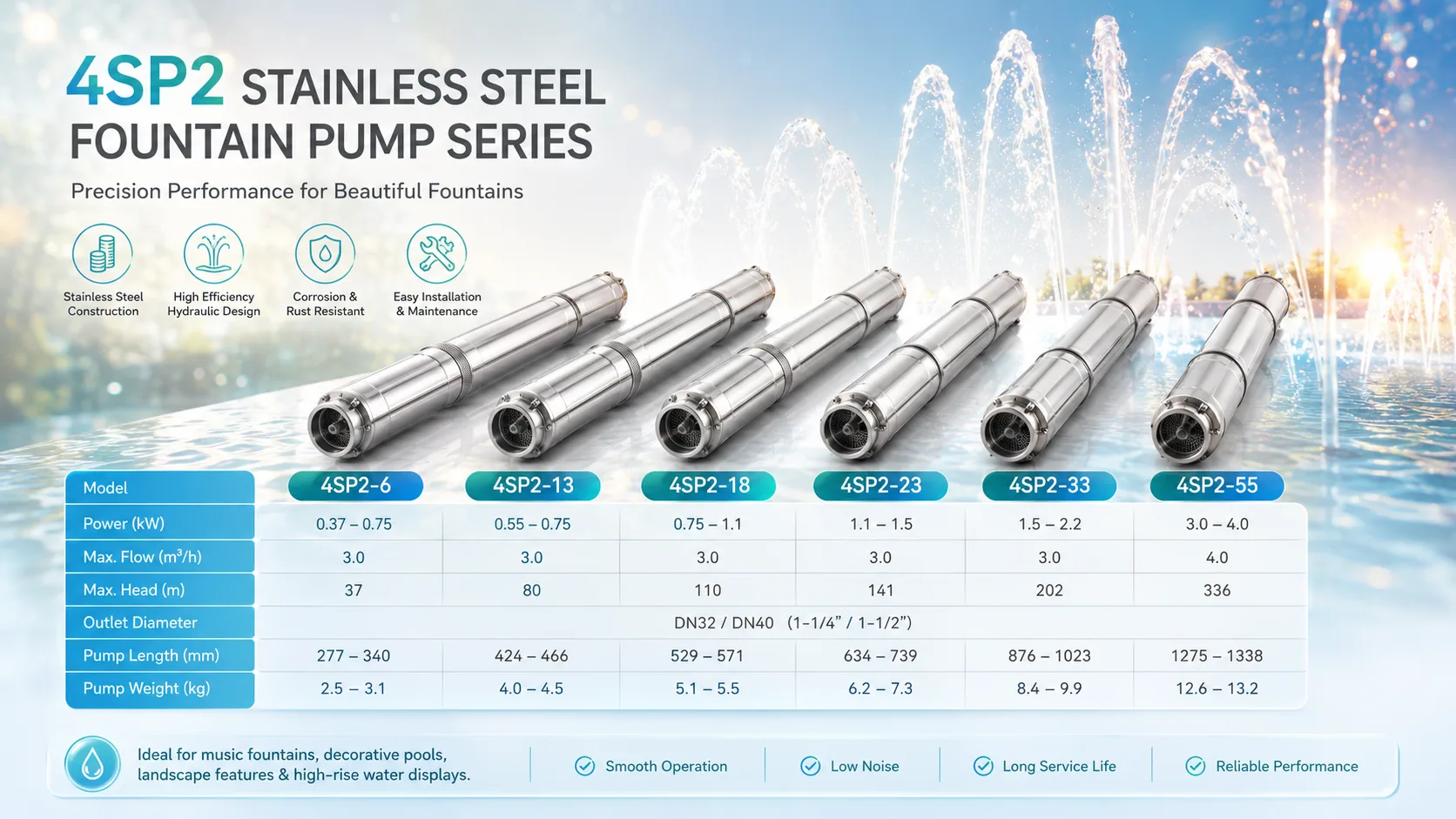

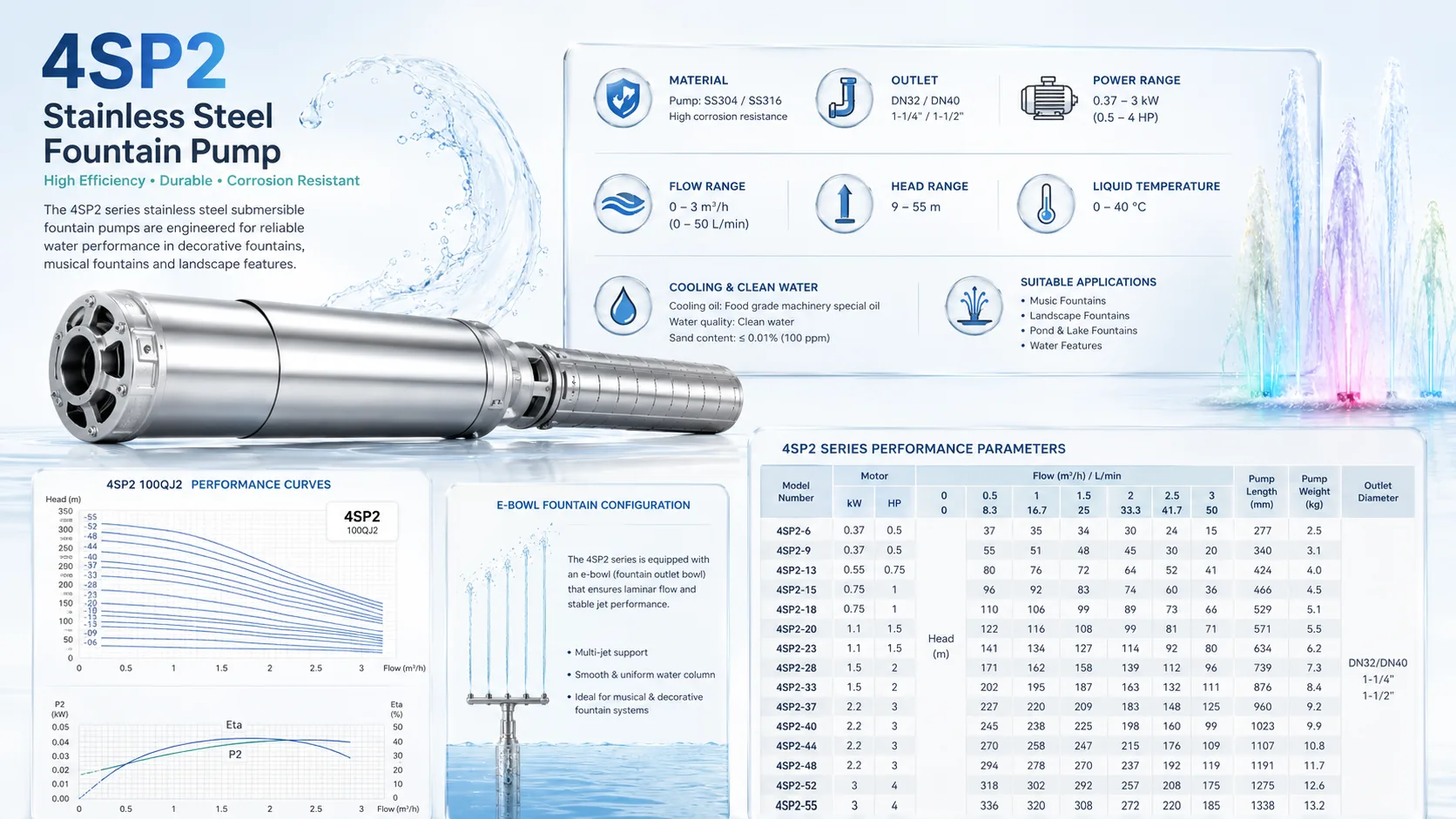

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
4SP2-6 4SP2-6	0.5–3 m³/h / 35–15 m	0.37 kW / 0.5 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	2.5 kg	VFD / contactor / soft starter by cabinet design
4SP2-9 4SP2-9	0.5–3 m³/h / 51–20 m	0.37 kW / 0.5 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	3.1 kg	VFD / contactor / soft starter by cabinet design
4SP2-13 4SP2-13	0.5–3 m³/h / 76–31 m	0.55 kW / 0.75 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	4.0 kg	VFD / contactor / soft starter by cabinet design
4SP2-15 4SP2-15	0.5–3 m³/h / 92–36 m	0.75 kW / 1 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	4.5 kg	VFD / contactor / soft starter by cabinet design
4SP2-18 4SP2-18	0.5–3 m³/h / 106–43 m	0.75 kW / 1 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	5.1 kg	VFD / contactor / soft starter by cabinet design
4SP2-20 4SP2-20	0.5–3 m³/h / 116–48 m	1.1 kW / 1.5 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	5.5 kg	VFD / contactor / soft starter by cabinet design
4SP2-23 4SP2-23	0.5–3 m³/h / 134–56 m	1.1 kW / 1.5 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	6.2 kg	VFD / contactor / soft starter by cabinet design
4SP2-28 4SP2-28	0.5–3 m³/h / 162–68 m	1.5 kW / 2 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	7.3 kg	VFD / contactor / soft starter by cabinet design
4SP2-33 4SP2-33	0.5–3 m³/h / 195–87 m	1.5 kW / 2 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	8.4 kg	VFD / contactor / soft starter by cabinet design
4SP2-37 4SP2-37	0.5–3 m³/h / 220–94 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	9.2 kg	VFD / contactor / soft starter by cabinet design
4SP2-43 4SP2-43	0.5–3 m³/h / 258–109 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	10.8 kg	VFD / contactor / soft starter by cabinet design
4SP2-48 4SP2-48	0.5–3 m³/h / 278–119 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	11.7 kg	VFD / contactor / soft starter by cabinet design
4SP2-52 4SP2-52	0.5–3 m³/h / 302–128 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	12.6 kg	VFD / contactor / soft starter by cabinet design
4SP2-55 4SP2-55	0.5–3 m³/h / 320–135 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN32/DN40; 1-1/4" / 1-1/2"	Not specified in catalogue	13.2 kg	VFD / contactor / soft starter by cabinet design

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

4SP2 Stainless Steel Fountain Pump belongs to the 4SP series for nozzle water supply and basin circulation. Catalogue data covers 0-3 m³/h; max head 336 m, motor power 0.37-3 kW, outlet DN32/DN40; 1-1/4" / 1-1/2", pump length 277-1338 mm and weight 2.5-13.2 kg.

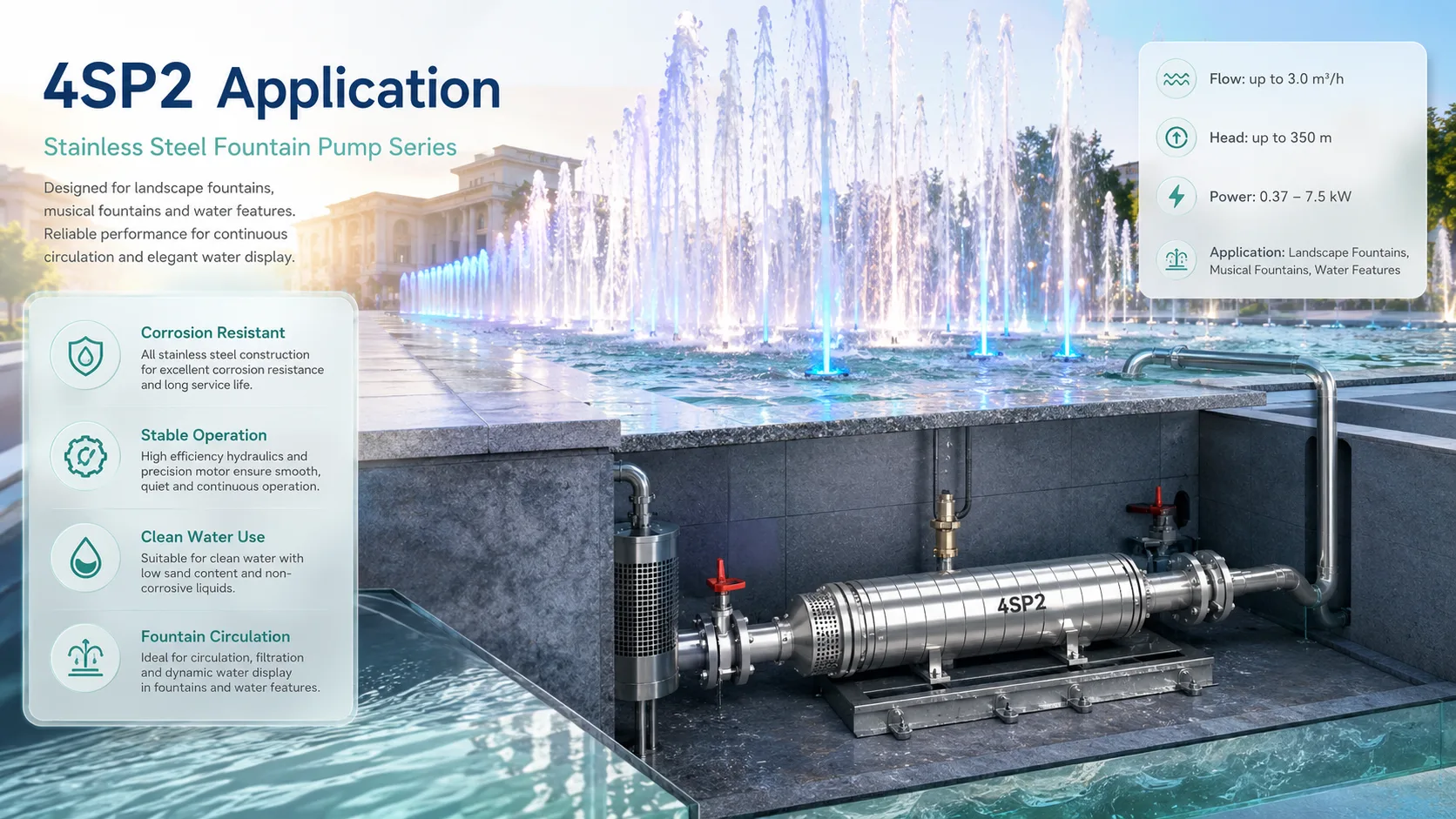

Applications

Musical fountain; dry fountain; landscape pond; water-show pump group; municipal engineering

Key features

Stainless steel submersible construction; catalogue-based pump selection; 0-3 m³/h; max head 336 m; motor power 0.37-3 kW; outlet DN32/DN40; 1-1/4" / 1-1/2"; suitable for SmartVision/VFD cabinet integration when required.
