6SP60Stainless Steel Fountain Pump

Name: 6SP60 Stainless Steel Fountain Pump
Brand: Smart Vision
SKU: 6SP60
Availability: InStock

6SP60 Stainless Steel Fountain Pump for fountains, landscape water features, musical fountain pump groups and municipal water-show systems.

fountain-pumps6SP60Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 123

Technical Specifications

Series	6SP Stainless Steel Fountain Pump
Installation Type	Refer to SmartVision technical datasheet / project configuration
Pump length / size	360-2663 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Waterproof Construction	Sealed submersible motor and cable assembly for underwater fountain operation
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Weight	5.5-53.2 kg

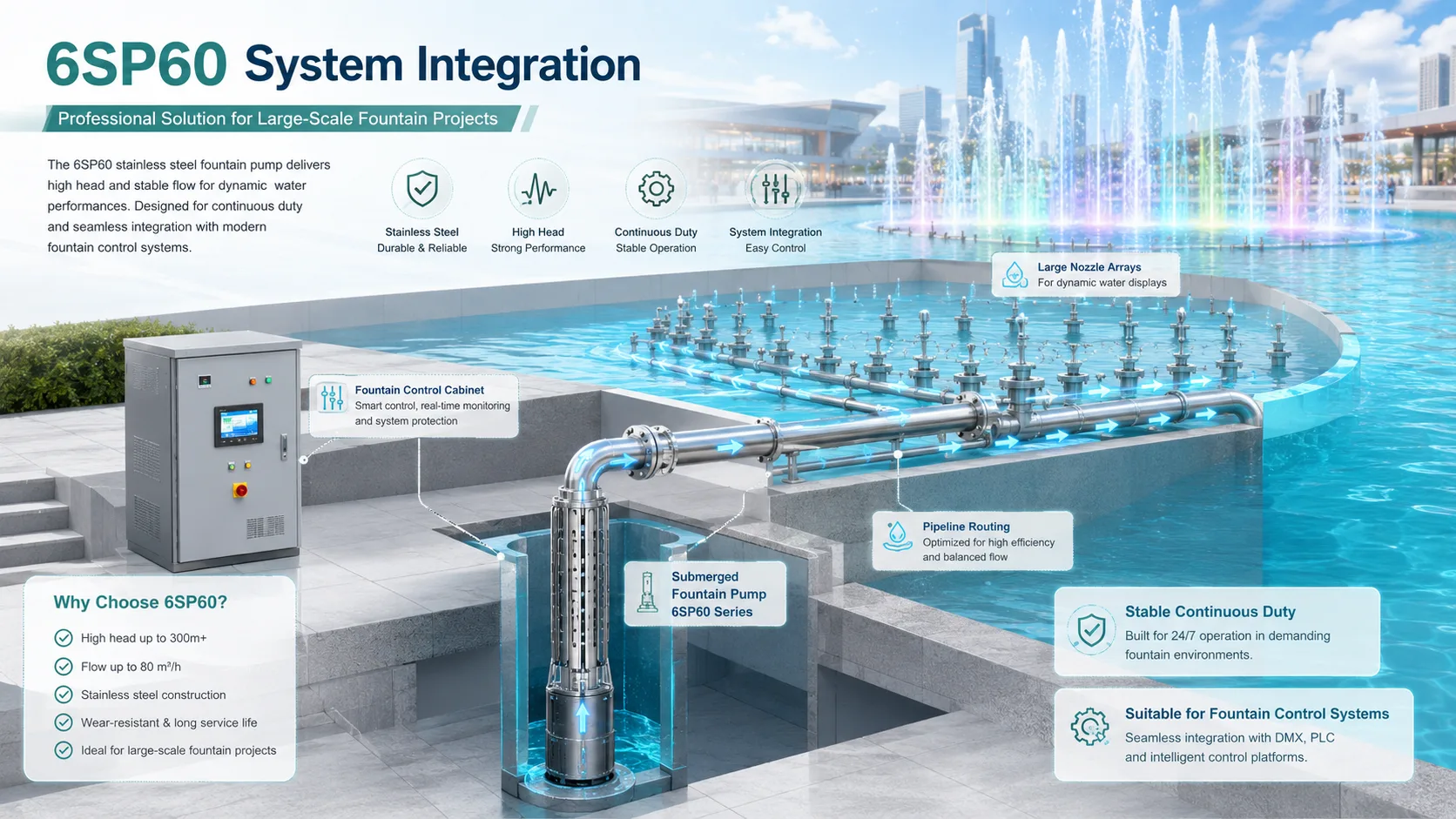

Project Integration

6SP60 is part of the 6SP Stainless Steel Fountain Pump range and is project-ready as a main water-supply pump for fountain systems, high-jet features, landscape ponds, recirculation basins and water shows. Best for:

Max head 294 m / Flow rate / head: 0-75 m³/h

Max head 294 m

Dải công suất motor: 2.2-37 kW / Motor power range: 2.2-37 kW

Outlet Cửa xả / Outlet: DN80; 3". For integration, SmartVision calculates required flow, total dynamic head, pipe losses, spray height, nozzle quantity, pipe diameter, check valve, debris filter, flexible coupling, cable distance and cable cross-section

Then recommends MCCB/contactor, overload, phase-loss/reverse-phase protection, water-level sensing and VFD control where flow adjustment or music-show synchronization is required.

Pump-curve operating point selection
Flow/head supply for nozzle groups
MCC/VFD cabinet and motor protection
BOQ/BOM, hydraulic drawings and electrical diagrams. Reference dataLưu lượng / cột áp: 0-75 m³/h

PUMP MODELS

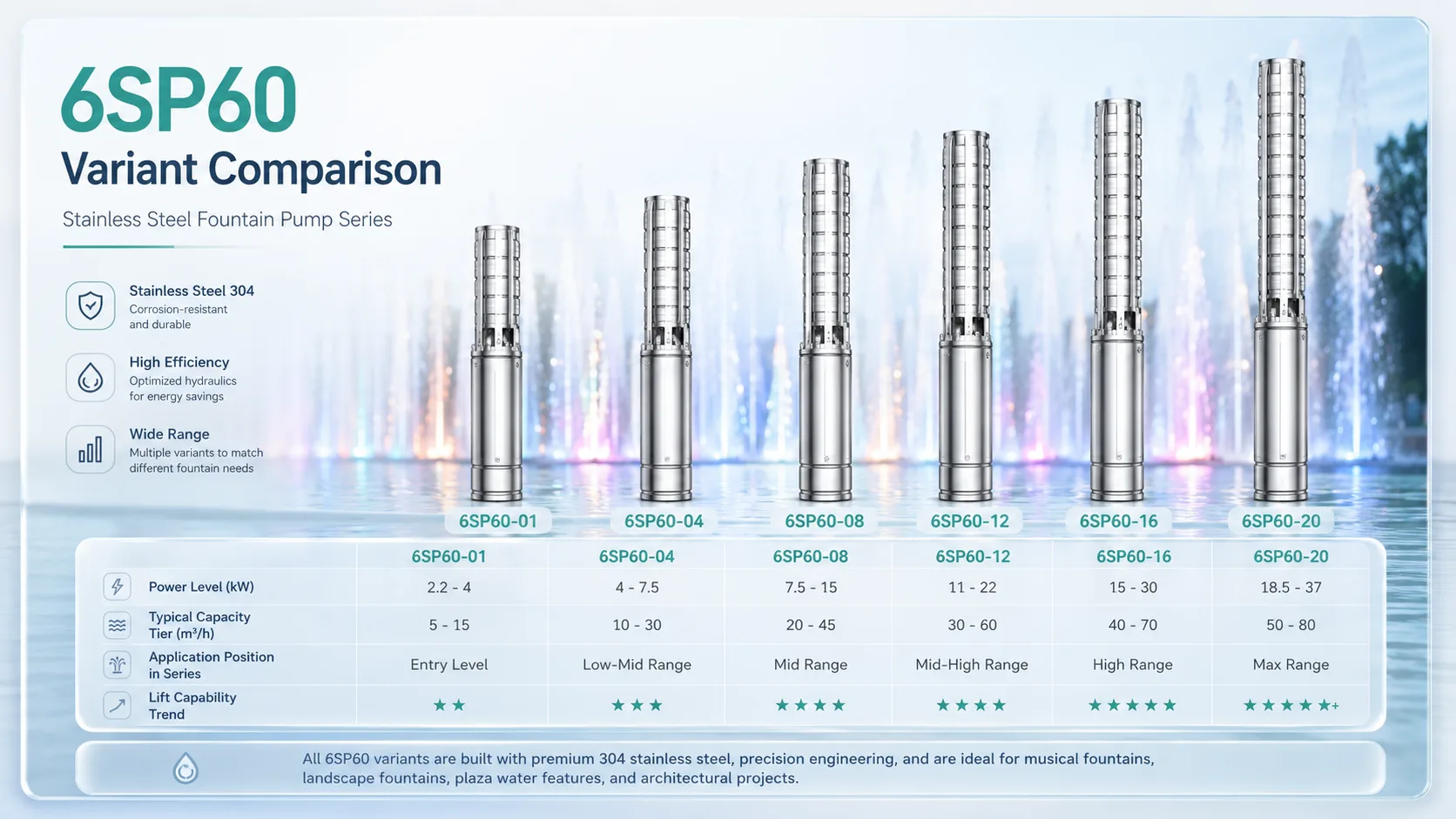

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
6SP60-01 6SP60-01	20–75 m³/h / 12–4 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-02 6SP60-02	20–75 m³/h / 24–8 m	4 kW / 5.5 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-03 6SP60-03	20–75 m³/h / 36–12 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-04 6SP60-04	20–75 m³/h / 48–16 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-05 6SP60-05	20–75 m³/h / 60–20 m	9.2 kW / 12.5 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-06 6SP60-06	20–75 m³/h / 72–24 m	11 kW / 15 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-07 6SP60-07	20–75 m³/h / 84–28 m	13 kW / 18 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-08 6SP60-08	20–75 m³/h / 96–32 m	15 kW / 20 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-09 6SP60-09	20–75 m³/h / 108–36 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-10 6SP60-10	20–75 m³/h / 120–40 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-11 6SP60-11	20–75 m³/h / 132–44 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-12 6SP60-12	20–75 m³/h / 144–48 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-13 6SP60-13	20–75 m³/h / 156–52 m	25 kW / 34 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-14 6SP60-14	20–75 m³/h / 168–56 m	25 kW / 34 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-15 6SP60-15	20–75 m³/h / 180–60 m	25 kW / 34 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-16 6SP60-16	20–75 m³/h / 192–64 m	30 kW / 40 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-17 6SP60-17	20–75 m³/h / 204–68 m	30 kW / 40 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-18 6SP60-18	20–75 m³/h / 216–72 m	30 kW / 40 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-19 6SP60-19	20–75 m³/h / 228–76 m	37 kW / 50 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-20 6SP60-20	20–75 m³/h / 240–80 m	37 kW / 50 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design
6SP60-21 6SP60-21	20–75 m³/h / 252–84 m	37 kW / 50 HP	380V / 3 phase	Cửa xả / Outlet: DN80; 3"	Not specified in catalogue	5.5-53.2 kg	VFD / contactor / soft starter by cabinet design

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

6SP60 Stainless Steel Fountain Pump belongs to the 6SP series for nozzle water supply and basin circulation. Catalogue data covers 0-75 m³/h; max head 294 m, motor power 2.2-37 kW, outlet DN80; 3", pump length 360-2663 mm and weight 5.5-53.2 kg.

Applications

Musical fountain; dry fountain; landscape pond; water-show pump group; municipal engineering

Key features

Stainless steel submersible construction; catalogue-based pump selection; 0-75 m³/h; max head 294 m; motor power 2.2-37 kW; outlet DN80; 3"; suitable for SmartVision/VFD cabinet integration when required.
