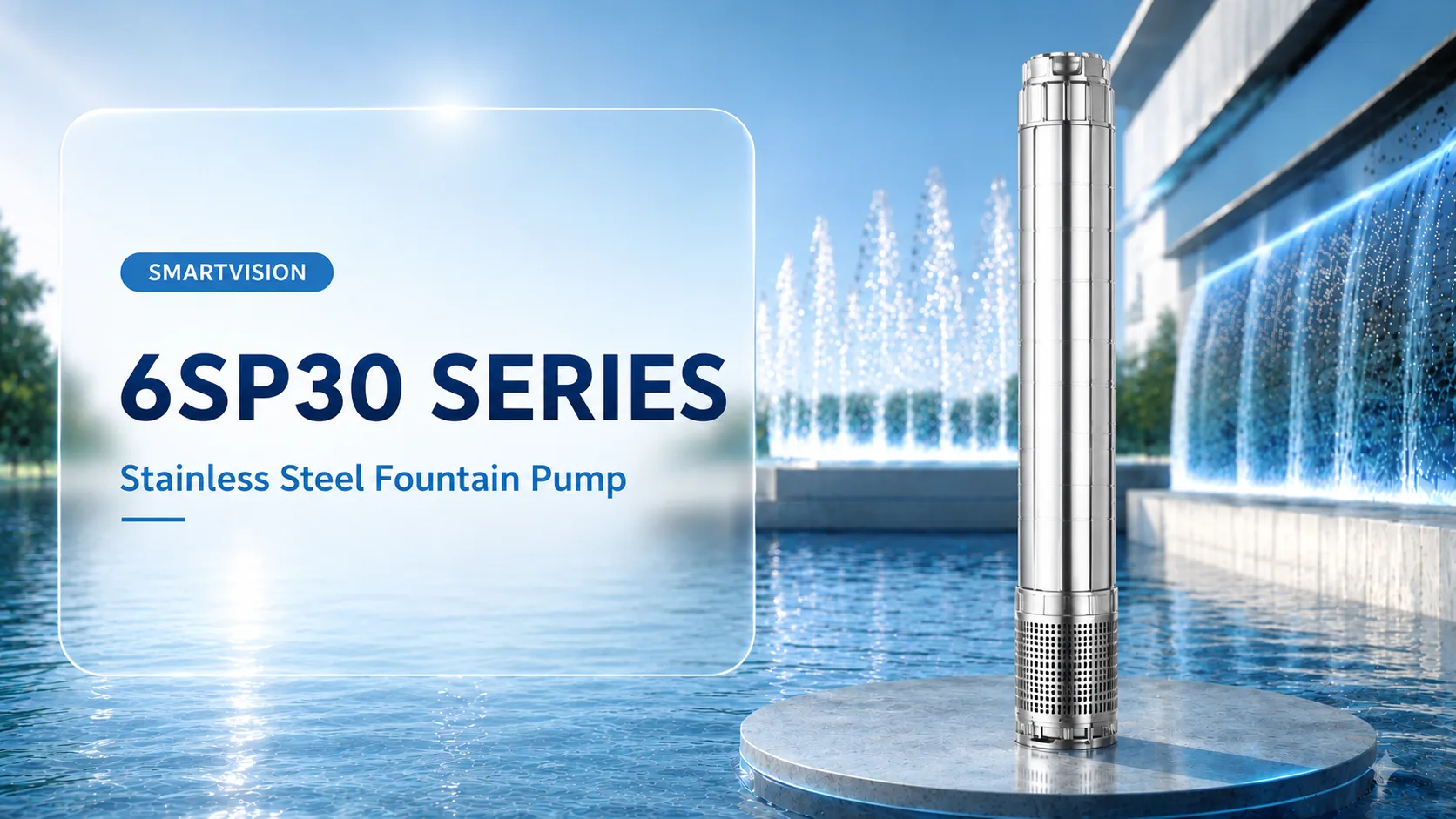

Name: 6SP30 Stainless Steel Fountain Pump
Brand: SmartVision
SKU: 6SP30
Availability: InStock

Technical Specifications

Series	6SP Stainless Steel Fountain Pump
Pump Series	6SP Stainless Steel Fountain Pump
Pump Type	Refer to SmartVision technical datasheet / project configuration
Diameter	6 inch
Flow / head	max head 449 m
Outlet	Refer to SmartVision technical datasheet / project configuration
Installation Type	Refer to SmartVision technical datasheet / project configuration
Pump length / size	299.5-2470.5 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Material	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Waterproof Construction	Sealed submersible motor and cable assembly for underwater fountain operation
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Weight	4.2-43.6 kg
Flow / head	Refer to SmartVision technical datasheet / project configuration

Project Integration

6SP30 is part of the 6SP Stainless Steel Fountain Pump range and is project-ready as a main water-supply pump for fountain systems, high-jet features, landscape ponds, recirculation basins and water shows. Best for:

Max head 449 m / Flow rate / head: 0-40 m³/h

Max head 449 m

Dải công suất motor: 1.1-37 kW / Motor power range: 1.1-37 kW

Outlet Cửa xả / Outlet: DN65/DN80; 2.5" / 3". For integration, SmartVision calculates required flow, total dynamic head, pipe losses, spray height, nozzle quantity, pipe diameter, check valve, debris filter, flexible coupling, cable distance and cable cross-section

Then recommends MCCB/contactor, overload, phase-loss/reverse-phase protection, water-level sensing and VFD control where flow adjustment or music-show synchronization is required.

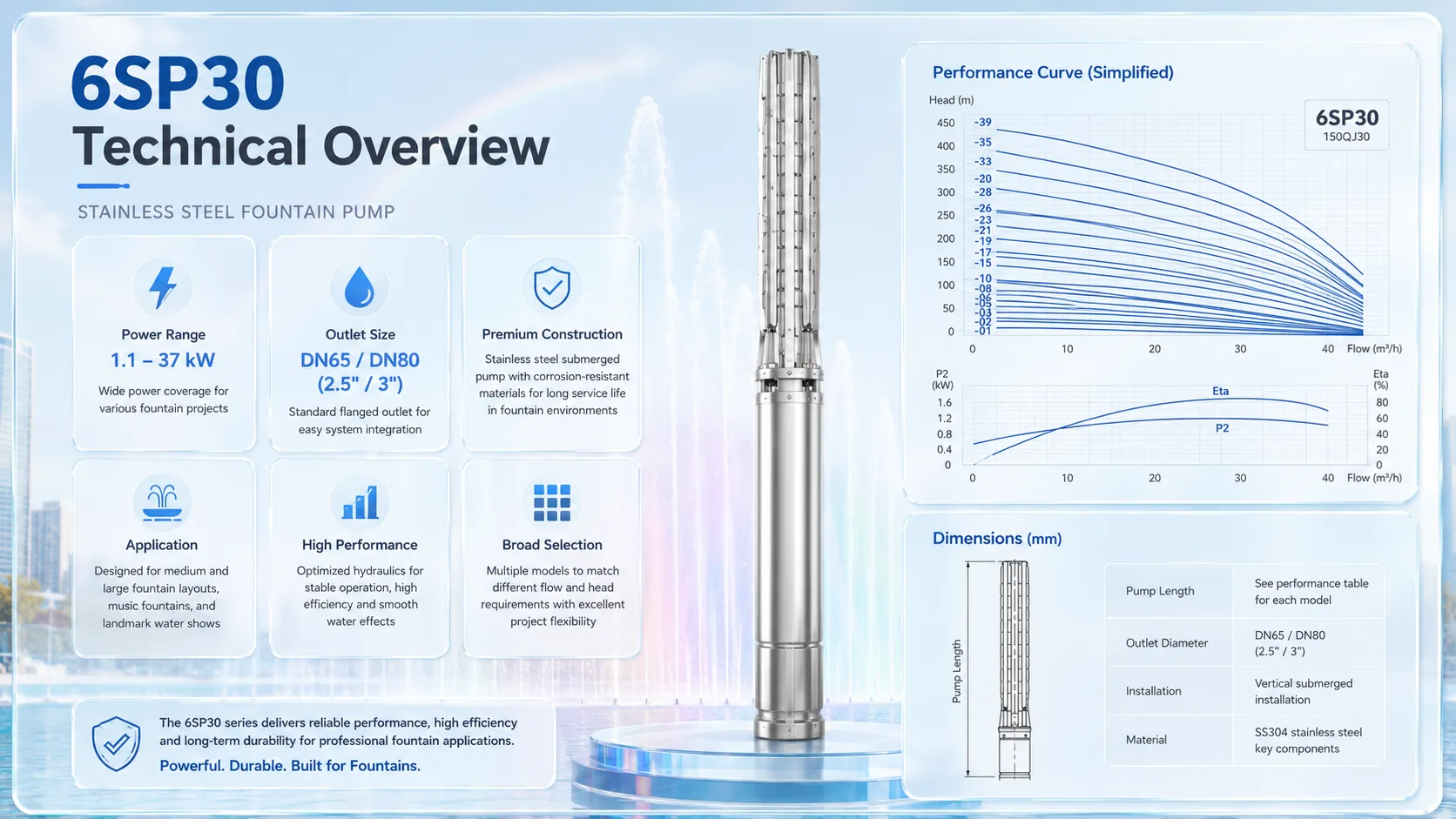

Pump-curve operating point selection
Flow/head supply for nozzle groups
MCC/VFD cabinet and motor protection
BOQ/BOM, hydraulic drawings and electrical diagrams. Reference dataLưu lượng / cột áp: 0-40 m³/h

PUMP MODELS

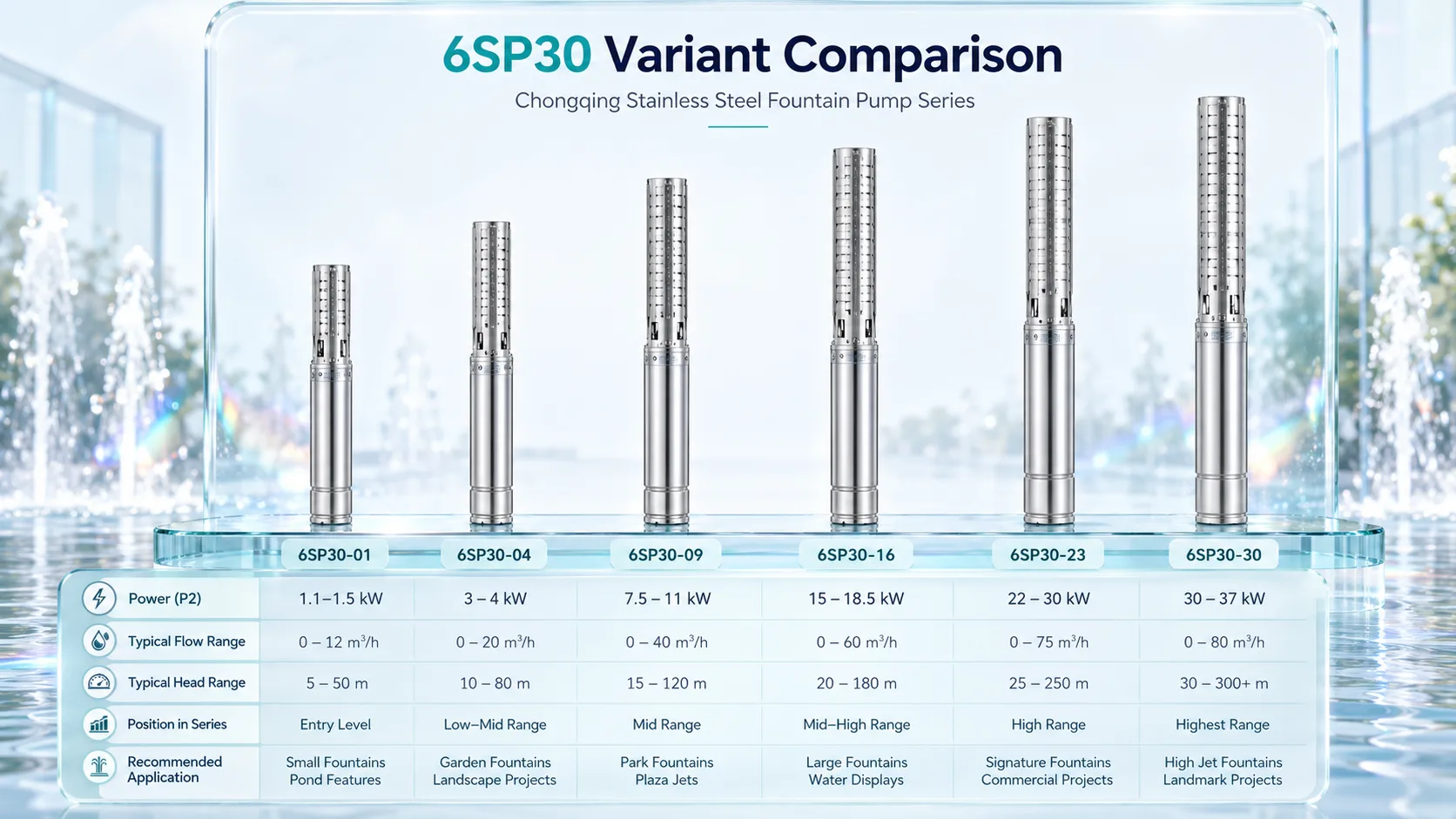

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
6SP30-01 6SP30-01	12–40 m³/h / 11–3.6 m	1.1 kW / 1.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-02 6SP30-02	12–40 m³/h / 22–7.2 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-03 6SP30-03	12–40 m³/h / 32–10.8 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-04 6SP30-04	12–40 m³/h / 44–14.4 m	4 kW / 5.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-05 6SP30-05	12–40 m³/h / 55–18 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-06 6SP30-06	12–40 m³/h / 66–21.6 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-07 6SP30-07	12–40 m³/h / 77–25 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-08 6SP30-08	12–40 m³/h / 87–30 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-09 6SP30-09	12–40 m³/h / 96–35 m	9.2 kW / 12.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-10 6SP30-10	12–40 m³/h / 106–38 m	9.2 kW / 12.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-12 6SP30-12	12–40 m³/h / 132–42 m	11 kW / 15 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-14 6SP30-14	12–40 m³/h / 154–50 m	13 kW / 18 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-16 6SP30-16	12–40 m³/h / 170–64 m	15 kW / 20 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-17 6SP30-17	12–40 m³/h / 180–67 m	15 kW / 20 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-19 6SP30-19	12–40 m³/h / 204–77 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-21 6SP30-21	12–40 m³/h / 223–80 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-23 6SP30-23	12–40 m³/h / 245–90 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-24 6SP30-24	12–40 m³/h / 255–94 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-28 6SP30-28	12–40 m³/h / 298–110 m	26 kW / 35 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-30 6SP30-30	12–40 m³/h / 318–117 m	26 kW / 35 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-33 6SP30-33	12–40 m³/h / 352–130 m	30 kW / 40 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-35 6SP30-35	12–40 m³/h / 372–138 m	30 kW / 40 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design
6SP30-39 6SP30-39	12–40 m³/h / 415–170 m	37 kW / 50 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.2-43.6 kg	VFD / contactor / soft starter by cabinet design

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

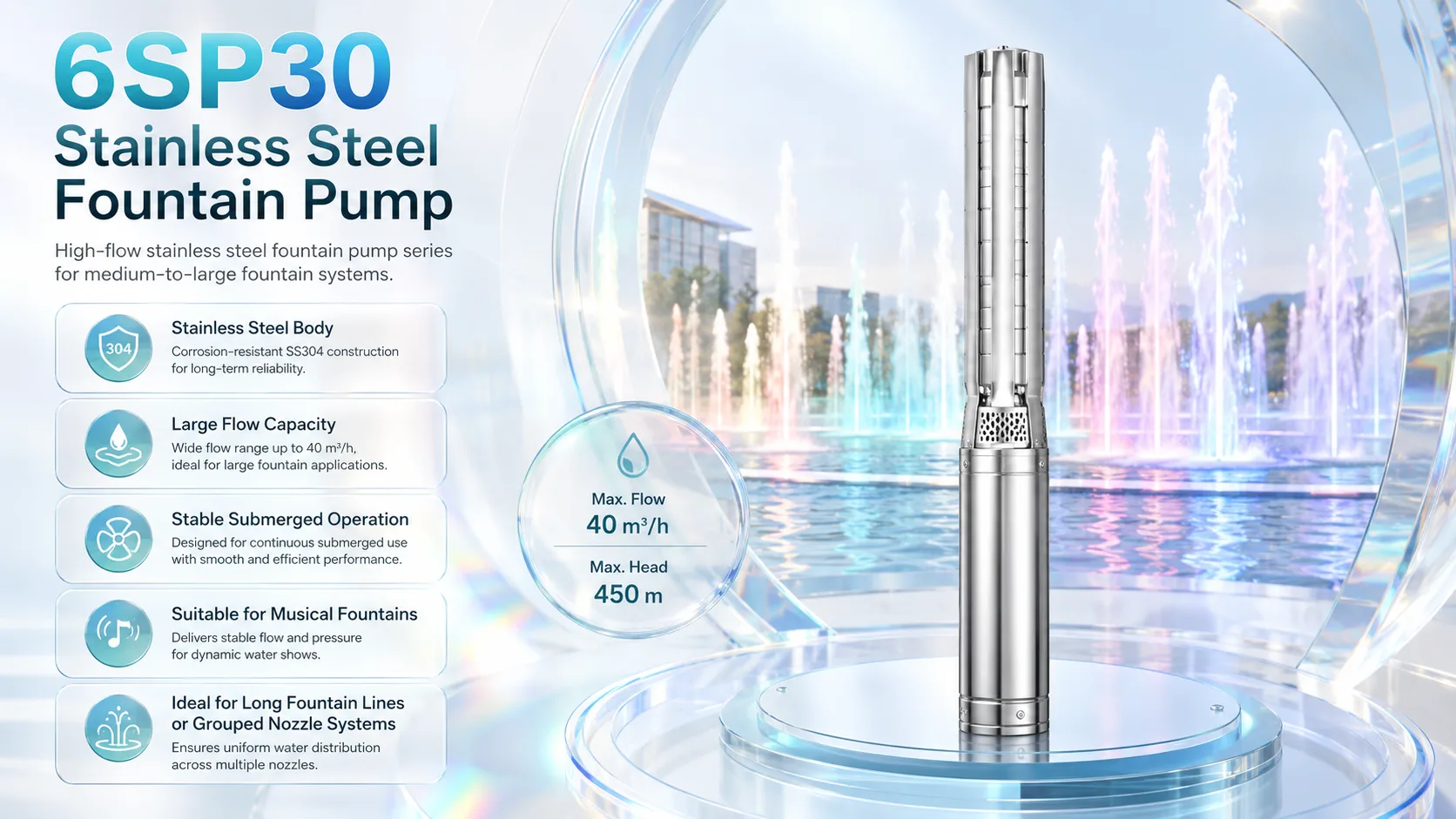

6SP30 Stainless Steel Fountain Pump belongs to the 6SP series for nozzle water supply and basin circulation. Catalogue data covers 0-40 m³/h; max head 449 m, motor power 1.1-37 kW, outlet DN65/DN80; 2.5" / 3", pump length 299.5-2470.5 mm and weight 4.2-43.6 kg.

Applications

Musical fountain; dry fountain; landscape pond; water-show pump group; municipal engineering

Key features

Stainless steel submersible construction; catalogue-based pump selection; 0-40 m³/h; max head 449 m; motor power 1.1-37 kW; outlet DN65/DN80; 2.5" / 3"; suitable for SmartVision/VFD cabinet integration when required.

Related use casessubmersible fountain pumpSUS304 stainless steel submersible fountain pumpstainless steel fountain pumpmusical fountain pump
