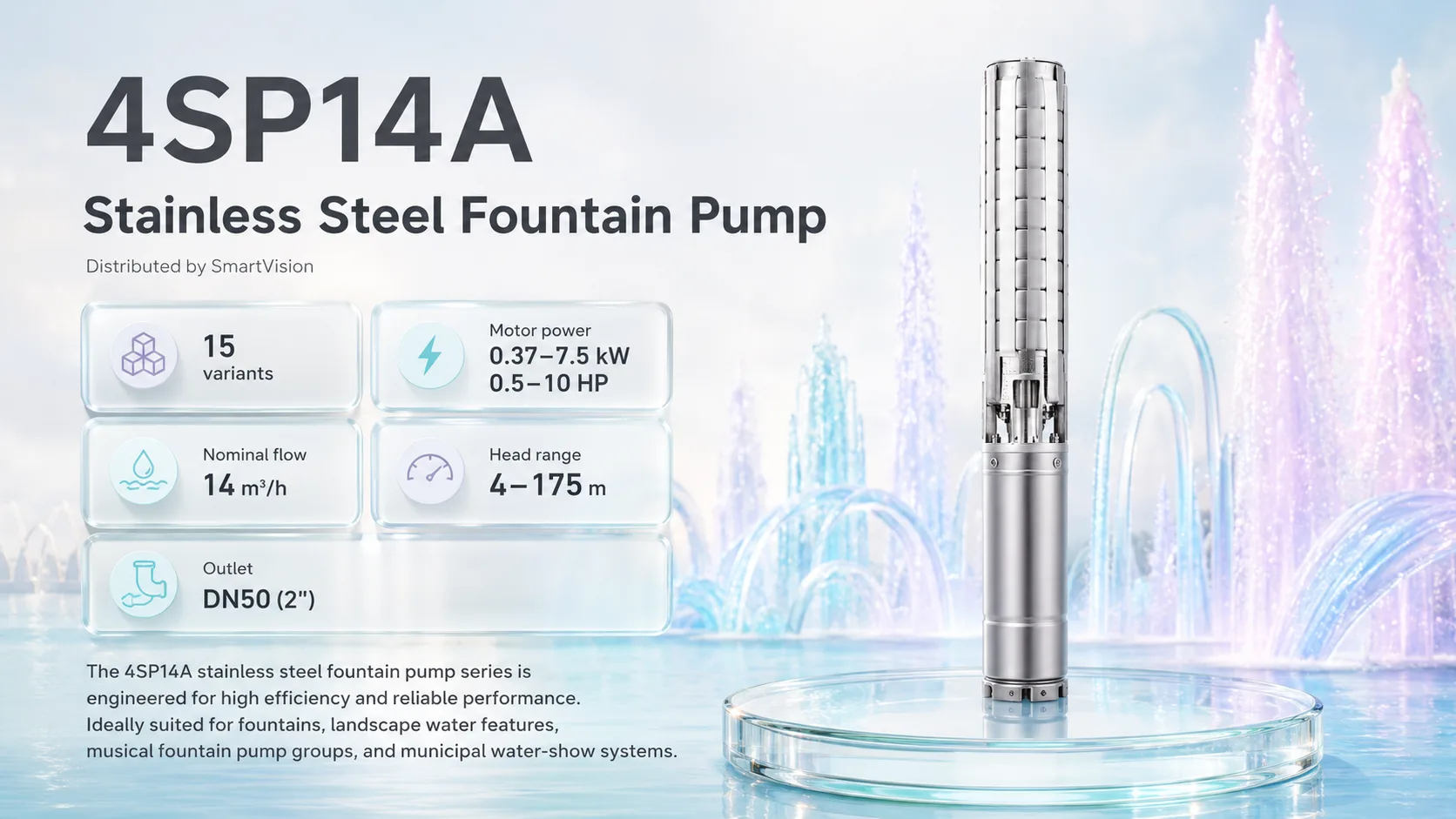

4SP14AStainless Steel Fountain Pump

Name: 4SP14A Stainless Steel Fountain Pump
Brand: SmartVision
SKU: 4SP14A
Availability: InStock

4SP14A Stainless Steel Fountain Pump for fountains, landscape water features, musical fountain pump groups and municipal water-show systems.

fountain-pumps4SP14ARequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 42

Technical Specifications

Series	4SP Stainless Steel Fountain Pump
Pump Series	4SP Stainless Steel Fountain Pump
Pump Type	Refer to SmartVision technical datasheet / project configuration
Diameter	4 inch
Flow / head	max head 175 m
Outlet	Refer to SmartVision technical datasheet / project configuration
Installation Type	Refer to SmartVision technical datasheet / project configuration

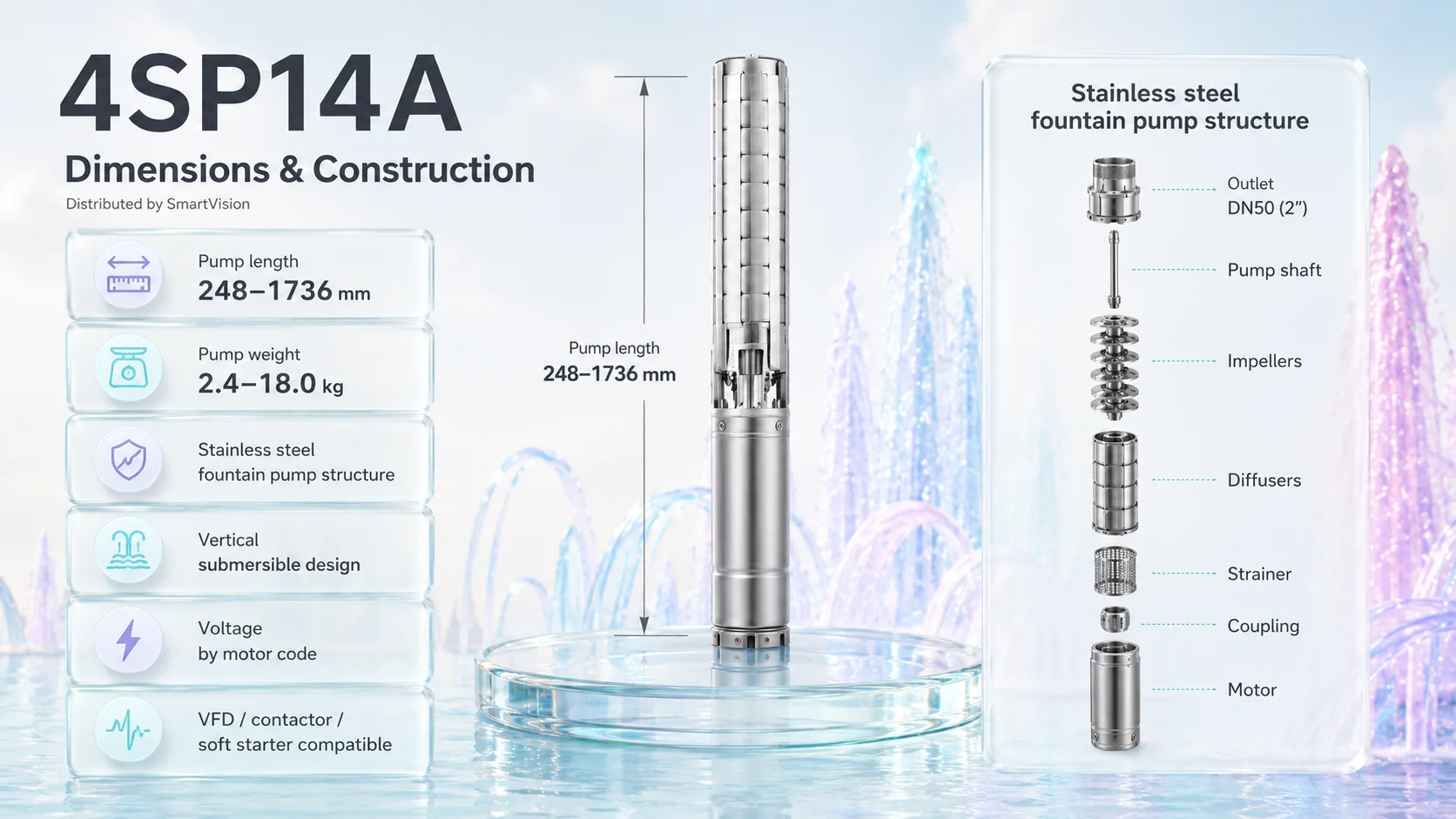

Pump length / size	248-1736 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Material	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Waterproof Construction	Sealed submersible motor and cable assembly for underwater fountain operation
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Weight	2.4-18.0 kg
Flow / head	Refer to SmartVision technical datasheet / project configuration

Project Integration

4SP14A is part of the 4SP Stainless Steel Fountain Pump range and is project-ready as a main water-supply pump for fountain systems, high-jet features, landscape ponds, recirculation basins and water shows. Best for:

Max head 175 m / Flow rate / head: 0-18 m³/h

Max head 175 m

Dải công suất motor: 0.37-7.5 kW / Motor power range: 0.37-7.5 kW

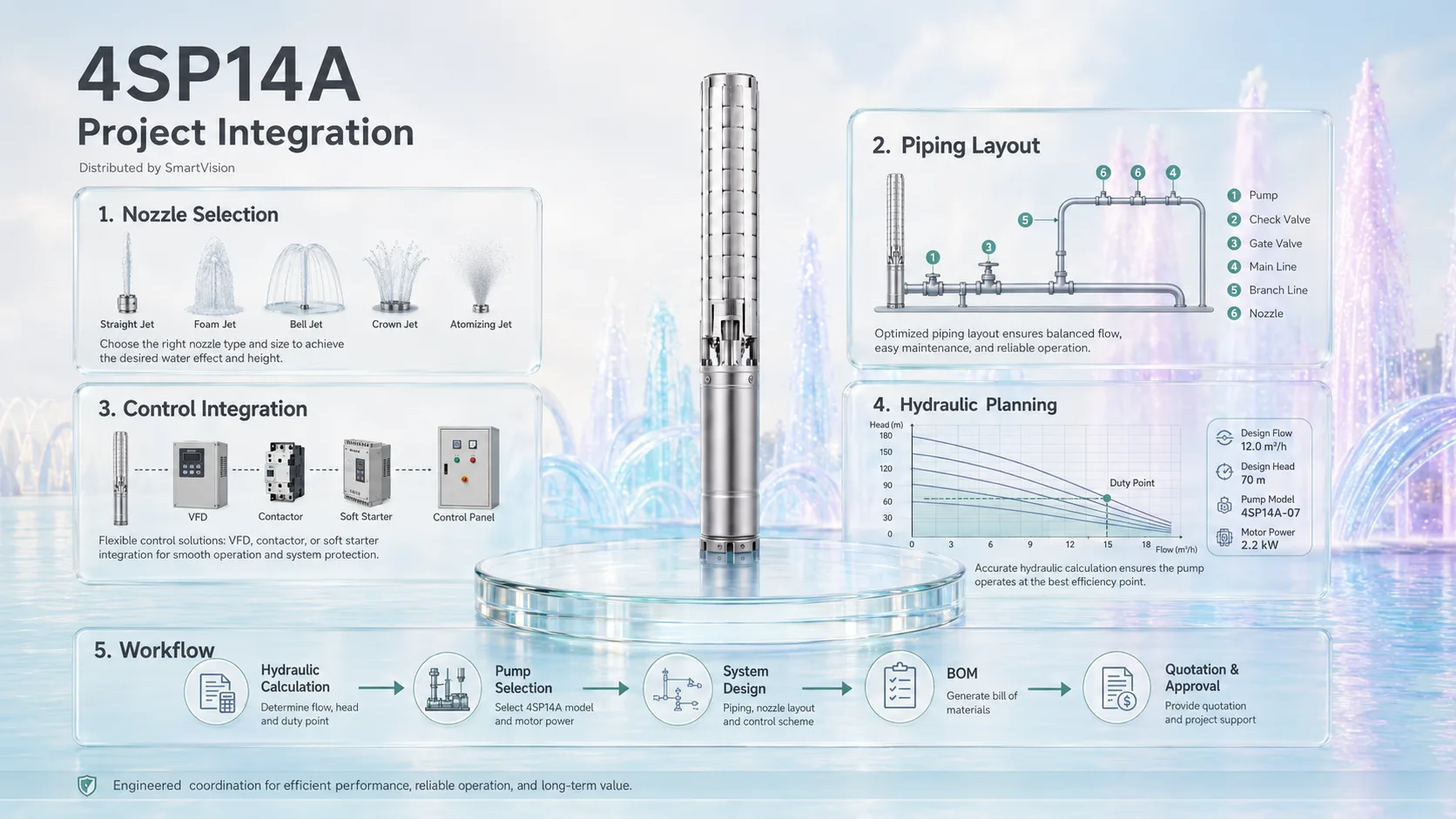

Outlet Cửa xả / Outlet: DN50; 2". For integration, SmartVision calculates required flow, total dynamic head, pipe losses, spray height, nozzle quantity, pipe diameter, check valve, debris filter, flexible coupling, cable distance and cable cross-section

Then recommends MCCB/contactor, overload, phase-loss/reverse-phase protection, water-level sensing and VFD control where flow adjustment or music-show synchronization is required.

Pump-curve operating point selection
Flow/head supply for nozzle groups
MCC/VFD cabinet and motor protection
BOQ/BOM, hydraulic drawings and electrical diagrams. Reference dataLưu lượng / cột áp: 0-18 m³/h

PUMP MODELS

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
4SP14-01 4SP14-01	6–18 m³/h / 8–3 m	0.37 kW / 0.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	2.4 kg	VFD / contactor / soft starter by cabinet design
4SP14-02 4SP14-02	6–18 m³/h / 15–6 m	0.75 kW / 1 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	3.0 kg	VFD / contactor / soft starter by cabinet design
4SP14-03 4SP14-03	6–18 m³/h / 20–9 m	1.1 kW / 1.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	3.7 kg	VFD / contactor / soft starter by cabinet design
4SP14-04 4SP14-04	6–18 m³/h / 25–11 m	1.5 kW / 2 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	4.3 kg	VFD / contactor / soft starter by cabinet design
4SP14-05 4SP14-05	6–18 m³/h / 31–14 m	1.5 kW / 2 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	5.0 kg	VFD / contactor / soft starter by cabinet design
4SP14-06 4SP14-06	6–18 m³/h / 36–16 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	5.6 kg	VFD / contactor / soft starter by cabinet design
4SP14-07 4SP14-07	6–18 m³/h / 42–19 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	6.3 kg	VFD / contactor / soft starter by cabinet design
4SP14-08 4SP14-08	6–18 m³/h / 48–22 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	6.9 kg	VFD / contactor / soft starter by cabinet design
4SP14-10 4SP14-10	6–18 m³/h / 60–27 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	8.2 kg	VFD / contactor / soft starter by cabinet design
4SP14-11 4SP14-11	6–18 m³/h / 67–29 m	4 kW / 5.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	8.9 kg	VFD / contactor / soft starter by cabinet design
4SP14-13 4SP14-13	6–18 m³/h / 79–35 m	4 kW / 5.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	10.2 kg	VFD / contactor / soft starter by cabinet design
4SP14-15 4SP14-15	6–18 m³/h / 89–41 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	11.5 kg	VFD / contactor / soft starter by cabinet design
4SP14-18 4SP14-18	6–18 m³/h / 110–49 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	13.4 kg	VFD / contactor / soft starter by cabinet design
4SP14-21 4SP14-21	6–18 m³/h / 128–55 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	15.4 kg	VFD / contactor / soft starter by cabinet design
4SP14-25 4SP14-25	6–18 m³/h / 151–65 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN50; 2"	Not specified in catalogue	18.0 kg	VFD / contactor / soft starter by cabinet design

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

4SP14A Stainless Steel Fountain Pump belongs to the 4SP series for nozzle water supply and basin circulation. Catalogue data covers 0-18 m³/h; max head 175 m, motor power 0.37-7.5 kW, outlet DN50; 2", pump length 248-1736 mm and weight 2.4-18.0 kg.

Applications

Musical fountain; dry fountain; landscape pond; water-show pump group; municipal engineering

Key features

Stainless steel submersible construction; catalogue-based pump selection; 0-18 m³/h; max head 175 m; motor power 0.37-7.5 kW; outlet DN50; 2"; suitable for SmartVision/VFD cabinet integration when required.
