Technical Specifications

Series	6SP Stainless Steel Fountain Pump
Installation Type	Refer to SmartVision technical datasheet / project configuration
Pump length / size	293.5-2311.5 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Waterproof Construction	Sealed submersible motor and cable assembly for underwater fountain operation
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Weight	4.1-41.1 kg

Project Integration

6SP17 is part of the 6SP Stainless Steel Fountain Pump range and is project-ready as a main water-supply pump for fountain systems, high-jet features, landscape ponds, recirculation basins and water shows. Best for:

Max head 473 m / Flow rate / head: 0-25 m³/h

Max head 473 m

Dải công suất motor: 0.55-26 kW / Motor power range: 0.55-26 kW

Outlet Cửa xả / Outlet: DN65/DN80; 2.5" / 3". For integration, SmartVision calculates required flow, total dynamic head, pipe losses, spray height, nozzle quantity, pipe diameter, check valve, debris filter, flexible coupling, cable distance and cable cross-section

Then recommends MCCB/contactor, overload, phase-loss/reverse-phase protection, water-level sensing and VFD control where flow adjustment or music-show synchronization is required.

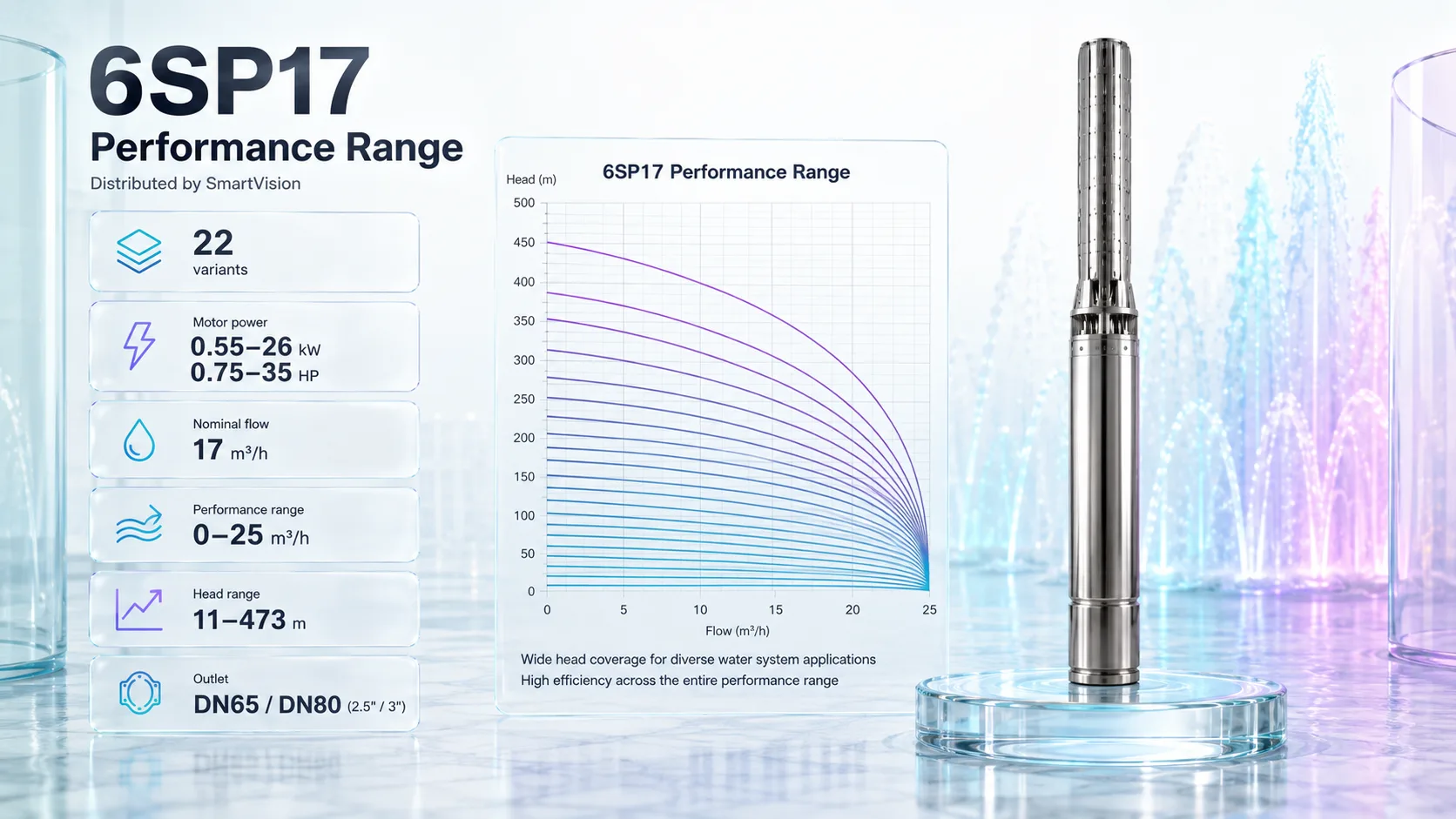

Pump-curve operating point selection
Flow/head supply for nozzle groups
MCC/VFD cabinet and motor protection
BOQ/BOM, hydraulic drawings and electrical diagrams. Reference dataLưu lượng / cột áp: 0-25 m³/h

PUMP MODELS

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
6SP17-01 6SP17-01	5–25 m³/h / 10.5–4.3 m	0.55 kW / 0.75 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-02 6SP17-02	5–25 m³/h / 21–8.5 m	1.1 kW / 1.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-03 6SP17-03	5–25 m³/h / 31.5–13 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-04 6SP17-04	5–25 m³/h / 42–17 m	2.2 kW / 3 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-05 6SP17-05	5–25 m³/h / 52.5–22 m	3 kW / 4 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-07 6SP17-07	5–25 m³/h / 73.5–30 m	4 kW / 5.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-09 6SP17-09	5–25 m³/h / 94.5–38 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-10 6SP17-10	5–25 m³/h / 105–43 m	5.5 kW / 7.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-12 6SP17-12	5–25 m³/h / 126–51 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-13 6SP17-13	5–25 m³/h / 136.5–56 m	7.5 kW / 10 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-15 6SP17-15	5–25 m³/h / 157.5–64 m	9.2 kW / 12.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-17 6SP17-17	5–25 m³/h / 178.5–73 m	9.2 kW / 12.5 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-18 6SP17-18	5–25 m³/h / 189–76 m	11 kW / 15 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-20 6SP17-20	5–25 m³/h / 210–86 m	11 kW / 15 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-21 6SP17-21	5–25 m³/h / 220.5–89 m	13 kW / 18 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-24 6SP17-24	5–25 m³/h / 252–102 m	15 kW / 20 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-25 6SP17-25	5–25 m³/h / 262.5–107 m	15 kW / 20 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-28 6SP17-28	5–25 m³/h / 294–120 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-30 6SP17-30	5–25 m³/h / 315–127 m	18.5 kW / 25 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-34 6SP17-34	5–25 m³/h / 357–146 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-36 6SP17-36	5–25 m³/h / 378–153 m	22 kW / 30 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design
6SP17-43 6SP17-43	5–25 m³/h / 451.5–183 m	26 kW / 35 HP	380V / 3 phase	Cửa xả / Outlet: DN65/DN80; 2.5" / 3"	Not specified in catalogue	4.1-41.1 kg	VFD / contactor / soft starter by cabinet design

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

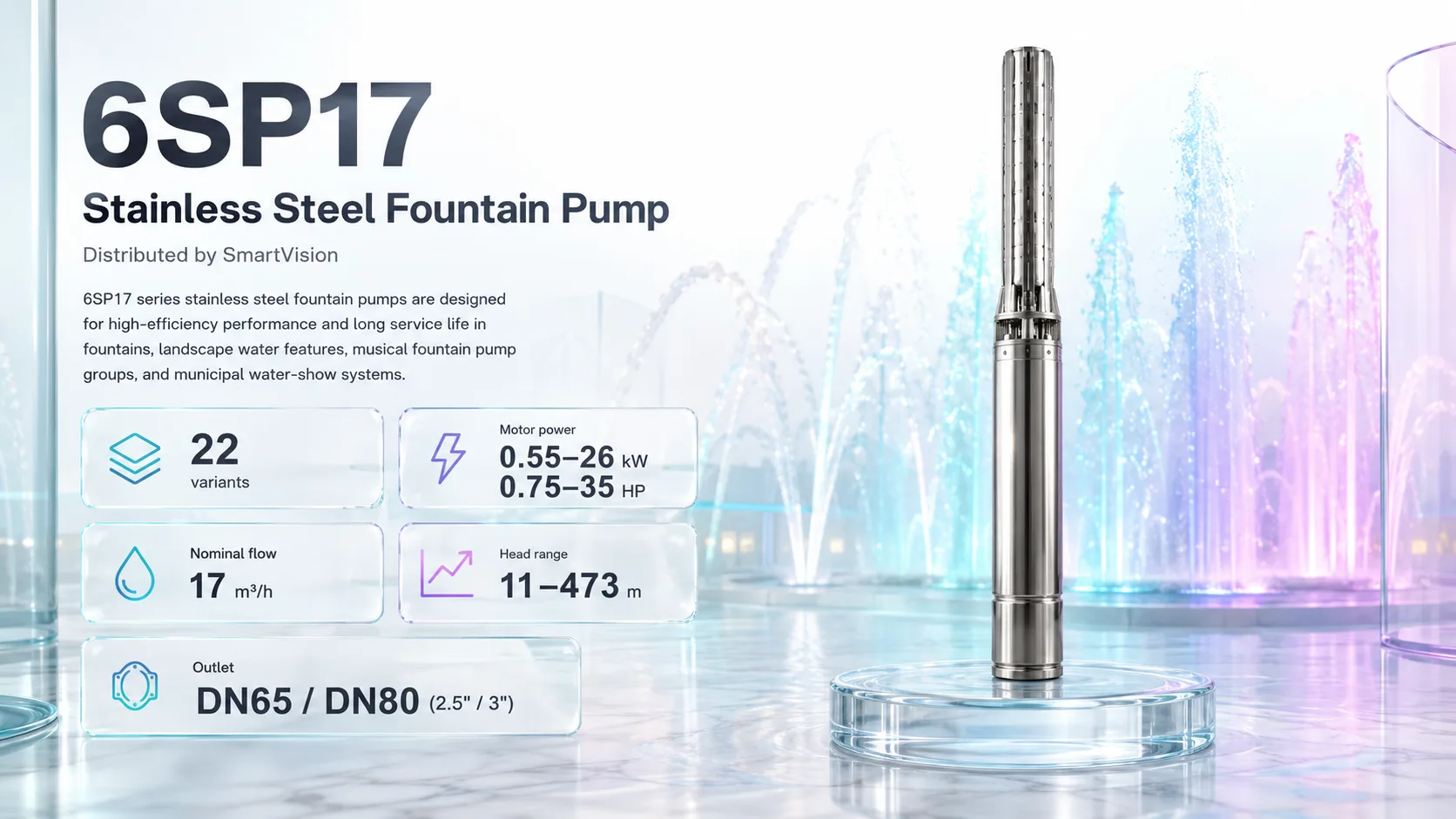

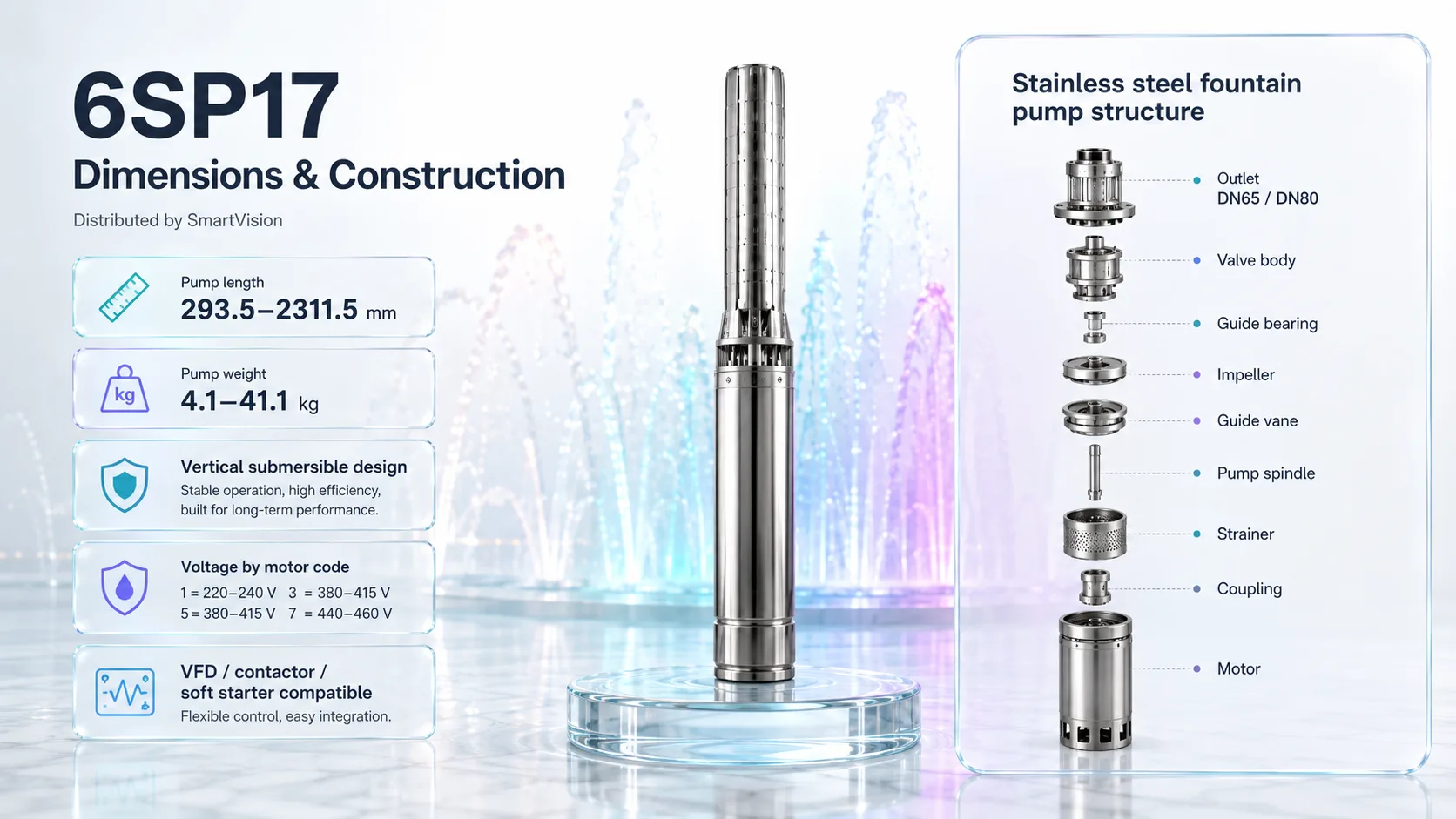

6SP17 Stainless Steel Fountain Pump belongs to the 6SP series for nozzle water supply and basin circulation. Catalogue data covers 0-25 m³/h; max head 473 m, motor power 0.55-26 kW, outlet DN65/DN80; 2.5" / 3", pump length 293.5-2311.5 mm and weight 4.1-41.1 kg.

Applications

Musical fountain; dry fountain; landscape pond; water-show pump group; municipal engineering

Key features

Stainless steel submersible construction; catalogue-based pump selection; 0-25 m³/h; max head 473 m; motor power 0.55-26 kW; outlet DN65/DN80; 2.5" / 3"; suitable for SmartVision/VFD cabinet integration when required.

Related use casessubmersible fountain pumpSUS304 stainless steel submersible fountain pumpstainless steel fountain pumpmusical fountain pump
