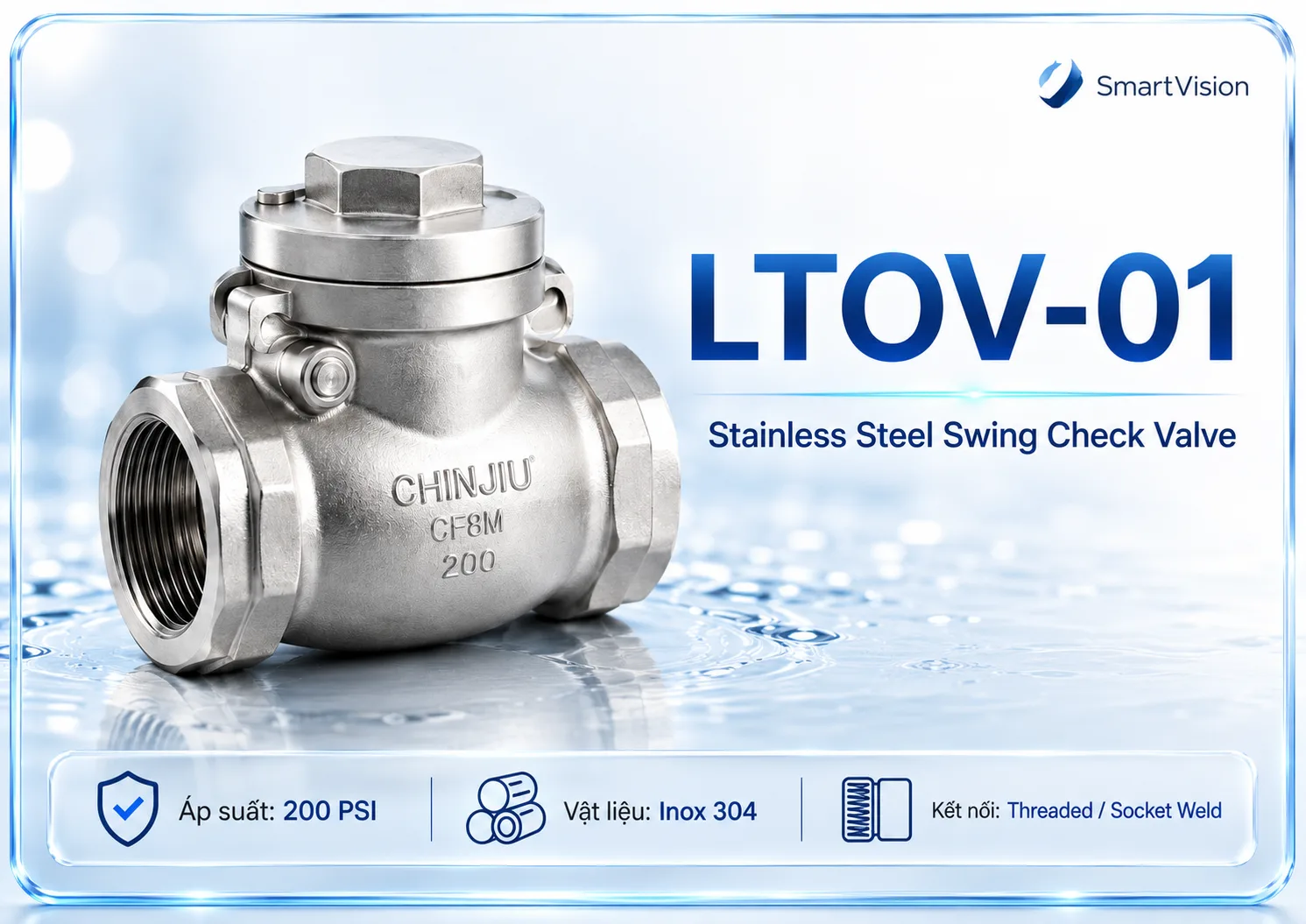

LTOV-01Stainless Steel Swing Check Valve
Stainless steel swing check valve, max. 200 PSI, threaded or socket-weld ends.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Series | LTOV-01 |
|---|---|
| Installation Type | Inline check valve |
| Catalogue Page | 141.0 |
Project Integration
For pipework, manifolds and equipment assemblies in musical fountains, water curtains and pump rooms. Select the correct thread/DN, connection standard and pressure rating for pumps, valves, Y-strainers, nozzles, supply and drain branches. SmartVision can quantify and add the selected items to the project BOM.
Technical Dimensions by Size
| Product / Variant | Thread Size | DN | Connection | Dimensions (mm) | Material | Pressure |
|---|---|---|---|---|---|---|
| LTOV-01 / 1/2" LTOV-01 / 1/2" | 1/2" | — | 1/2" | D 15.0 / A 63.0 / B 44.0 | Inox 304 (SUS 304) | Max. 200 PSI |
| LTOV-01 / 3/4" LTOV-01 / 3/4" | 3/4" | — | 3/4" | D 20.0 / A 72.0 / B 47.0 | Inox 304 (SUS 304) | Max. 200 PSI |
| LTOV-01 / 1" LTOV-01 / 1" | 1" | — | 1" | D 25.0 / A 85.0 / B 52.0 | Inox 304 (SUS 304) | Max. 200 PSI |
| LTOV-01 / 1-1/4" LTOV-01 / 1-1/4" | 1-1/4" | — | 1-1/4" | D 32.0 / A 98.0 / B 58.5 | Inox 304 (SUS 304) | Max. 200 PSI |
| LTOV-01 / 1-1/2" LTOV-01 / 1-1/2" | 1-1/2" | — | 1-1/2" | D 40.0 / A 111.0 / B 65.0 | Inox 304 (SUS 304) | Max. 200 PSI |
| LTOV-01 / 2" LTOV-01 / 2" | 2" | — | 2" | D 50.0 / A 130.0 / B 72.5 | Inox 304 (SUS 304) | Max. 200 PSI |
Applications & Key Features
Overview
Original manufacturer model CHINJIU LTOV-01; no Smart Vision OEM renaming.
Applications
Backflow prevention on small pump branches, nozzle supply, drain and auxiliary lines.
Key features
Swing disc; low pressure loss; investment-cast body; suitable for clean recirculating water.
