Coupling

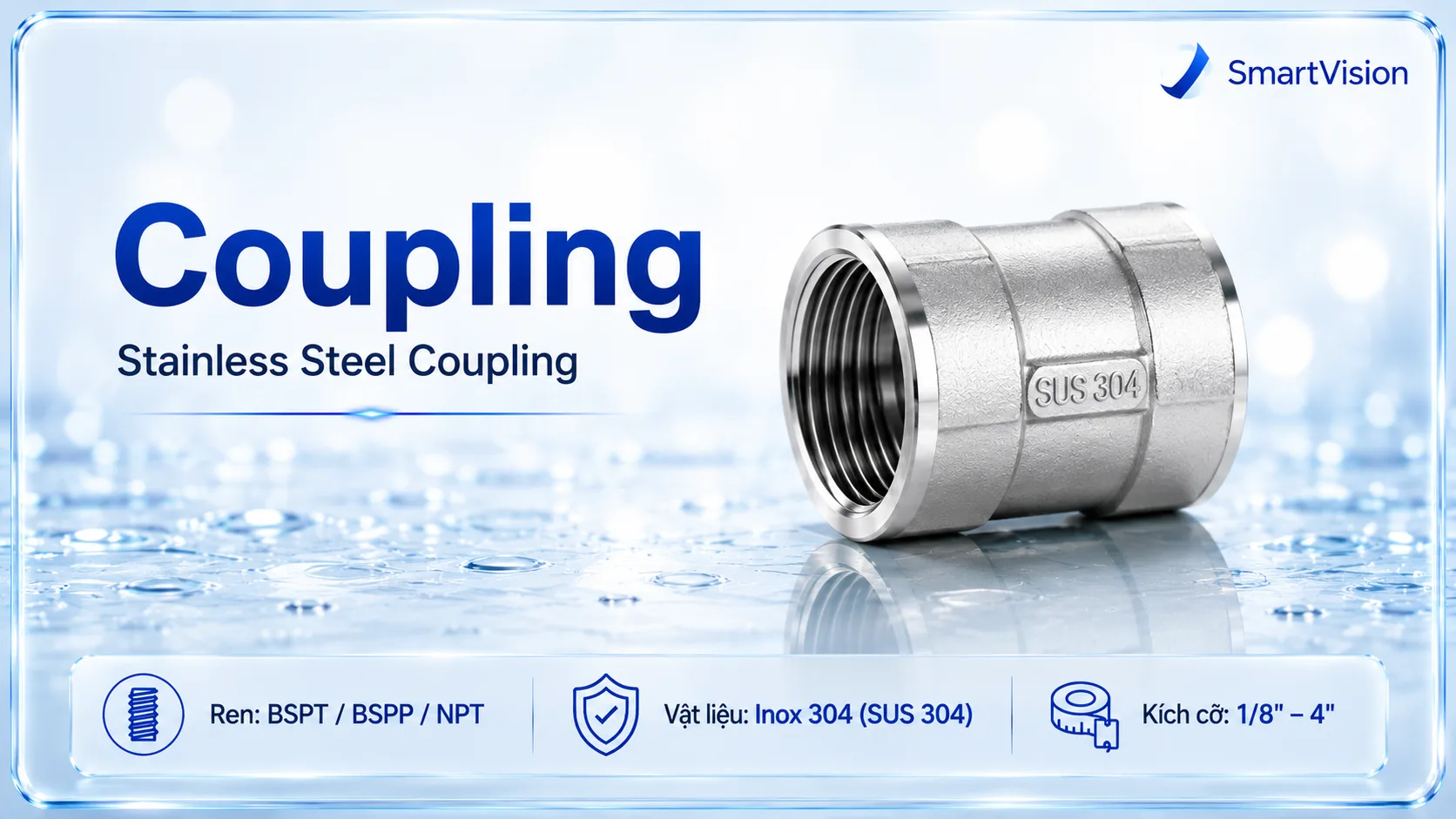

Stainless weld coupling for pipe joints and service stubs.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Series | Coupling |
|---|---|
| Catalogue Page | 167.0 |
Project Integration
For pipework, manifolds and equipment assemblies in musical fountains, water curtains and pump rooms. Select the correct thread/DN, connection standard and pressure rating for pumps, valves, Y-strainers, nozzles, supply and drain branches. SmartVision can quantify and add the selected items to the project BOM.
Technical Dimensions by Size
| Product / Variant | Thread Size | DN | Connection | Dimensions (mm) | Material | Pressure |
|---|---|---|---|---|---|---|
| Coupling / 1/2" Coupling / 1/2" | 1/2" | — | 1/2" | D 25.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 3/4" Coupling / 3/4" | 3/4" | — | 3/4" | D 30.5 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 1" Coupling / 1" | 1" | — | 1" | D 38.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 1-1/4" Coupling / 1-1/4" | 1-1/4" | — | 1-1/4" | D 47.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 1-1/2" Coupling / 1-1/2" | 1-1/2" | — | 1-1/2" | D 53.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 2" Coupling / 2" | 2" | — | 2" | D 65.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 2-1/2" Coupling / 2-1/2" | 2-1/2" | — | 2-1/2" | D 81.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 3" Coupling / 3" | 3" | — | 3" | D 95.0 | Inox 304 (SUS 304) | According to selected fitting specification |
| Coupling / 4" Coupling / 4" | 4" | — | 4" | D 121.0 | Inox 304 (SUS 304) | According to selected fitting specification |
Applications & Key Features
Applications
Fountain manifolds, water branches, valve assemblies and stainless pipework for musical fountains and water curtains.
Key features
Original CHINJIU product name; no Smart Vision OEM code; multiple thread sizes; stainless construction.
