Bushing

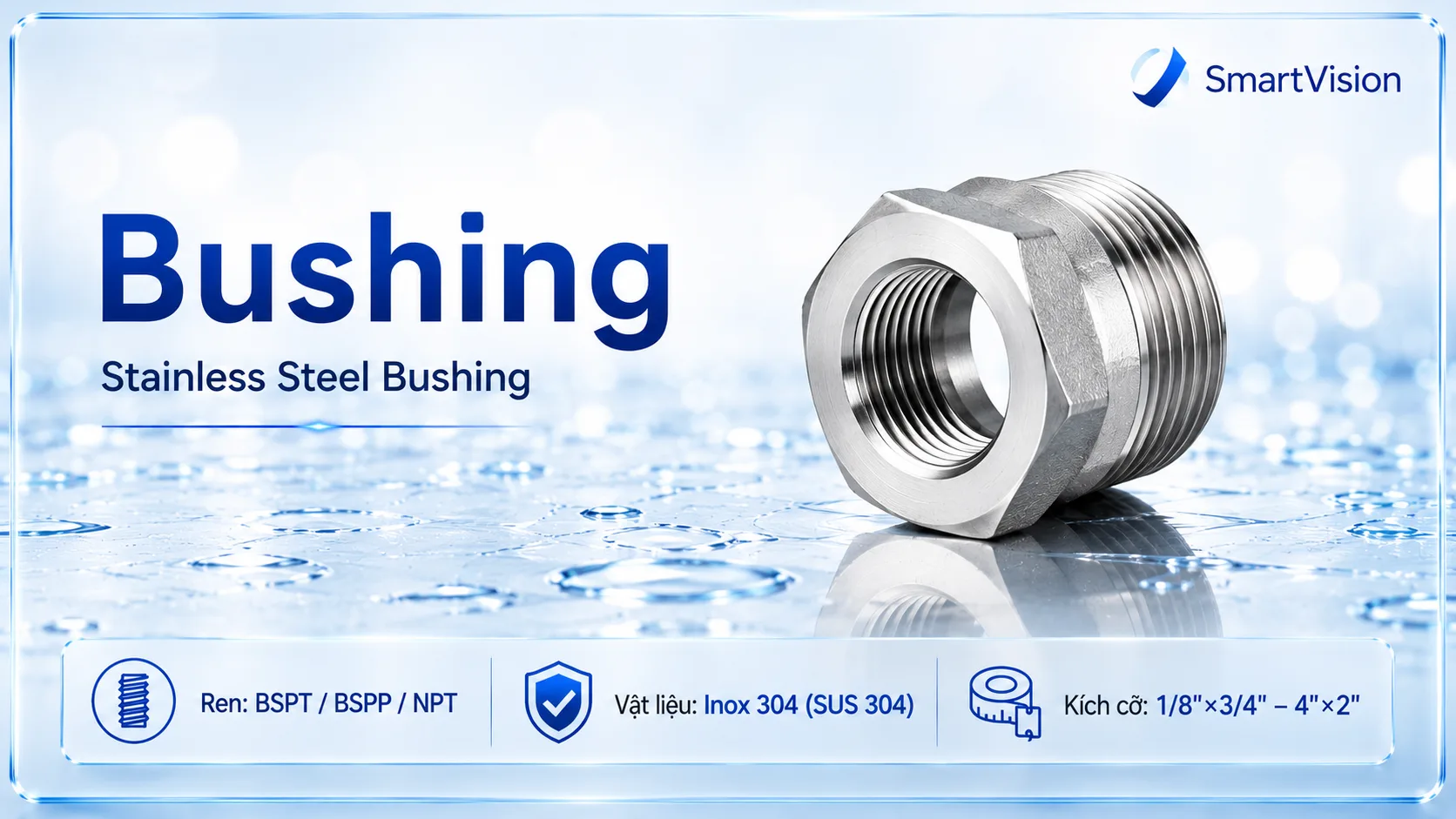

Stainless male-female reducing bushing.
Technical Specifications
| Series | Bushing |
|---|---|
| Catalogue Page | 164.0 |
Project Integration
For pipework, manifolds and equipment assemblies in musical fountains, water curtains and pump rooms. Select the correct thread/DN, connection standard and pressure rating for pumps, valves, Y-strainers, nozzles, supply and drain branches. SmartVision can quantify and add the selected items to the project BOM.
Technical Dimensions by Size
| Product / Variant | Thread Size | DN | Connection | Dimensions (mm) | Material | Pressure |
|---|---|---|---|---|---|---|
| Bushing / 3/4"×1/2" Bushing / 3/4"×1/2" | 3/4"×1/2" | — | 3/4"×1/2" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 1"×1/2" Bushing / 1"×1/2" | 1"×1/2" | — | 1"×1/2" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 1"×3/4" Bushing / 1"×3/4" | 1"×3/4" | — | 1"×3/4" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 1-1/4"×1" Bushing / 1-1/4"×1" | 1-1/4"×1" | — | 1-1/4"×1" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 1-1/2"×1" Bushing / 1-1/2"×1" | 1-1/2"×1" | — | 1-1/2"×1" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 1-1/2"×1-1/4" Bushing / 1-1/2"×1-1/4" | 1-1/2"×1-1/4" | — | 1-1/2"×1-1/4" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 2"×1" Bushing / 2"×1" | 2"×1" | — | 2"×1" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 2"×1-1/2" Bushing / 2"×1-1/2" | 2"×1-1/2" | — | 2"×1-1/2" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 2-1/2"×2" Bushing / 2-1/2"×2" | 2-1/2"×2" | — | 2-1/2"×2" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 3"×2" Bushing / 3"×2" | 3"×2" | — | 3"×2" | — | Inox 304 (SUS 304) | According to selected fitting specification |
| Bushing / 4"×3" Bushing / 4"×3" | 4"×3" | — | 4"×3" | — | Inox 304 (SUS 304) | According to selected fitting specification |
Applications & Key Features
Applications
Fountain manifolds, water branches, valve assemblies and stainless pipework for musical fountains and water curtains.
Key features
Original CHINJIU product name; no Smart Vision OEM code; multiple thread sizes; stainless construction.
