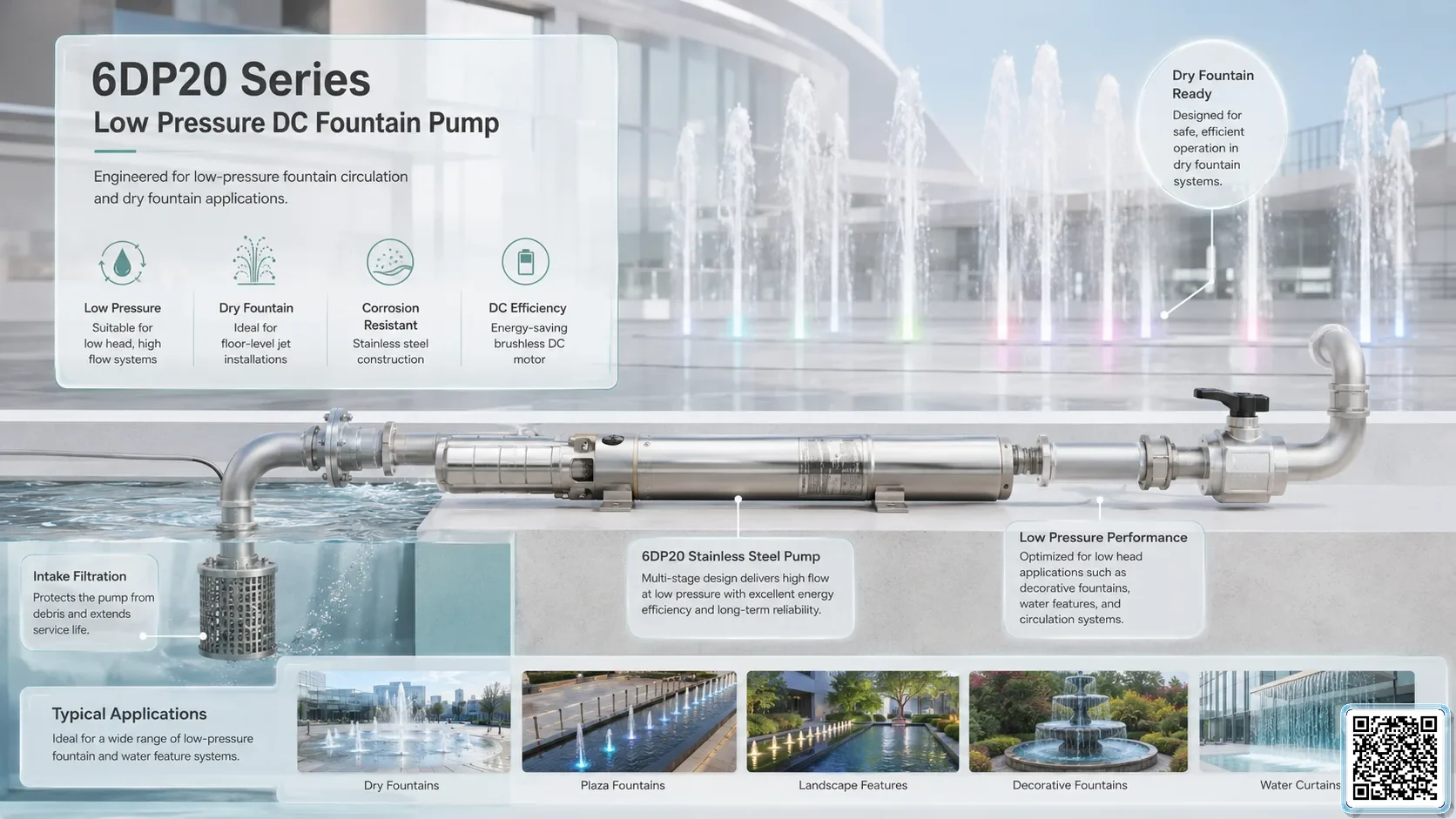

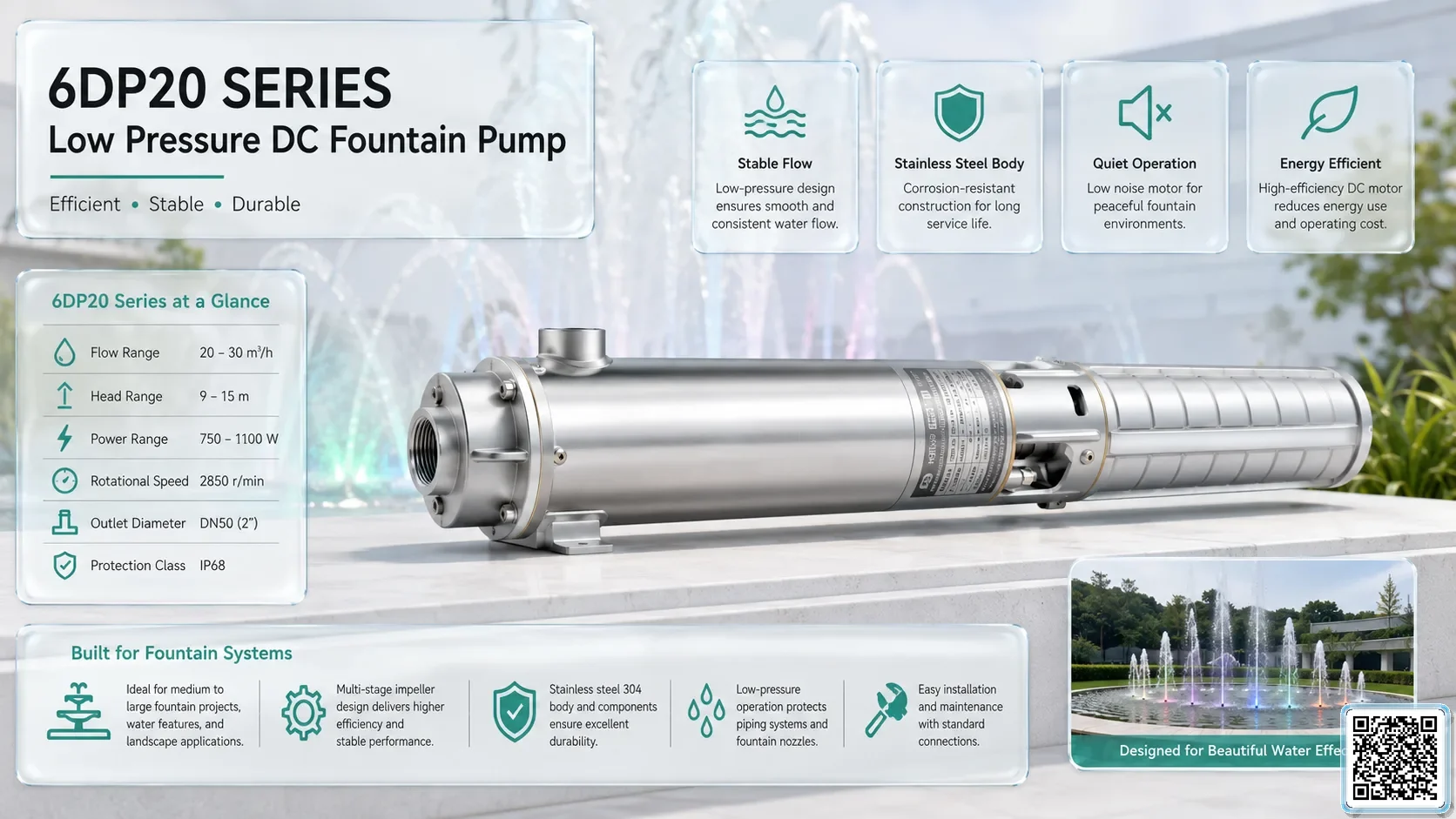

6DP20DMX512 Controlled Low-Voltage DC Fountain Pump

Name: 6DP20 DMX512 Controlled Low-Voltage DC Fountain Pump
Brand: SmartVision

Medium-to-high-flow DMX512 DC pump series for higher-flow nozzle groups and dynamically programmed water effects. Pump speed is controlled through a compatible DMX512 DC pump driver.

fountain-pumps6DP20Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 56

APPLICATIONS & FUNCTIONS

Find this equipment by use case

Overview

Medium-to-high-flow DMX512 DC pump series for higher-flow nozzle groups and dynamically programmed water effects. The system enables programmable pump speed, flow rate and jet height over DMX512/RS-485 using a driver matched to each model’s voltage and power.

Applications

Musical fountains; dry-deck fountains; independent jets; variable-speed nozzle groups; DMX512-programmed water effects.

Key features

DMX512 control; independent variable speed; programmable flow rate and jet height; RS-485 signal; compatible DMX512 DC pump driver required; Low-pressure DC pump; flow/head by variant; outlet DN65/DN80 / 2-1/2" / 3"; length 635–711 mm; weight 11.6–13 kg; easy DC power and SmartVision module integration.

Related use casessubmersible fountain pumpSUS304 stainless steel submersible fountain pumpstainless steel fountain pumpDMX fountain pumpmusical fountain pump

Technical Specifications

Series	Low Pressure DC Fountain Pump
Pump Series	DMX512 Controlled Low-Voltage DC Fountain Pump
Pump Type	Refer to SmartVision technical datasheet / project configuration
Diameter	6 inch
Outlet	Refer to SmartVision technical datasheet / project configuration
Installation Type	Refer to SmartVision technical datasheet / project configuration
Pump length / size	635–711 mm
Pump construction	Refer to SmartVision technical datasheet / project configuration
Material	Refer to SmartVision technical datasheet / project configuration
Housing Material	Refer to SmartVision technical datasheet / project configuration
Cable Type	Refer to SmartVision technical datasheet / project configuration
Pressure Resistance Depth	Refer to SmartVision technical datasheet / project configuration
Operating Temperature	Refer to SmartVision technical datasheet / project configuration
Intelligent Control	DMX512 programmable speed, flow rate and jet-height control
Waterproof Construction	Low-voltage submersible motor and sealed pump assembly
Certification Standards	Refer to SmartVision technical datasheet / project configuration
Outlet	Refer to SmartVision technical datasheet / project configuration
Flow / head	Refer to SmartVision technical datasheet / project configuration
Weight	11.6–13 kg
Flow / head	20 m³/h nominal

Project Integration

Integrates with Smart Vision musical-fountain controllers over DMX512/RS-485. The DMX512 driver must match the pump model voltage, current and power

Install a 120-ohm terminator at the end of the DMX line and verify DC cable voltage drop.

PUMP MODELS

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Weight	Control cabinet
6DP20-1-9/2500 6DP20-1-9/2500	20 m³/h / 9 m	750 W motor / 1500–2500 W distribution	48V (42–60V); motor 24/36V	Outlet: DN65/DN80; 2-1/2" / 3"	96 mm	11.6 kg	DMX512 variable-speed control via compatible DC pump driver
6DP20-2B-15/3000 6DP20-2B-15/3000	20 m³/h / 15 m	1100 W motor / 2000–3000 W distribution	48V (42–60V); motor 36V	Outlet: DN65/DN80; 2-1/2" / 3"	96 mm	13 kg	DMX512 variable-speed control via compatible DC pump driver
