SV-DMX-BLDC24V BLDC Fountain Pump with Integrated DMX512 Control

Low-voltage 24V BLDC fountain pump series with direct DMX512 signal input for programmable pump speed and water-column height without an external DMX512 decoder. Suitable for mini fountains, dry-deck fountains, independent jets and small-to-medium musical fountain systems.

fountain-pumpsSV-DMX-BLDCRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 119

Technical Specifications

Series	SmartVision SV-DMX-BL Series
Pump length / size	95–162 mm
Cable Type	Refer to SmartVision technical datasheet / project configuration
Intelligent Control	Integrated DMX512 direct control

Project Integration

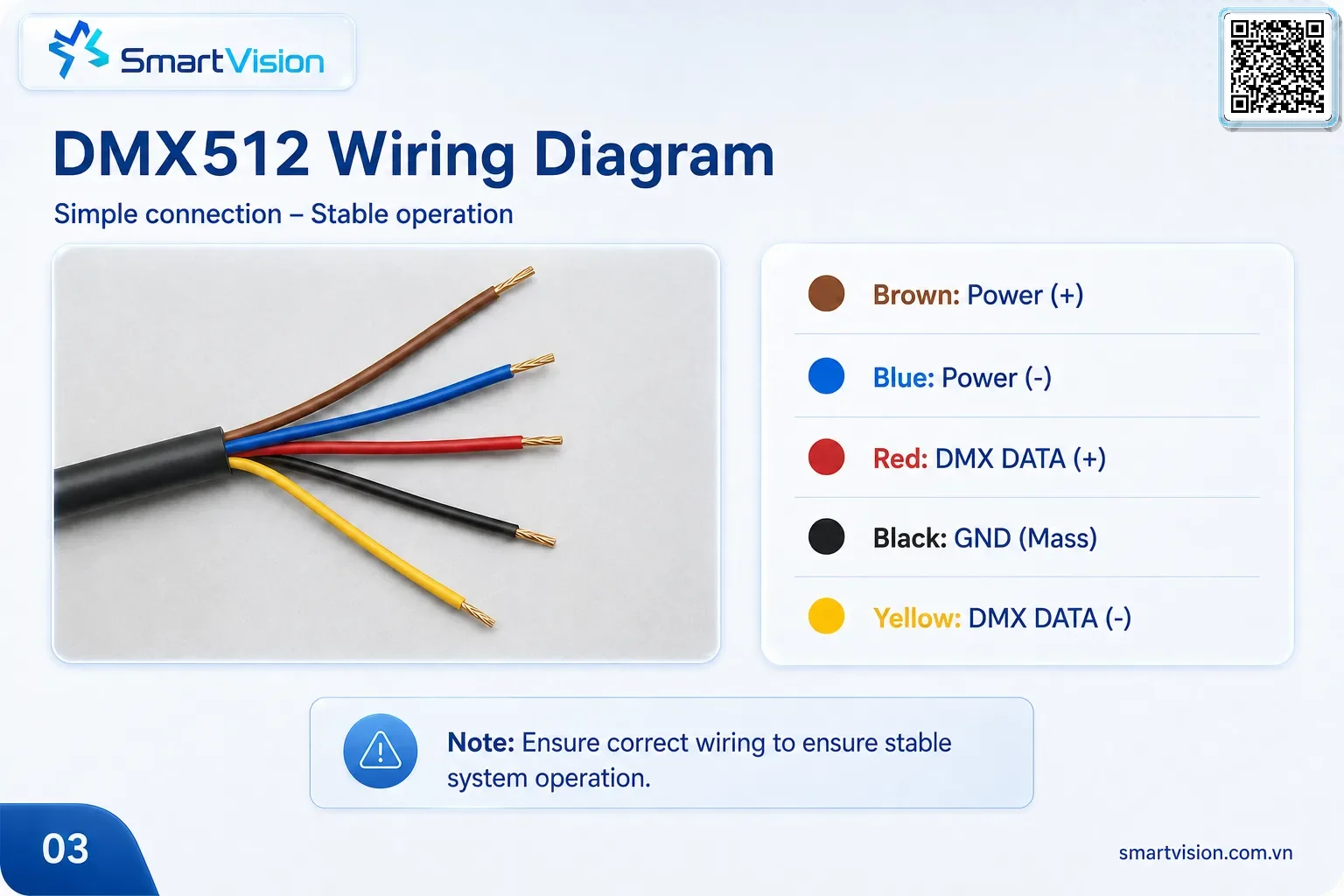

Direct DMX512/RS-485 integration with SmartVision controllers

One address/channel can regulate pump speed and jet height. Use a regulated 24VDC supply sized for pump current and cable voltage drop.

PUMP MODELS

Pump Selection Table by Model

Model	Flow / head	Motor Power	Voltage	Outlet	Length	Control cabinet

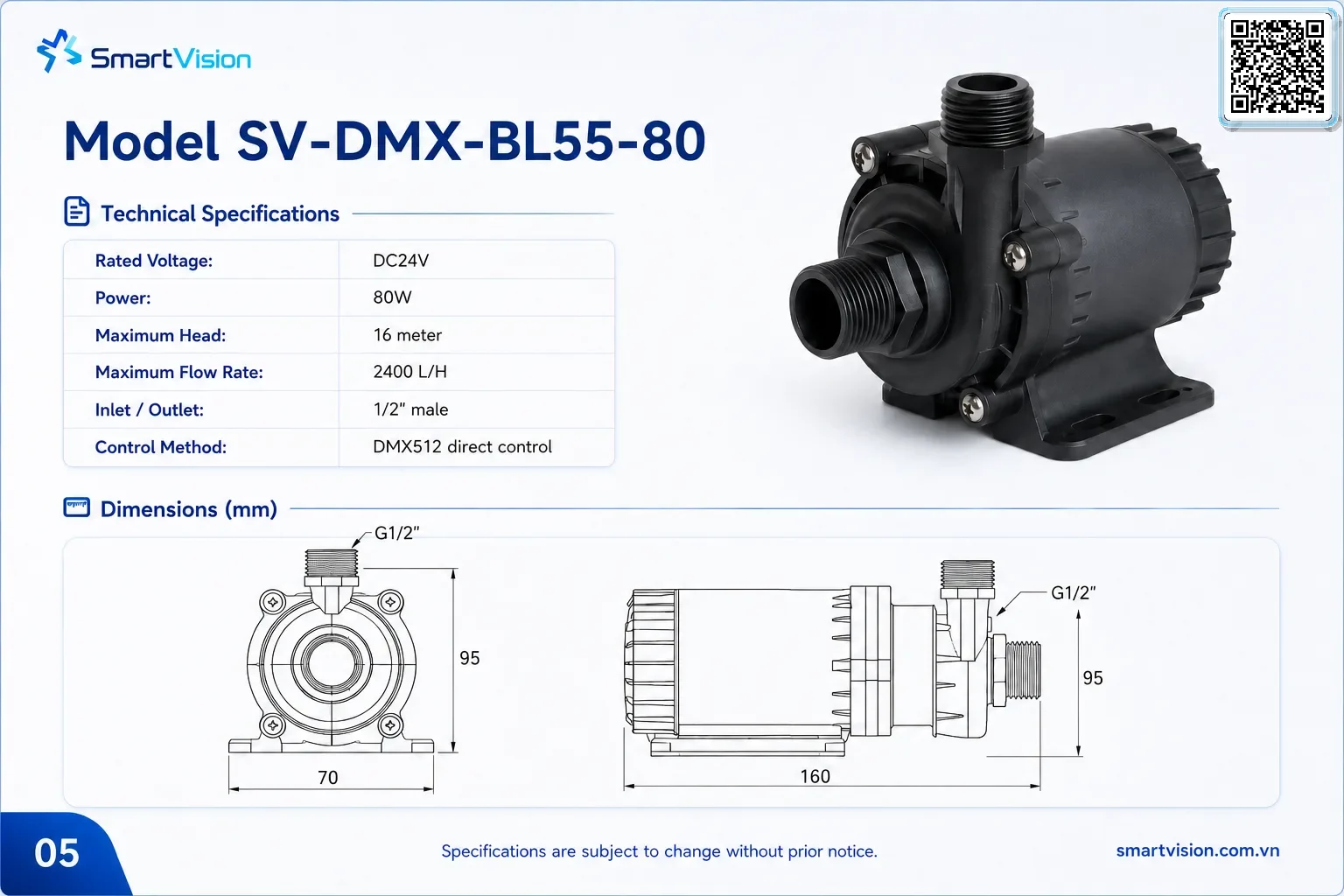

SV-DMX-BL55-80 SV-DMX-BL55-80	2400 L/h / 16 m	80 W	24VDC	G1/2"	160 mm	Integrated DMX512 direct control

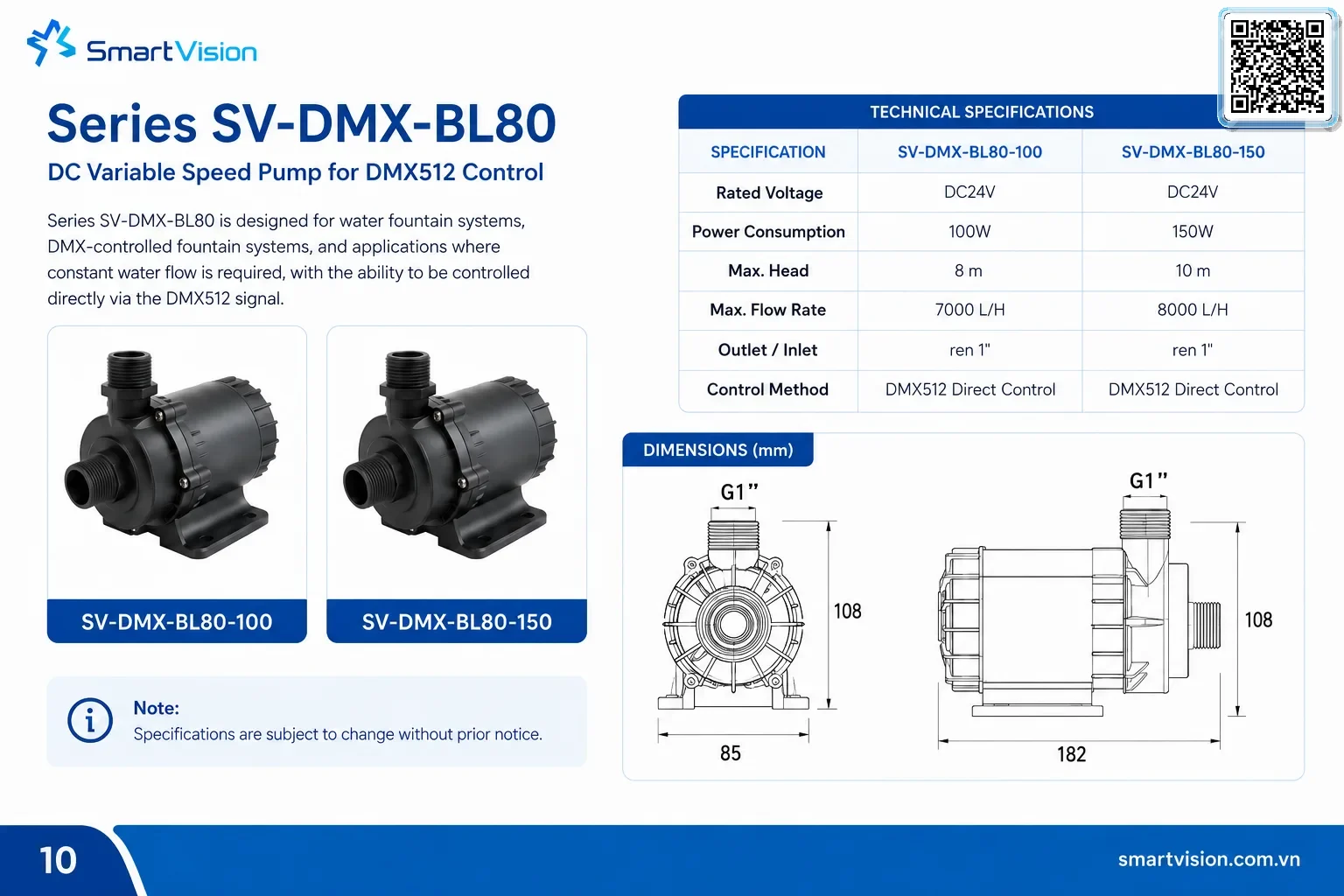

SV-DMX-BL80-100 SV-DMX-BL80-100	7000 L/h / 8 m	100 W	24VDC	G1"	182 mm	Integrated DMX512 direct control

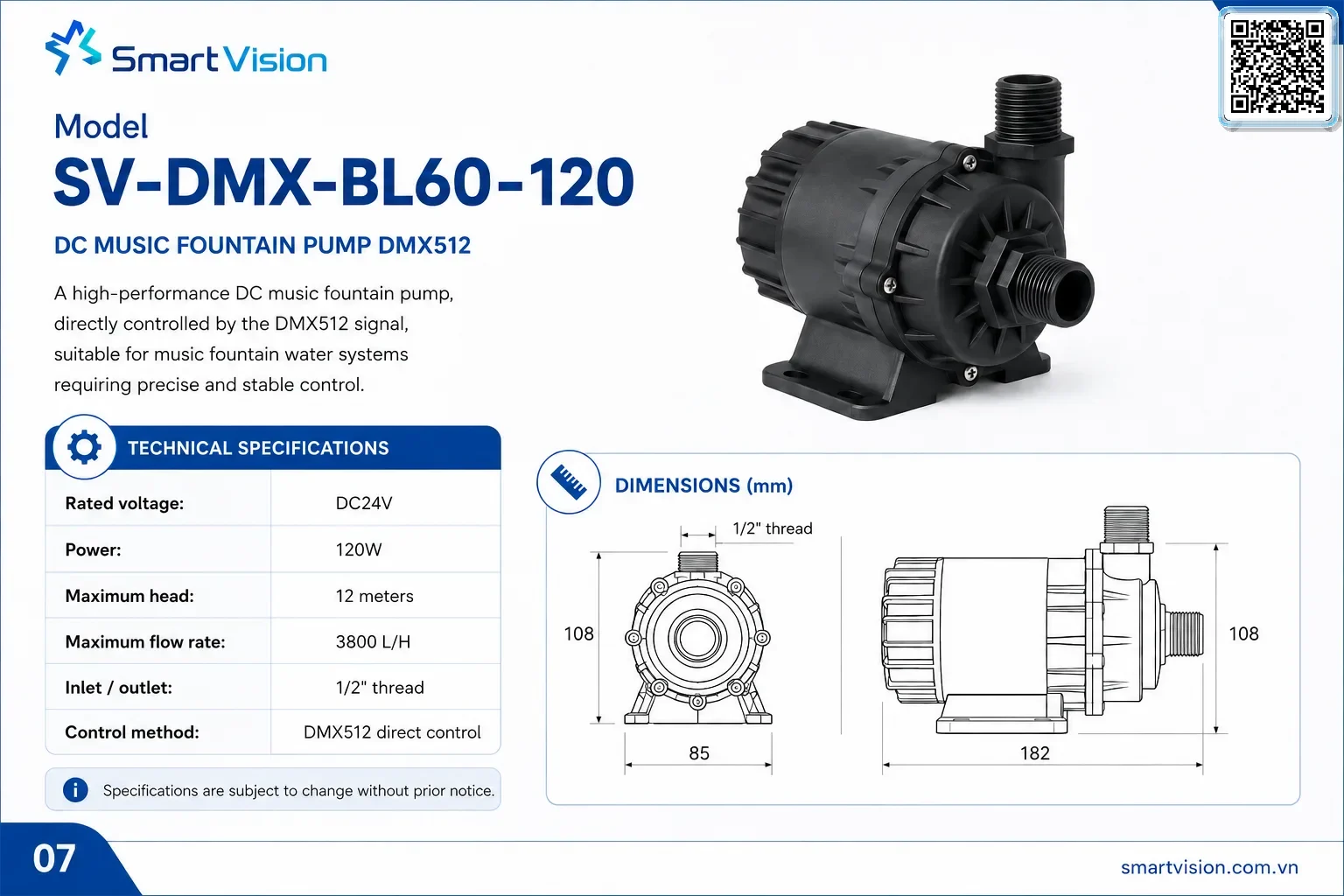

SV-DMX-BL60-120 SV-DMX-BL60-120	3800 L/h / 12 m	120 W	24VDC	G1/2"	182 mm	Integrated DMX512 direct control
SV-DMX-BL80-150 SV-DMX-BL80-150	8000 L/h / 10 m	150 W	24VDC	G1"	182 mm	Integrated DMX512 direct control

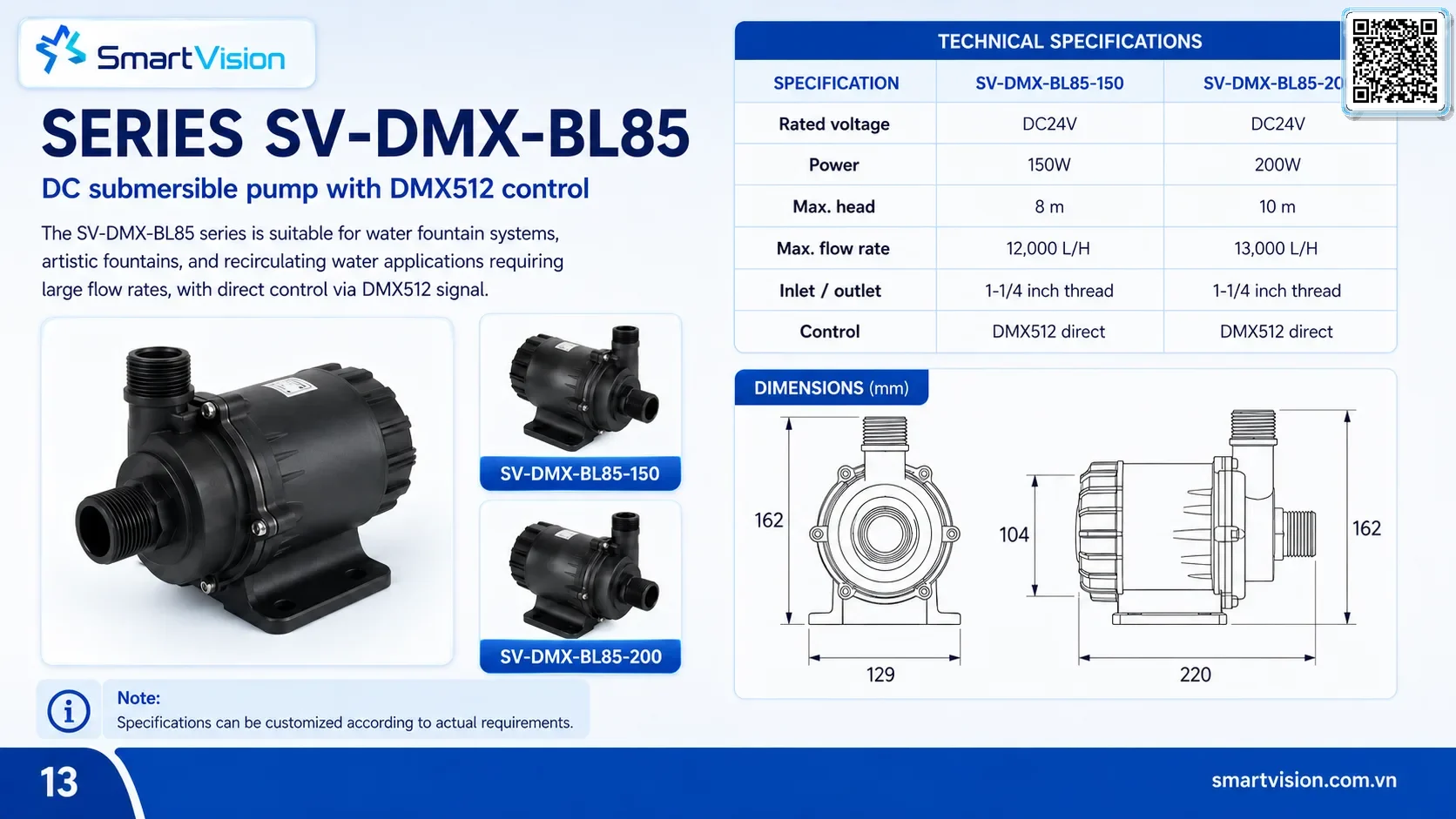

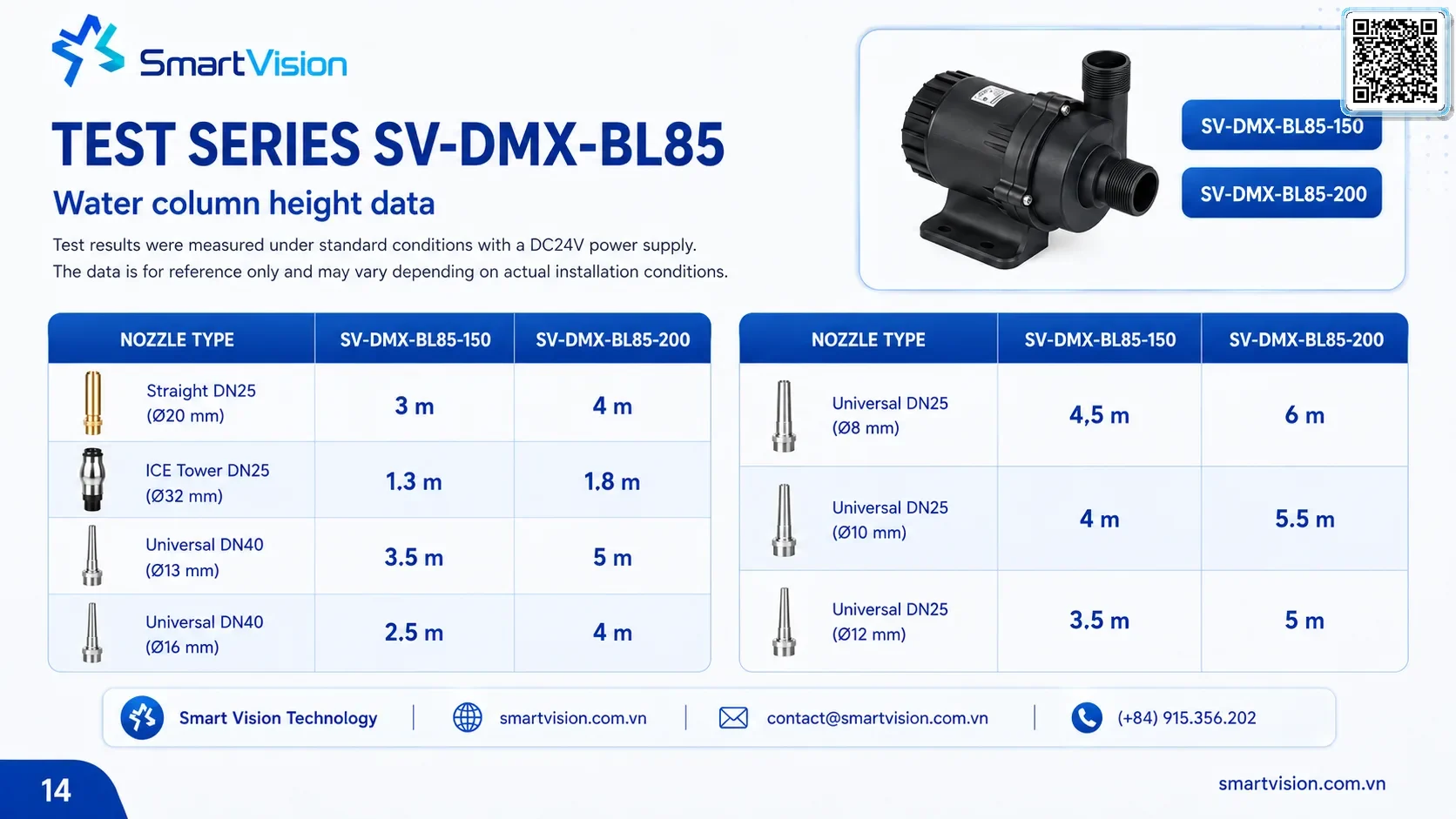

SV-DMX-BL85-150 SV-DMX-BL85-150	12000 L/h / 8 m	150 W	24VDC	G1-1/4"	220 mm	Integrated DMX512 direct control
SV-DMX-BL85-200 SV-DMX-BL85-200	13000 L/h / 10 m	200 W	24VDC	G1-1/4"	220 mm	Integrated DMX512 direct control

APPLICATIONS & KEY FEATURES

Applications & Key Features

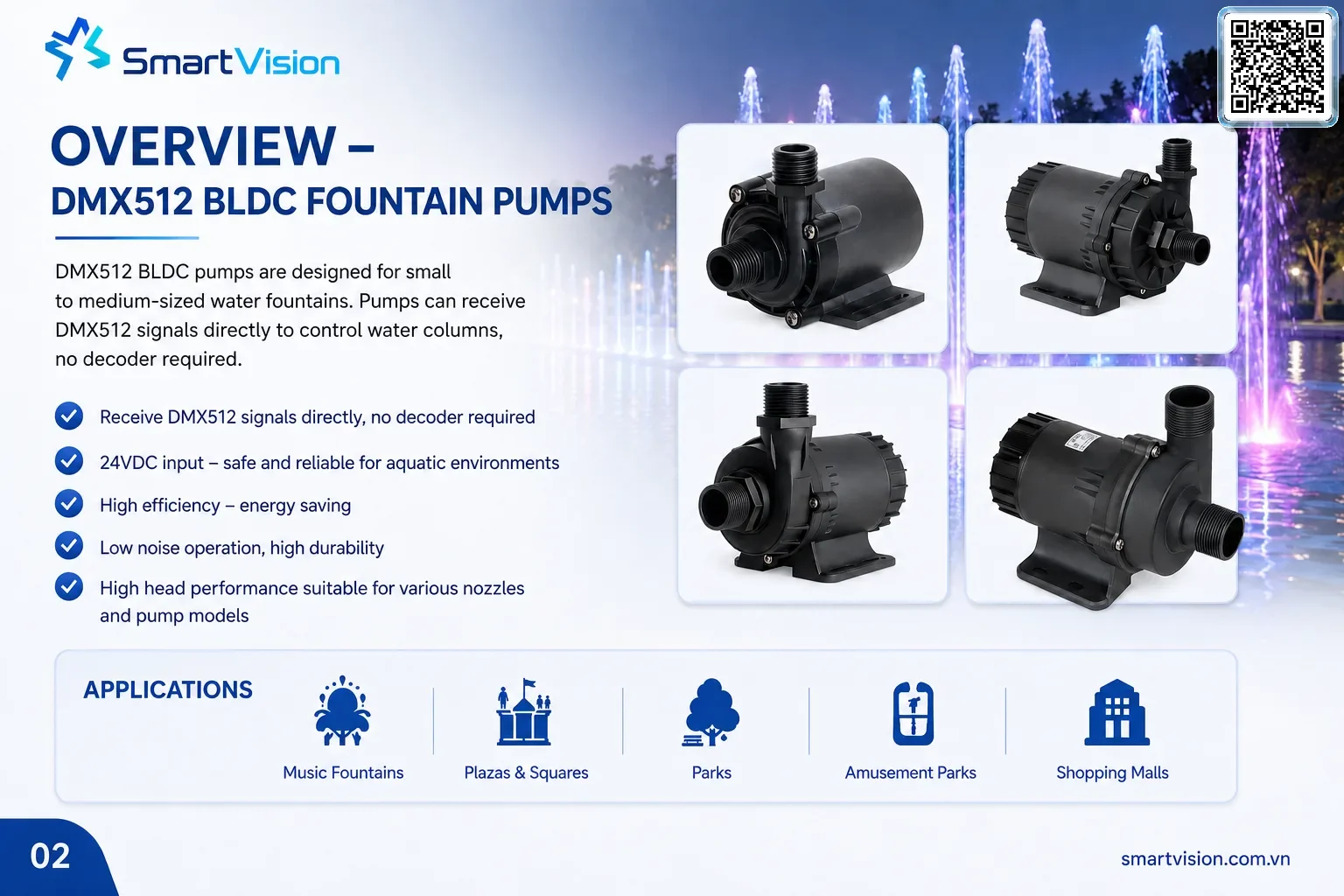

Overview

Applications

Mini fountains; musical fountains; dry-deck fountains; independent jets; programmable water effects.

Key features

Integrated DMX512 receiver; no external decoder required; 24VDC low voltage; brushless DC motor; six SmartVision OEM models; programmable speed and jet height.
