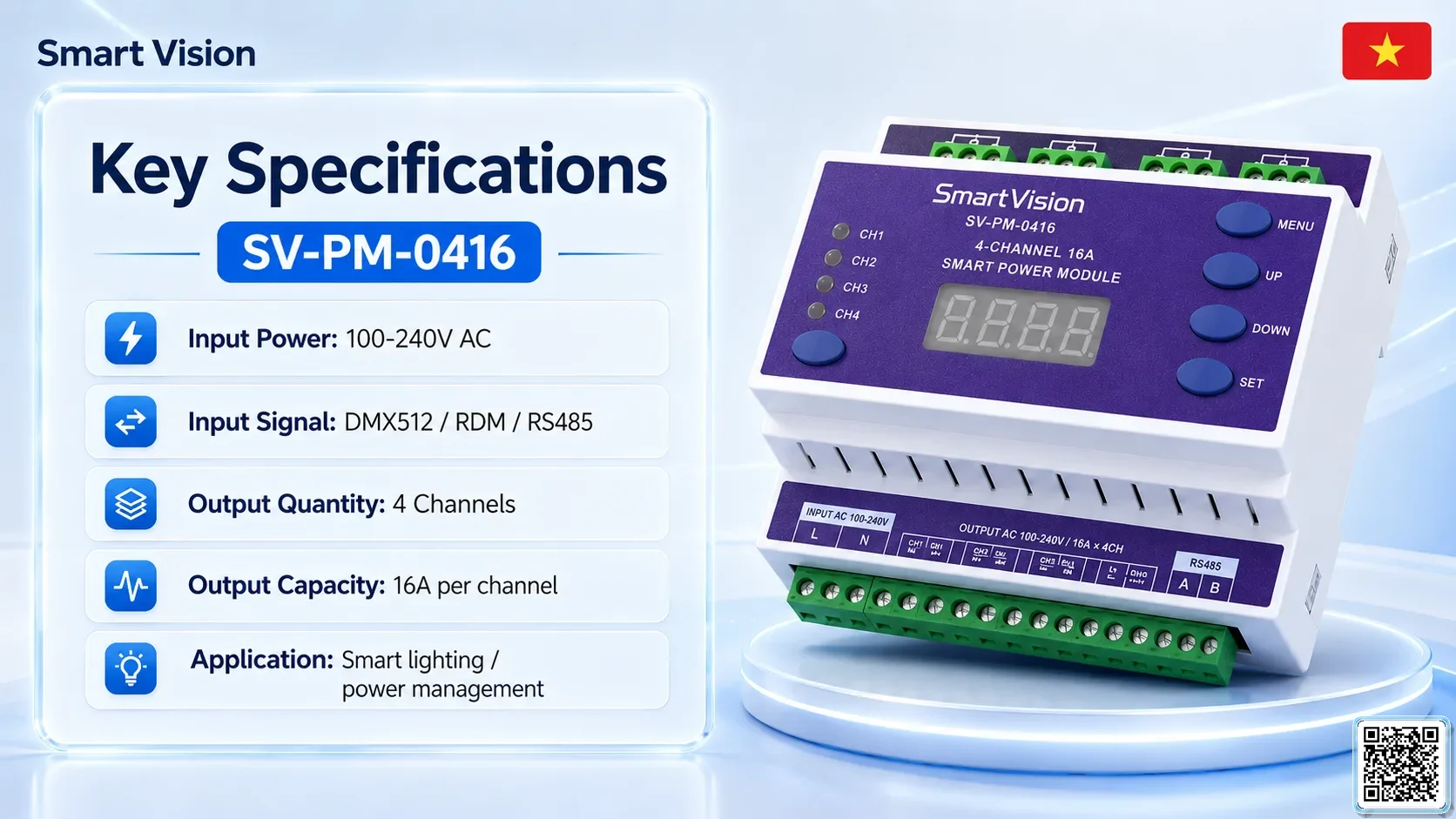

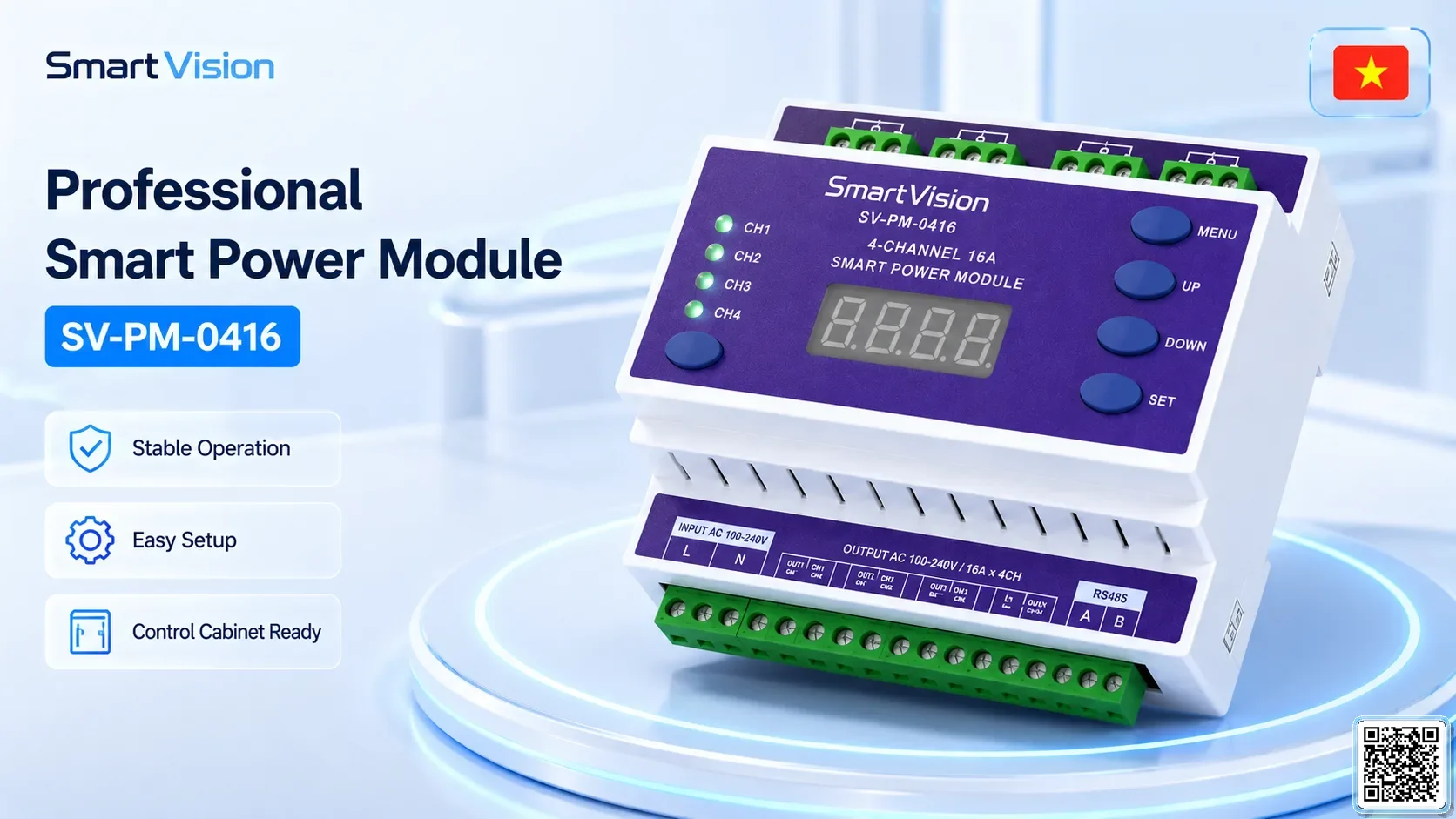

SV-PM-04164-Channel 16A Smart Lighting Power Module

SV-PM-0416 is used as a decoder, driver or auxiliary power module in SmartVision systems, converting control commands into suitable output signals or loads for lights, relays, LEDs or field devices. Reference configuration: signal Relay / lighting power module

Control method Smart lighting power switching

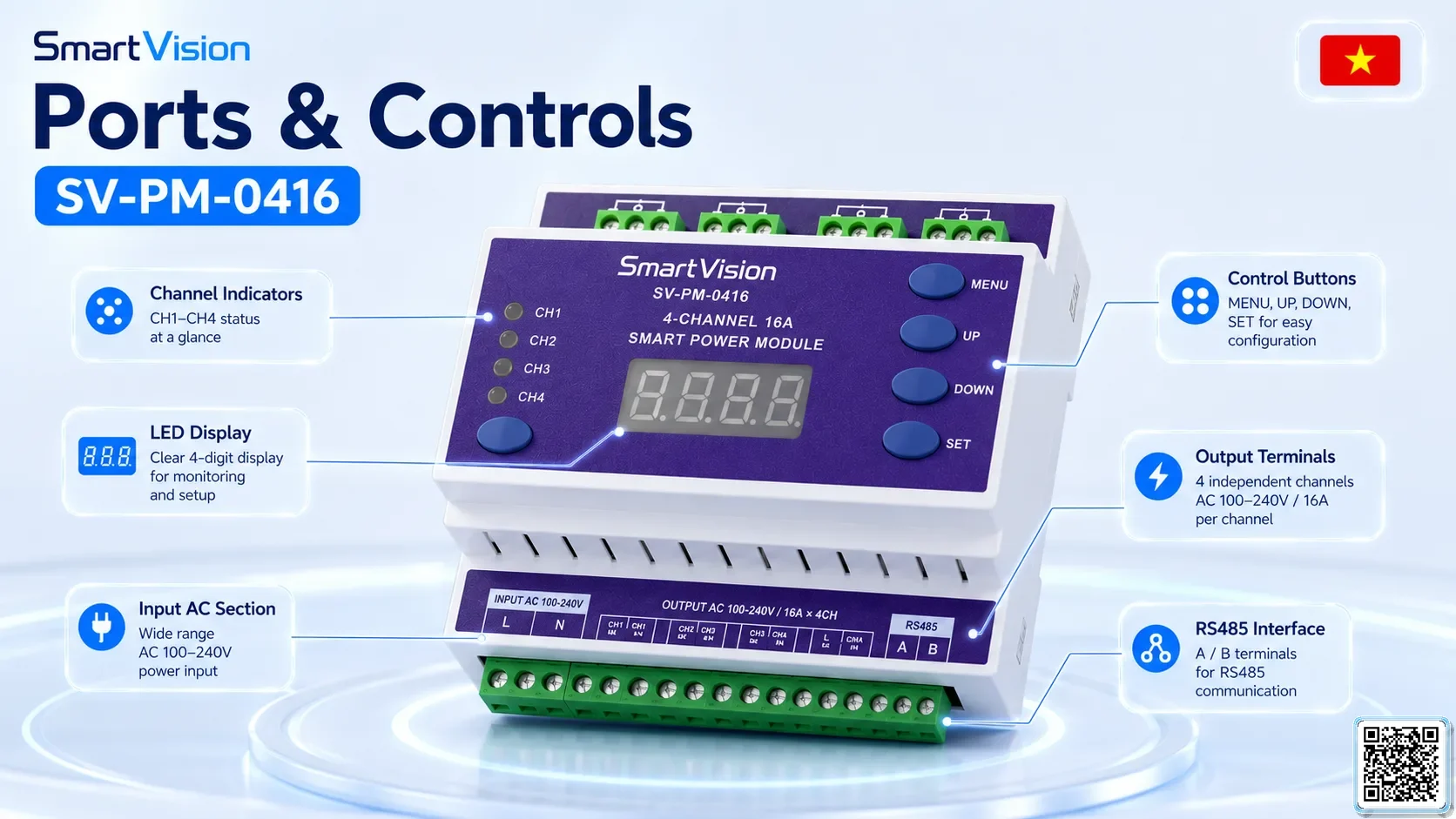

Ports/channels 4 x 16A

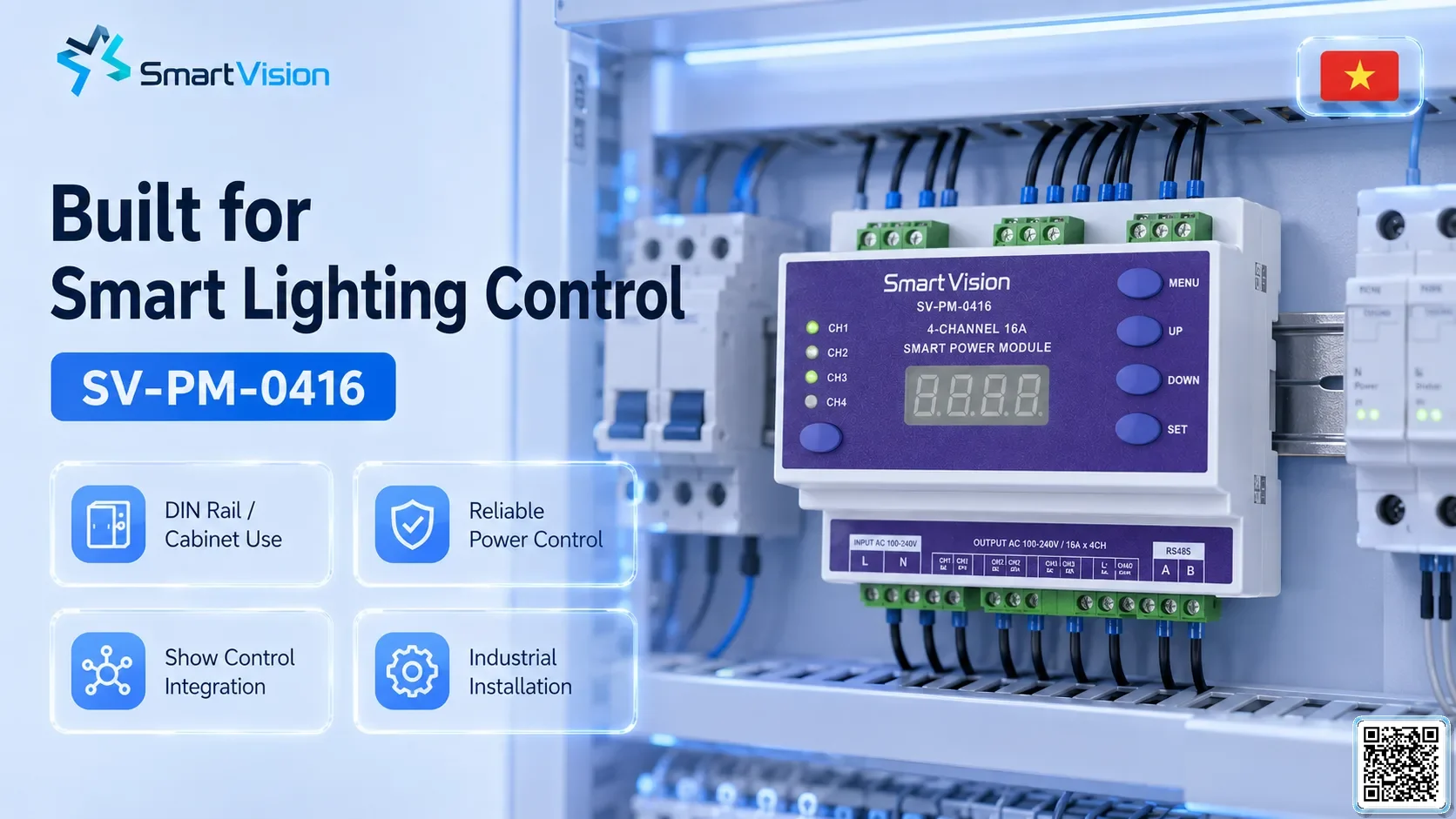

Installation DIN rail / cabinet.

• 🎚️Control decodingreceives DMX/RF/control signals and converts them to suitable device outputs.
• 💡Load controlused for LED lighting, dimming, relays, power modules or auxiliary loads by configuration.
• 🧩Zone placementinstalled near device groups to reduce load cable length and simplify maintenance.
• ⚡Power and loadconfirm voltage, output current, channel power and protection strategy before model selection.
• 🗂️BOM/BOQcounted by channel quantity, load quantity, cabinet position, wiring accessories and power supplies.
• 🔧Deployment noteverify addressing, polarity, maximum load and test each zone before handover.
• ⚙️SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.
