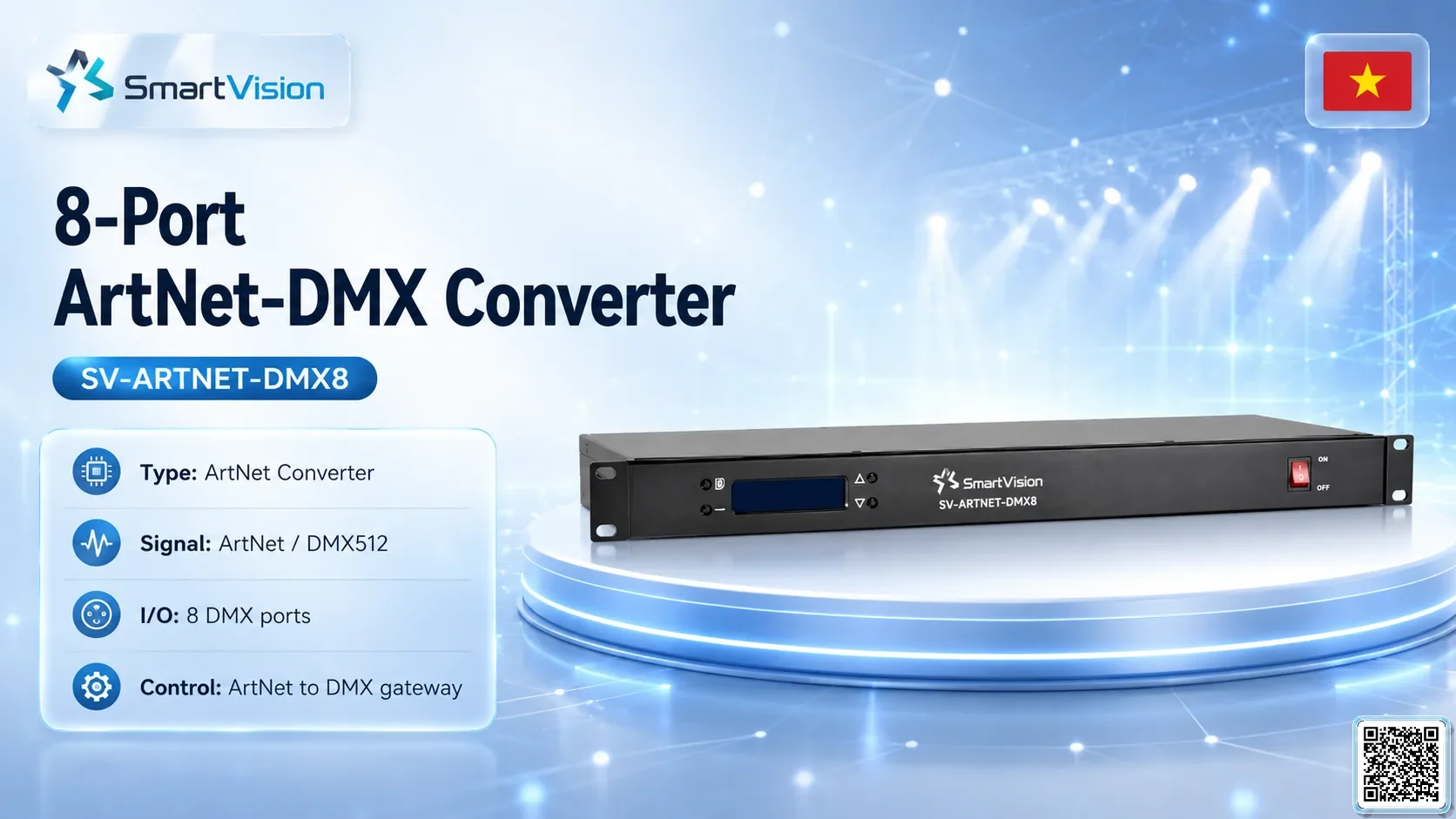

SV-ARTNET-DMX88-Port ArtNet-DMX Converter
SV-ARTNET-DMX8 is a ArtNet / DMX gateway for SmartVision DMX, ArtNet, LED facade and show-control projects. It is normally used in control cabinets with Mini PC, show software, PWA operation and scheduled playback for lights, valves, relays, pumps or power modules.
Technical Specifications
| Series | ArtNet Converter |
|---|---|
| Installation Type | Rack/Desktop |
Project Integration
SV-ARTNET-DMX8 works as the DMX/ArtNet/Ethernet control layer in the SmartVision architecture, receiving show data from a Mini PC, software or PWA and distributing control commands to field devices. Reference configuration: signal ArtNet / DMX512
Control method ArtNet to DMX gateway
Ports/channels 8 DMX ports
Installation Rack/Desktop.

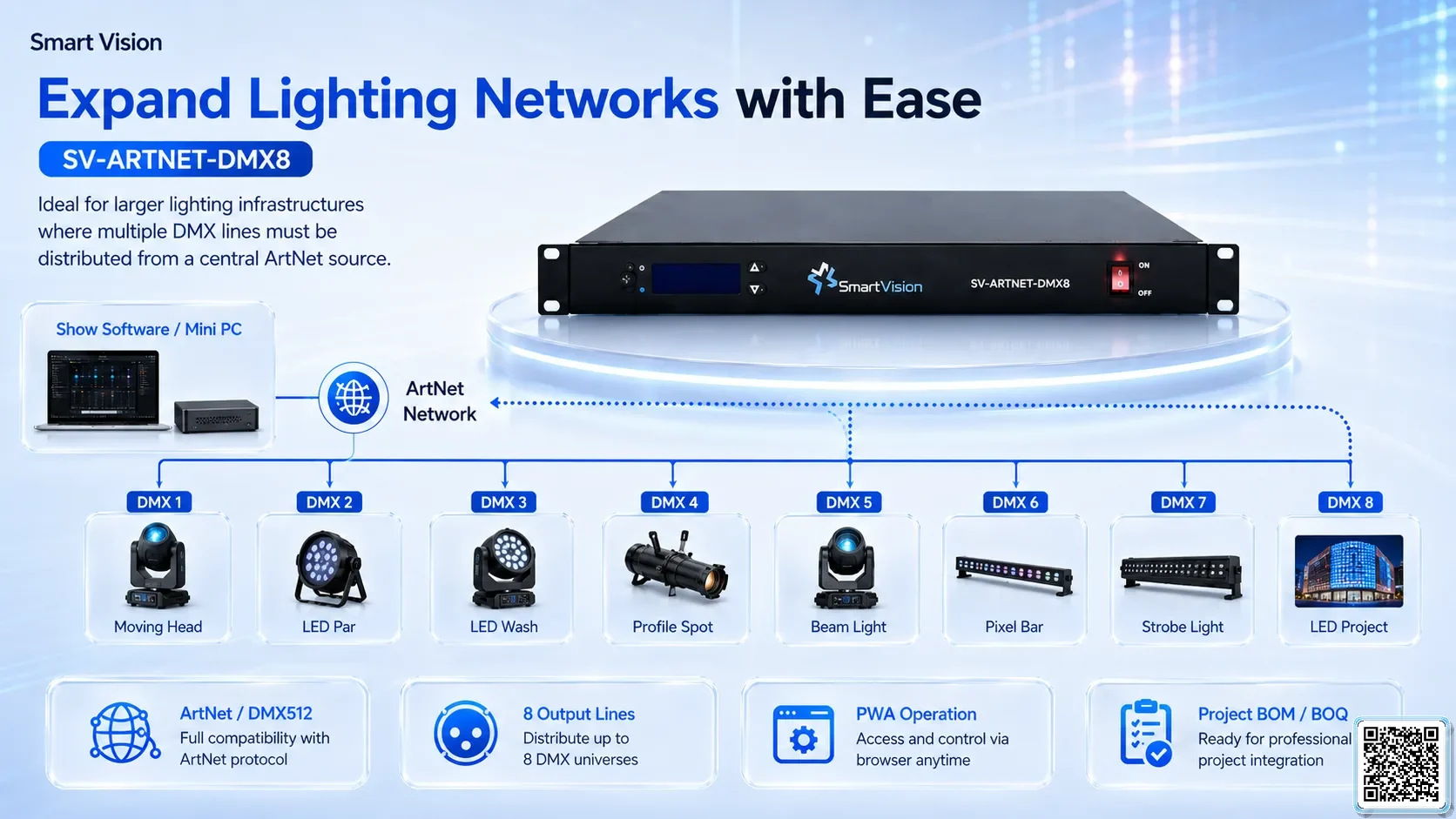

- Control connectionreceives data via Ethernet/UDP/ArtNet/Network DMX for multi-line control.
- Signal distributionoutputs DMX to lights, decoders, relays, valves, pumps or dedicated DMX devices.
- Project applicationssuitable for musical fountains, digital water curtain, LED facade and architectural lighting.
- System expansioncan be zoned by universe, cabinet area, cable route or effect group.
- BOM/BOQlinked by control line, channel/port count, signal cable and cabinet accessories.
- Deployment noteconfirm network topology, signal distance, isolation and firmware before commissioning.
- SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.
Technical Parameters by Variant
| Variant | DMX CH | Power | Voltage | Control | Luminous Flux | Center Hole | Beam Angle |
|---|---|---|---|---|---|---|---|
| SV-ARTNET-DMX8 Standard Configuration SV-ARTNET-DMX8 | 4096 | 5V DC | ArtNet → 8 × DMX512 universes |
Applications & Key Features
Overview
SV-ARTNET-DMX8 is a ArtNet / DMX gateway for SmartVision DMX, ArtNet, LED facade and show-control projects. It is normally used in control cabinets with Mini PC, show software, PWA operation and scheduled playback for lights, valves, relays, pumps or power modules.
Applications

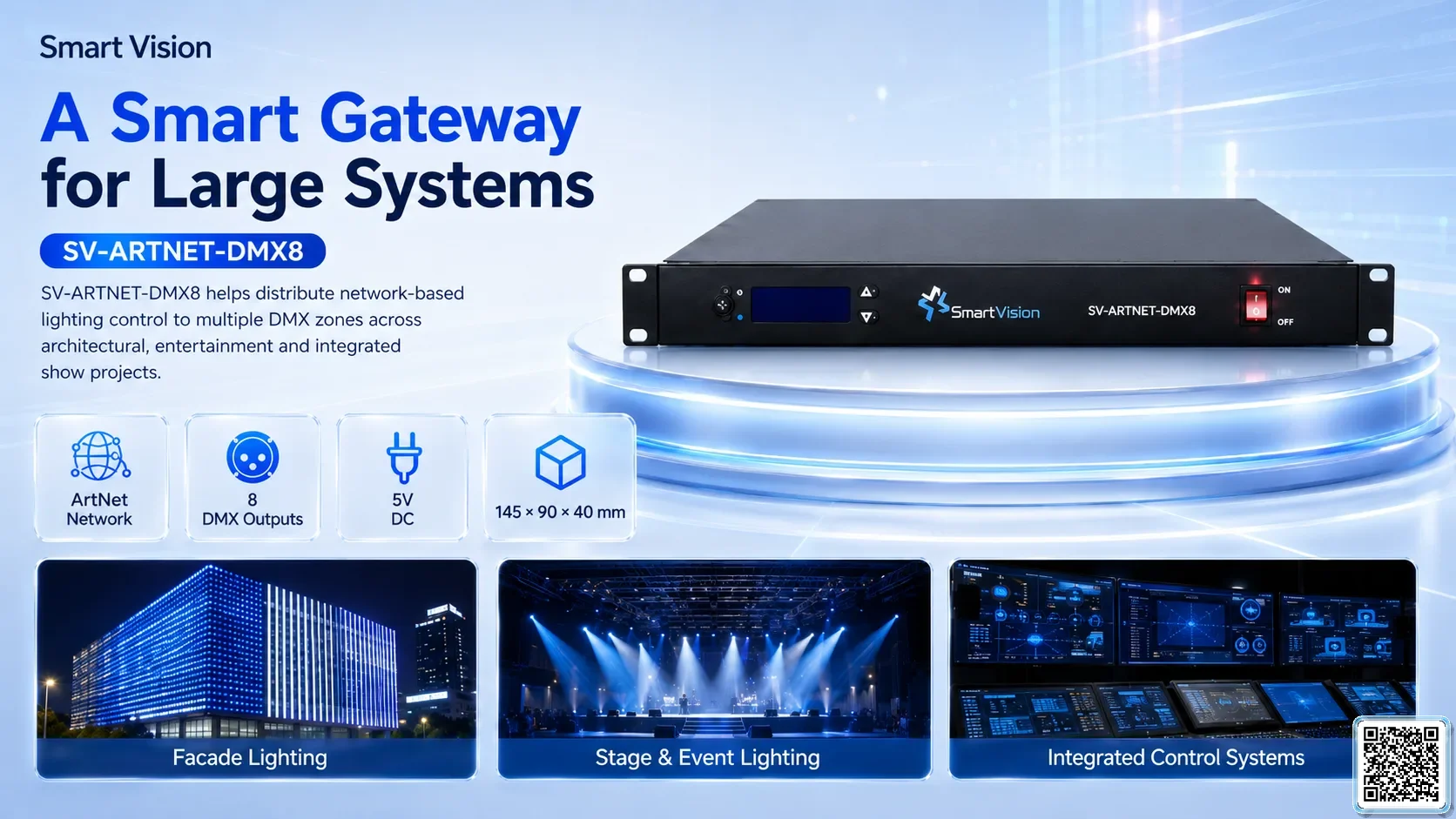

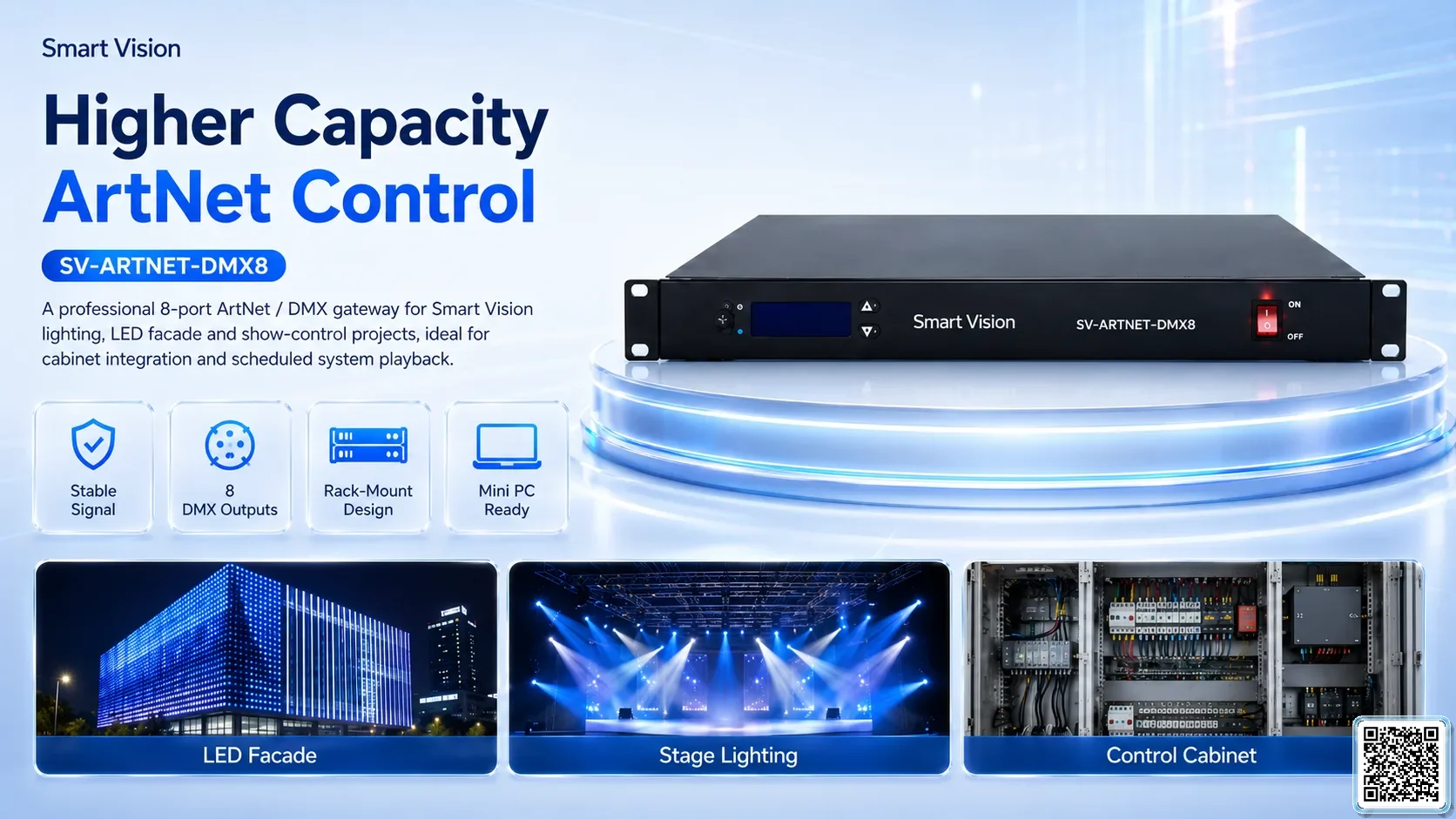

Musical fountains; digital water curtains; LED facade lighting; architectural lighting; stage lighting
Key features
Signal: ArtNet / DMX512; DMX / Channels: 8 DMX ports / universe mapping; Voltage: 5V DC; Control: ArtNet to DMX gateway; Installation: Rack/Desktop; Dimensions: 145 x 90 x 40 mm.
