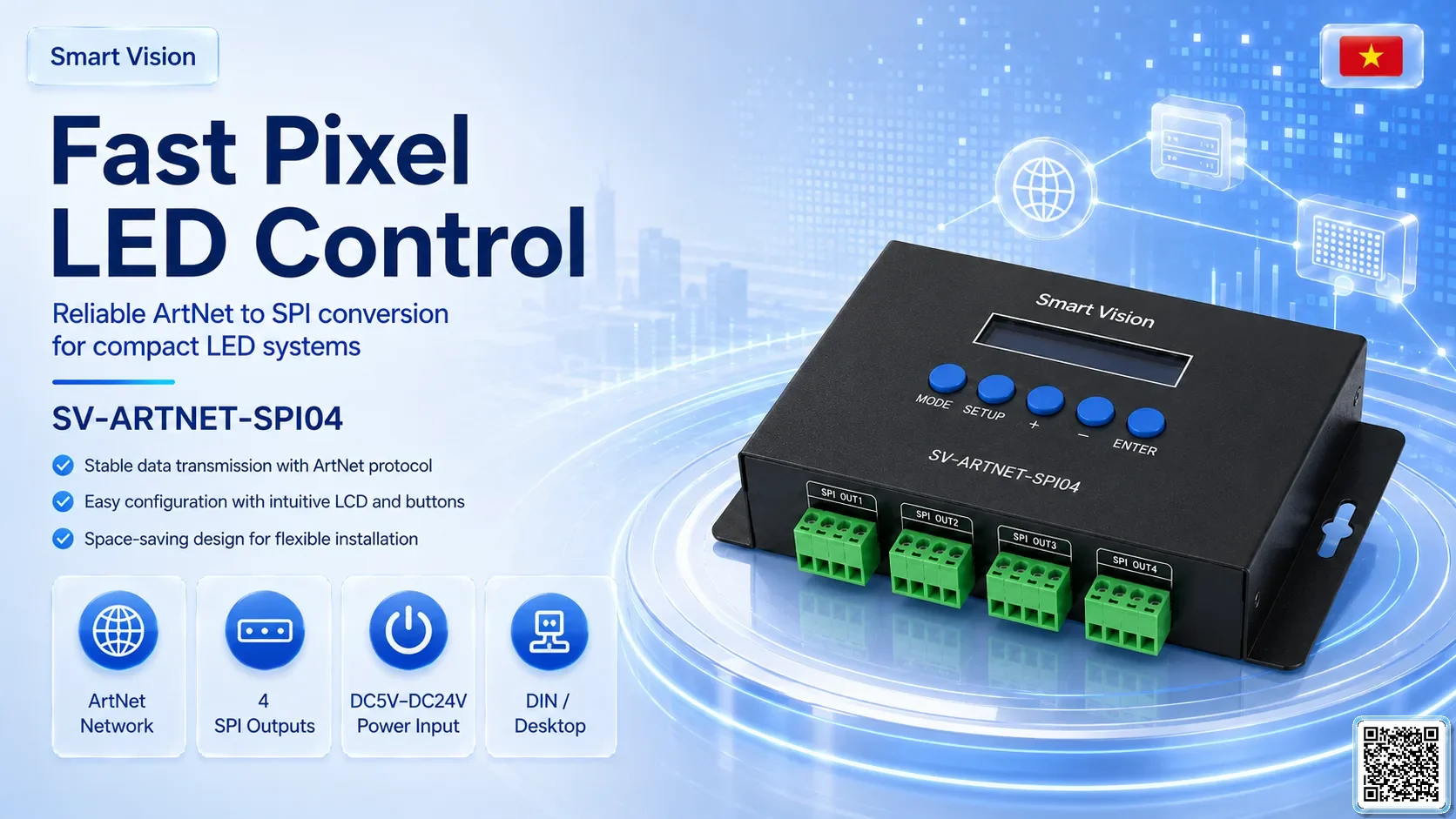

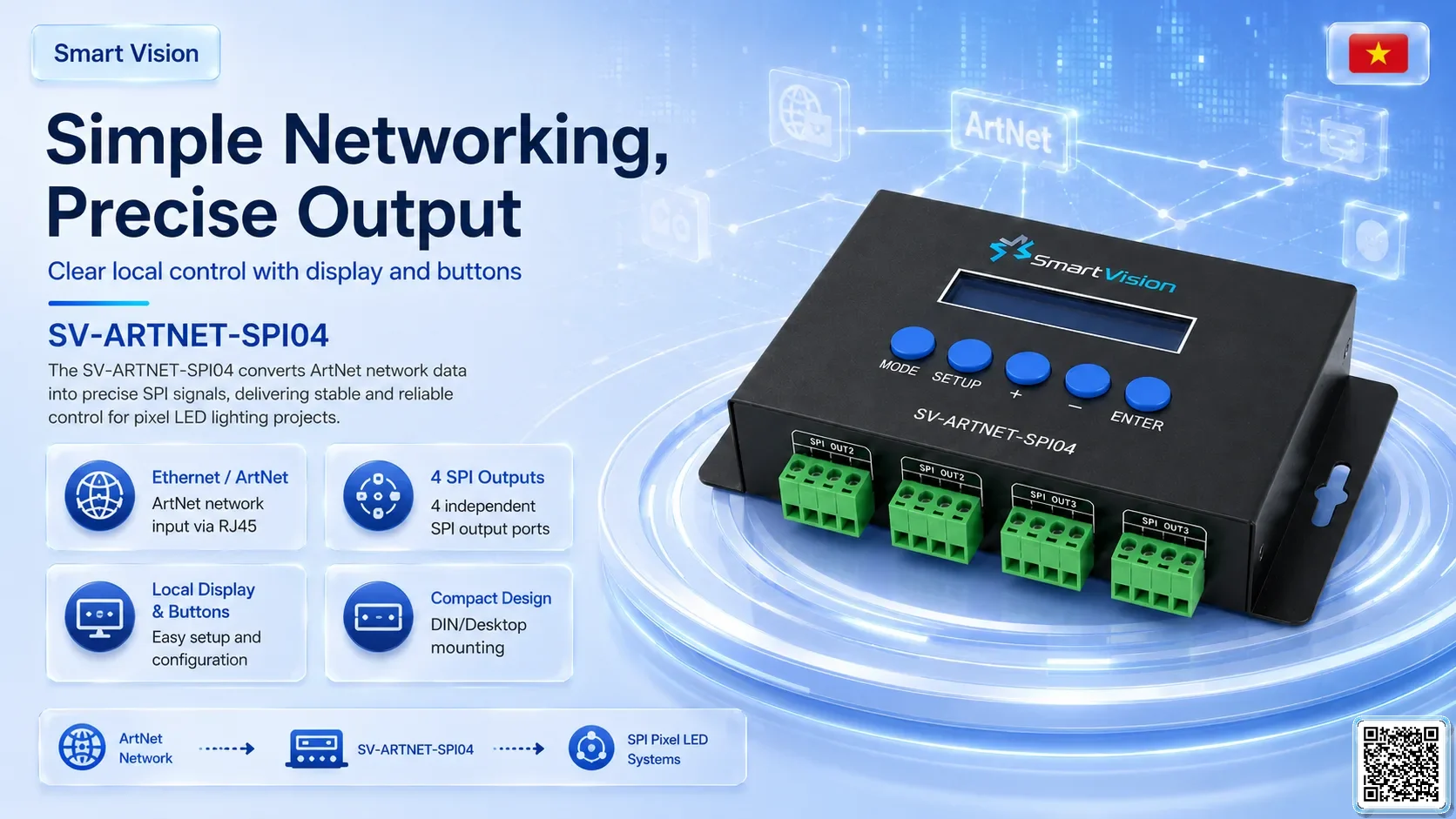

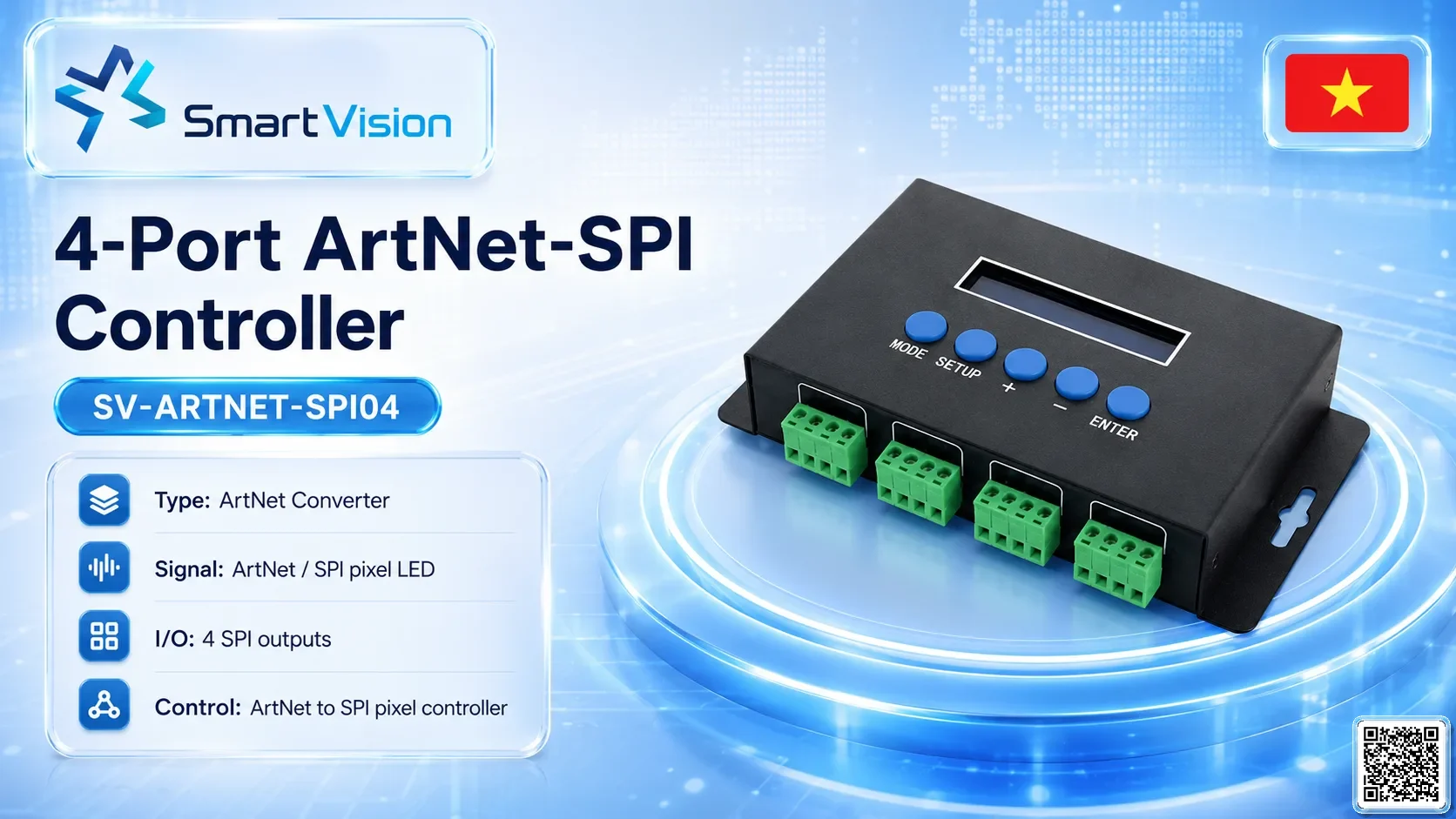

SV-ARTNET-SPI044-Port ArtNet-SPI Controller

SV-ARTNET-SPI04 is integrated as the LED pixel/SPI control layer in SmartVision architecture for LED facade, LED linear, pixel bars, digital tubes and high-density mapping routes. Reference configuration: signal ArtNet / SPI pixel LED

Control method ArtNet to SPI pixel controller

Ports/channels 4 SPI outputs

Installation DIN/Desktop.

• 🌈LED pixel mappingreceives ArtNet/DMX/SPI data for matrix effects, chase, gradients and dynamic content.
• 🏢Facade applicationssuitable for facades, bridges, gateways, parks, stages and night landscape areas.
• 🔌Output zoningsplits output ports by zone, LED length, IC control and branch power supply.
• ⚡Power managementcoordinate DC power supplies, feeder cables, power injection and overload protection.
• 🗂️BOM/BOQcalculated by pixel count, port count, LED IC, cable distance and connector accessories.
• 🔧Deployment noteconfirm IC type, data speed, LED voltage and mapping test before mass installation.
• ⚙️SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.
