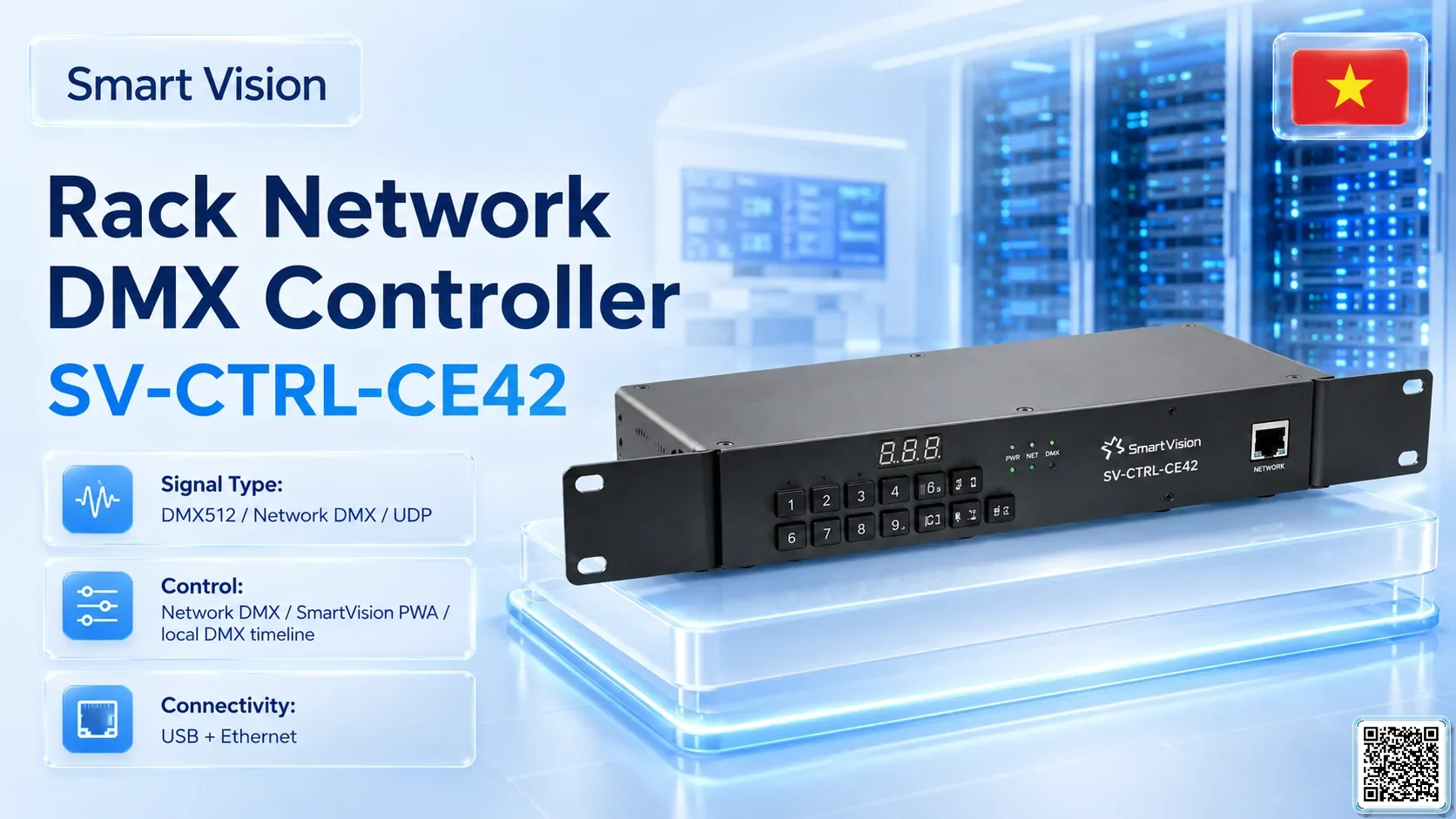

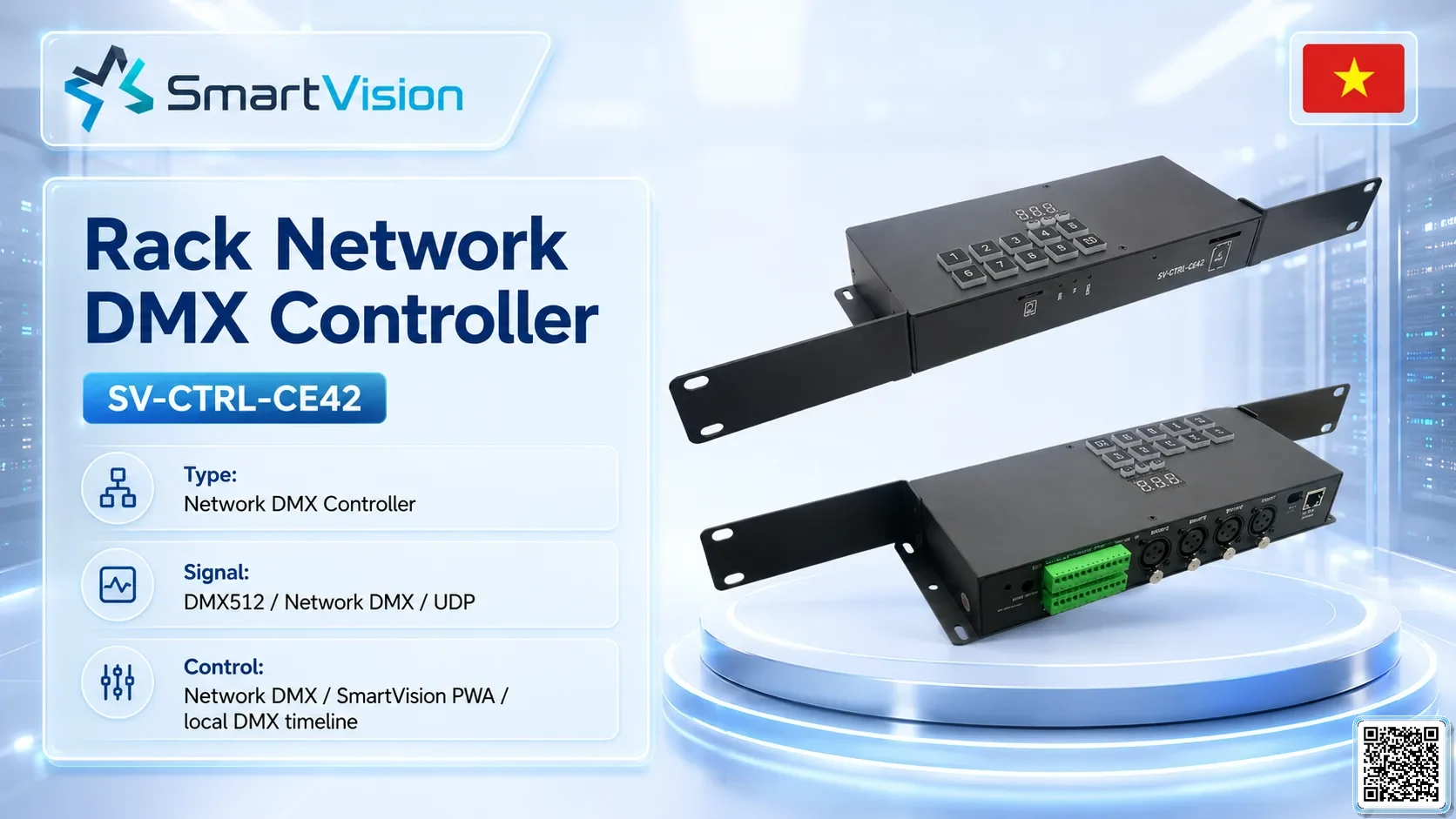

SV-CTRL-CE42Rack Network DMX Controller
SV-CTRL-CE42 is a network DMX / Ethernet controller for SmartVision DMX, ArtNet, LED facade and show-control projects. It is normally used in control cabinets with Mini PC, show software, PWA operation and scheduled playback for lights, valves, relays, pumps or power modules.

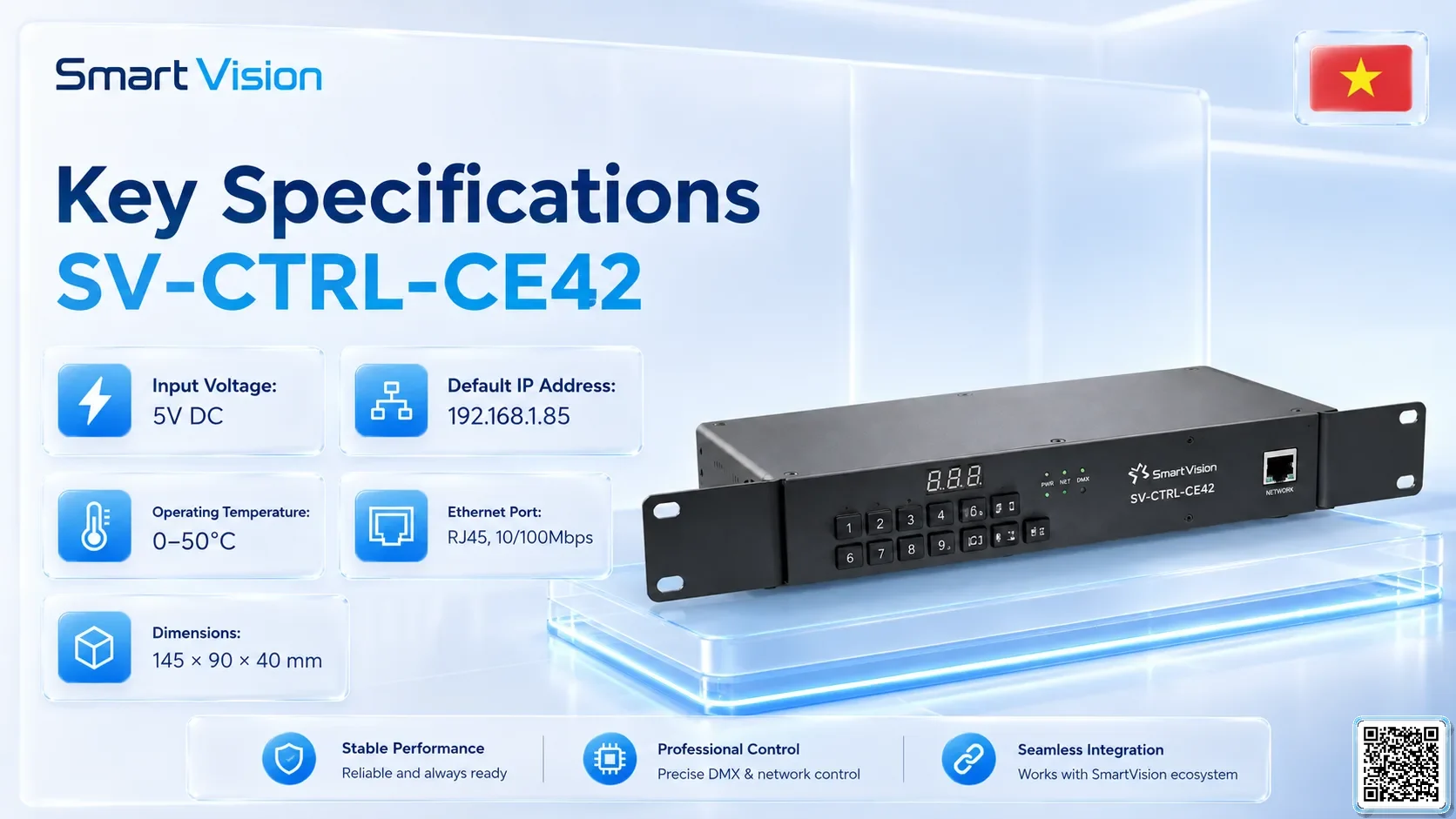

Technical Specifications
| Series | Network DMX Controller |
|---|---|
| Installation Type | Rack mount |
| Operating Temperature | 0 - 50°C |
| Weight | 32G |
Project Integration

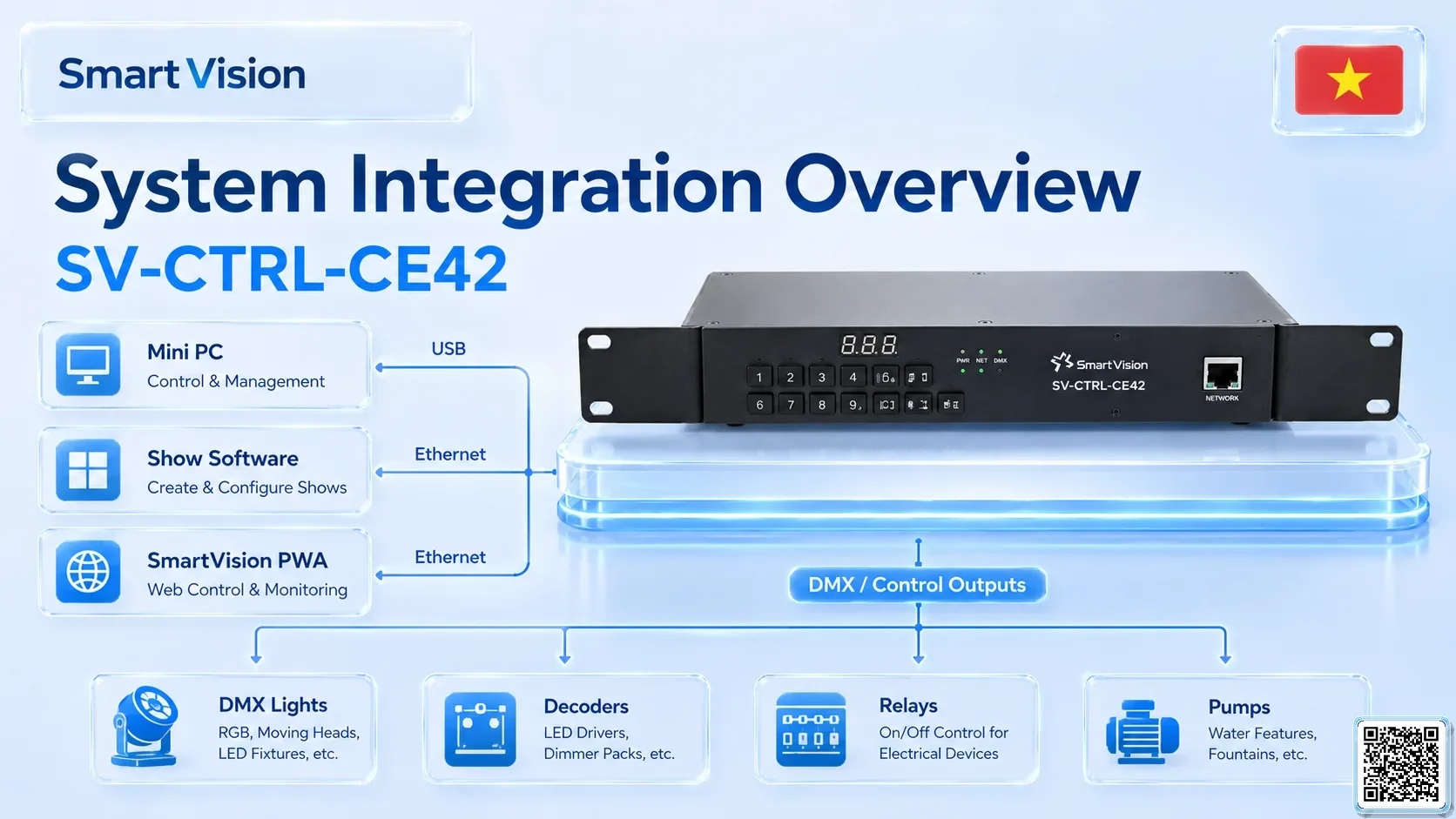

SV-CTRL-CE42 works as the DMX/ArtNet/Ethernet control layer in the SmartVision architecture, receiving show data from a Mini PC, software or PWA and distributing control commands to field devices. Reference configuration: signal DMX512 / Network DMX / UDP
Control method Network DMX / SmartVision PWA / local DMX timeline
Installation Rack mount.
- Control connectionreceives data via Ethernet/UDP/ArtNet/Network DMX for multi-line control.
- Signal distributionoutputs DMX to lights, decoders, relays, valves, pumps or dedicated DMX devices.
- Project applicationssuitable for musical fountains, digital water curtain, LED facade and architectural lighting.
- System expansioncan be zoned by universe, cabinet area, cable route or effect group.
- BOM/BOQlinked by control line, channel/port count, signal cable and cabinet accessories.
- Deployment noteconfirm network topology, signal distance, isolation and firmware before commissioning.
- SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.
Technical Parameters by Variant
| Variant | DMX CH | Power | Voltage | Control | Luminous Flux | Center Hole | Beam Angle |
|---|---|---|---|---|---|---|---|
| SV-CTRL-CE42 Standard Configuration SV-CTRL-CE42 | 2 x 512 | DMX512 / RDM | 5V DC | Network DMX / SmartVision PWA / local DMX timeline |
Applications & Key Features
Overview
SV-CTRL-CE42 is a network DMX / Ethernet controller for SmartVision DMX, ArtNet, LED facade and show-control projects. It is normally used in control cabinets with Mini PC, show software, PWA operation and scheduled playback for lights, valves, relays, pumps or power modules.
Applications
Musical fountains; digital water curtains; LED facade lighting; architectural lighting; stage lighting
Key features

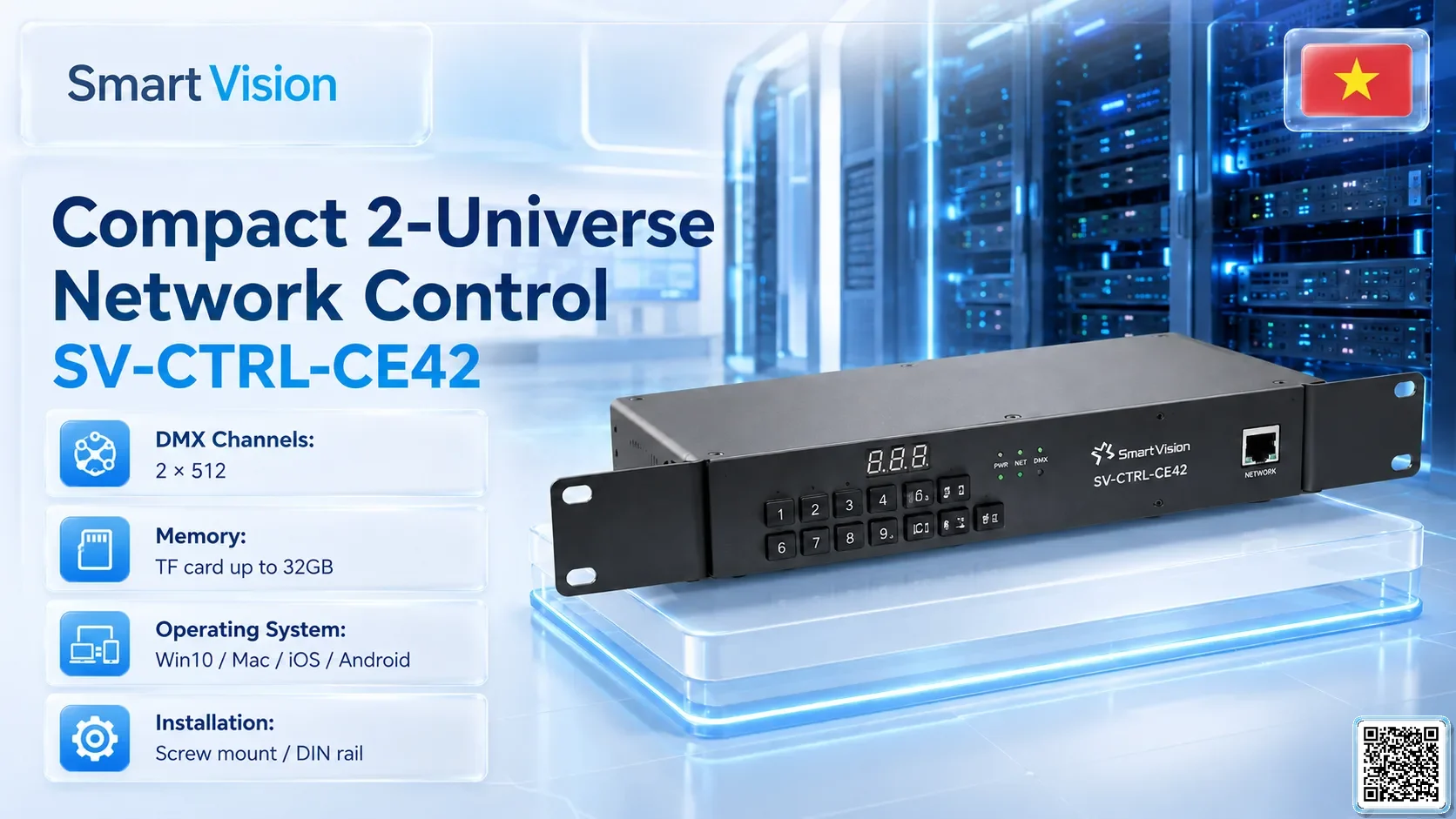

Signal: DMX512 / Network DMX / UDP; DMX / Channels: 2 x 512; Voltage: 5V DC; Control: Network DMX / SmartVision PWA / local DMX timeline; Installation: Rack mount; Dimensions: 145 x 90 x 40 mm.
