● SMART CONTROLLER

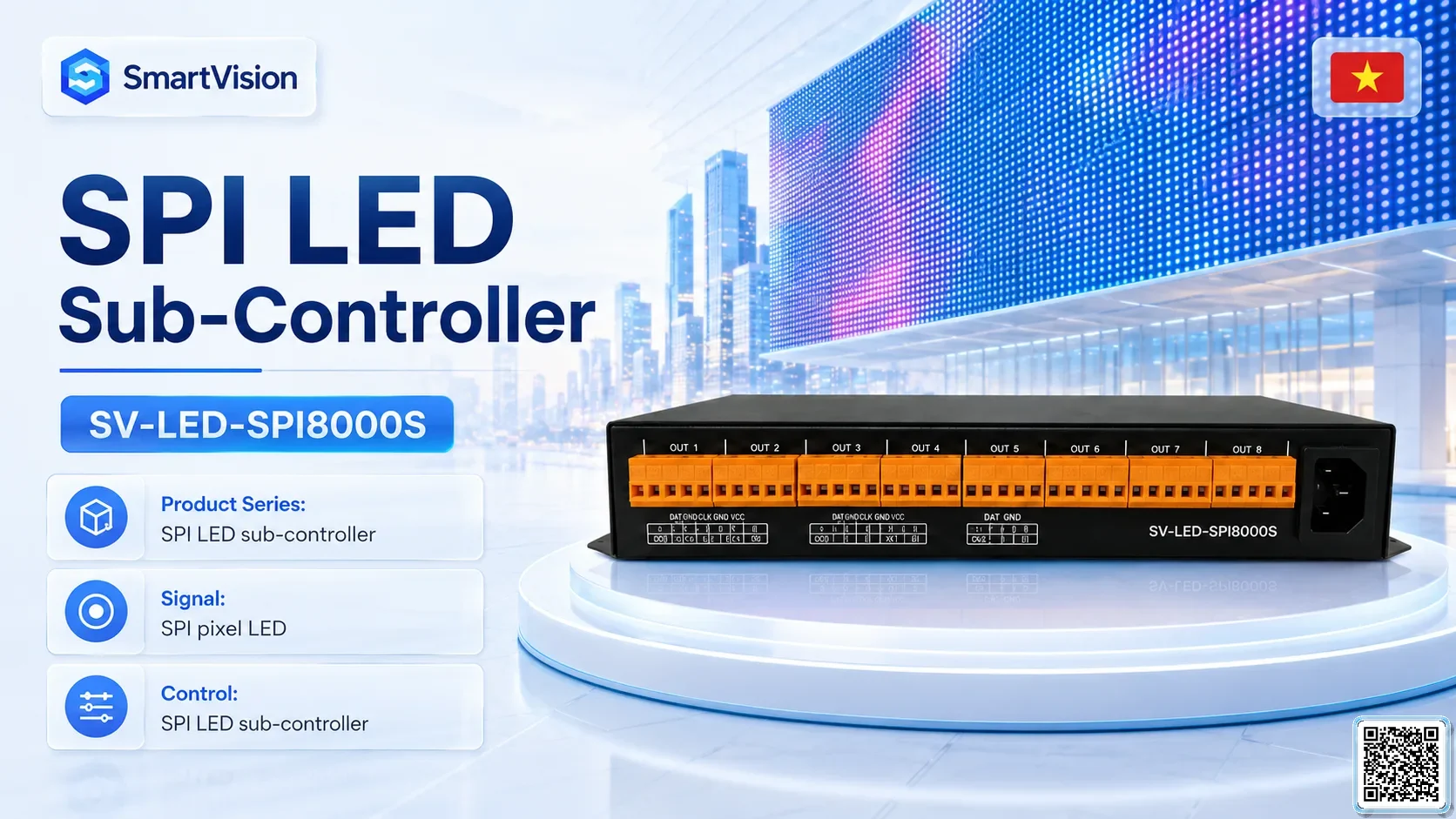

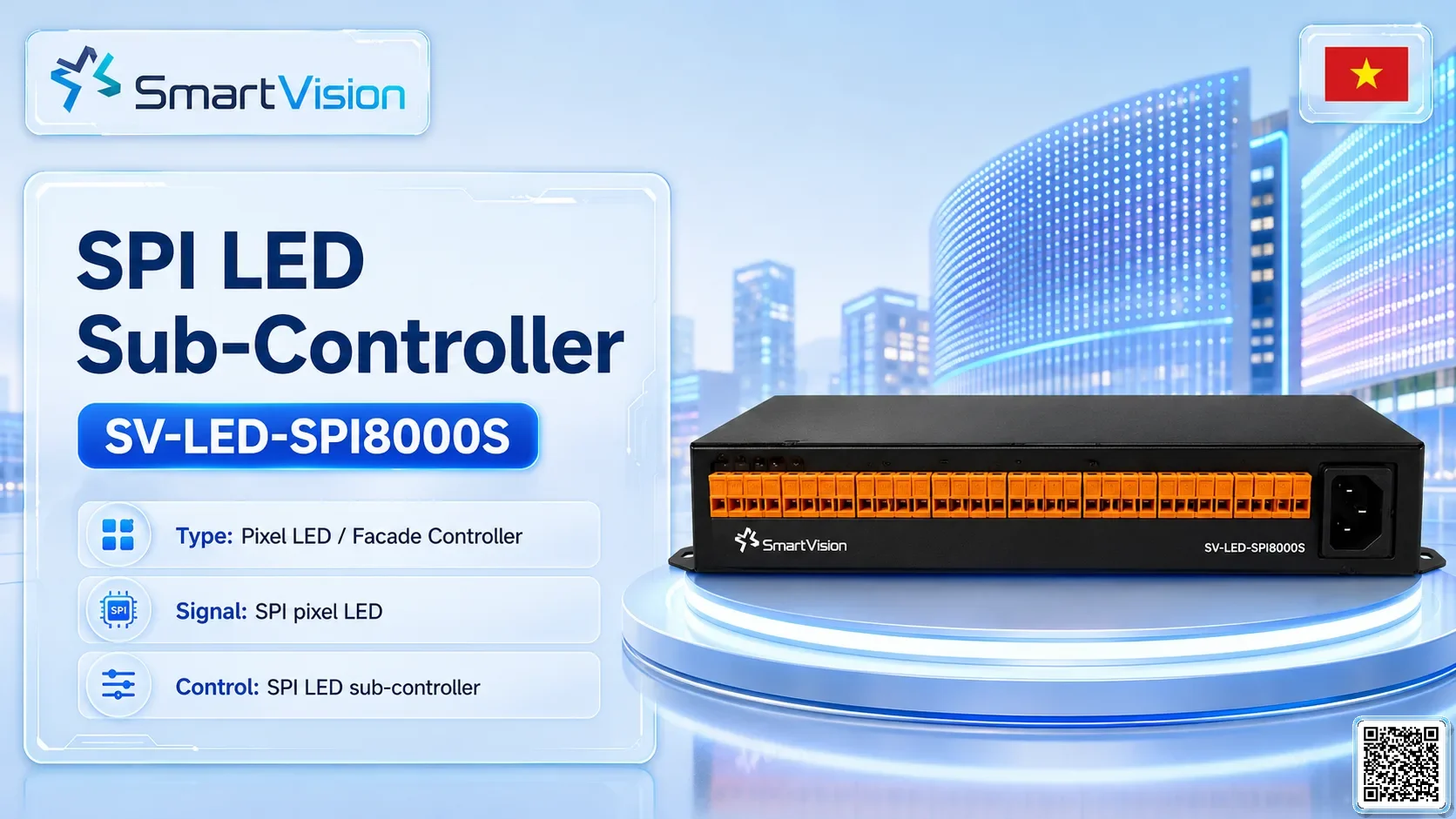

SV-LED-SPI8000SSPI LED Sub-Controller

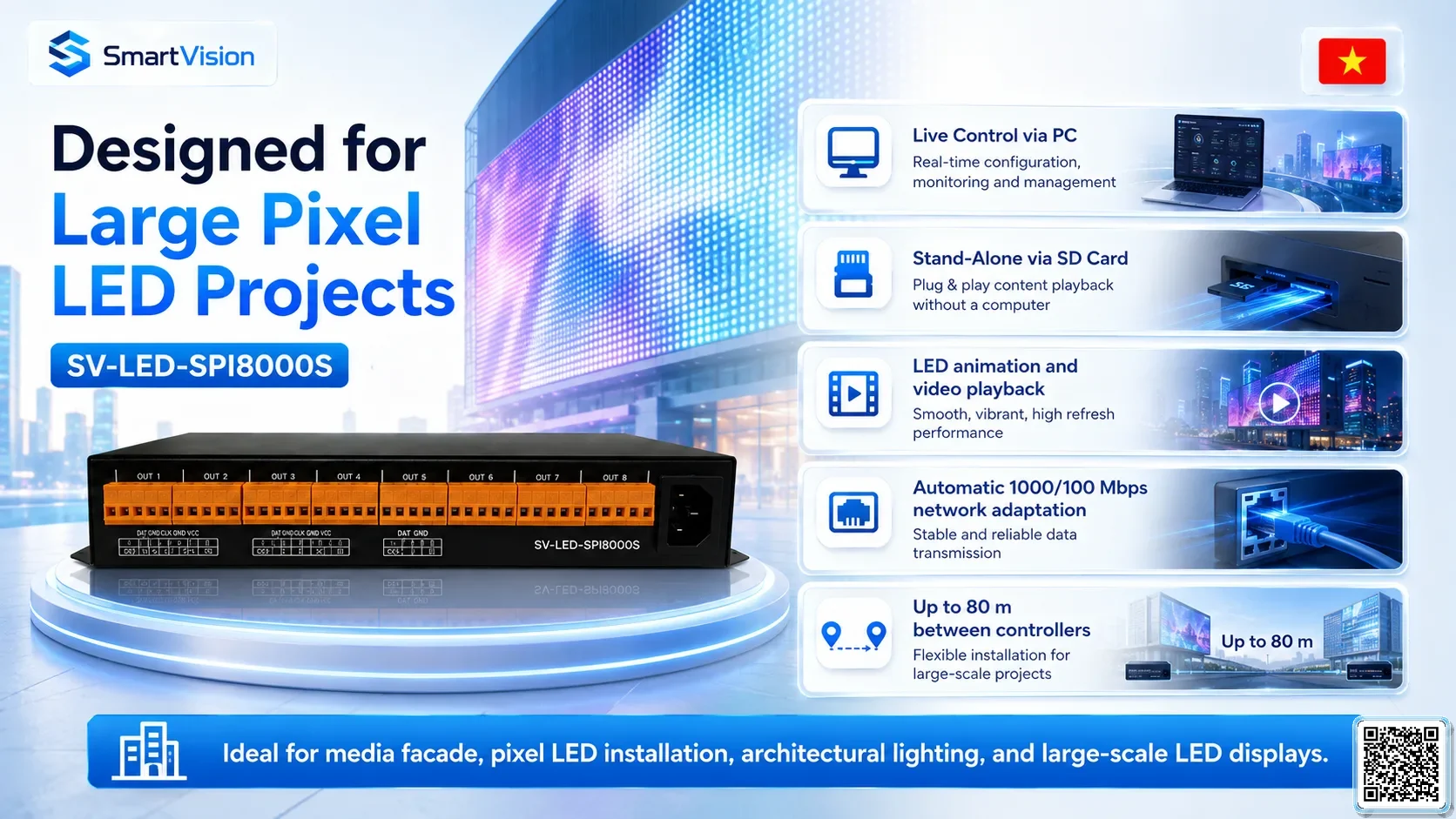

SV-LED-SPI8000S is an ArtNet-to-SPI pixel LED controller for converting ArtNet/DMX Ethernet data into SPI pixel output. It is suitable for LED facade, LED digital tube, matrix panel, outline lighting and high-density pixel mapping projects. Main signal: SPI pixel LED.

controllersSV-LED-SPI8000SRequest quotation

Choose controller configuration

Controller model Protocol / Signal Voltage / Power Control method Ports / Channels Installation Quantity

Add to Control BOM

👁 71

Technical Specifications

Series	Pixel LED / Facade Controller
Installation Type	Controller cabinet

Project Integration

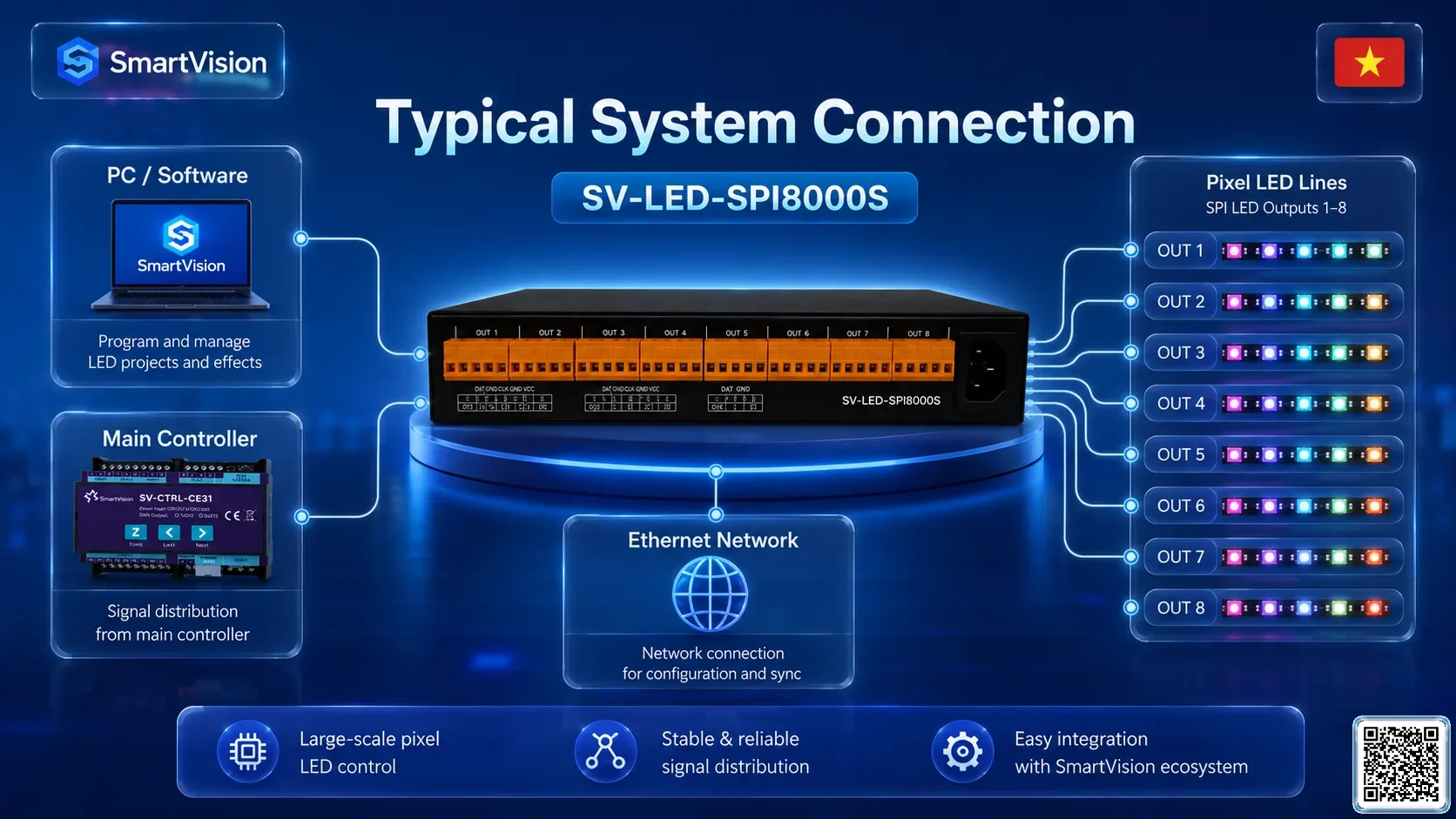

SV-LED-SPI8000S is integrated as the LED pixel/SPI control layer in SmartVision architecture for LED facade, LED linear, pixel bars, digital tubes and high-density mapping routes. Reference configuration: signal SPI pixel LED

Control method SPI LED sub-controller

Installation Controller cabinet.

Ready for project:

LED pixel mappingreceives ArtNet/DMX/SPI data for matrix effects, chase, gradients and dynamic content.
Facade applicationssuitable for facades, bridges, gateways, parks, stages and night landscape areas.
Output zoningsplits output ports by zone, LED length, IC control and branch power supply.
Power managementcoordinate DC power supplies, feeder cables, power injection and overload protection.
BOM/BOQcalculated by pixel count, port count, LED IC, cable distance and connector accessories.
Deployment noteconfirm IC type, data speed, LED voltage and mapping test before mass installation.
SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 1

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
SV-LED-SPI8000S Standard Configuration SV-LED-SPI8000S	UCS512, SM16703, TM1809, TM1812...		100~240V AC	SPI LED sub-controller

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Applications

LED facade; LED digital tube; matrix panel; pixel bar; IC strip

Key features

Signal: SPI pixel LED; DMX / Channels: UCS512, SM16703, TM1809, TM1812...; Voltage: 100~240V AC; Control: SPI LED sub-controller; Installation: Controller cabinet; Dimensions: 283 x 134 x 45 mm.

Related use casesDMX512 controllerArtNet controller
