● SMART CONTROLLER

SV-LED-DMX8000DDMX LED Sub-Controller

SV-LED-DMX8000D is a SmartVision show-control device for SmartVision DMX, ArtNet, LED facade and show-control projects. It is normally used in control cabinets with Mini PC, show software, PWA operation and scheduled playback for lights, valves, relays, pumps or power modules.

controllersSV-LED-DMX8000DRequest quotation

Choose controller configuration

Controller model Protocol / Signal Voltage / Power Control method Ports / Channels Installation Quantity

Add to Control BOM

👁 59

Technical Specifications

Series	Pixel LED / Facade Controller
Installation Type	Controller cabinet

Project Integration

SV-LED-DMX8000D is integrated as the LED pixel/SPI control layer in SmartVision architecture for LED facade, LED linear, pixel bars, digital tubes and high-density mapping routes. Reference configuration: signal DMX512 LED

Control method DMX LED sub-controller

Installation Controller cabinet.

Ready for project:

LED pixel mappingreceives ArtNet/DMX/SPI data for matrix effects, chase, gradients and dynamic content.
Facade applicationssuitable for facades, bridges, gateways, parks, stages and night landscape areas.

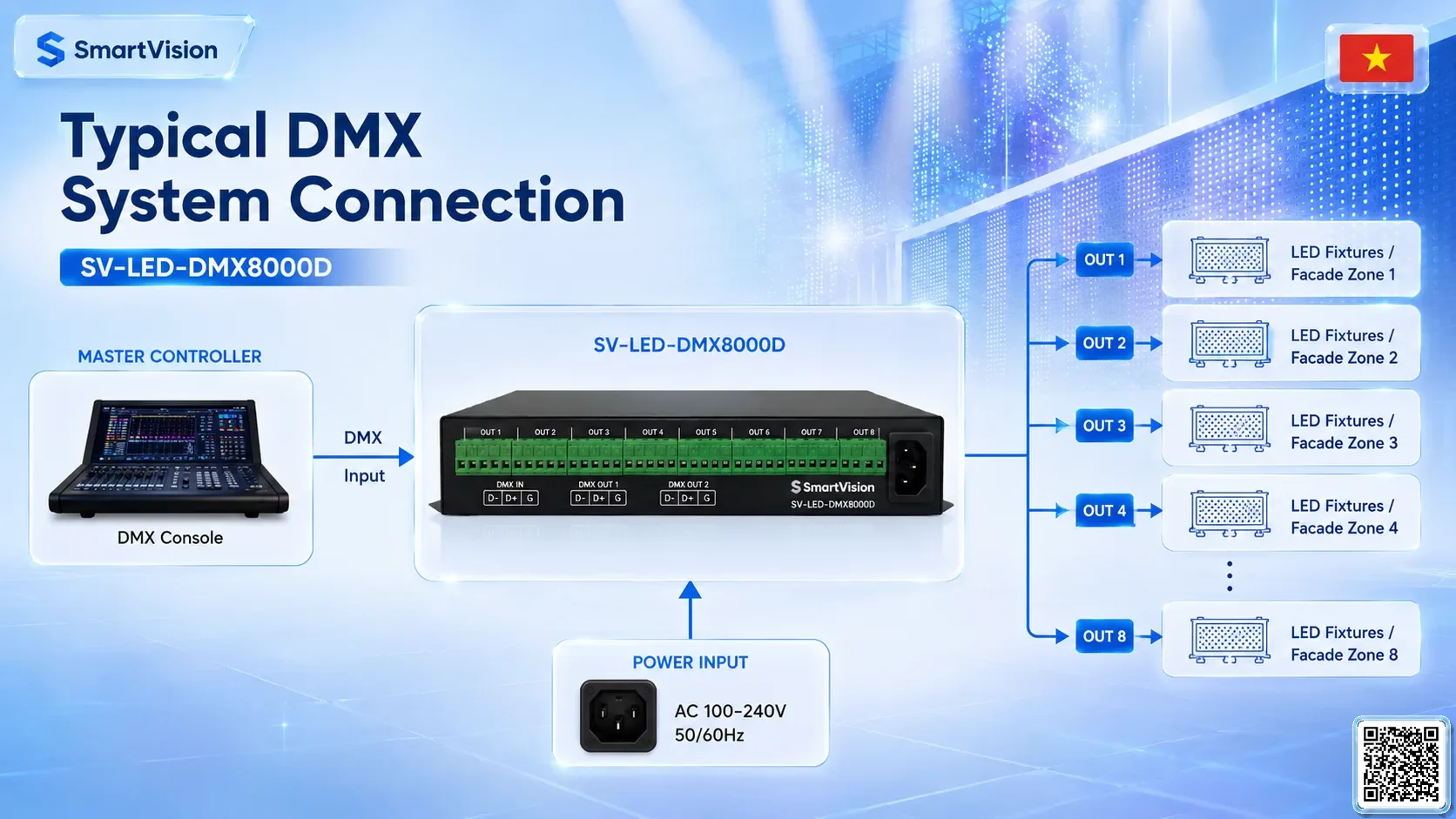

Output zoningsplits output ports by zone, LED length, IC control and branch power supply.
Power managementcoordinate DC power supplies, feeder cables, power injection and overload protection.
BOM/BOQcalculated by pixel count, port count, LED IC, cable distance and connector accessories.
Deployment noteconfirm IC type, data speed, LED voltage and mapping test before mass installation.
SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 1

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
SV-LED-DMX8000D Standard Configuration SV-LED-DMX8000D	UCS512, SM16703, TM1809, TM1812...		100~240V AC	DMX LED sub-controller

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Applications

Musical fountains; digital water curtains; LED facade lighting; architectural lighting; stage lighting

Key features

Signal: DMX512 LED; DMX / Channels: UCS512, SM16703, TM1809, TM1812...; Voltage: 100~240V AC; Control: DMX LED sub-controller; Installation: Controller cabinet; Dimensions: 283 x 134 x 45 mm.

Related use casesDMX512 controllerArtNet controllerremote water show controller over internet
