● SMART CONTROLLER

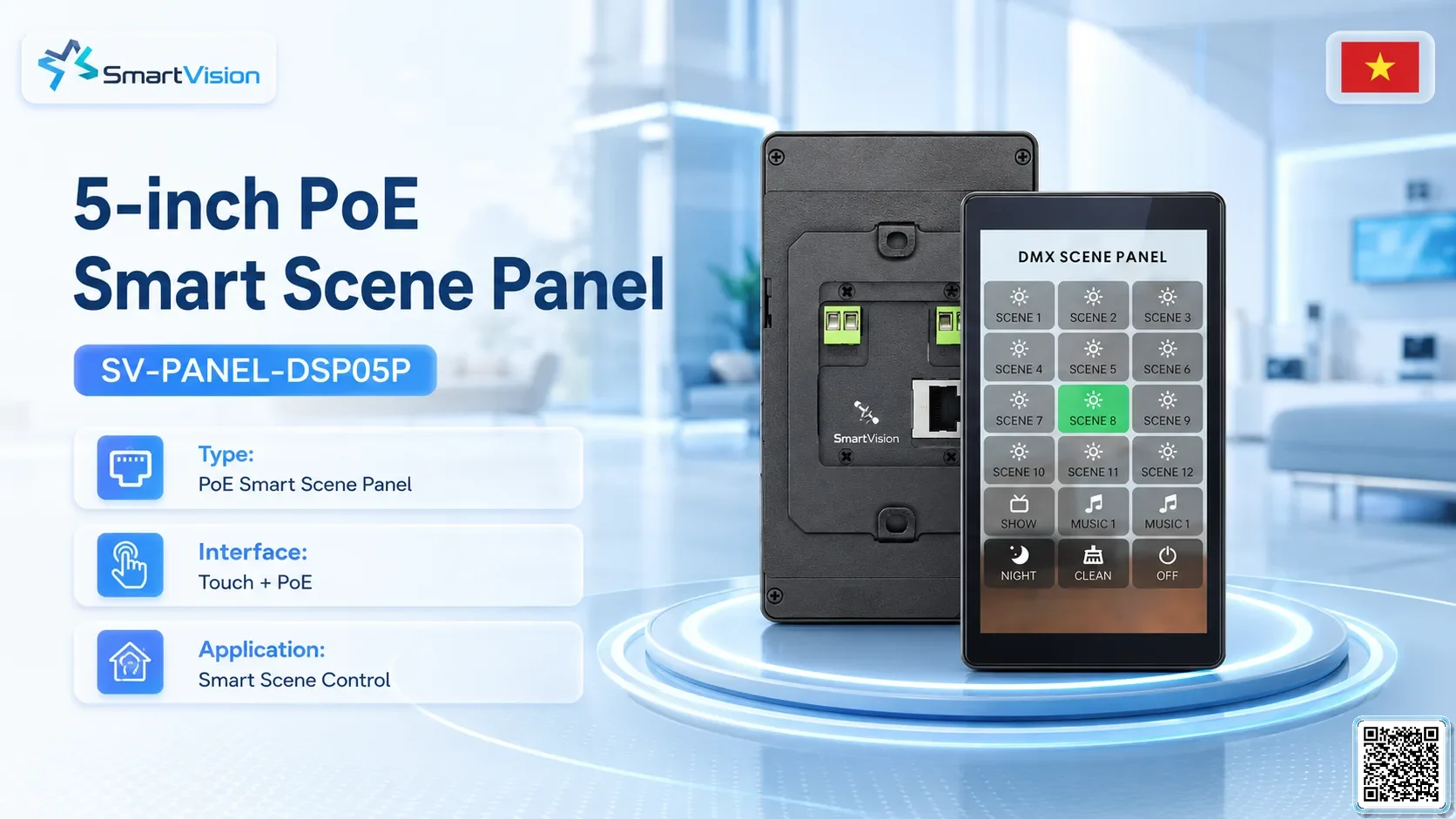

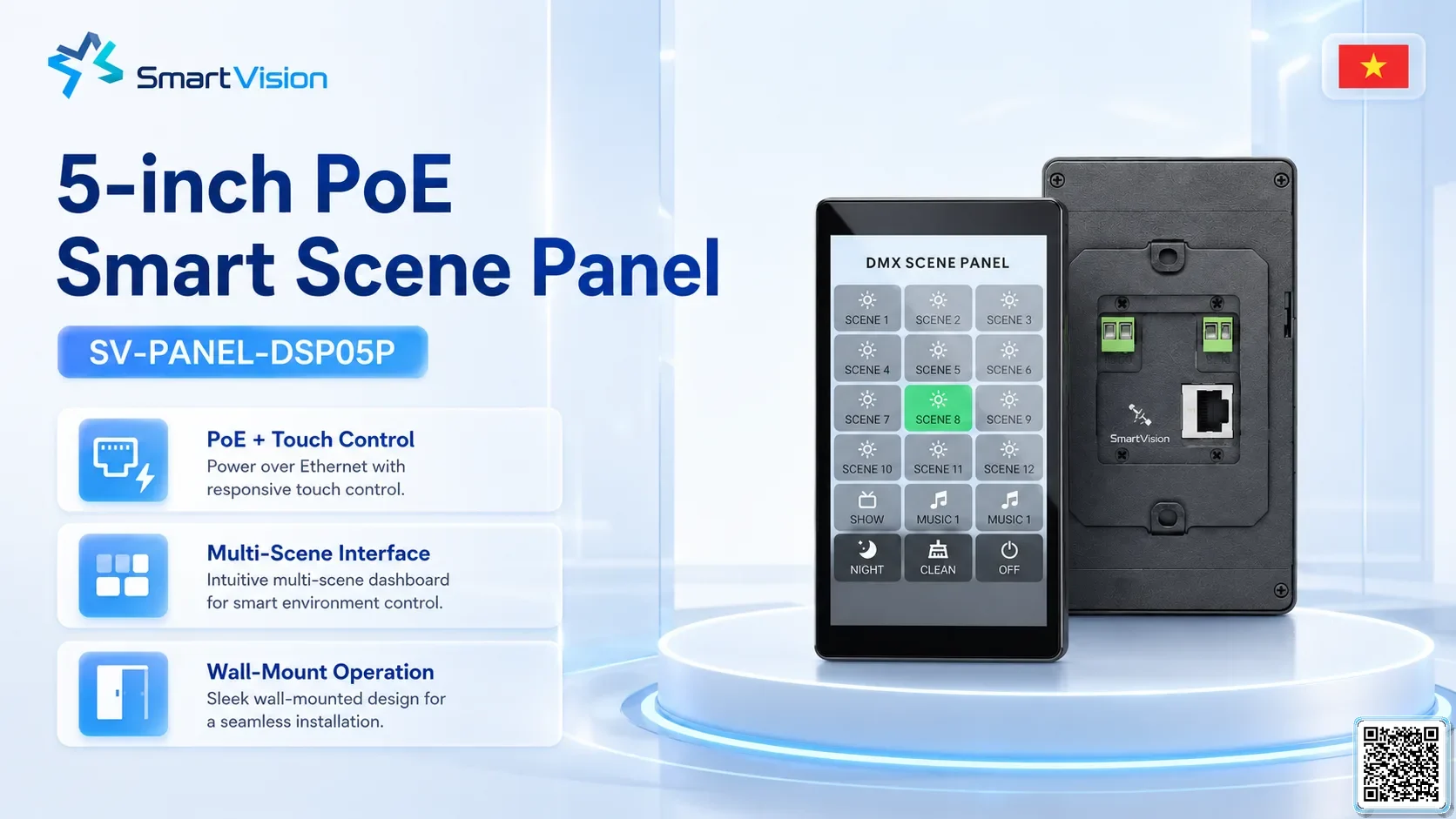

SV-PANEL-DSP05P5-inch PoE Smart Scene Panel

SV-PANEL-DSP05P is a SmartVision panel-control interface for local scene selection, wall-mounted operation and simplified control of lighting or water-show zones. It is suitable for operator panels, showrooms, architectural lighting and cabinet-mounted control points.

controllersSV-PANEL-DSP05PRequest quotation

Choose controller configuration

Controller model Protocol / Signal Voltage / Power Control method Ports / Channels Installation Quantity

Add to Control BOM

👁 73

Technical Specifications

Installation Type	86-type recessed wall-mount base
Operating Temperature	-20~60℃

Project Integration

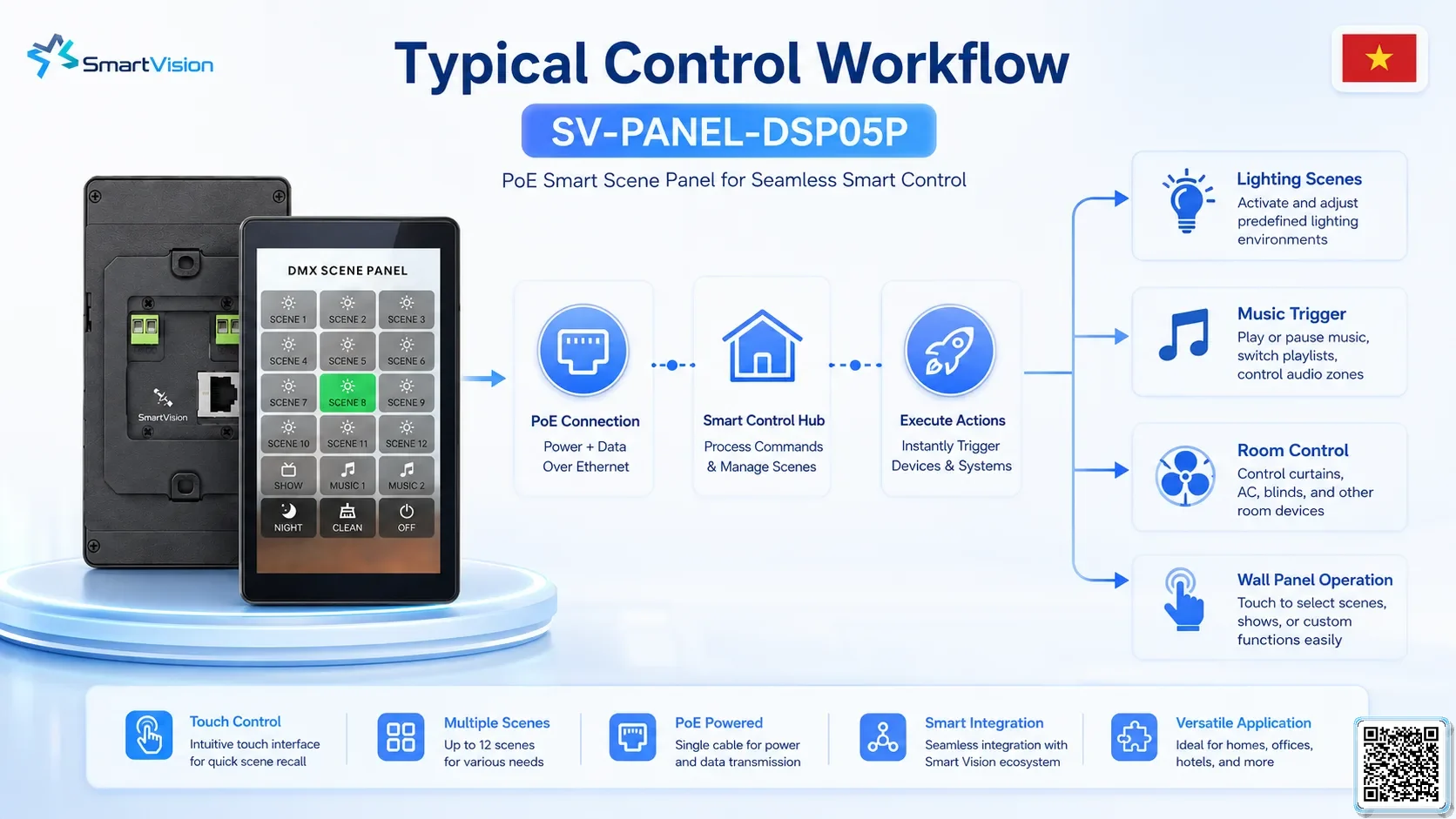

SV-PANEL-DSP05P works as the local operation interface in SmartVision systems, allowing operators to select scenes, switch zones, call programs and control devices quickly on site. Reference configuration: signal DMX512 / Network DMX / USB / UDP

Control method Touch panel / scene control / SmartVision integration;.

Ready for project:

Local controlselects scenes, starts/stops programs, calls presets or controls zones manually.
Operator friendlysuitable for technicians, security staff, resort operators or facility managers.
System connectionlinks with central controller, DMX/relay, PWA or control cabinet by configuration.

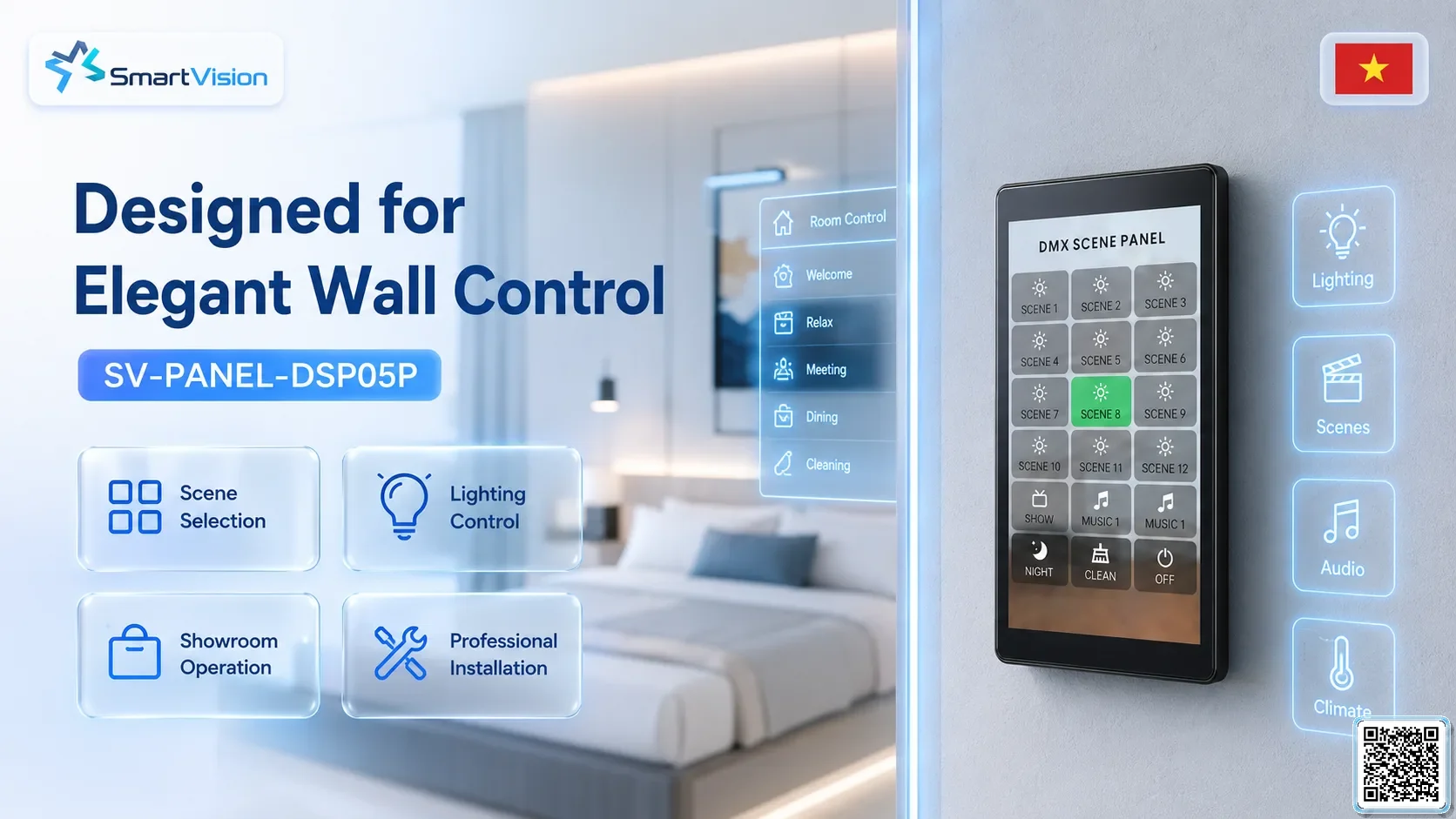

Installation positionwall-mounted, cabinet-mounted, operator room or customer control area.
BOM/BOQcounted by operator location, scene quantity, protocol and interface requirements.
Deployment noteconfirm button layout, user permission, signal wiring and function labels before handover.
SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 1

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
SV-PANEL-DSP05P Standard Configuration SV-PANEL-DSP05P	Direct UDP, RS485/RS232 through converter		9~24V DC	Touch panel / scene control / SmartVision integration

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Applications

Local scene control; wall panel operation; showroom control; cabinet operator interface; architectural lighting zones.

Key features

Signal: DMX512 / Network DMX / USB / UDP; DMX / Channels: Direct UDP, RS485/RS232 through converter; Voltage: 9~24V DC; Control: Touch panel / scene control / SmartVision integration; Installation: 86-type recessed wall-mount base; Dimensions: 86x86x41 mm.

Related use casesDMX512 controllerArtNet controllerPoE control paneltouch control panel
