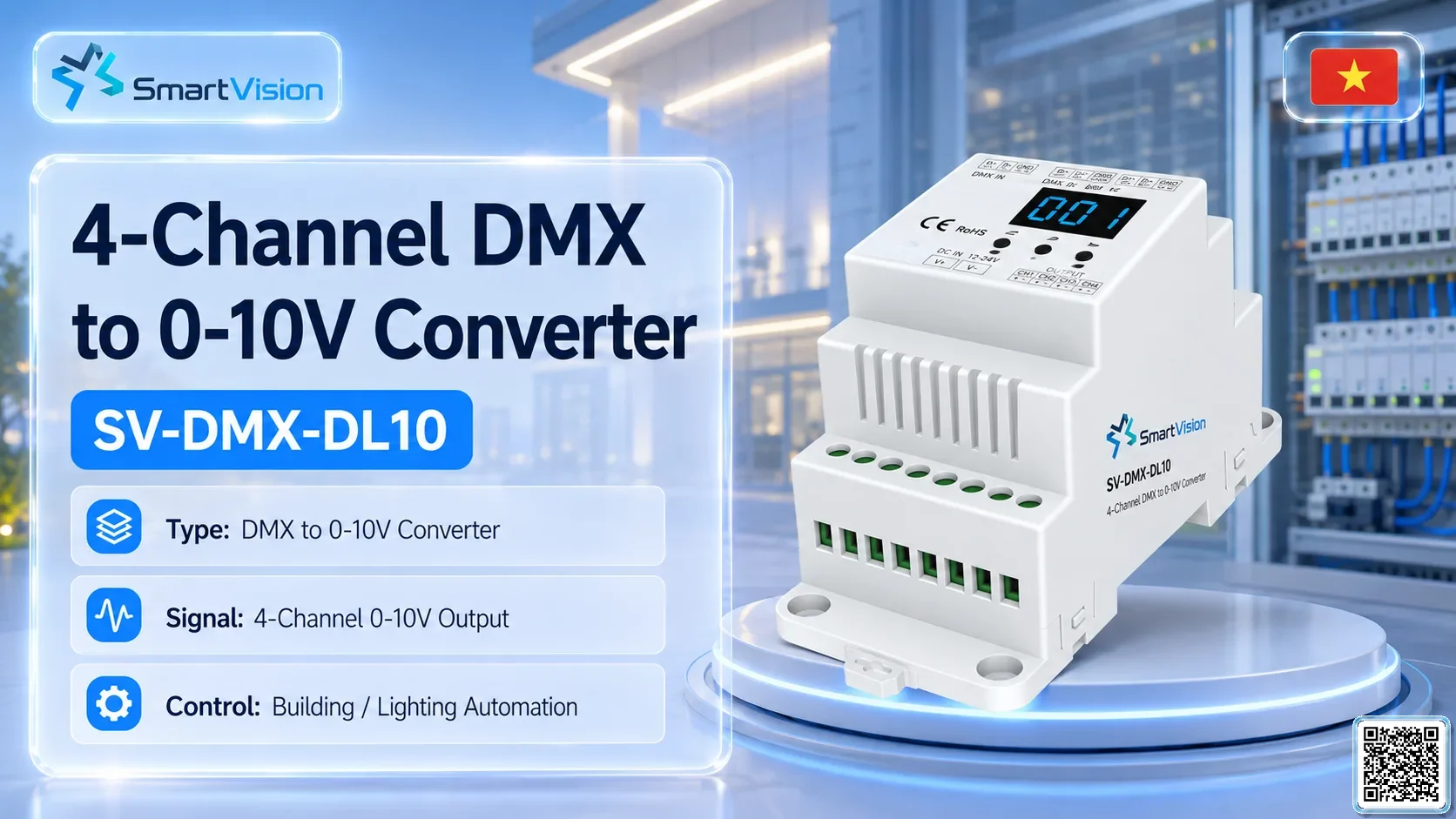

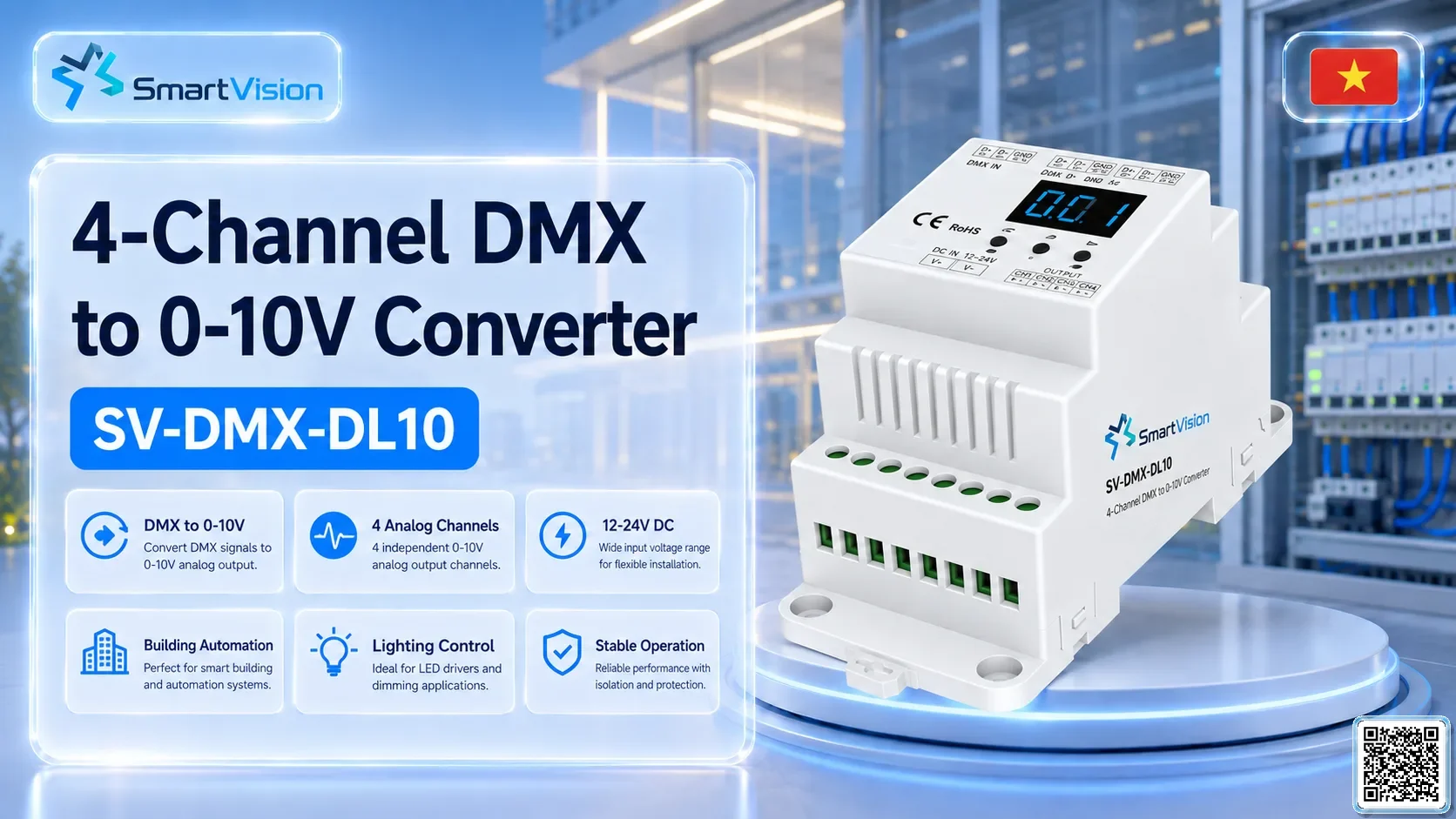

SV-DMX-DL104-Channel DMX to 0-10V Converter

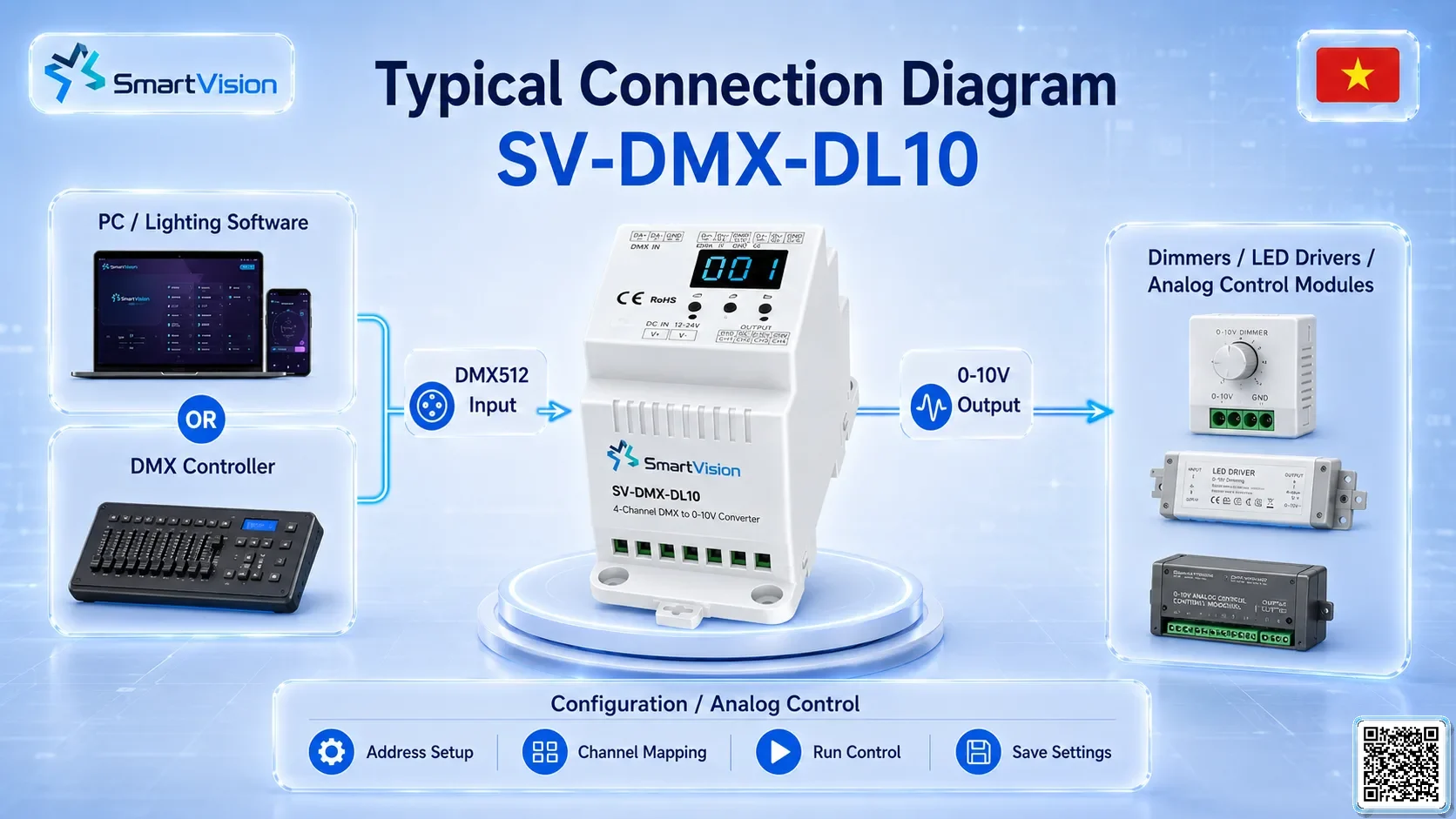

SV-DMX-DL10 is used as a decoder, driver or auxiliary power module in SmartVision systems, converting control commands into suitable output signals or loads for lights, relays, LEDs or field devices. Reference configuration: signal DMX512 / 0-10V

Control method DMX to 0-10V conversion

Ports/channels 4 channels

Installation DIN/cabinet.

• 🎚️Control decodingreceives DMX/RF/control signals and converts them to suitable device outputs.
• 💡Load controlused for LED lighting, dimming, relays, power modules or auxiliary loads by configuration.
• 🧩Zone placementinstalled near device groups to reduce load cable length and simplify maintenance.
• ⚡Power and loadconfirm voltage, output current, channel power and protection strategy before model selection.
• 🗂️BOM/BOQcounted by channel quantity, load quantity, cabinet position, wiring accessories and power supplies.
• 🔧Deployment noteverify addressing, polarity, maximum load and test each zone before handover.
• ⚙️SmartVision supports BOM/BOQ breakdown, control cabinet design, signal-line layout and commissioning workflow for stable project operation.
