● UNDERWATER LED LIGHT

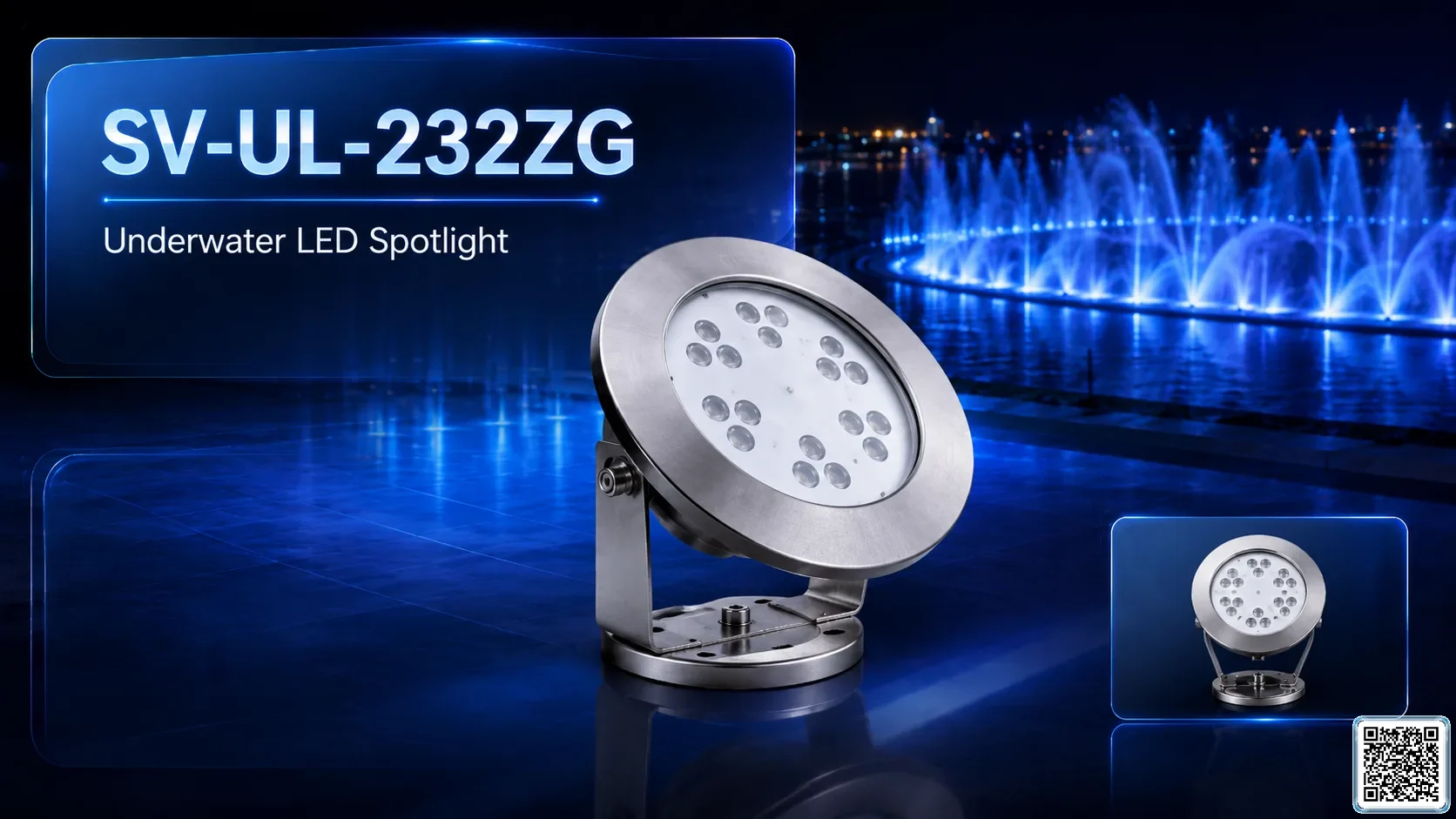

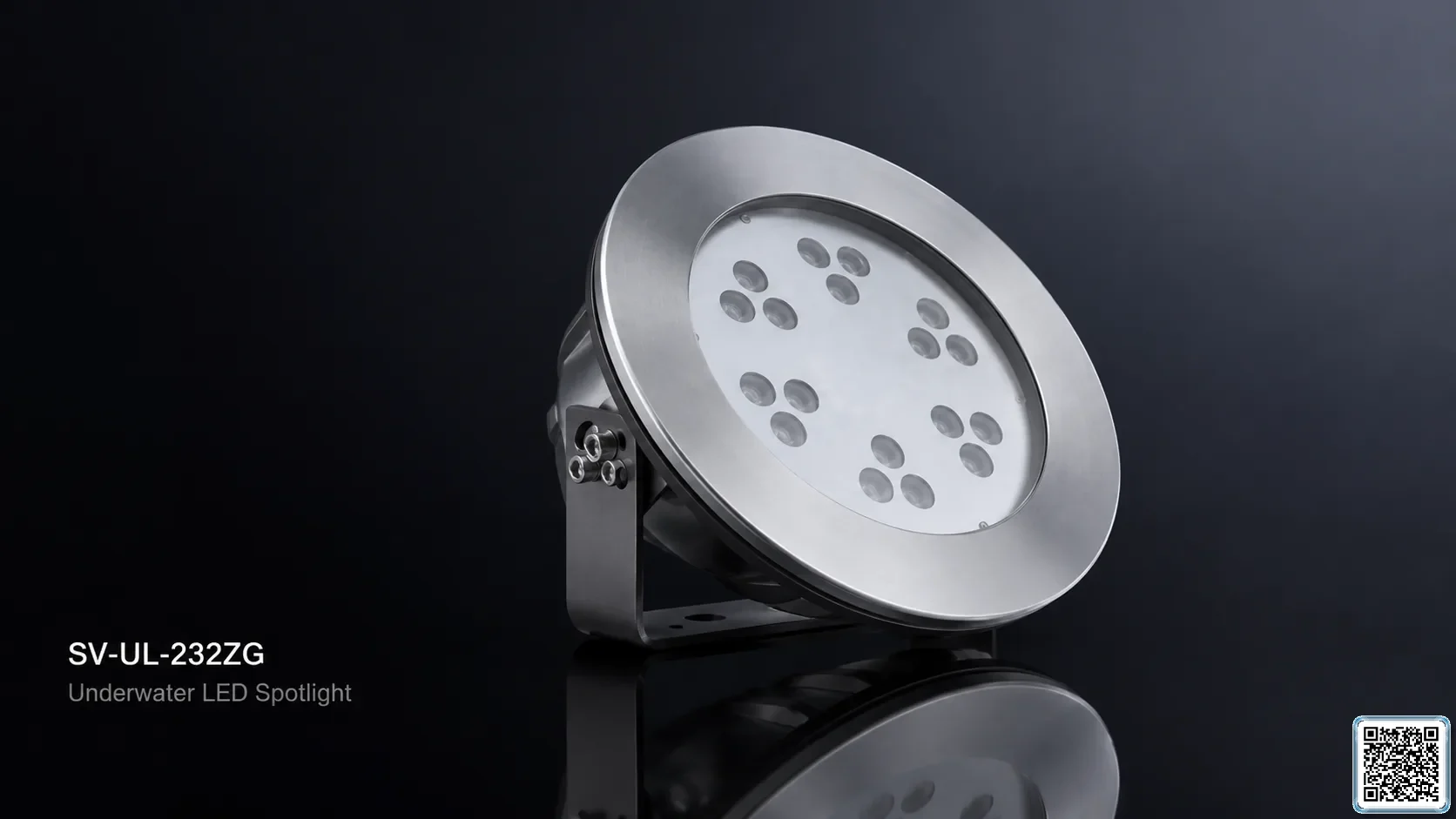

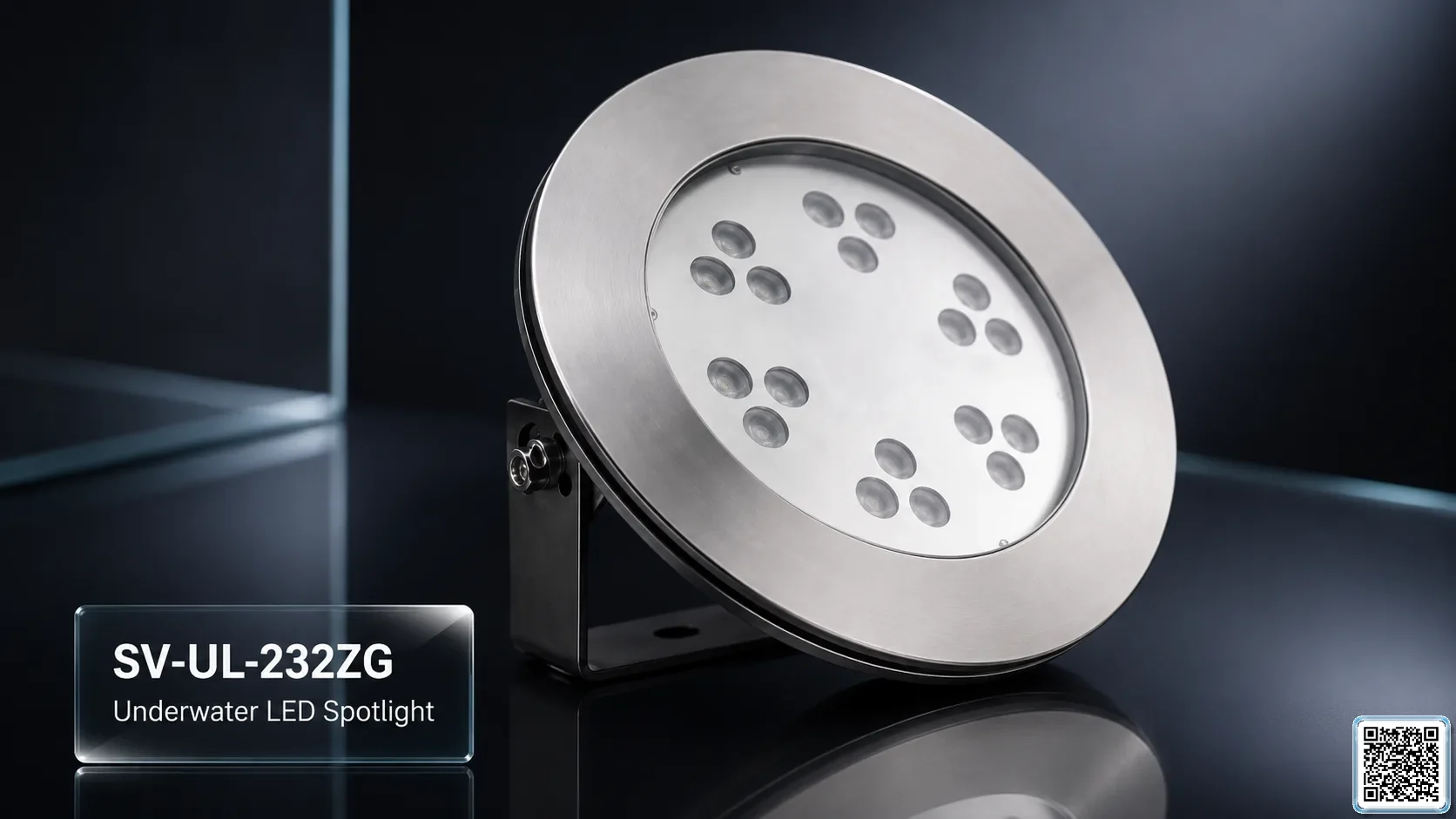

SV-UL-232ZGUnderwater LED Spotlight

24V underwater LED spotlight for musical fountain, landscape fountain and water show projects.

underwater-lightsSV-UL-232ZGRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 80⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

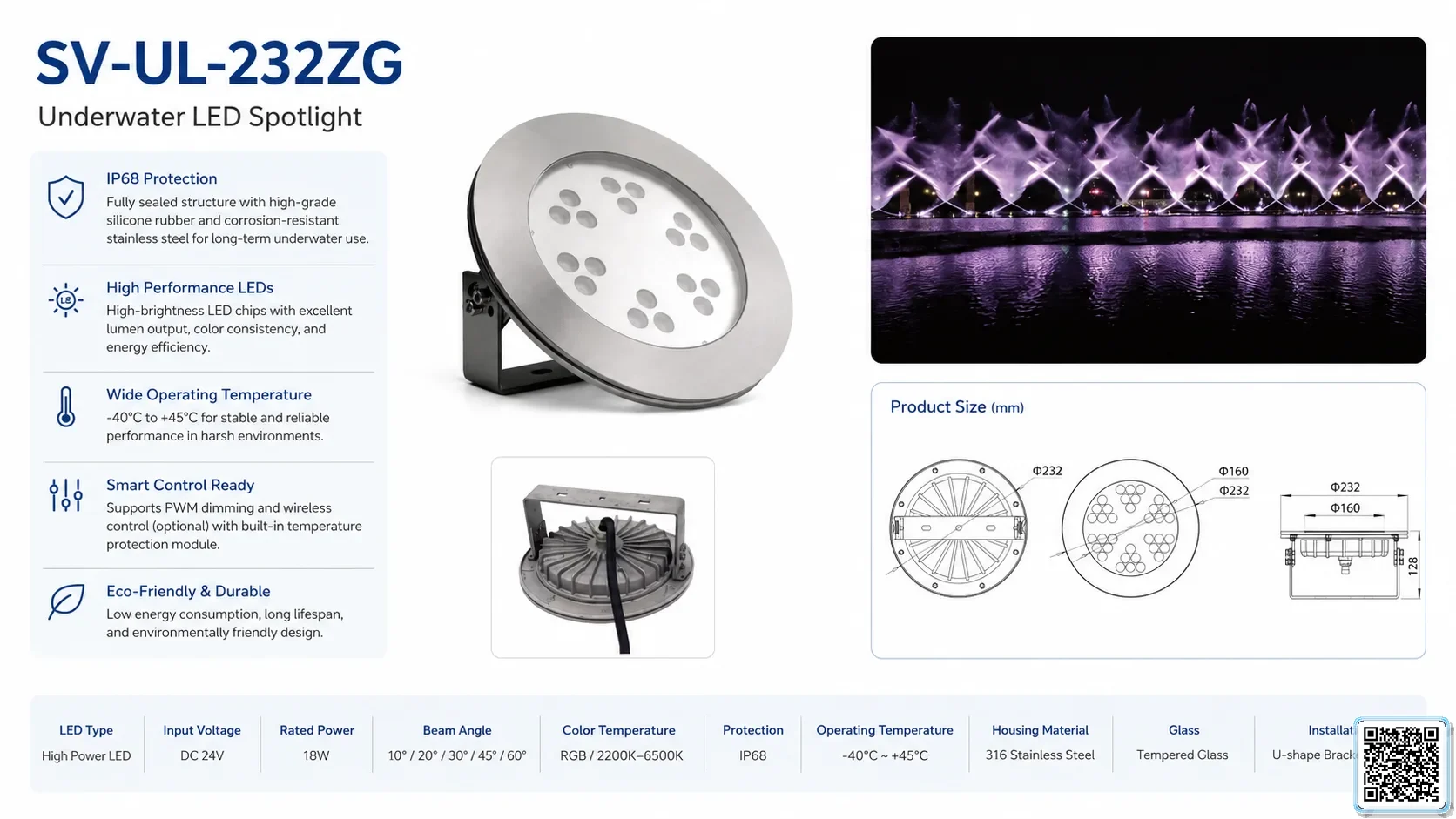

Technical Specifications

Series	Stainless Steel LED Underwater Spot Light Series
Installation Type	U-shape Bracket / Customized
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	25-26
Housing Material	AISI304 stainless steel standard / AISI316 optional; polished and corrosion-resistant.
Tempered Glass	Heat-resistant tempered ultra-clear safety glass, high transmittance.
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance / oil resistance / water resistance
Heat Dissipation	Integrated heat dissipation structure with overload and overheat protection.
Pressure Resistance Depth	Standard 10m; customized models up to 100m.
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term underwater use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology.
Beam Angle	20° / 30° / 45° / 60°
Weight	3.2 kg
Luminous Flux Output	1050 lm
Effective Beam Angle	30.69°
Material	AISI304 stainless steel standard / AISI316 optional; polished and corrosion-resistant.

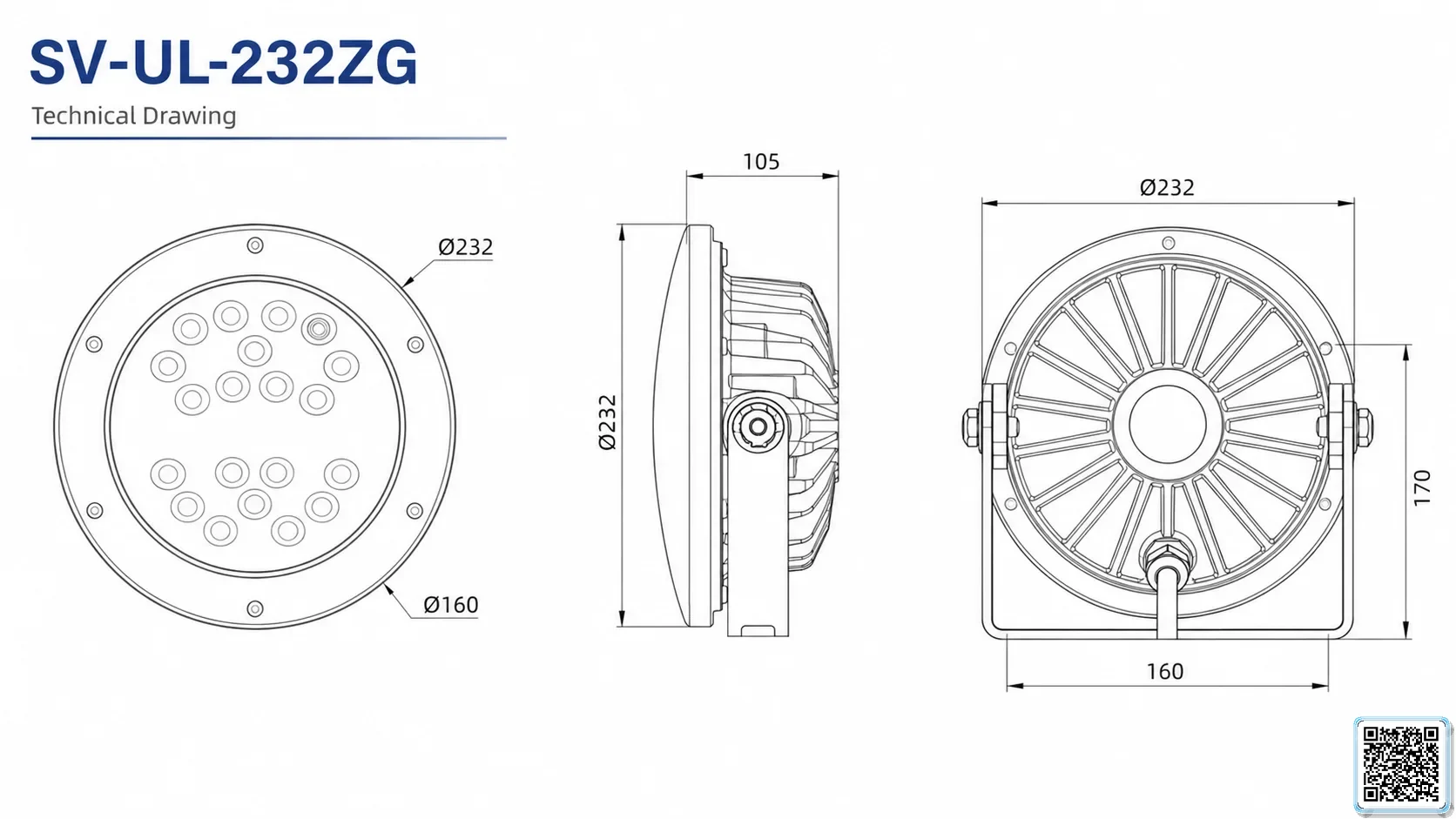

Dimensions	Outer Ø232 mm body

Project Integration

Professional underwater LED light for musical fountain, water feature and landscape water-show projects. Best for:

Project-ready:

Musical fountains and pools
Nozzle and water-jet lighting
RGB/DMX color zones
Parks, hotels, resorts and public plazas.
Waterproof stainless-steel body
Beam-angle and power options for flexible design
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision DMX and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, cable routing, control cabinet planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 9

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
18x1W Single Color SV-UL-232ZG-18X1W-SINGLE-COLOR	-	18W	AC/DC12V / AC/DC24V	Single Control		20° / 30° / 45° / 60°
18x2W Single Color SV-UL-232ZG-18X2W-SINGLE-COLOR	-	36W	AC/DC12V / AC/DC24V	Single Control		20° / 30° / 45° / 60°
24x1W Single Color SV-UL-232ZG-24X1W-SINGLE-COLOR	-	24W	AC/DC12V / AC/DC24V	Single Control		20° / 30° / 45° / 60°
18x1W SV-UL-232ZG-18X1W	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1118	20° / 30° / 45° / 60°
18x2W SV-UL-232ZG-18X2W	3	36W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	2002	20° / 30° / 45° / 60°
18x3W SV-UL-232ZG-18X3W	3	54W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	3447	20° / 30° / 45° / 60°
24x1W SV-UL-232ZG-24X1W	4	24W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1490	20° / 30° / 45° / 60°
24x1.5W SV-UL-232ZG-24X1-5W	3	36W	DC24V	RGB Auto Change / RGB 4 wires / DMX512	2004	20° / 30° / 45° / 60°
24x2W SV-UL-232ZG-24X2W	3	48W	DC24V	RGB Auto Change / RGB 4 wires / DMX512	2736	20° / 30° / 45° / 60°

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Professional underwater LED spotlight for RGB lighting zones, fountain nozzles, pools and SmartVision water show systems.

Applications

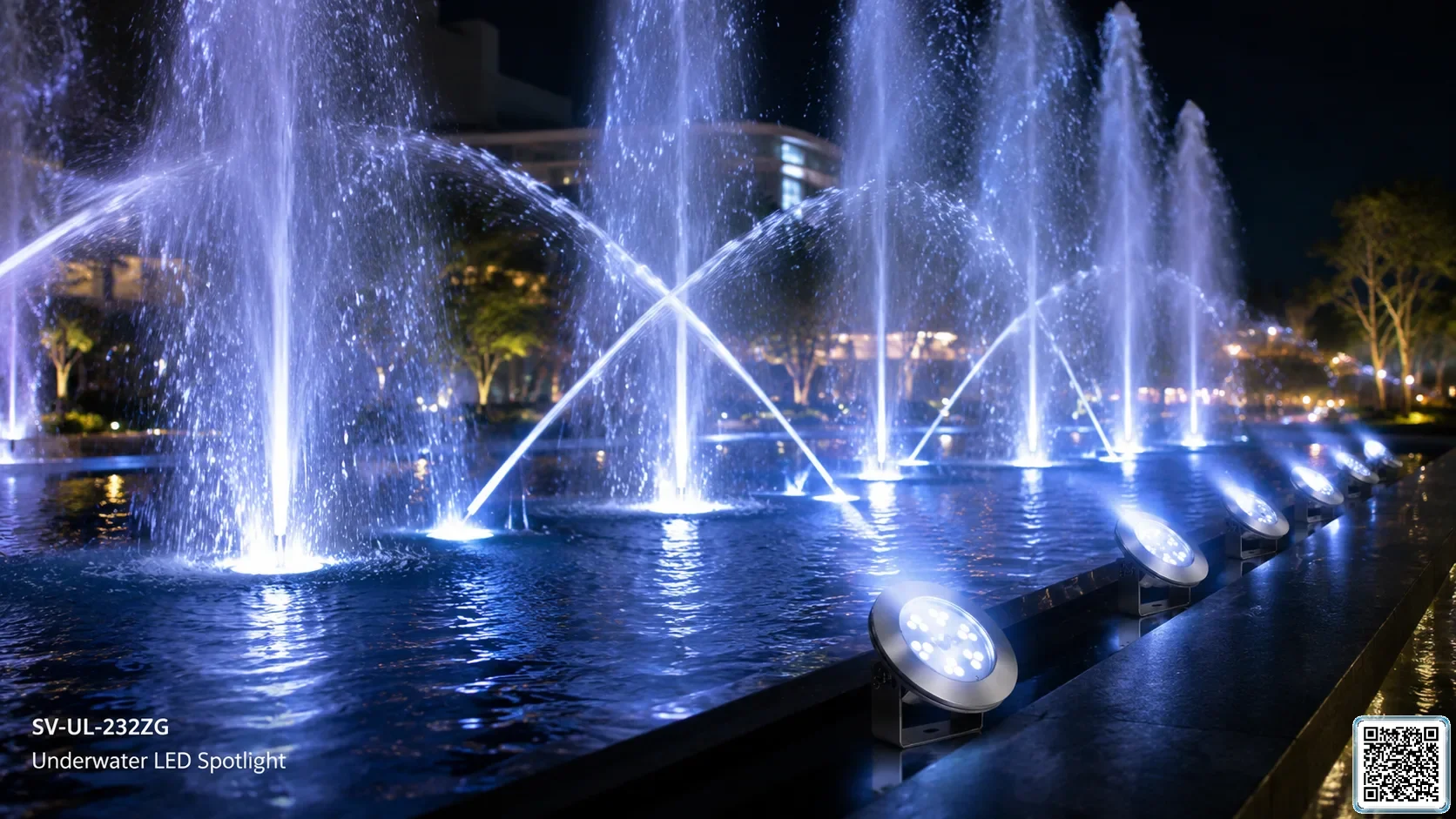

Musical fountains, landscape fountains, garden pools, water features, caves, plazas, parks, hotels and resort water shows.

Key features

IP68/IP69/IP69K; DMX512 options; RGB/RGBW; AISI304/AISI316 stainless steel; tempered glass; multiple power variants; multiple beam angles; suitable for musical fountains and landscape pools.
