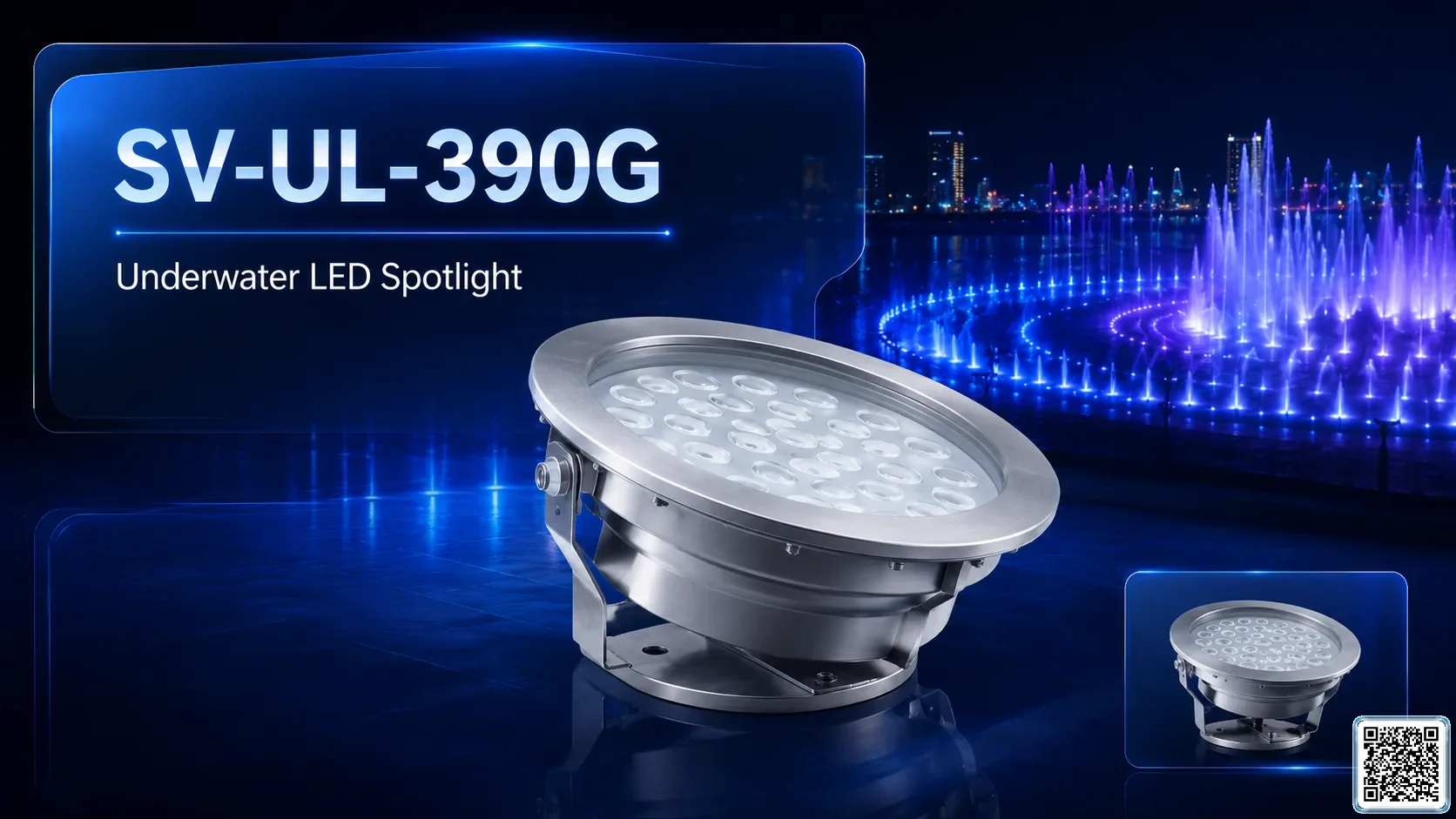

SV-UL-390G Main / Hero image SmartVision water show equipment

● UNDERWATER LED LIGHT

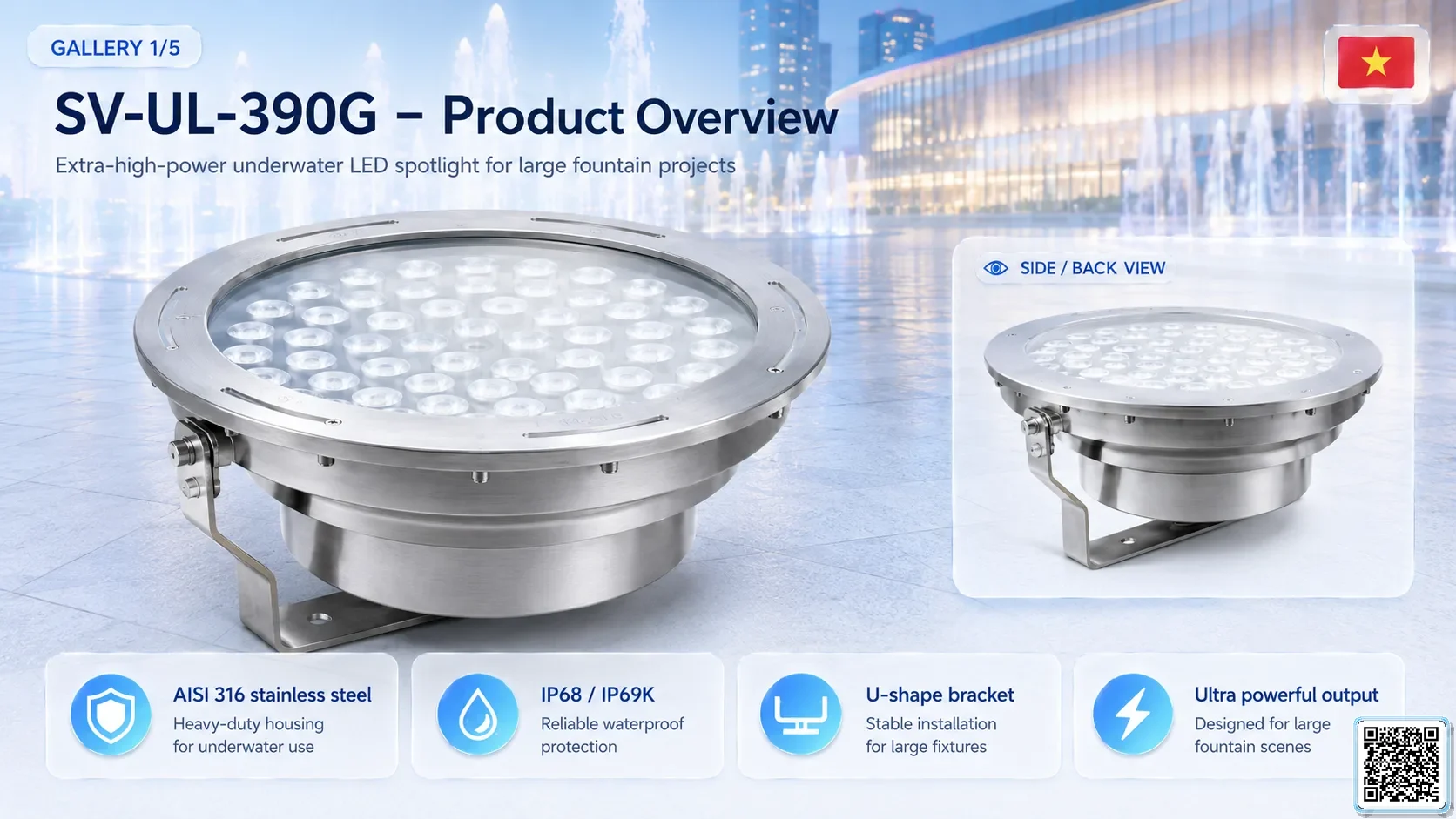

SV-UL-390GUnderwater LED Spotlight

24V underwater LED spotlight for musical fountain, landscape fountain and water show projects.

underwater-lightsSV-UL-390GRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 108⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

Technical Specifications

Series	Stainless Steel LED Underwater Spot Light Series
Installation Type	U-shape Bracket / Customized
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	15-16
Housing Material	AISI304 stainless steel standard / AISI316 optional; polished and corrosion-resistant.
Tempered Glass	Heat-resistant tempered ultra-clear safety glass, high transmittance.
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance / oil resistance / water resistance
Heat Dissipation	Integrated heat dissipation structure with overload and overheat protection.
Pressure Resistance Depth	Standard 10m; customized models up to 100m.
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term underwater use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology.
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	8.0 kg
Luminous Flux Output	13060 lm
Effective Beam Angle	30.79°
Material	AISI304 stainless steel standard / AISI316 optional; polished and corrosion-resistant.
Dimensions	Outer Ø390 mm body

Project Integration

Professional underwater LED light for musical fountain, water feature and landscape water-show projects. Best for:

Project-ready:

Musical fountains and pools
Nozzle and water-jet lighting
RGB/DMX color zones
Parks, hotels, resorts and public plazas.
Waterproof stainless-steel body
Beam-angle and power options for flexible design
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision DMX and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, cable routing, control cabinet planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

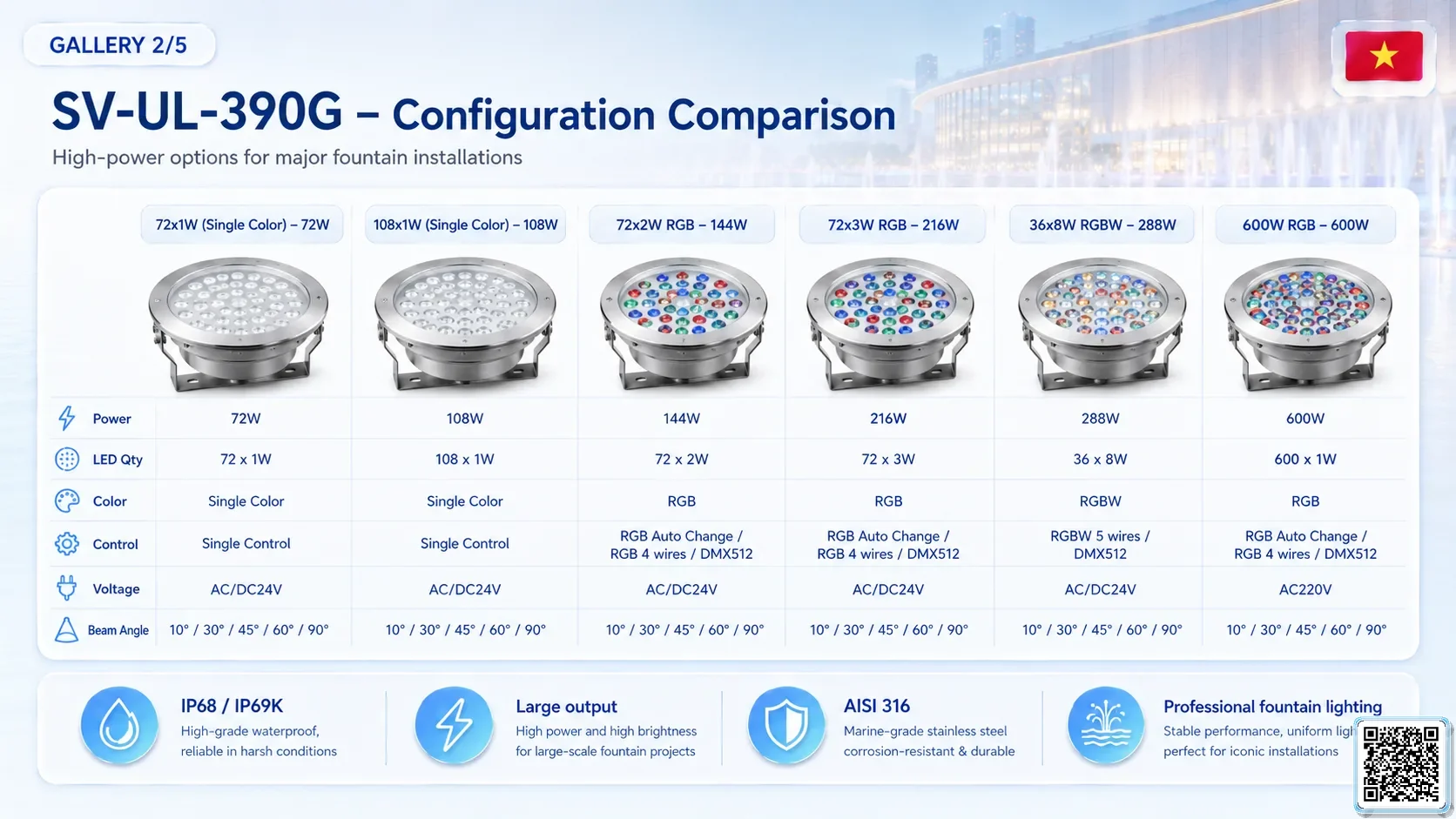

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 8

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
72x1W Single Color SV-UL-390G-72X1W-SINGLE-COLOR	-	72W	AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
108x1W Single Color SV-UL-390G-108X1W-SINGLE-COLOR	-	108W	AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
72x3W RGB SV-UL-390G-72X3W-RGB	3	216W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	14485	10° / 30° / 45° / 60° / 90°
36x6W RGBW SV-UL-390G-36X6W-RGBW	4	216W	AC/DC24V	RGBW 5 wires / DMX512	12730	10° / 30° / 45° / 60° / 90°
36x8W RGBW SV-UL-390G-36X8W-RGBW	4	288W	AC/DC24V	RGBW 5 wires / DMX512	15883	10° / 30° / 45° / 60° / 90°
72x2W SV-UL-390G-72X2W	3	144W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	8196	10° / 30° / 45° / 60° / 90°
108x2W SV-UL-390G-108X2W	3	48W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	12599	10° / 30° / 45° / 60° / 90°
600W RGB SV-UL-390G-600W-RGB	3	600W	AC220V	RGB Auto Change / RGB 4 wires / DMX512	27272	10° / 30° / 45° / 60° / 90°

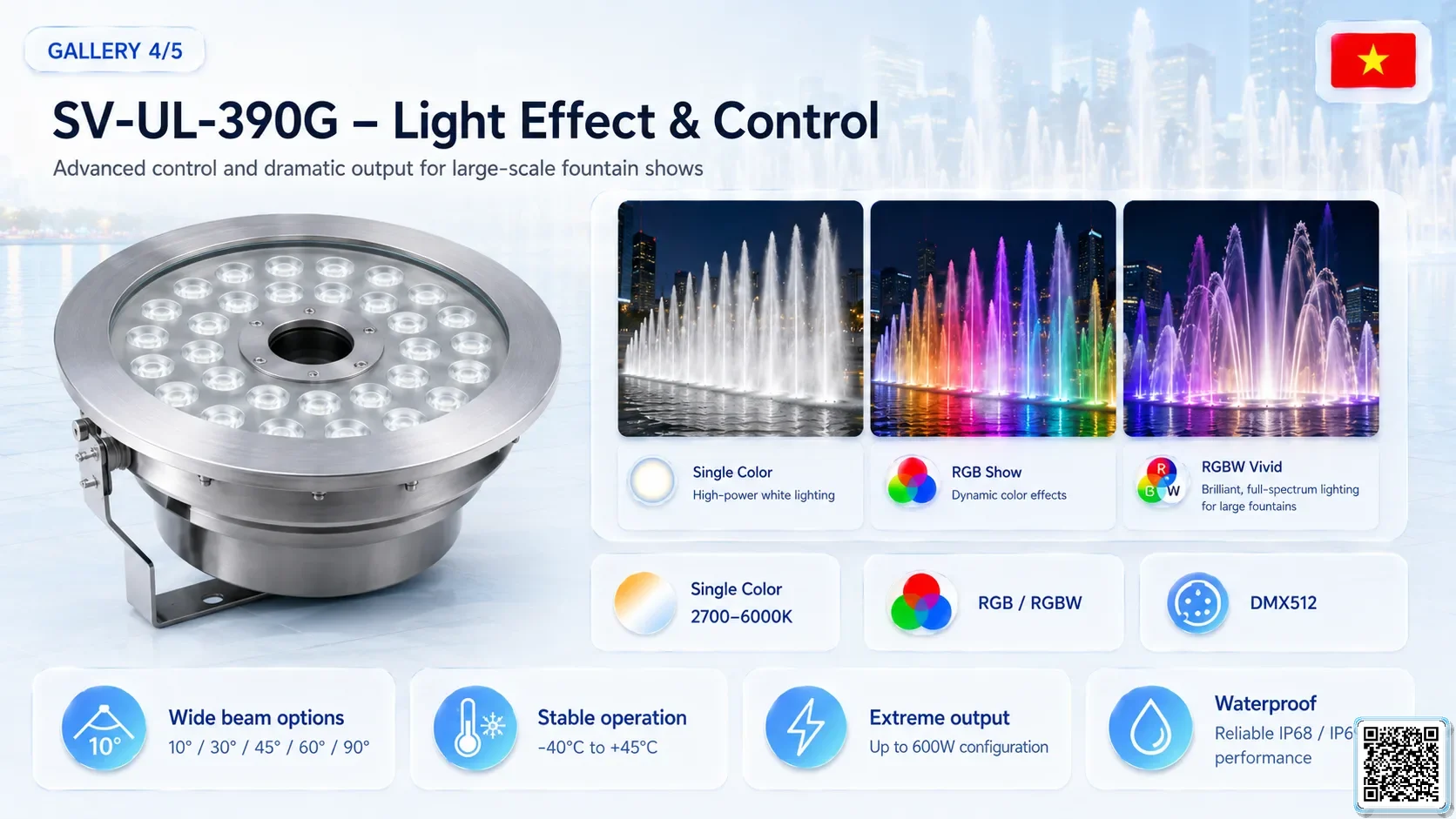

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Professional underwater LED spotlight for RGB lighting zones, fountain nozzles, pools and SmartVision water show systems.

Applications

Musical fountains, landscape fountains, garden pools, water features, caves, plazas, parks, hotels and resort water shows.

Key features

IP68/IP69/IP69K; DMX512 options; RGB/RGBW; AISI304/AISI316 stainless steel; tempered glass; multiple power variants; multiple beam angles; suitable for musical fountains and landscape pools.
