● UNDERWATER LED LIGHT

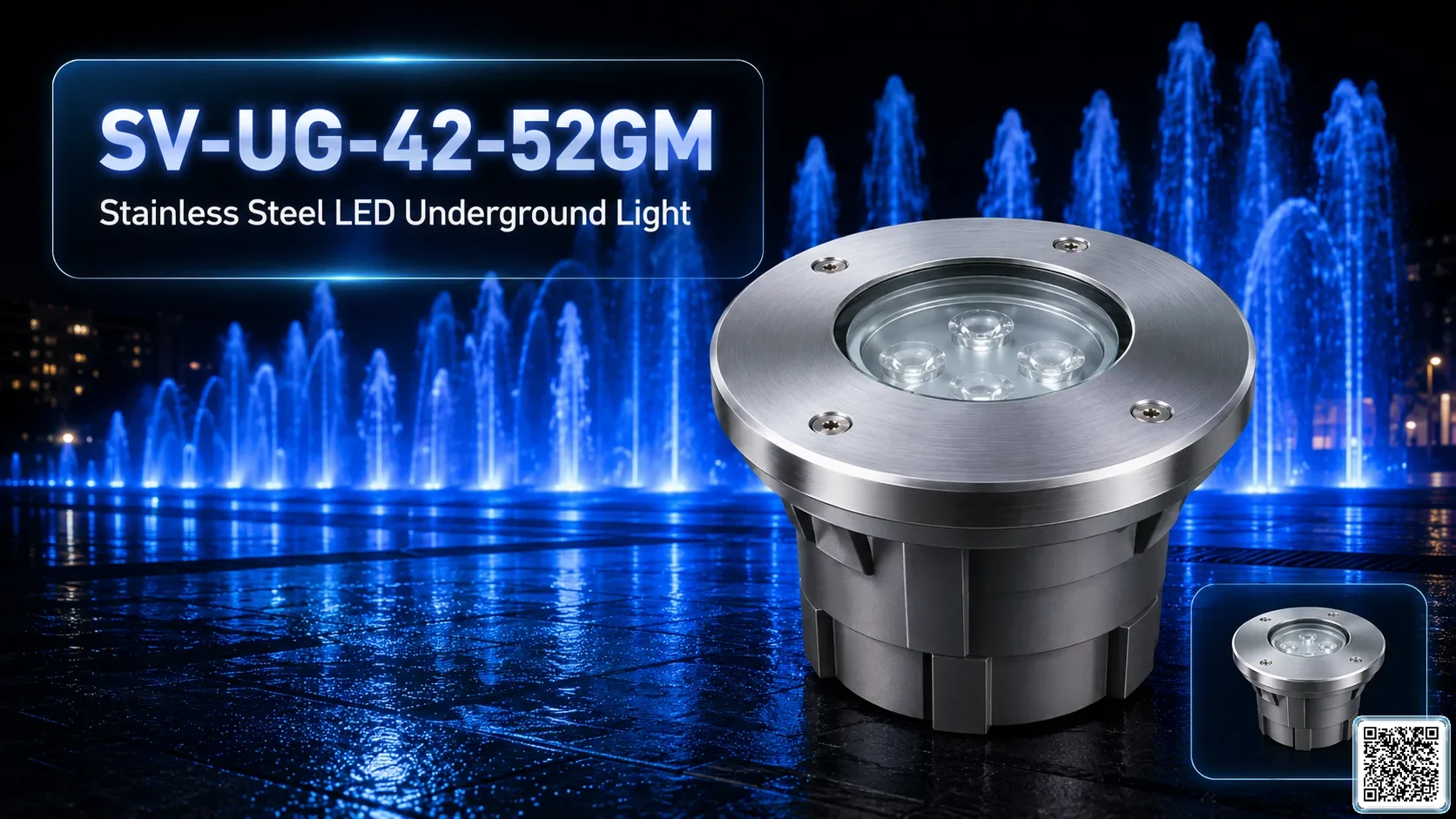

SV-UG-42-52GMStainless Steel LED Underground Light

Stainless steel LED underground light for fountains, landscape lighting, plazas and architectural projects.

underwater-lightsSV-UG-42-52GMRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 56⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

Technical Specifications

Series	Stainless Steel LED Underground Light Series
Installation Type	Recessed underground / landscape ground light installation
Cut Out Size	Φ34.8 / Φ37.5 / Φ39.5 / Φ46.5 mm
Lamp Body Size	42GM / 52GM body
Height	61 / 62 / 68 / 69 / 70 / 74 / 75 / 79.8 / 81 / 82 / 83.8 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection

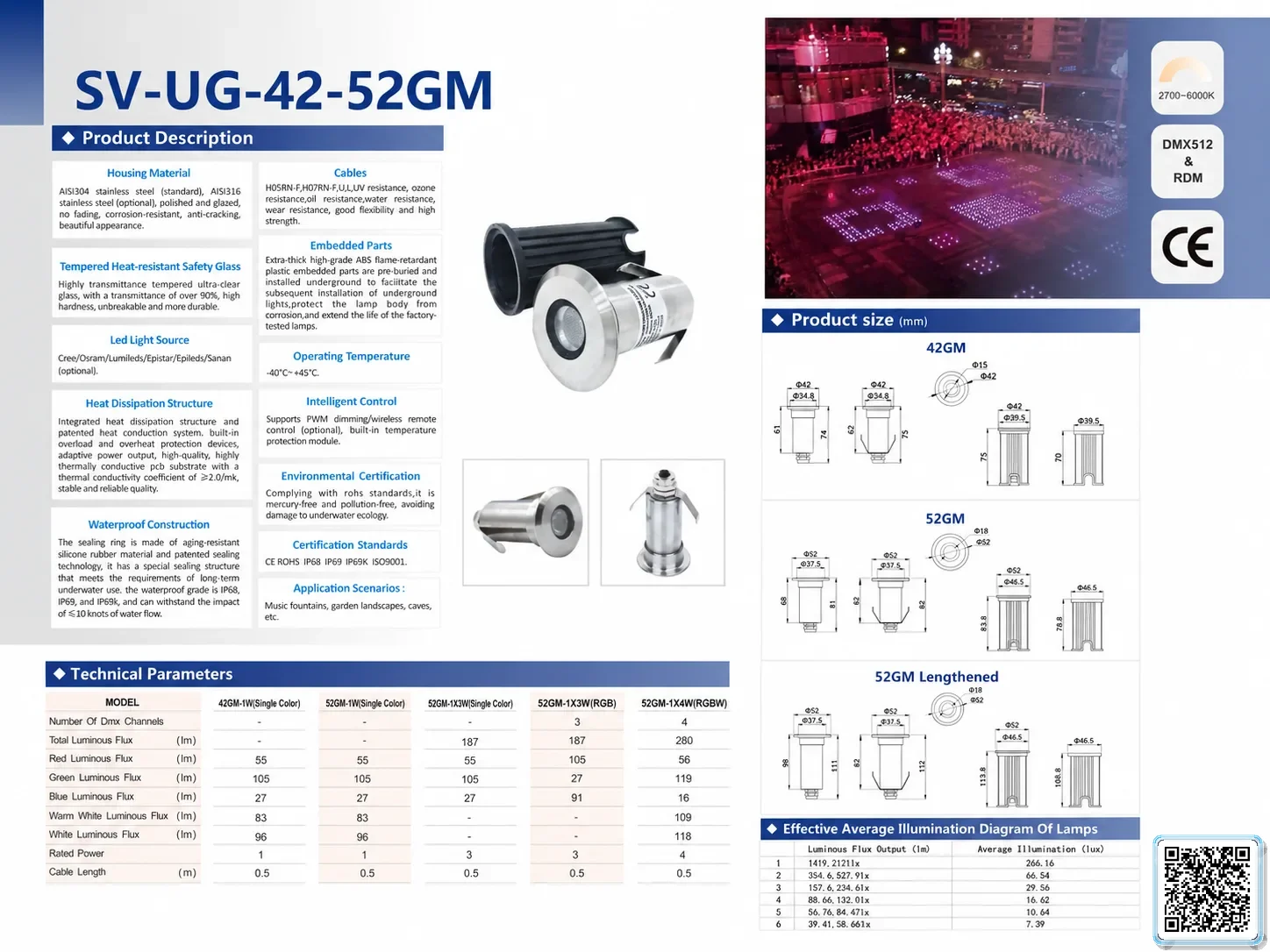

Catalogue Page	57-58
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Outdoor recessed ground / wet landscape installation
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term wet and outdoor use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	0.3 kg
Outlet Size	Φ34.8 / Φ37.5 / Φ39.5 / Φ46.5 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	Outer Ø42 / Ø52 mm body; Height: 61 / 62 / 68 / 69 / 70 / 74 / 75 / 79.8 / 81 / 82 / 83.8 mm

Project Integration

Professional recessed LED light for underground, landscape and architectural accent lighting projects. Best for:

Project-ready:

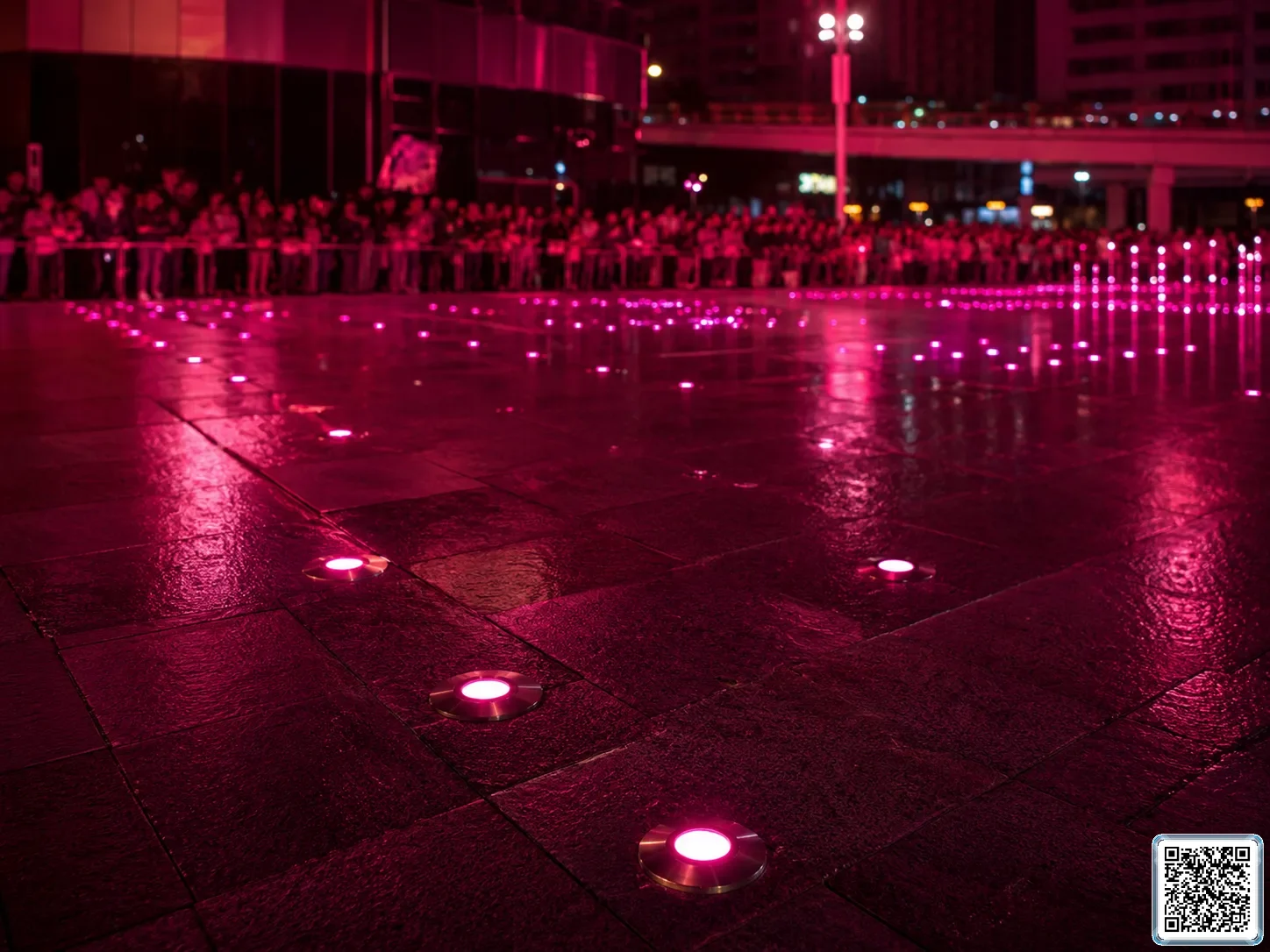

Landscape paths and plazas
Facade uplighting
Bridge and public-space accents
Water-show surrounding areas.
Outdoor waterproof stainless-steel construction
Beam-angle options for flexible design
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision project builder and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, installation detail, power planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 5

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
42GM-1W Single Color SV-UG-42-52GM-42GM-1WSC	-	1W	AC/DC12V / AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
52GM-1W Single Color SV-UG-42-52GM-52GM-1WSC	-	1W	AC/DC12V / AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
52GM-1x3W Single Color SV-UG-42-52GM-52GM-1X3WSC	-	3W	DC24V	Single Control		10° / 30° / 45° / 60° / 90°
52GM-1x3W RGB SV-UG-42-52GM-52GM-1X3WRGB	3	3W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	187	10° / 30° / 45° / 60° / 90°
52GM-1x4W RGBW SV-UG-42-52GM-52GM-1X4WRGBW	4	4W	DC24V	RGBW 5 wires / DMX512	280	10° / 30° / 45° / 60° / 90°
