● UNDERWATER LED LIGHT

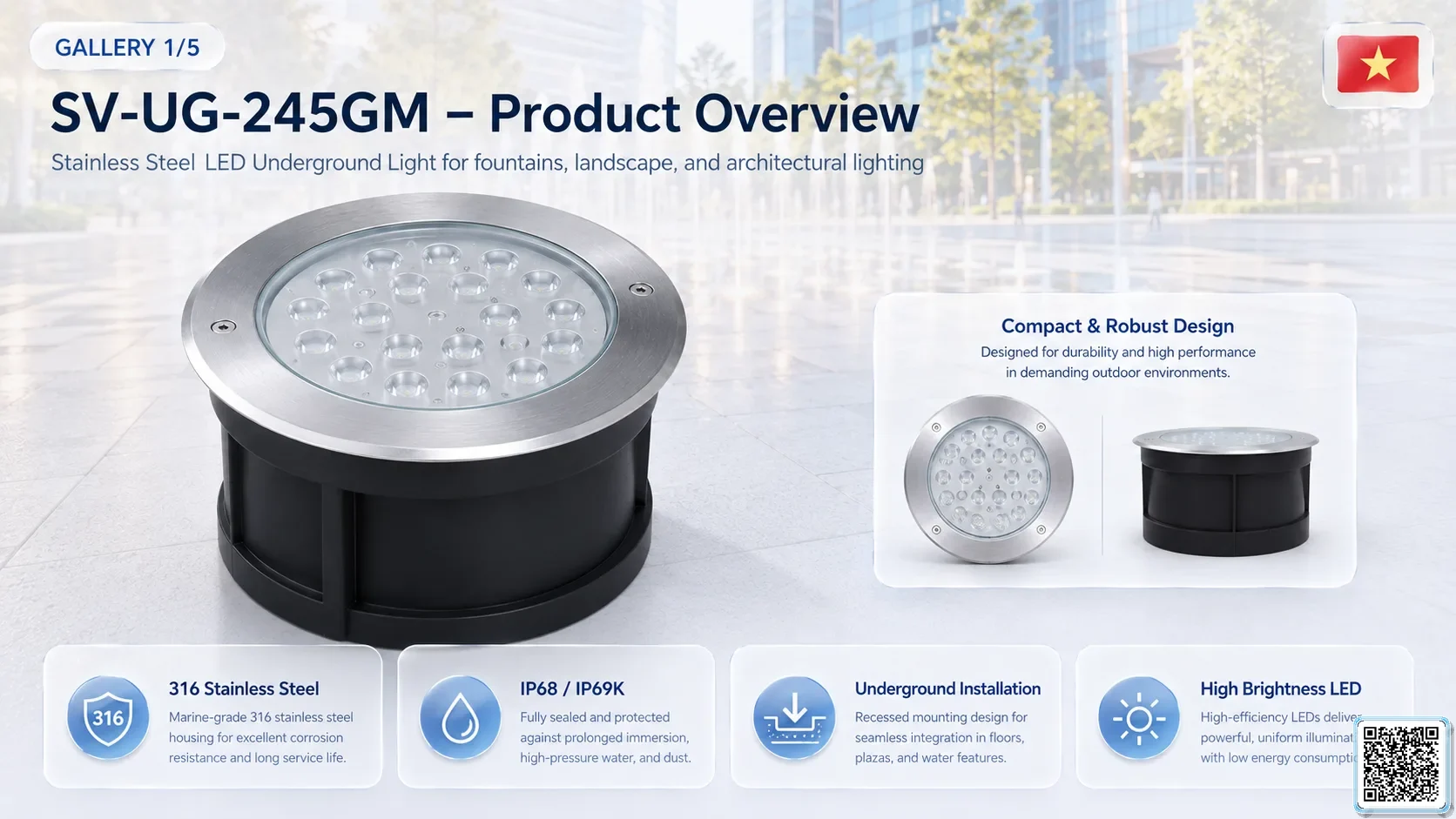

SV-UG-245GMStainless Steel LED Underground Light

Stainless steel LED underground light for fountains, landscape lighting, plazas and architectural projects.

underwater-lightsSV-UG-245GMRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 62⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

Technical Specifications

Series	Stainless Steel LED Underground Light Series

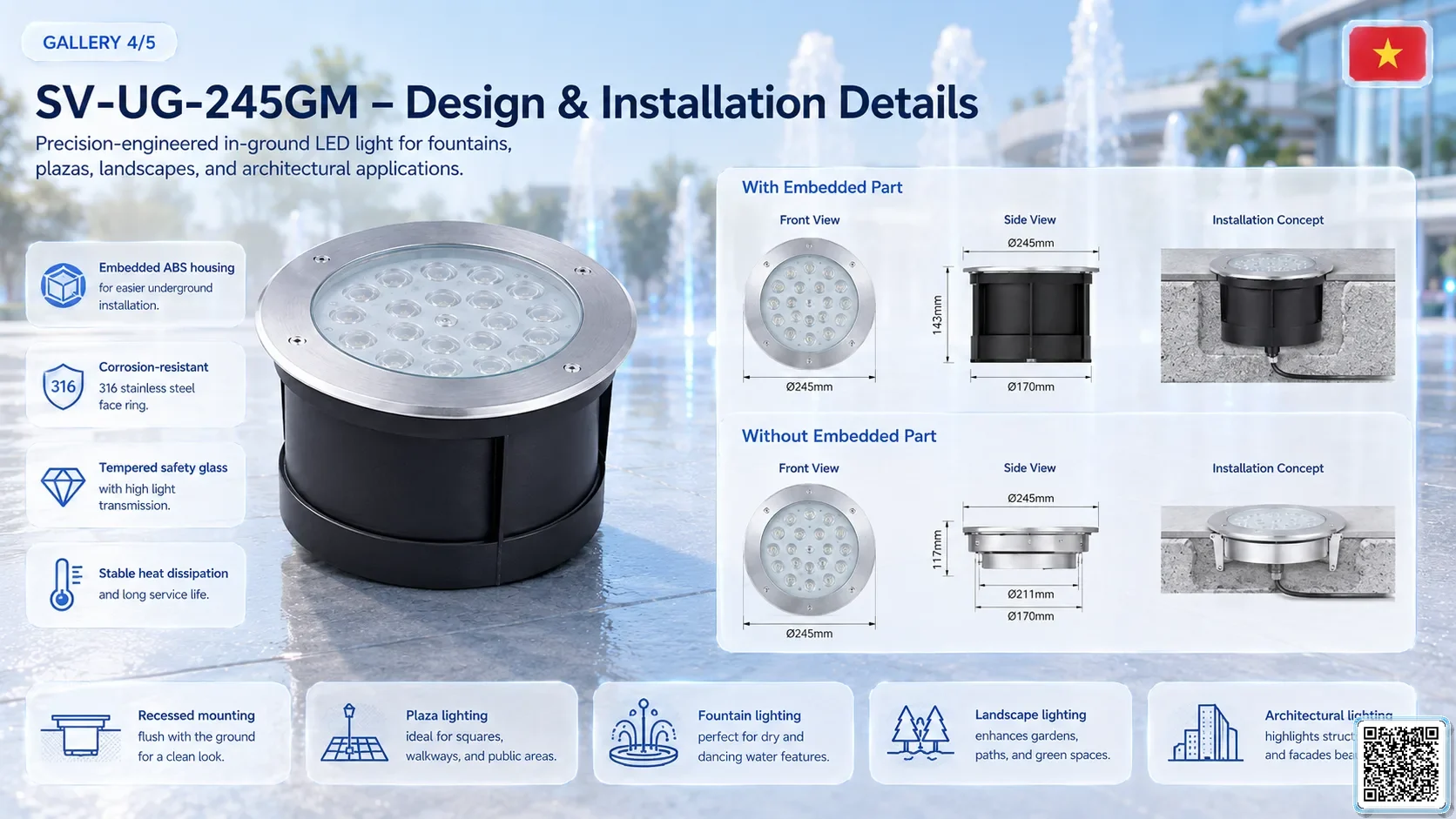

Installation Type	Recessed underground / landscape ground light installation
Cut Out Size	220 mm
Lamp Body Size	245GM body
Height	145 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	73-74
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Outdoor recessed ground / wet landscape installation
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term wet and outdoor use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	3.0 kg
Outlet Size	220 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	Outer Ø245 mm body; Height: 145 mm

Project Integration

Professional recessed LED light for underground, landscape and architectural accent lighting projects. Best for:

Project-ready:

Landscape paths and plazas
Facade uplighting
Bridge and public-space accents
Water-show surrounding areas.
Outdoor waterproof stainless-steel construction
Beam-angle options for flexible design
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision project builder and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, installation detail, power planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

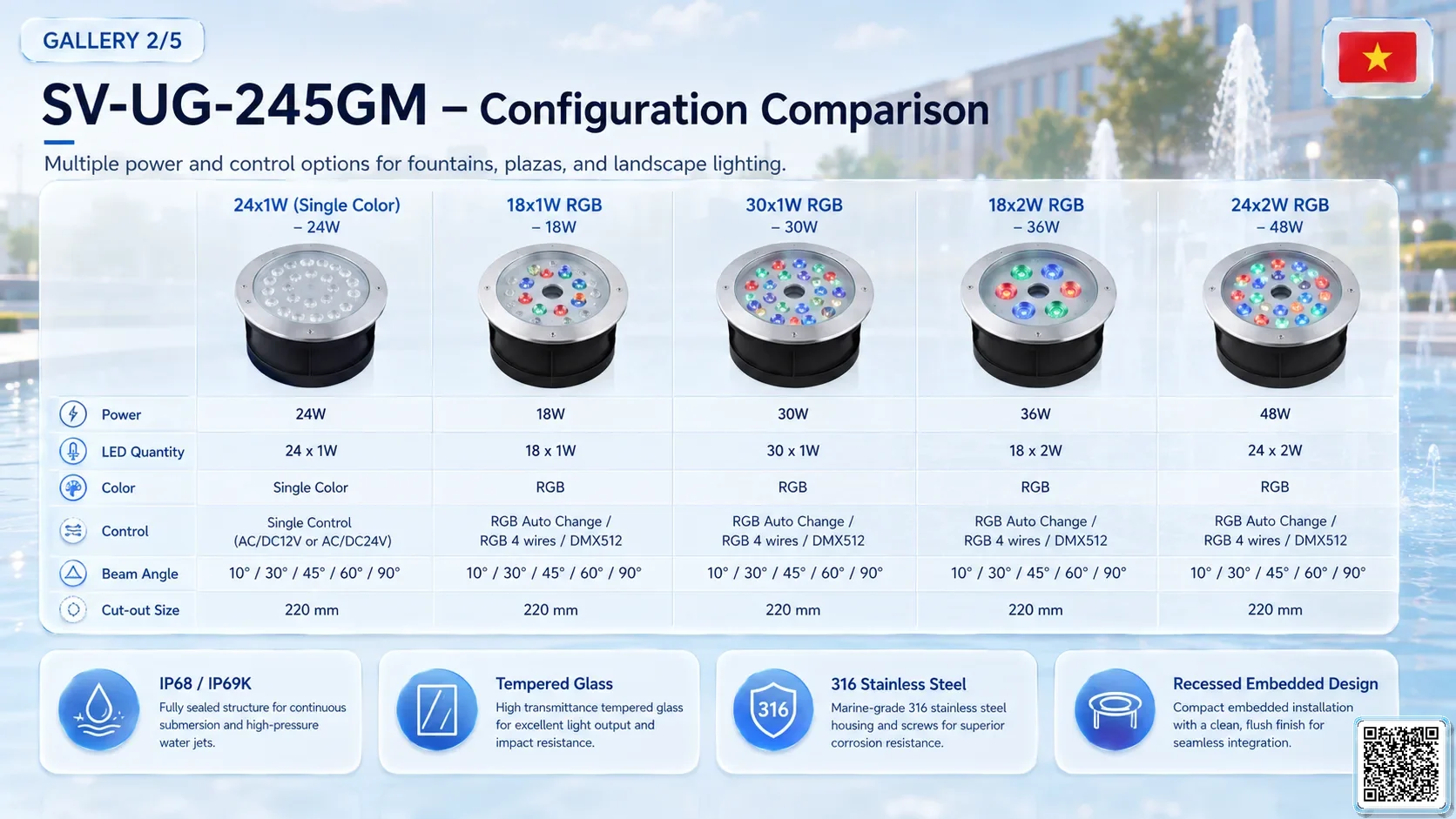

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 5

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
24x1W Single Color SV-UG-245GM-24X1WSC	-	24W	AC/DC12V / AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
18x1W SV-UG-245GM-18X1W	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1118	10° / 30° / 45° / 60° / 90°
30x1W SV-UG-245GM-30X1W	3	30W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1862	10° / 30° / 45° / 60° / 90°
18x2W SV-UG-245GM-18X2W	3	36W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	2002	10° / 30° / 45° / 60° / 90°
24x2W SV-UG-245GM-24X2W	3	48W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	2736	10° / 30° / 45° / 60° / 90°
