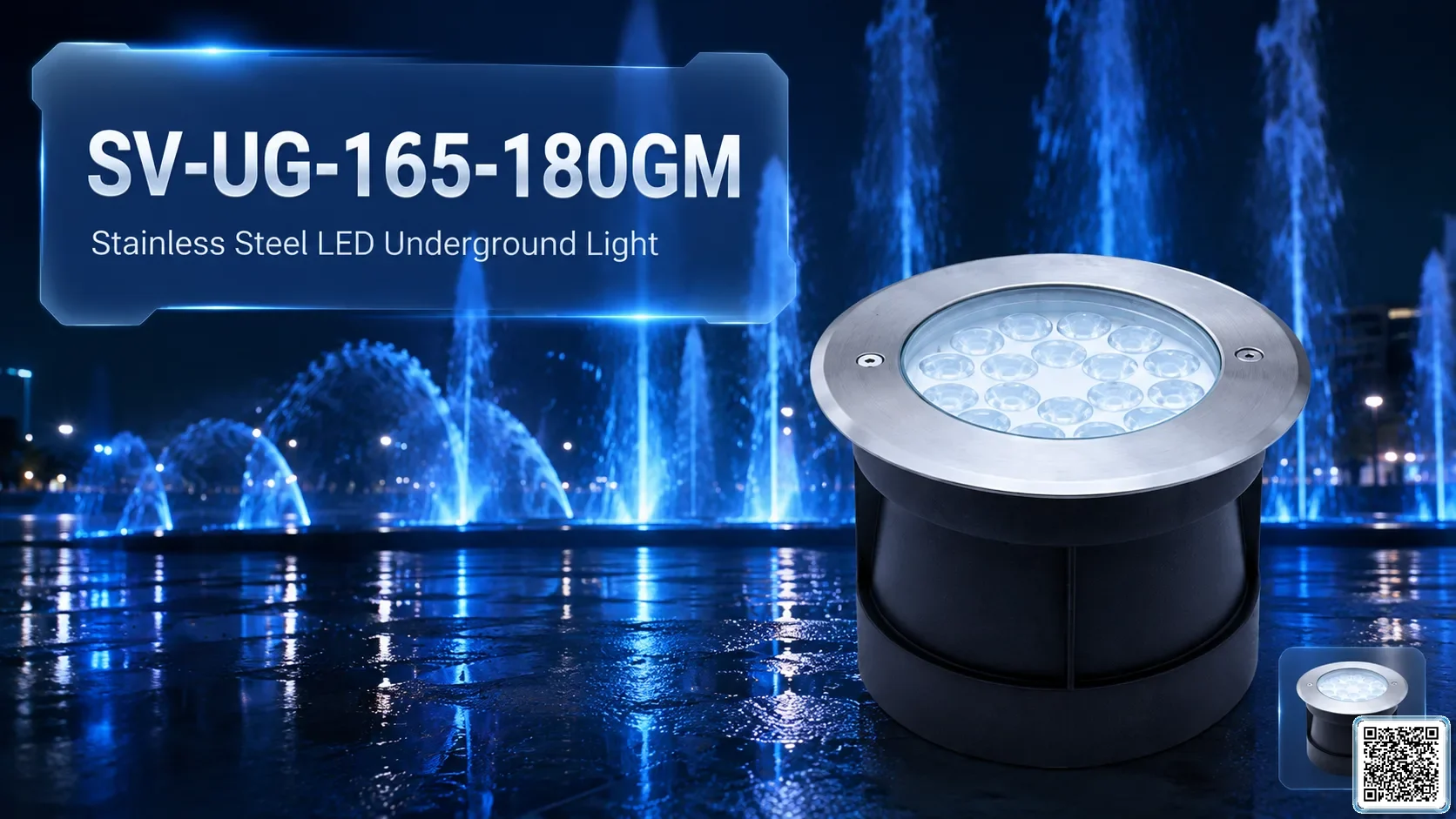

SV-UG-165-180GM Main / Hero image SmartVision water show equipment

● UNDERWATER LED LIGHT

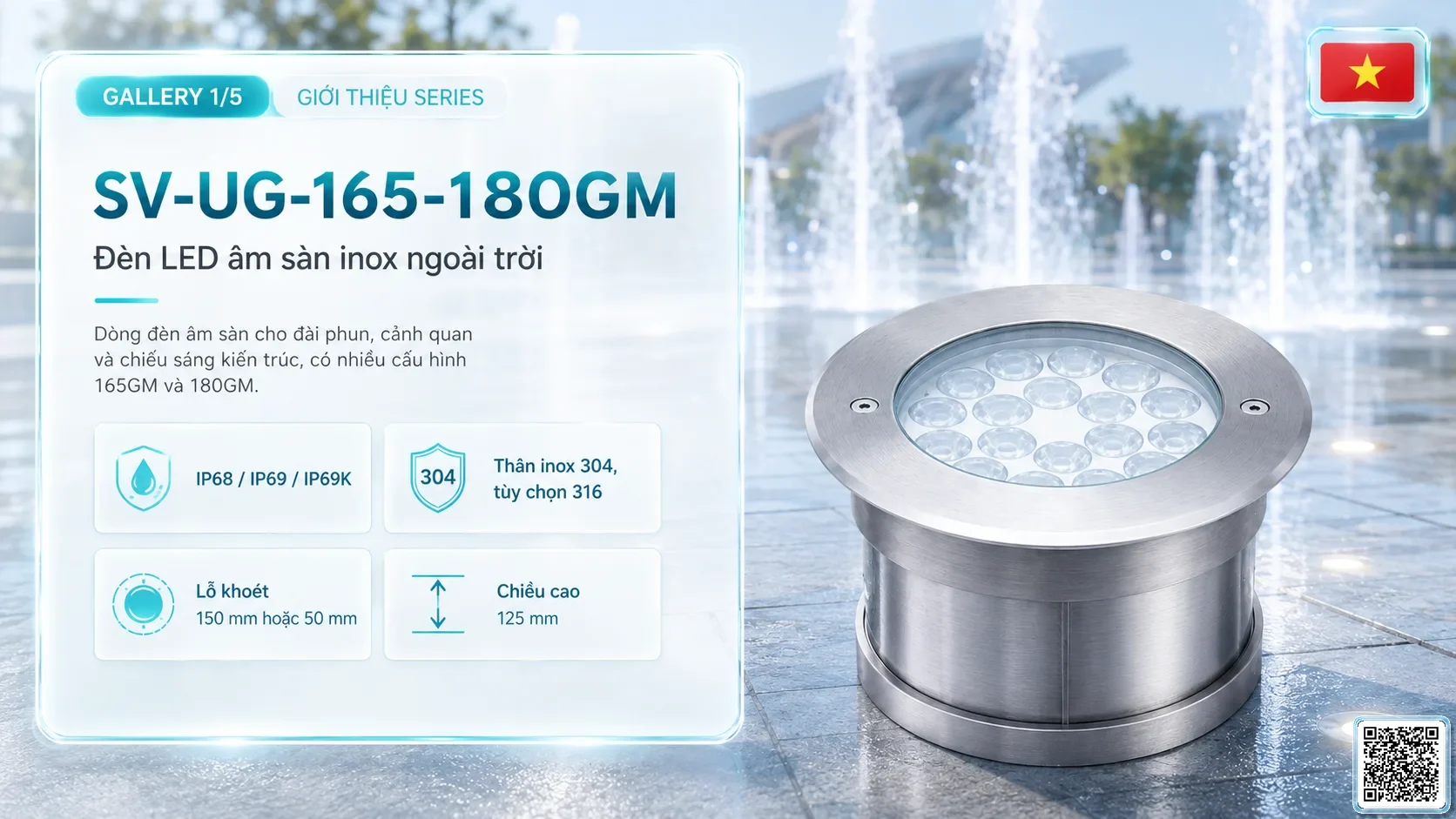

SV-UG-165-180GMStainless Steel LED Underground Light

Name: SV-UG-165-180GM Stainless Steel LED Underground Light
Brand: SmartVision

Stainless steel LED underground light for fountains, landscape lighting, plazas and architectural projects.

underwater-lightsSV-UG-165-180GMRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 29⬇ Download Catalogue ▣ Download CAD drawing

APPLICATIONS & FUNCTIONS

Find this equipment by use case

Overview

Stainless steel LED underground light for fountains, landscape lighting, plazas and architectural projects.

Applications

Musical fountains, garden landscapes, caves and architectural ground lighting.

Key features

Stainless steel housing; embedded installation; IP68/IP69/IP69K waterproof construction; RGB/RGBW/DMX512 options; multiple beam angles.

Related use casesIP68 underwater lightfountain lightRGB DMX512 lightsubmersible landscape light

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

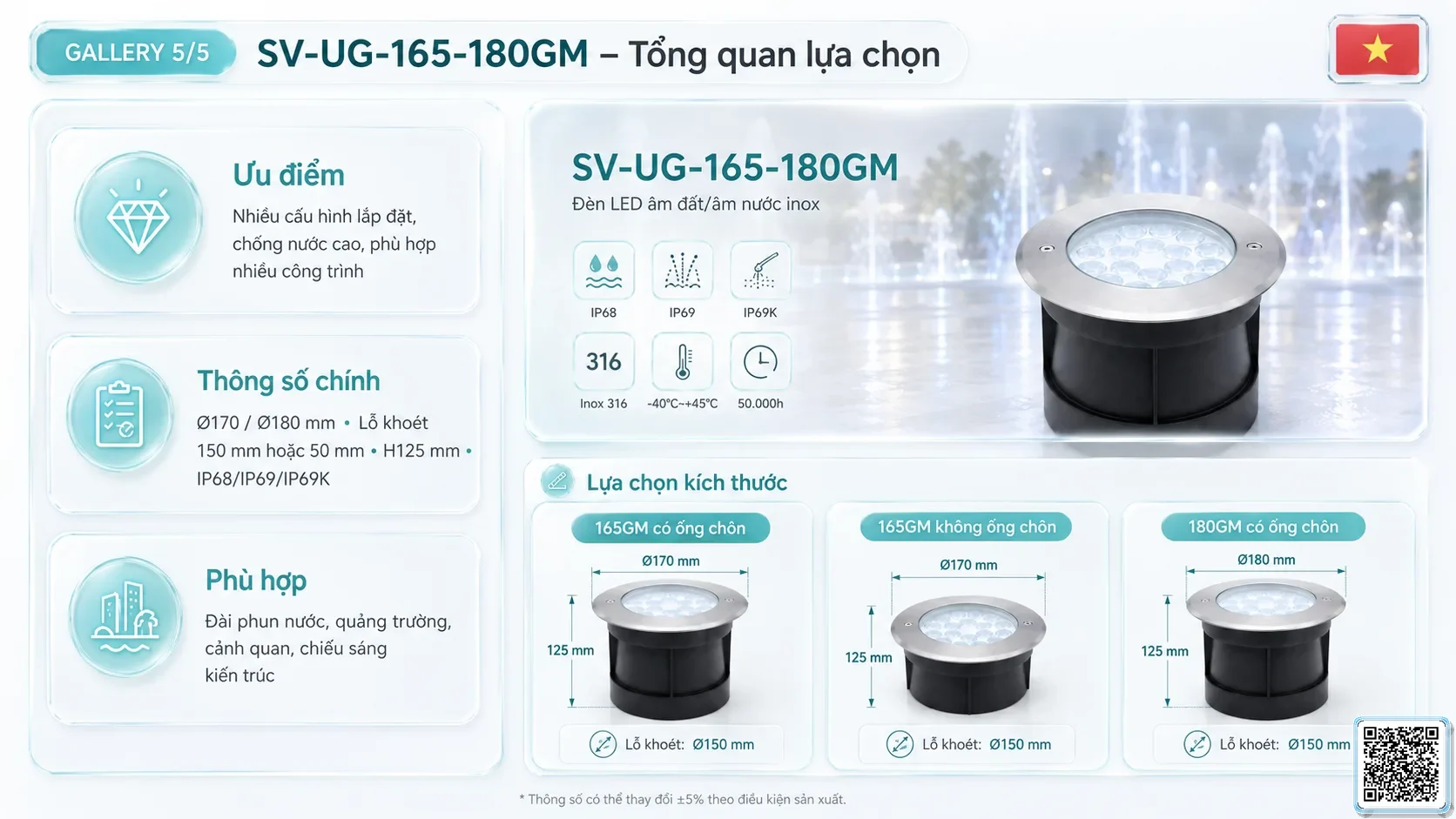

Technical Specifications

Series	Stainless Steel LED Underground Light Series
Installation Type	Recessed underground / landscape ground light installation
Cut Out Size	150 mm / 50 mm
Lamp Body Size	165GM / 180GM body
Height	125 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	67-68
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Outdoor recessed ground / wet landscape installation
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term wet and outdoor use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	1.5 / 1.8 kg
Outlet Size	150 mm / 50 mm
Material	AIS304 stainless steel standard / AIS316 optional

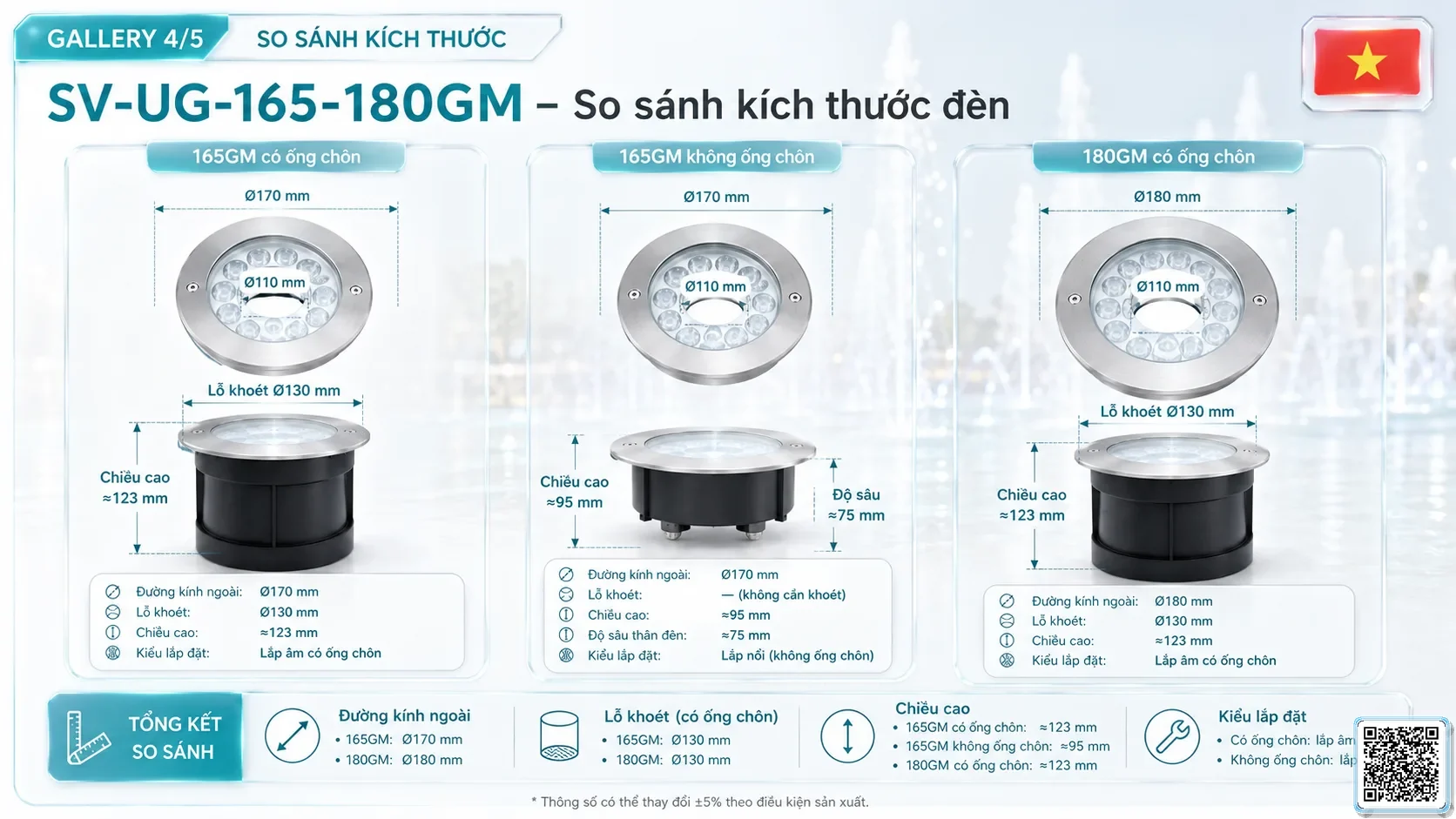

Dimensions	Outer Ø165 / Ø180 mm body; Height: 125 mm

Project Integration

Professional recessed LED light for underground, landscape and architectural accent lighting projects. Best for:

Project-ready:

Landscape paths and plazas
Facade uplighting
Bridge and public-space accents
Water-show surrounding areas.
Outdoor waterproof stainless-steel construction
Beam-angle options for flexible design
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision project builder and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, installation detail, power planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

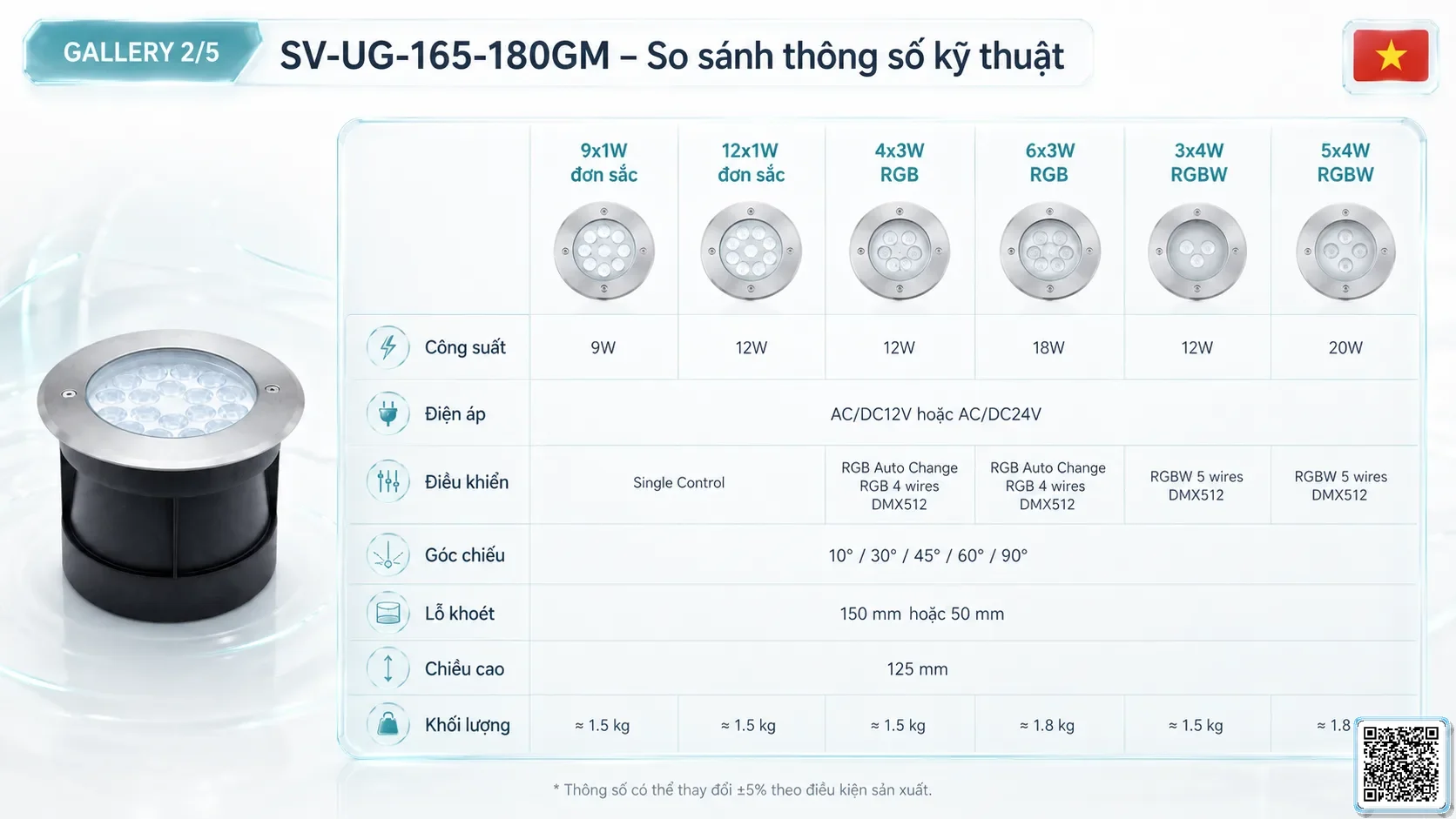

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 8

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
9x1W Single Color SV-UG-165-180GM-9X1WSC	-	9W	AC/DC12V / AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
12x1W Single Color SV-UG-165-180GM-12X1WSC	-	12W	AC/DC12V / AC/DC24V	Single Control		10° / 30° / 45° / 60° / 90°
9x1W SV-UG-165-180GM-9X1W	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	560	10° / 30° / 45° / 60° / 90°
12x1W SV-UG-165-180GM-12X1W	3	12W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	746	10° / 30° / 45° / 60° / 90°
4x3W RGB SV-UG-165-180GM-4X3WRGB	3	12W	DC24V	RGB Auto Change / RGB 4 wires / DMX512	749	10° / 30° / 45° / 60° / 90°
6x3W RGB SV-UG-165-180GM-6X3WRGB	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1122	10° / 30° / 45° / 60° / 90°
3x4W RGBW SV-UG-165-180GM-3X4WRGBW	4	12W	AC/DC12V / AC/DC24V	RGBW 5 wires / DMX512	862	10° / 30° / 45° / 60° / 90°
5x4W RGBW SV-UG-165-180GM-5X4WRGBW	4	20W	AC/DC24V	RGBW 5 wires / DMX512	1437	10° / 30° / 45° / 60° / 90°
