● UNDERWATER LED LIGHT

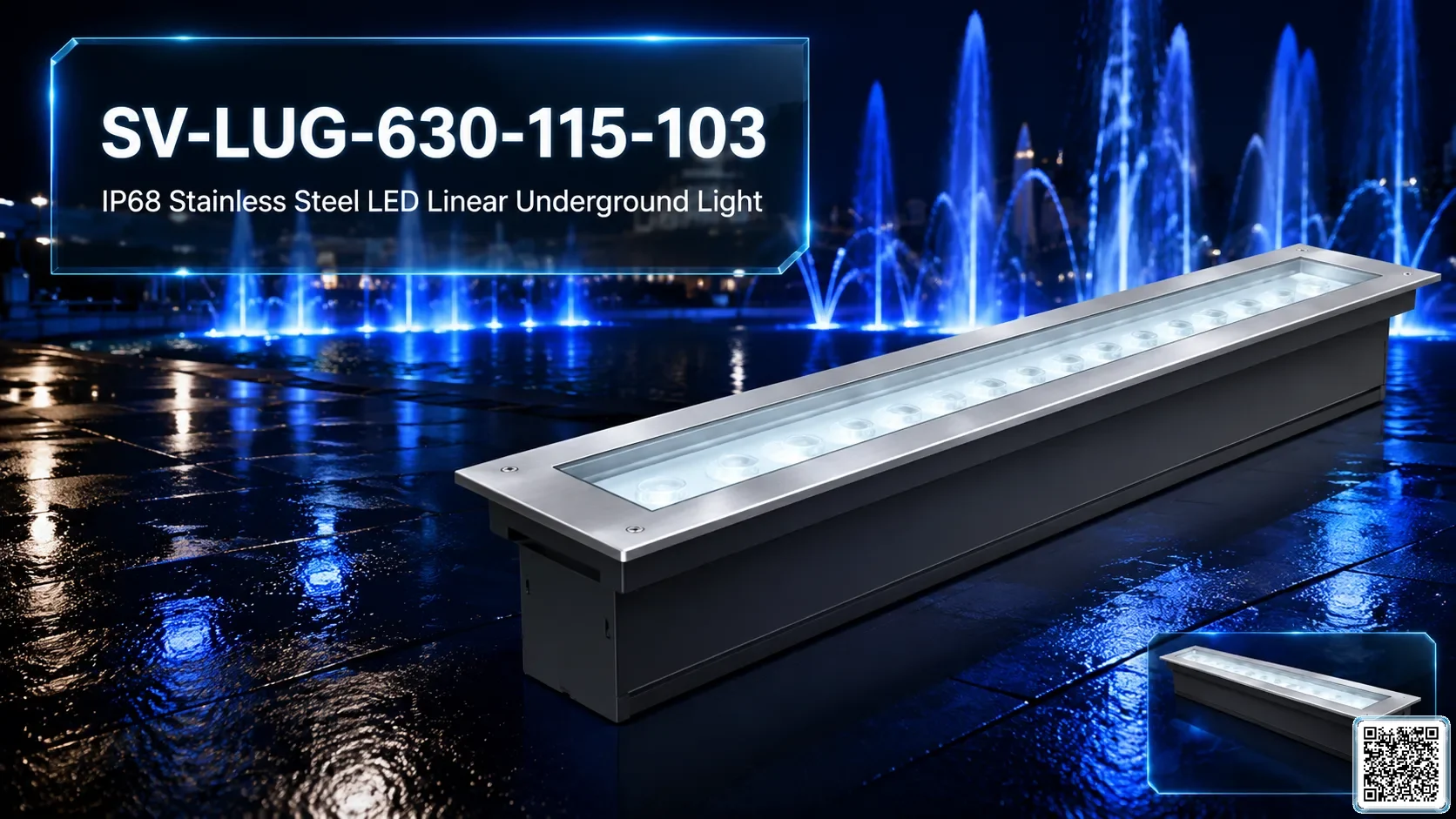

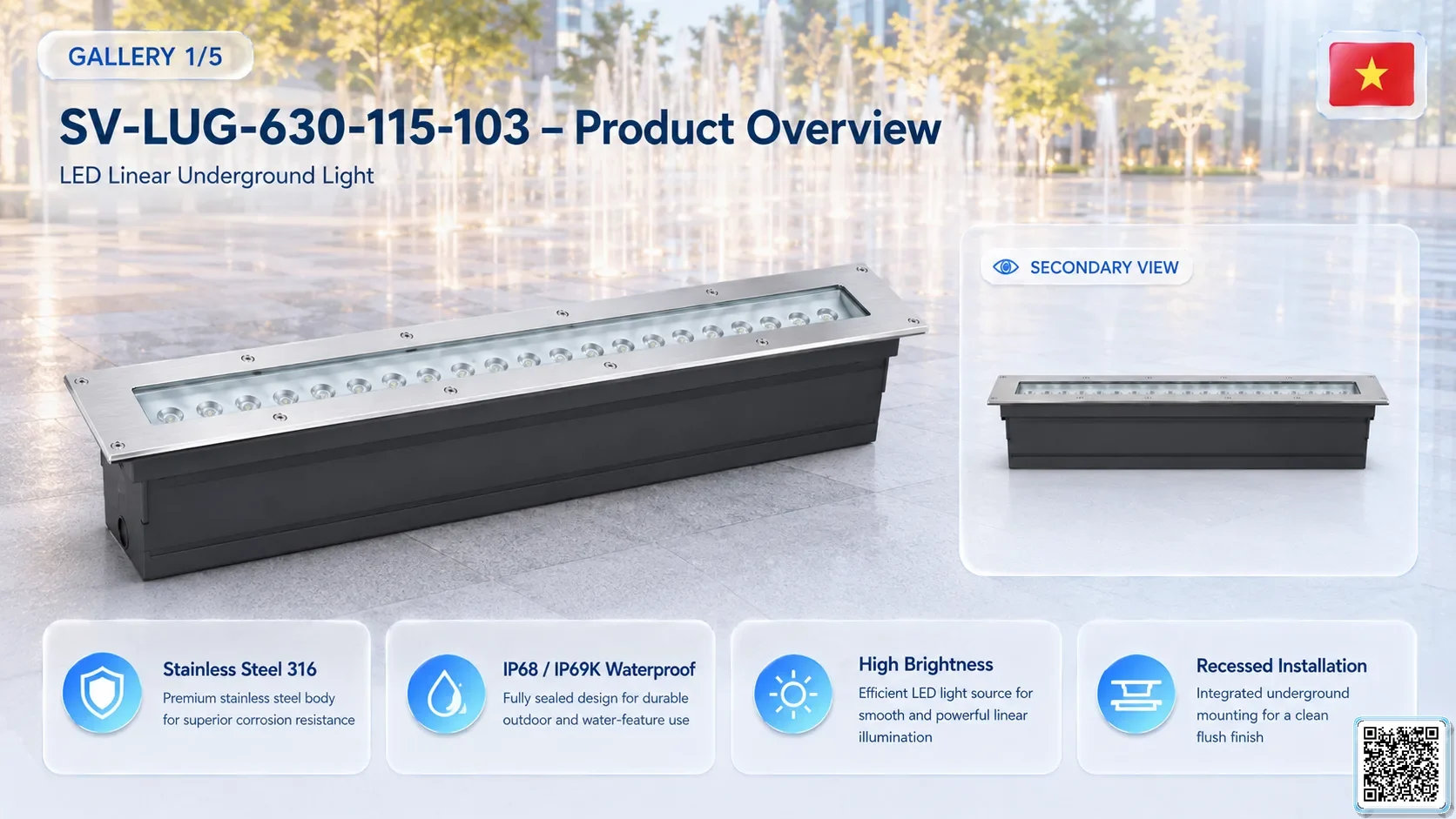

SV-LUG-630-115-103IP68 Stainless Steel LED Linear Underground Light

IP68 stainless steel LED linear underground light for fountains, landscape lighting and architectural ground lighting.

underwater-lightsSV-LUG-630-115-103Request quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 68⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

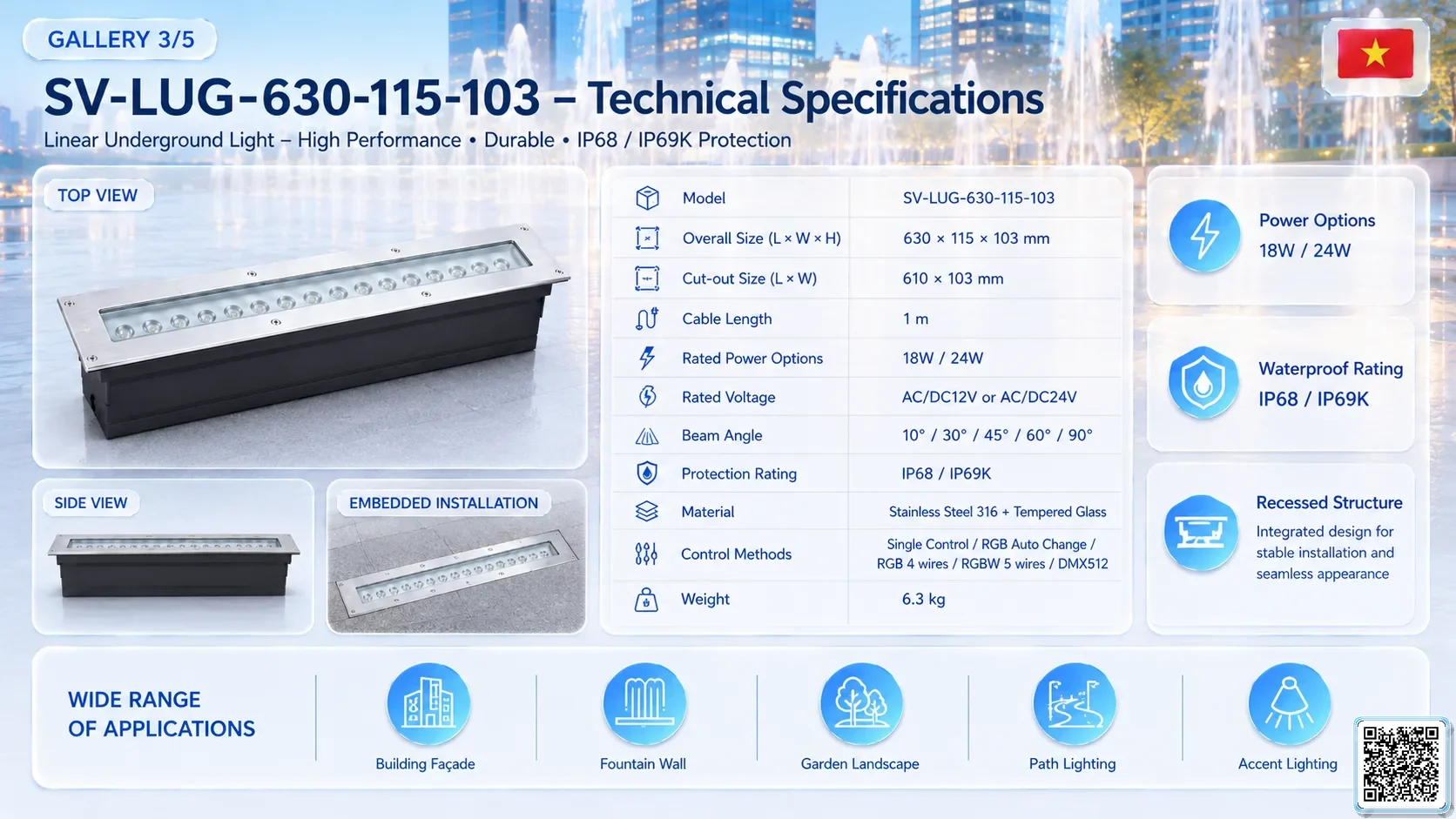

Technical Specifications

Series	IP68 Waterproof Stainless Steel LED Linear Underground Light Series
Installation Type	Embedded linear underground / recessed landscape light installation
Cut Out Size	610×103 mm
Lamp Body Size	630×115×103 body
Height	103 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	77
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance / oil resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection devices
Pressure Resistance Depth	Outdoor recessed ground / wet landscape installation
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term wet and outdoor use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	6.3 kg
Outlet Size	630×115×103 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	630×115×103 mm

Project Integration

Professional linear recessed LED light for architectural landscape, plaza and water-show perimeter lighting. Best for:

Project-ready:

Linear ground accents
Facade and wall grazing
Bridge/walkway lighting
Fountain perimeter highlights.
Outdoor waterproof stainless-steel construction
Linear beam design for clean visual continuity
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision project builder and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, installation detail, power planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 3

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
630-18X1W Single Color SV-LUG-630-115-103-630-18X1W-SINGLE-COLOR	-	18W	AC/DC12V / AC/DC24V	Single Control	-	10° / 30° / 45° / 60° / 90°
630-18X1W RGB SV-LUG-630-115-103-630-18X1W-RGB	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / RGBW 5 wires / DMX512	1118	10° / 30° / 45° / 60° / 90°
630-24X1W RGBW SV-LUG-630-115-103-630-24X1W-RGBW	4	24W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / RGBW 5 wires / DMX512	1490	10° / 30° / 45° / 60° / 90°
