● UNDERWATER LED LIGHT

SV-LUG-430-115-123IP68 Stainless Steel LED Linear Underground Light

Name: SV-LUG-430-115-123 IP68 Stainless Steel LED Linear Underground Light
Brand: SmartVision

IP68 stainless steel LED linear underground light for fountains, landscape lighting and architectural ground lighting.

underwater-lightsSV-LUG-430-115-123Request quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 26⬇ Download Catalogue ▣ Download CAD drawing

APPLICATIONS & FUNCTIONS

Find this equipment by use case

Overview

IP68 stainless steel LED linear underground light for fountains, landscape lighting and architectural ground lighting.

Applications

Musical fountains, garden landscapes, caves, plazas, steps, walls and architectural linear ground lighting.

Key features

Linear stainless steel body; IP68/IP69/IP69K; embedded parts or clamp bracket; RGB/RGBW/DMX512 options; multiple lengths and beam angles.

Related use casesIP68 underwater lightfountain lightRGB DMX512 lightsubmersible landscape light

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

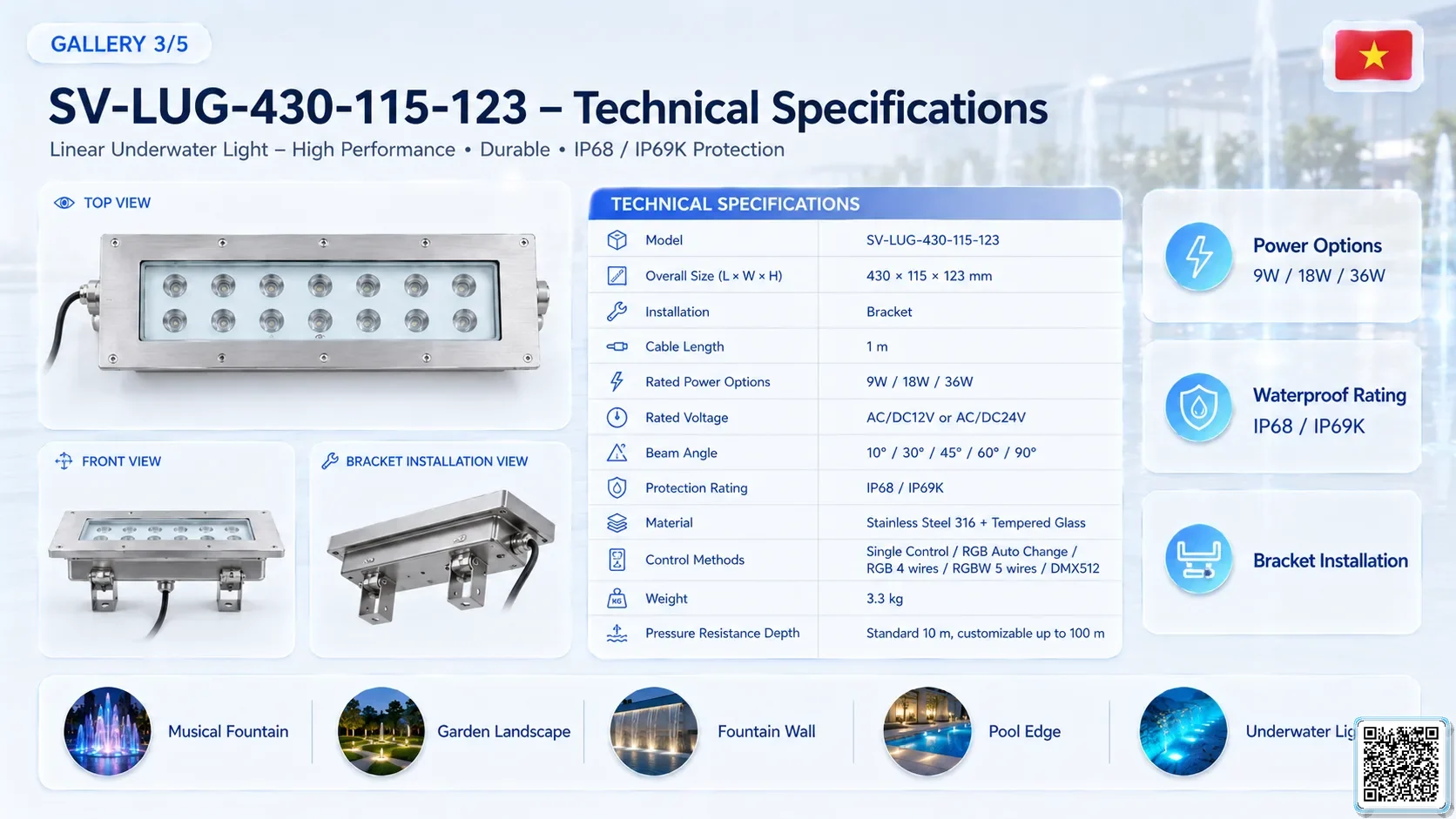

Technical Specifications

Series	IP68 Waterproof Stainless Steel LED Linear Underground Light Series
Installation Type	Embedded linear underground / recessed landscape light installation
Cut Out Size	Clamp bracket
Lamp Body Size	430×115×123 body
Height	123 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	79
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance / oil resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection devices
Pressure Resistance Depth	Outdoor recessed ground / wet landscape installation
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term wet and outdoor use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	3.3 kg
Outlet Size	430×115×123 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	430×115×123 mm

Project Integration

Professional linear recessed LED light for architectural landscape, plaza and water-show perimeter lighting. Best for:

Project-ready:

Linear ground accents
Facade and wall grazing
Bridge/walkway lighting
Fountain perimeter highlights.
Outdoor waterproof stainless-steel construction
Linear beam design for clean visual continuity
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision project builder and control cabinet workflow. SmartVision can support lighting layout, quantity calculation, installation detail, power planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

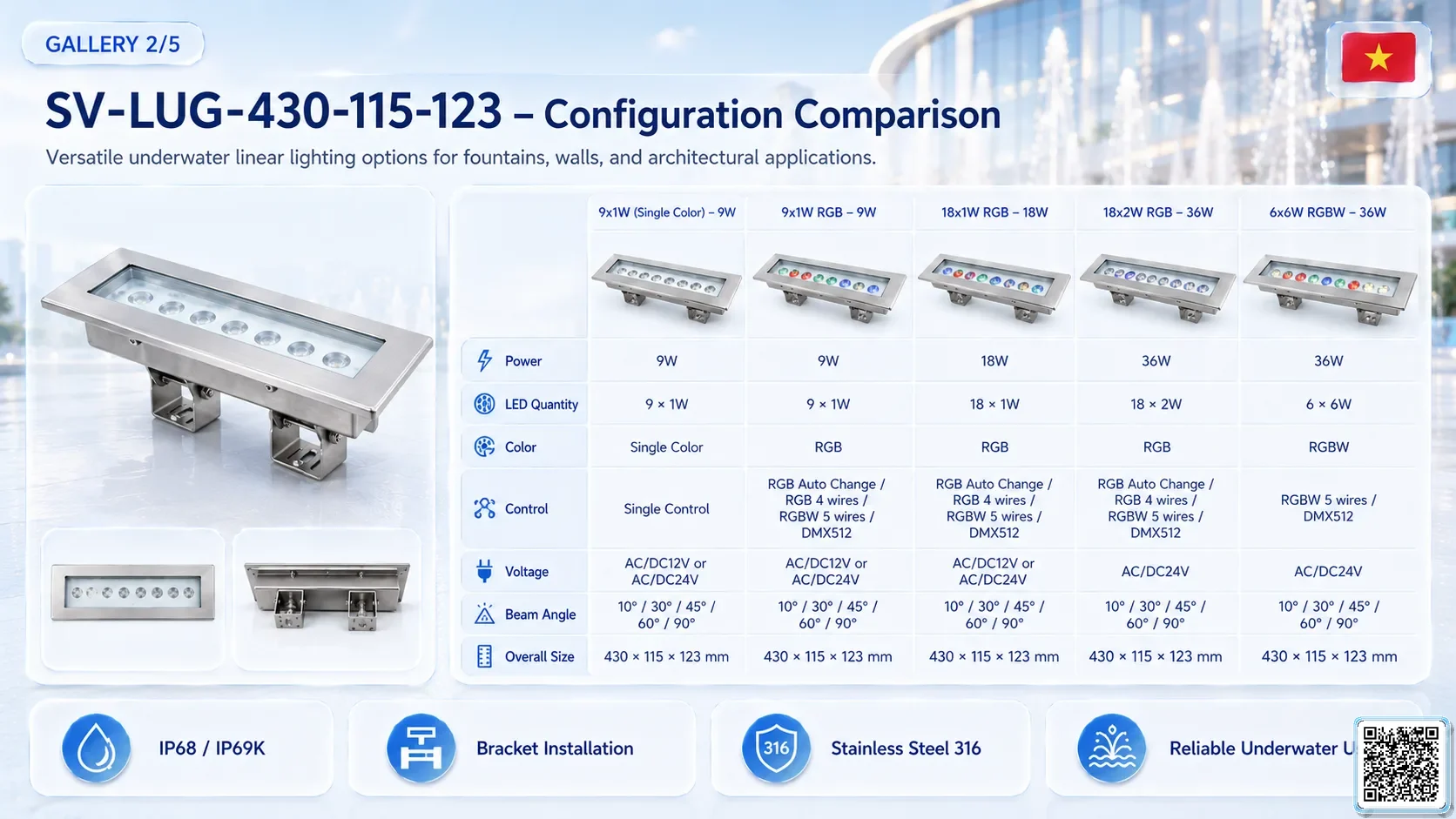

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 5

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Beam Angle
430-9X1W Single Color SV-LUG-430-115-123-430-9X1W-SINGLE-COLOR	-	9W	AC/DC12V / AC/DC24V	Single Control	-	10° / 30° / 45° / 60° / 90°
430-9X1W RGB SV-LUG-430-115-123-430-9X1W-RGB	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / RGBW 5 wires / DMX512	560	10° / 30° / 45° / 60° / 90°
430-18X1W RGB SV-LUG-430-115-123-430-18X1W-RGB	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / RGBW 5 wires / DMX512	1118	10° / 30° / 45° / 60° / 90°
430-18X2W RGB SV-LUG-430-115-123-430-18X2W-RGB	3	36W	AC/DC24V	RGB Auto Change / RGB 4 wires / RGBW 5 wires / DMX512	2002	10° / 30° / 45° / 60° / 90°
430-6X6W RGBW SV-LUG-430-115-123-430-6X6W-RGBW	4	36W	AC/DC24V	RGBW 5 wires / DMX512	2019	10° / 30° / 45° / 60° / 90°
