● UNDERWATER LED LIGHT

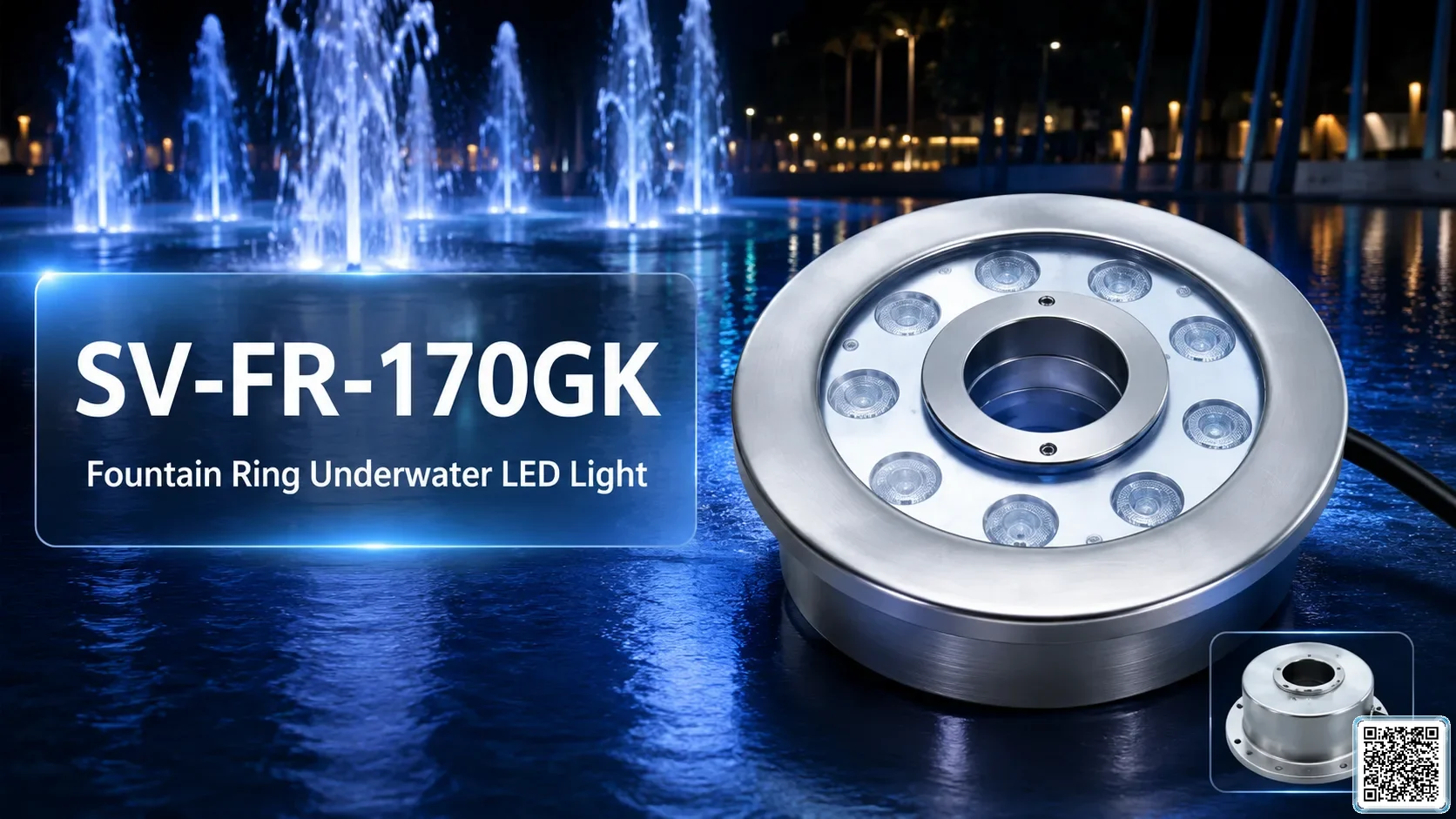

SV-FR-170GKFountain Ring Underwater LED Light

Name: SV-FR-170GK Fountain Ring Underwater LED Light
Brand: SmartVision

SV-FR-170GK is a 24V stainless-steel fountain ring underwater LED light for musical fountains, water fountain nozzles and landscape water features.

underwater-lightsSV-FR-170GKRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 42⬇ Download Catalogue ▣ Download CAD drawing

APPLICATIONS & FUNCTIONS

Find this equipment by use case

Overview

Professional center-hole fountain ring underwater LED light for fountain nozzle assemblies, RGB/RGBW lighting zones and SmartVision water show projects.

Applications

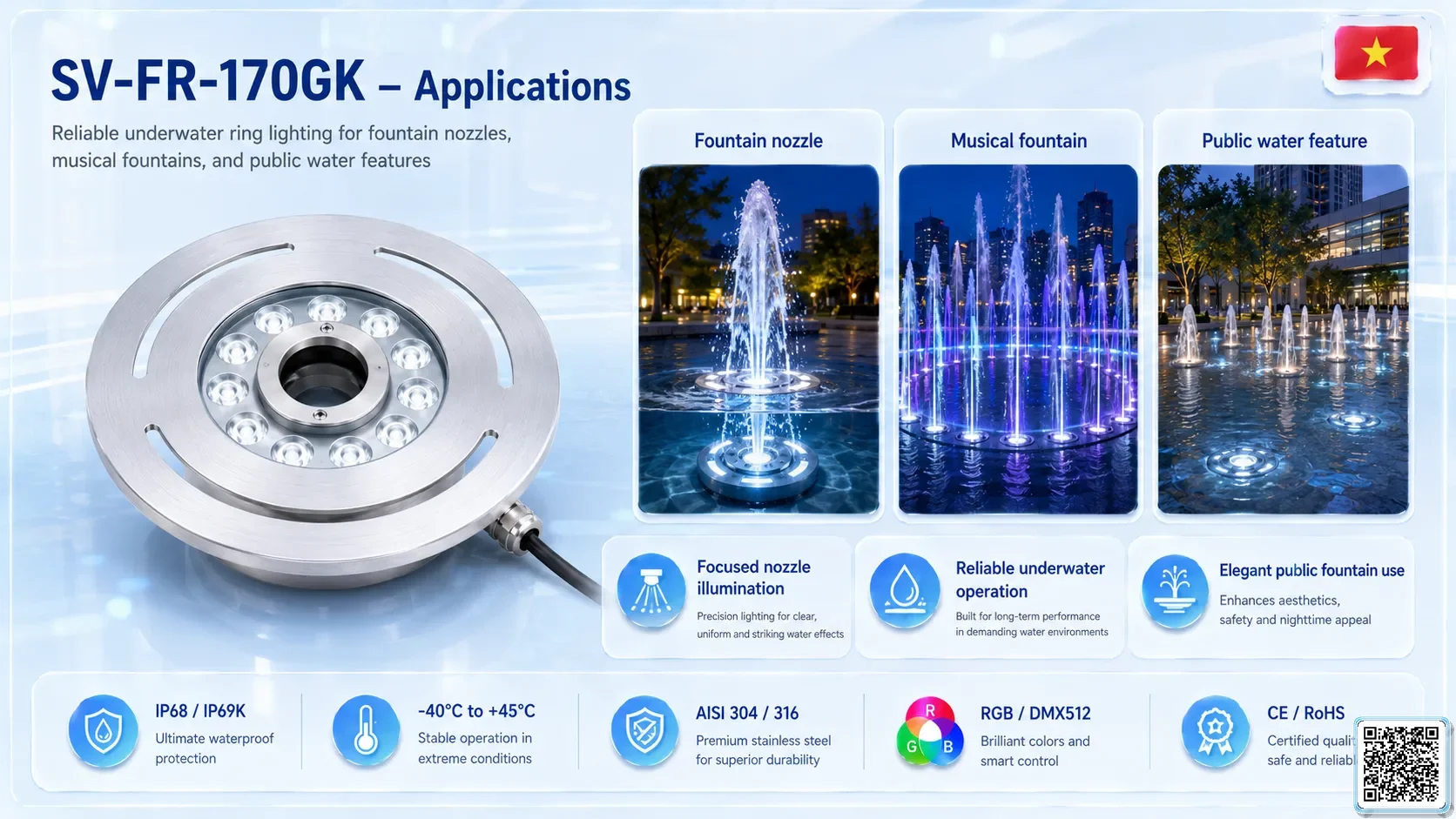

Musical fountains, dancing fountains, water fountain nozzles, plaza water shows, hotel and resort landscapes, garden water features and architectural fountain lighting.

Key features

Center-hole ring design; 42 / 50 mm center-hole options; IP68/IP69/IP69K; DMX512 options; RGB/RGBW variants; AISI304/AISI316 stainless steel; multiple beam angles; 24V fountain lighting.

Related use casesIP68 underwater lightfountain lightRGB DMX512 lightsubmersible landscape light

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

Technical Specifications

Series	Stainless Steel LED Fountain Ring Light For Water Fountain Series
Installation Type	Center-hole / ring light installation
Cut Out Size	42 / 50 mm center hole
Lamp Body Size	170G body
Height	80.5 mm / 84.5 mm
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	27-28

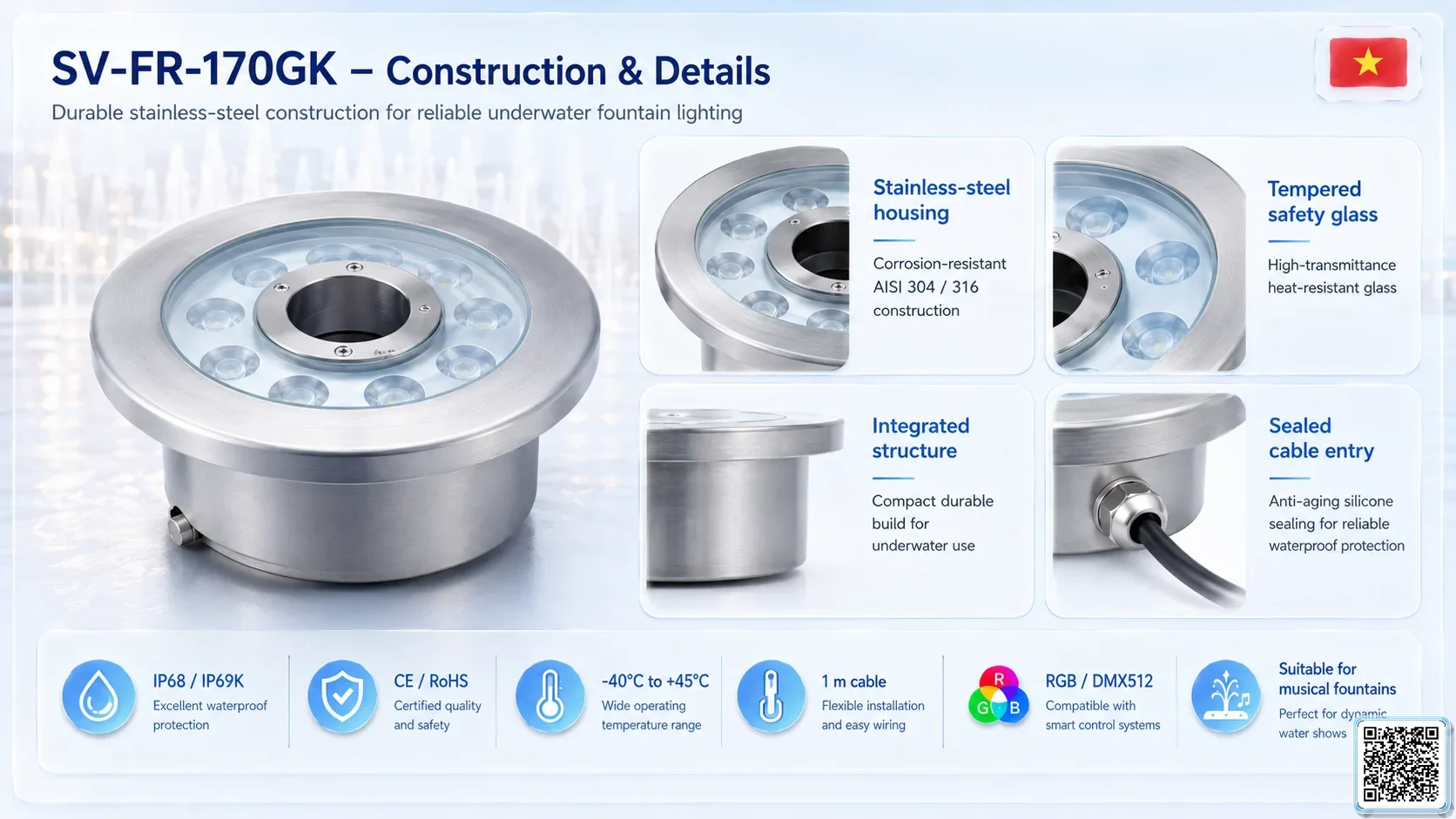

Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Heat-resistant tempered ultra-clear safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar / Epileds / Sanan optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Standard 10m; customized models up to 100m
Operating Temperature	-40°C ~ +45°C
Intelligent Control	PWM dimming / wireless remote optional / built-in temperature protection module
Waterproof Construction	IP68 / IP69 / IP69K waterproof structure for long-term underwater use
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K / ISO9001
Environmental Certification	Mercury-free and pollution-free, avoiding damage to underwater ecology
Center Hole	42 / 50 mm
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	1.8 kg
Illumination Data	Lux/Eavg distance table from 1m to 10m; beam angle chart available in catalogue page 27-28.
Luminous Flux Output	535.3 lm
Effective Beam Angle	31.40°
Outlet Size	42 / 50 mm
Material	AIS304 stainless steel standard / AIS316 optional

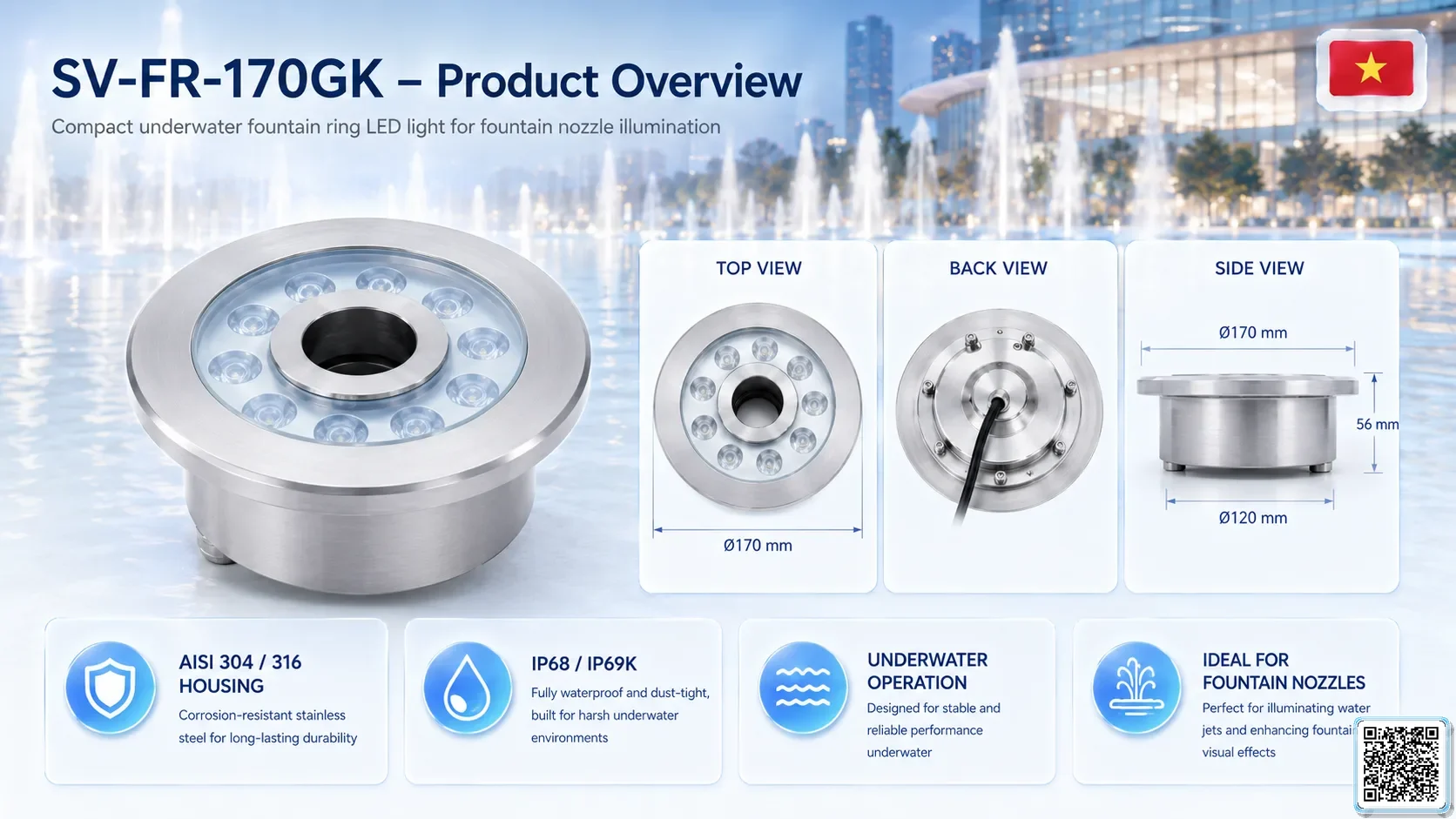

Dimensions	Outer Ø170 mm body; Lamp body: 170G body; Height: 80.5 mm / 84.5 mm

Project Integration

Professional fountain ring light for dry fountain, center-jet and interactive water-show projects. Best for:

Project-ready:

Dry-deck fountain jets
Center-hole nozzle lighting
RGB/DMX synchronized water effects
Plaza, park, hotel and resort fountains.
Stainless-steel waterproof construction
Center-hole and beam options for nozzle matching
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision DMX and control cabinet workflow. SmartVision can support nozzle-light matching, quantity calculation, cable routing, control cabinet planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

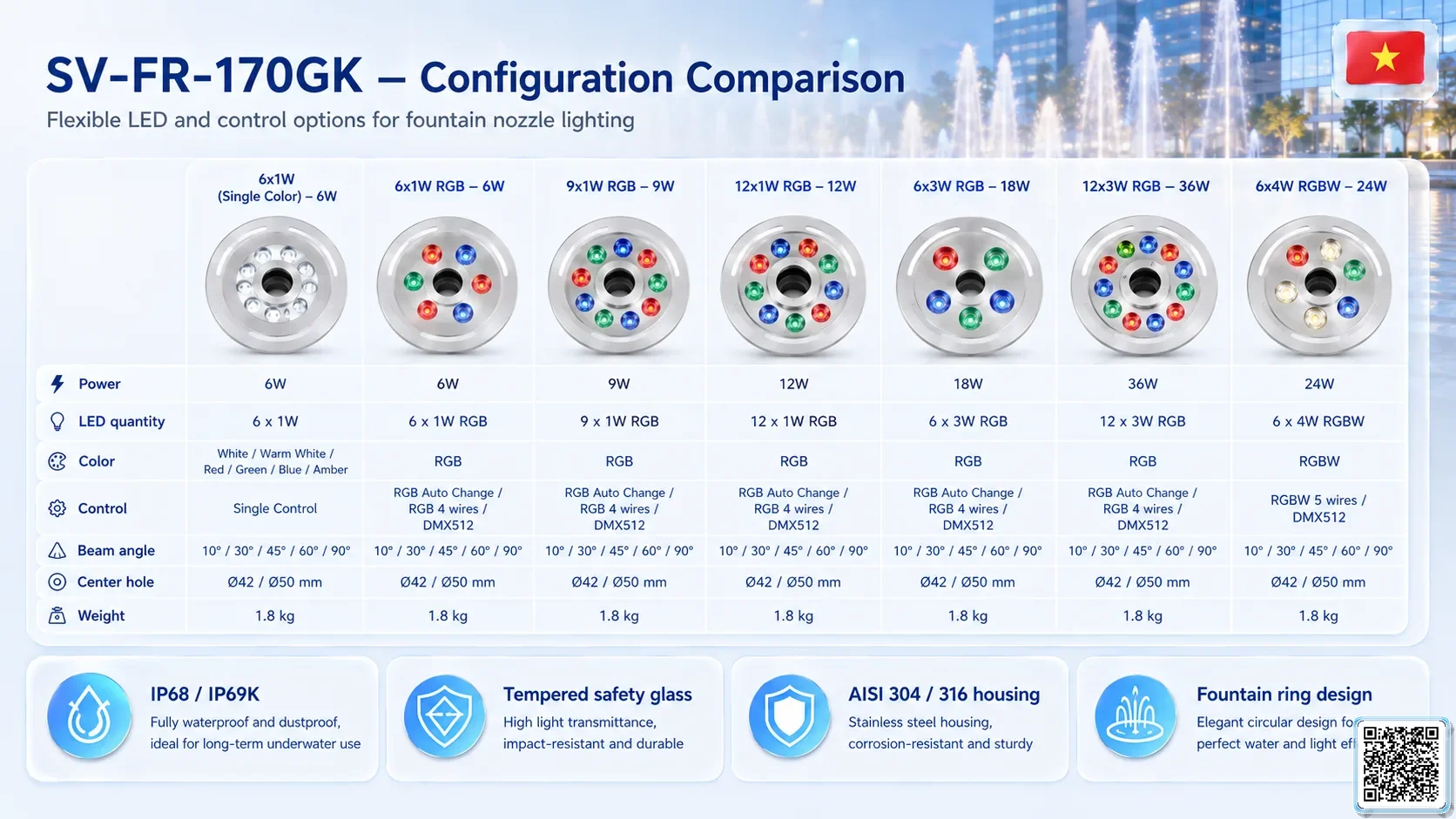

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 10

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
6x1W Single Color SV-FR-170GK-6X1WSC	-	6W	AC/DC12V / AC/DC24V	Single Control	-	42 / 50 mm	10° / 30° / 45° / 60° / 90°
6x1W SV-FR-170GK-6X1W	3	6W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	370	42 / 50 mm	10° / 30° / 45° / 60° / 90°
6x1W RGB SV-FR-170GK-6X1WRGB	3	6W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	370	42 / 50 mm	10° / 30° / 45° / 60° / 90°
9x1W SV-FR-170GK-9X1W	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	560	42 / 50 mm	10° / 30° / 45° / 60° / 90°
9x1W RGB SV-FR-170GK-9X1WRGB	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	560	42 / 50 mm	10° / 30° / 45° / 60° / 90°
12x1W SV-FR-170GK-12X1W	3	12W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	746	42 / 50 mm	10° / 30° / 45° / 60° / 90°
12x1W RGB SV-FR-170GK-12X1WRGB	3	12W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	746	42 / 50 mm	10° / 30° / 45° / 60° / 90°
6x3W RGB SV-FR-170GK-6X3WRGB	3	18W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1122	42 / 50 mm	10° / 30° / 45° / 60° / 90°
12x3W RGB SV-FR-170GK-12X3WRGB	3	36W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	2298	42 / 50 mm	10° / 30° / 45° / 60° / 90°
6x4W RGBW SV-FR-170GK-6X4WRGBW	4	24W	AC/DC24V	RGBW 5 wires / DMX512	1725	42 / 50 mm	10° / 30° / 45° / 60° / 90°
