● UNDERWATER LED LIGHT

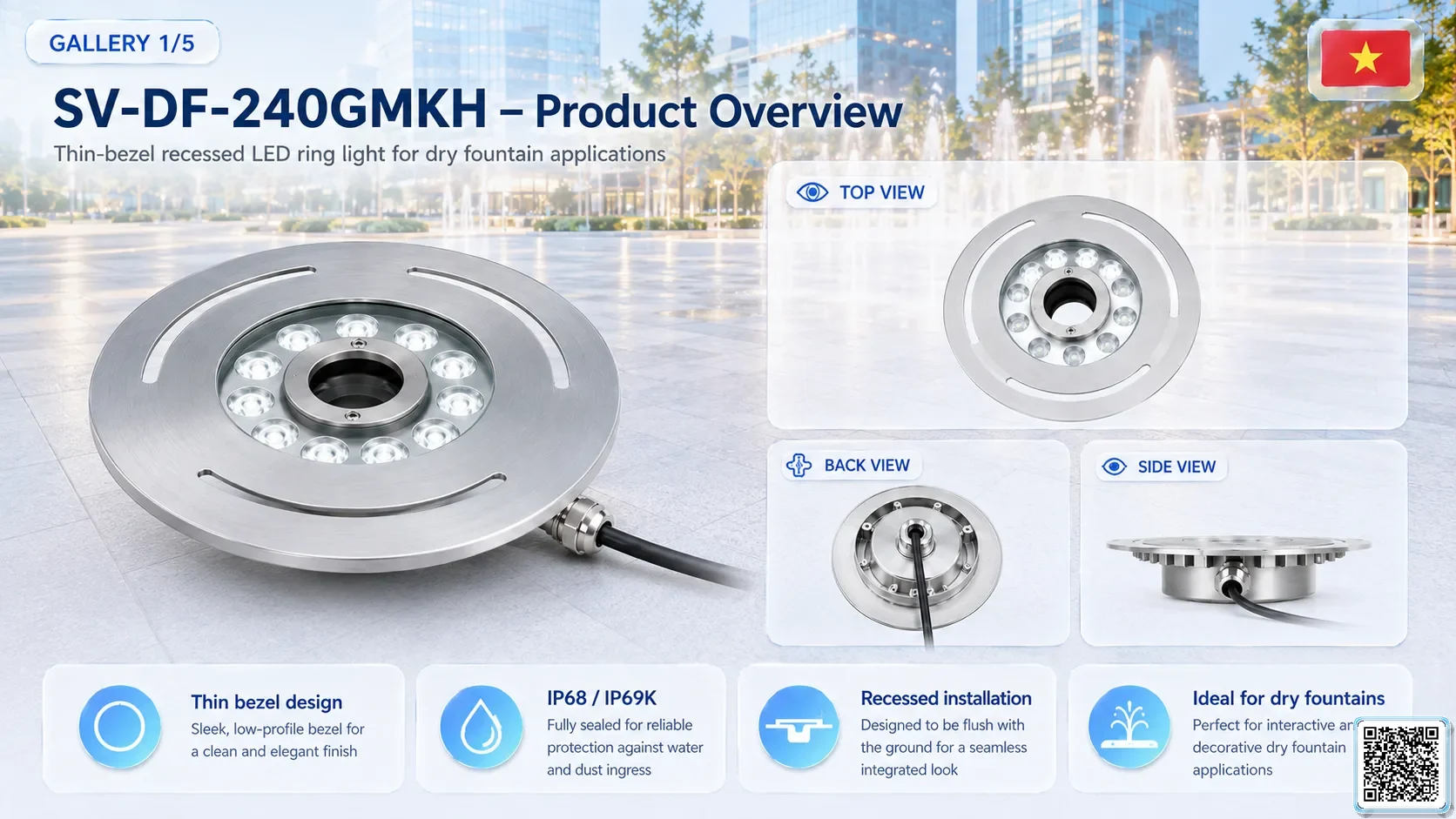

SV-DF-240GMKHHigh Power Dry Fountain Ring LED Light

SV-DF-240GMKH is a stainless-steel dry fountain ring LED light for dry-deck fountains, plaza water features and musical fountain lighting projects.

underwater-lightsSV-DF-240GMKHRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 82⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Catalogue / CAD files are ready

Preview images are being updated, but the technical document files can be downloaded now.

⬇ Download Catalogue ▣ Download CAD drawing

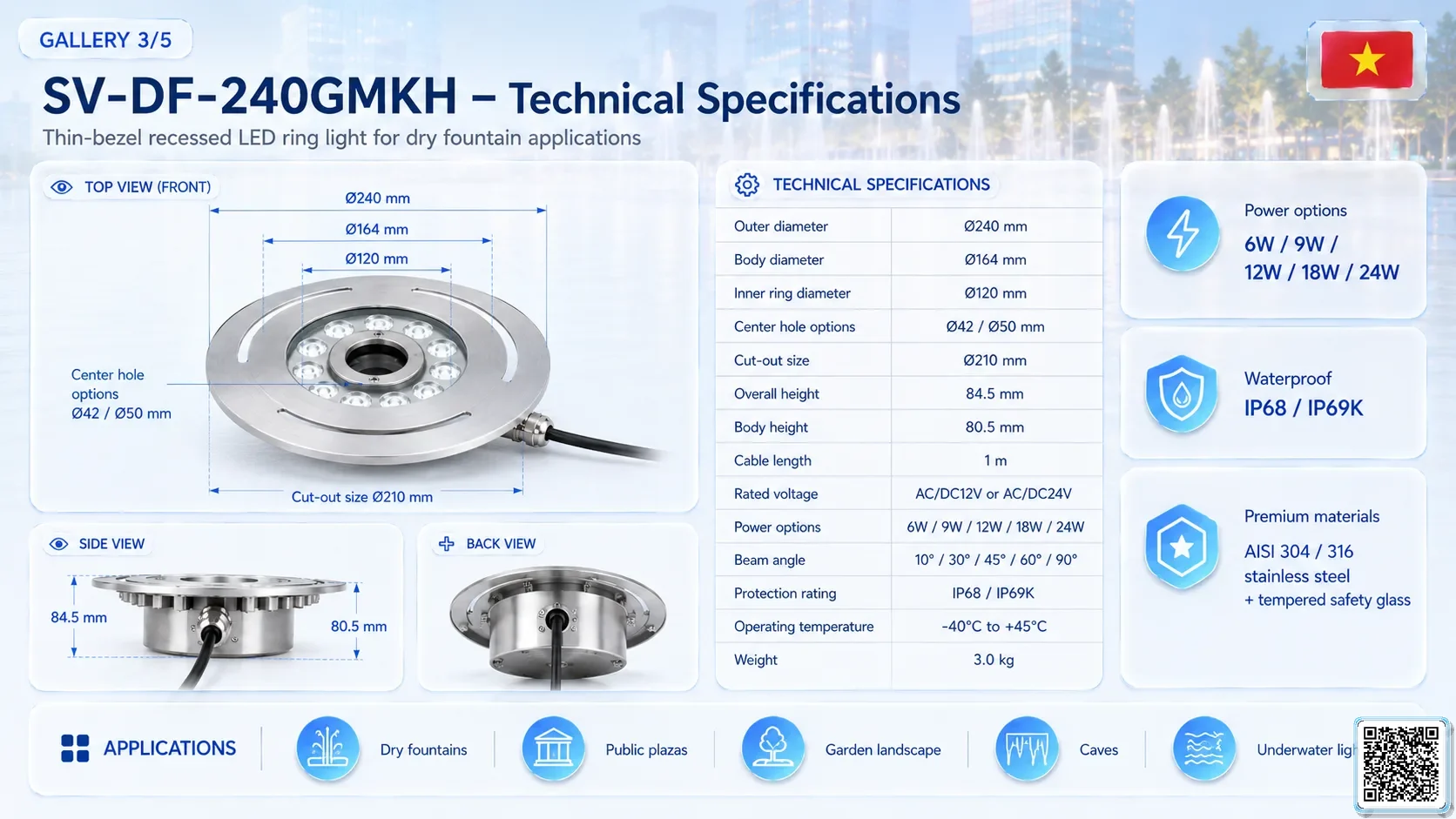

Technical Specifications

Series	Stainless Steel LED Fountain Ring Light For Dry Fountain Series
Installation Type	Dry fountain embedded / center-hole ring light installation
Cut Out Size	Φ210 mm
Lamp Body Size	240GMKH body
Height	Embedded dry fountain ring body
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	49-50
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Heat-resistant tempered safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Dry fountain / wet environment protection
Operating Temperature	-40°C ~ +55°C
Intelligent Control	PWM dimming / RGB Auto Change / DMX512 options
Waterproof Construction	IP68 / IP69 / IP69K sealed waterproof construction
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K
Environmental Certification	RoHS compliant / low-voltage LED lighting
Center Hole	42 / 50 / 65 mm
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	3.5 kg
Outlet Size	42 / 50 / 65 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	Outer Ø240 mm body; Lamp body: 240GMKH body

Project Integration

Professional fountain ring light for dry fountain, center-jet and interactive water-show projects. Best for:

Project-ready:

Dry-deck fountain jets
Center-hole nozzle lighting
RGB/DMX synchronized water effects
Plaza, park, hotel and resort fountains.
Stainless-steel waterproof construction
Center-hole and beam options for nozzle matching
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision DMX and control cabinet workflow. SmartVision can support nozzle-light matching, quantity calculation, cable routing, control cabinet planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

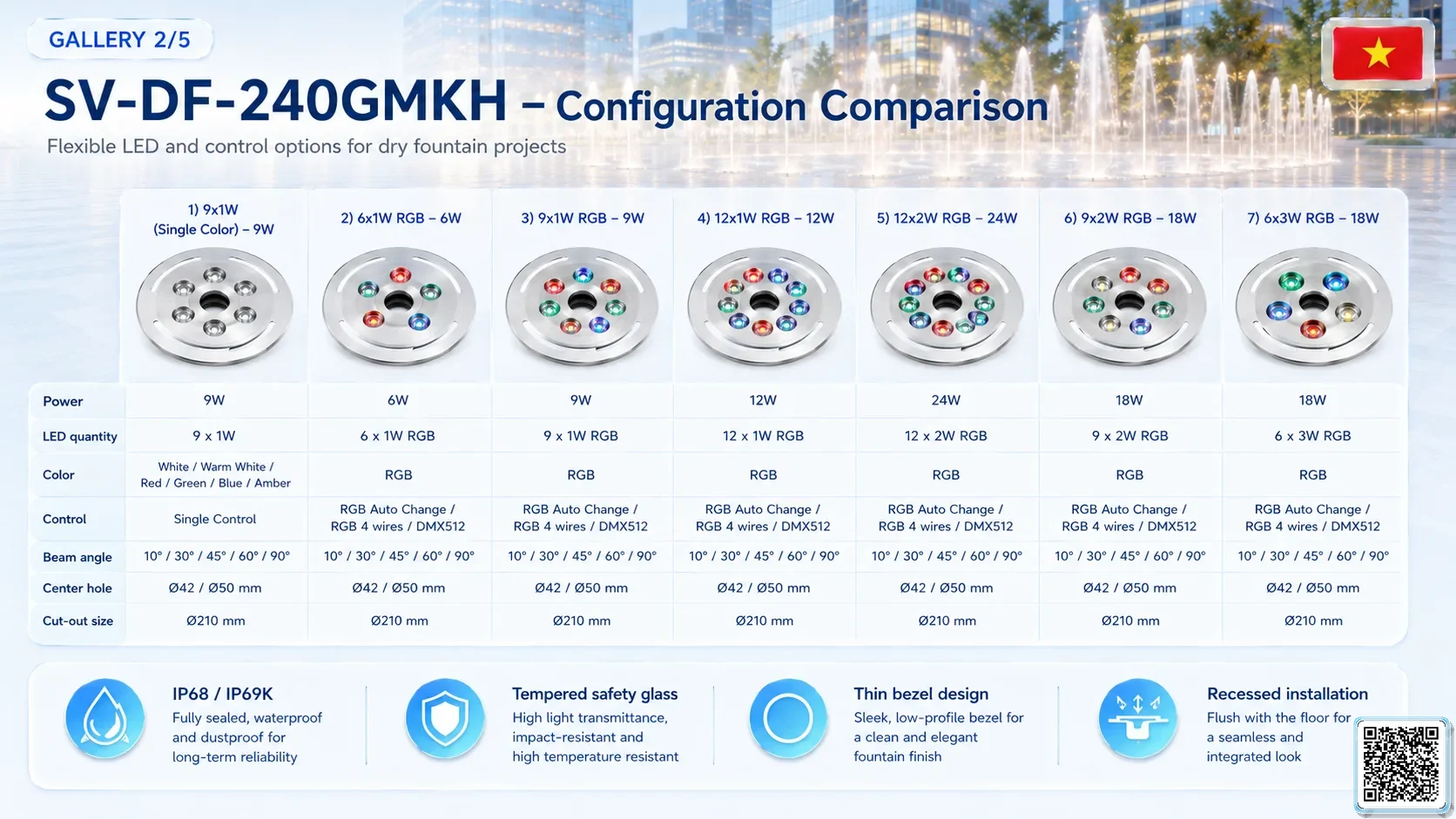

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 7

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
9x1W (Single Color) SV-DF-240GMKH-9X1W-SC	-	9W	AC/DC12V / AC/DC24V	Single Control		42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
6x1W SV-DF-240GMKH-6X1W-RGB	3	6W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	370	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
9x1W SV-DF-240GMKH-9X1W-RGB	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	560	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
12x1W SV-DF-240GMKH-12X1W-RGB	3	12W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	746	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
12x2W SV-DF-240GMKH-12X2W-RGB	3	24W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1335	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
9x2W SV-DF-240GMKH-9X2W-RGB	3	18W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	985	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°
6x3W RGB SV-DF-240GMKH-6X3W-RGB	3	18W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1122	42 / 50 / 65 mm	10° / 30° / 45° / 60° / 90°

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Professional dry fountain ring LED light with center-hole installation, RGB/RGBW and DMX512 options for SmartVision water show projects.

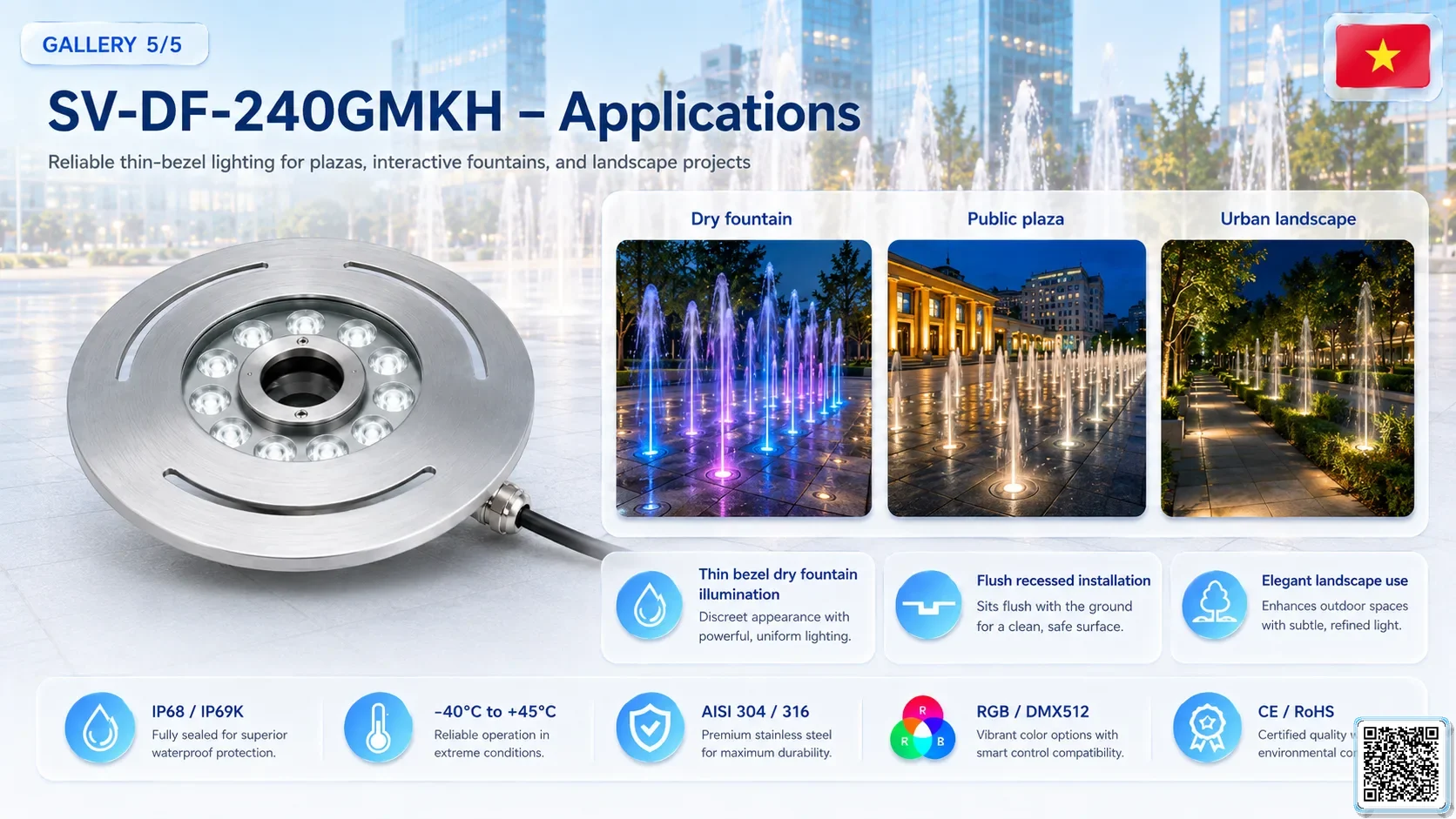

Applications

Dry deck fountains, interactive fountains, public plaza water shows, musical fountains, hotel and resort landscapes, commercial water features and architectural fountain lighting.

Key features

Dry fountain embedded ring design; center-hole installation; Φ210 mm cut-out reference; IP68/IP69/IP69K; RGB/RGBW and DMX512 variants; AISI304/AISI316 stainless steel; multiple beam angles; low-voltage fountain lighting.
